Hardware Monitors and Projectors Monitors and Displays

Monitors and Displays

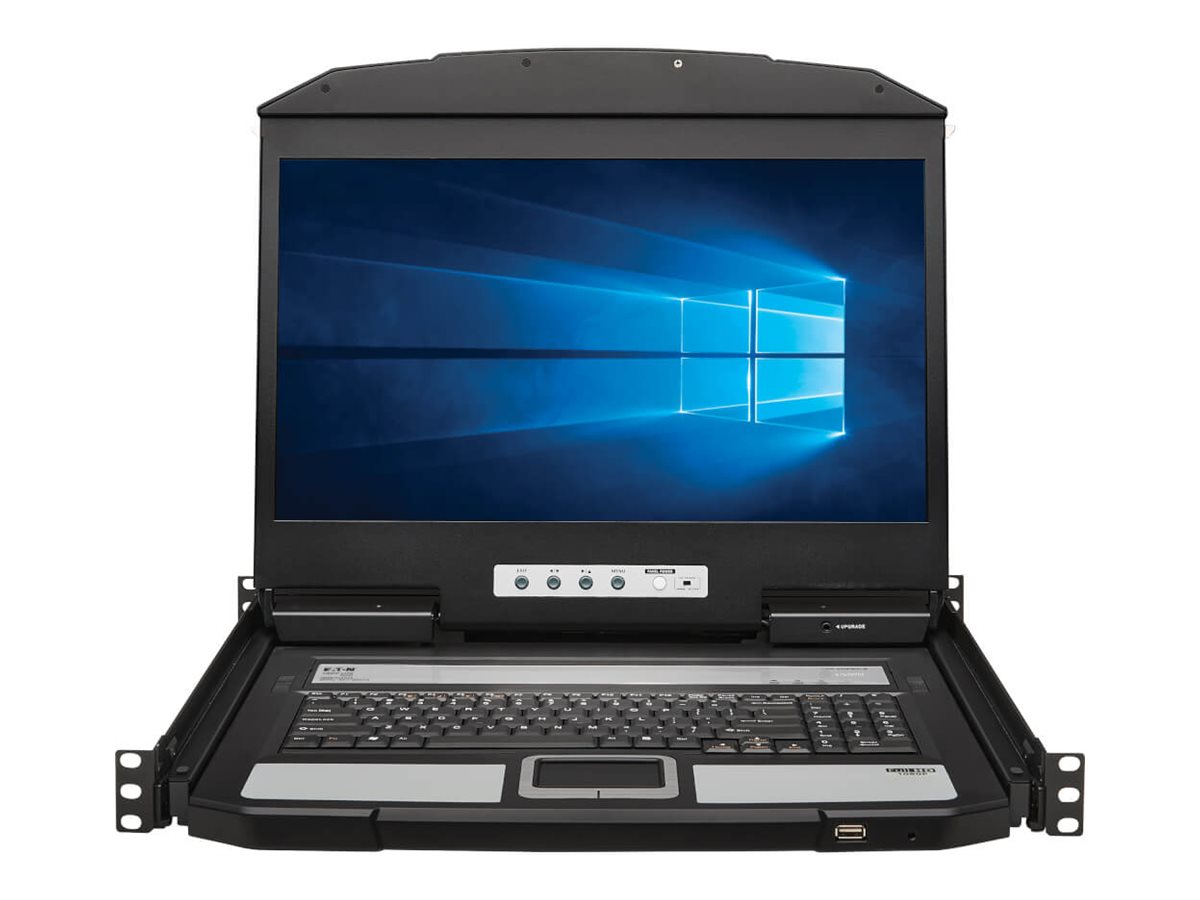

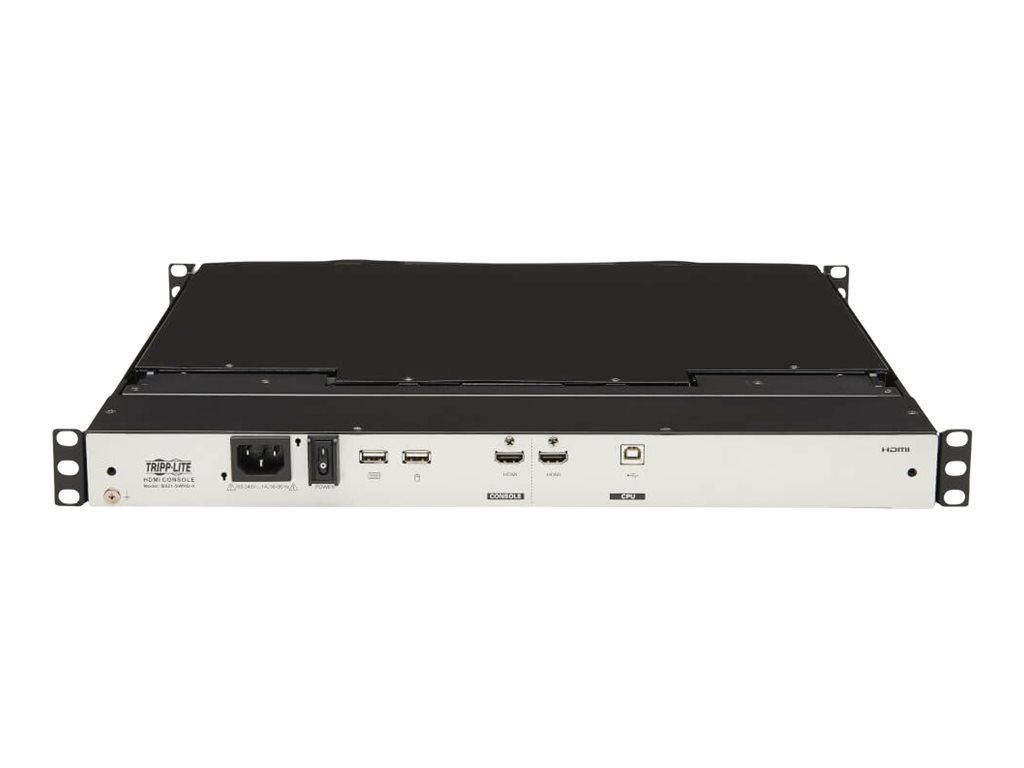

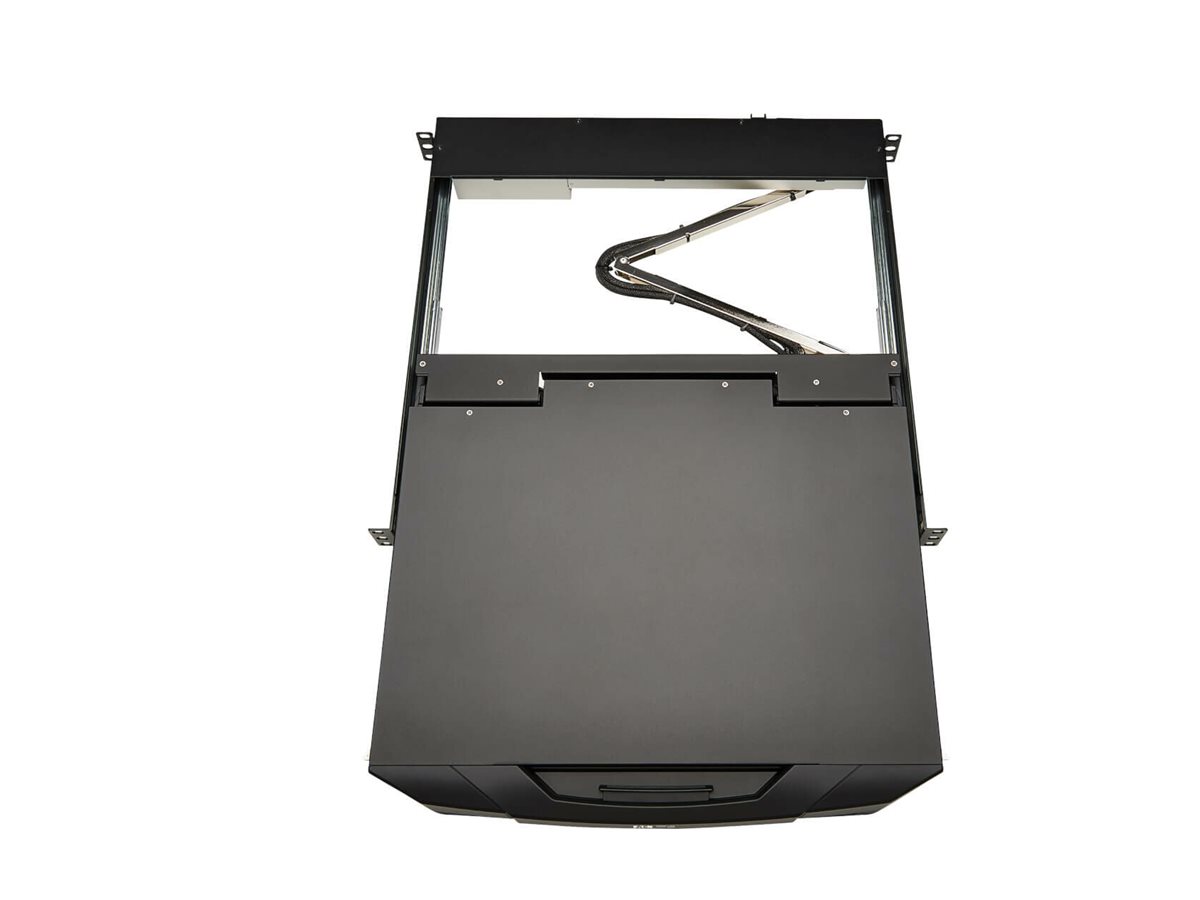

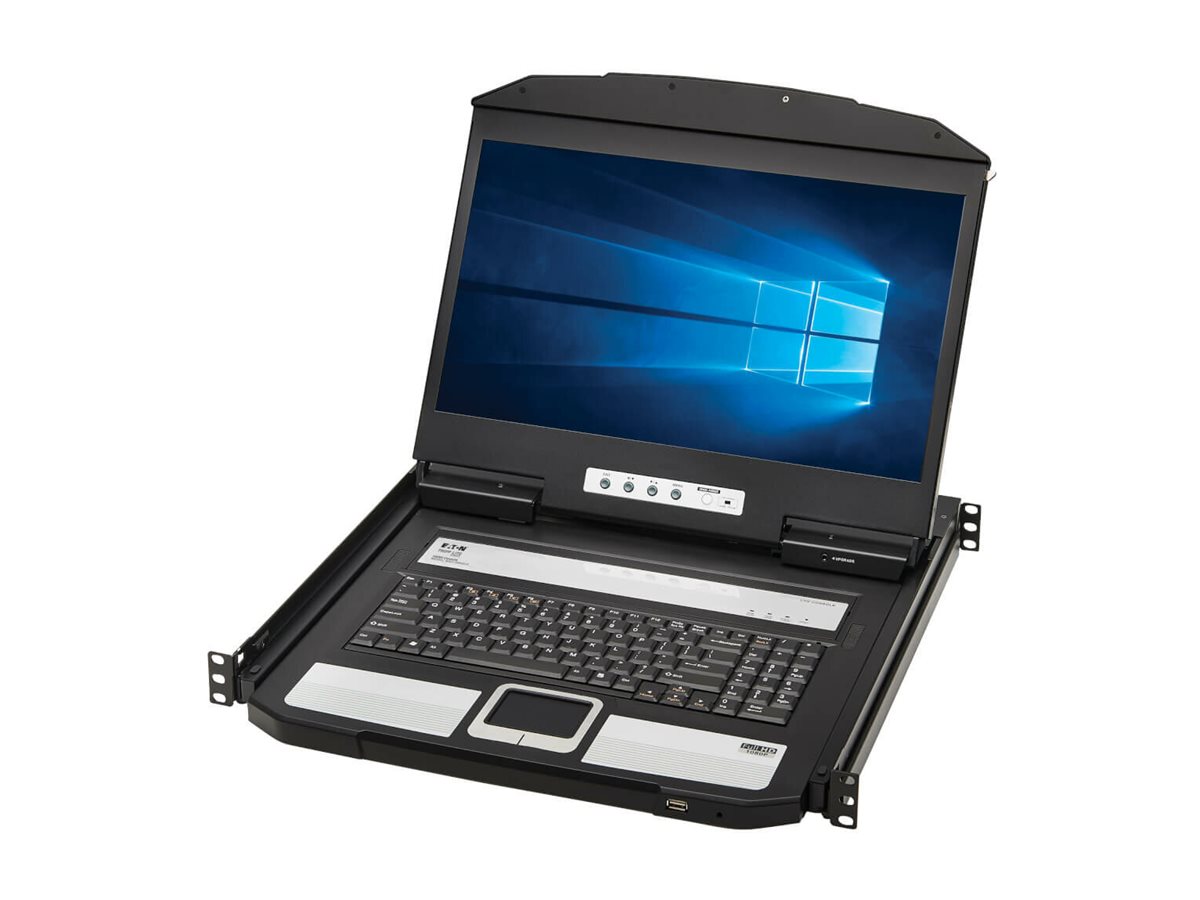

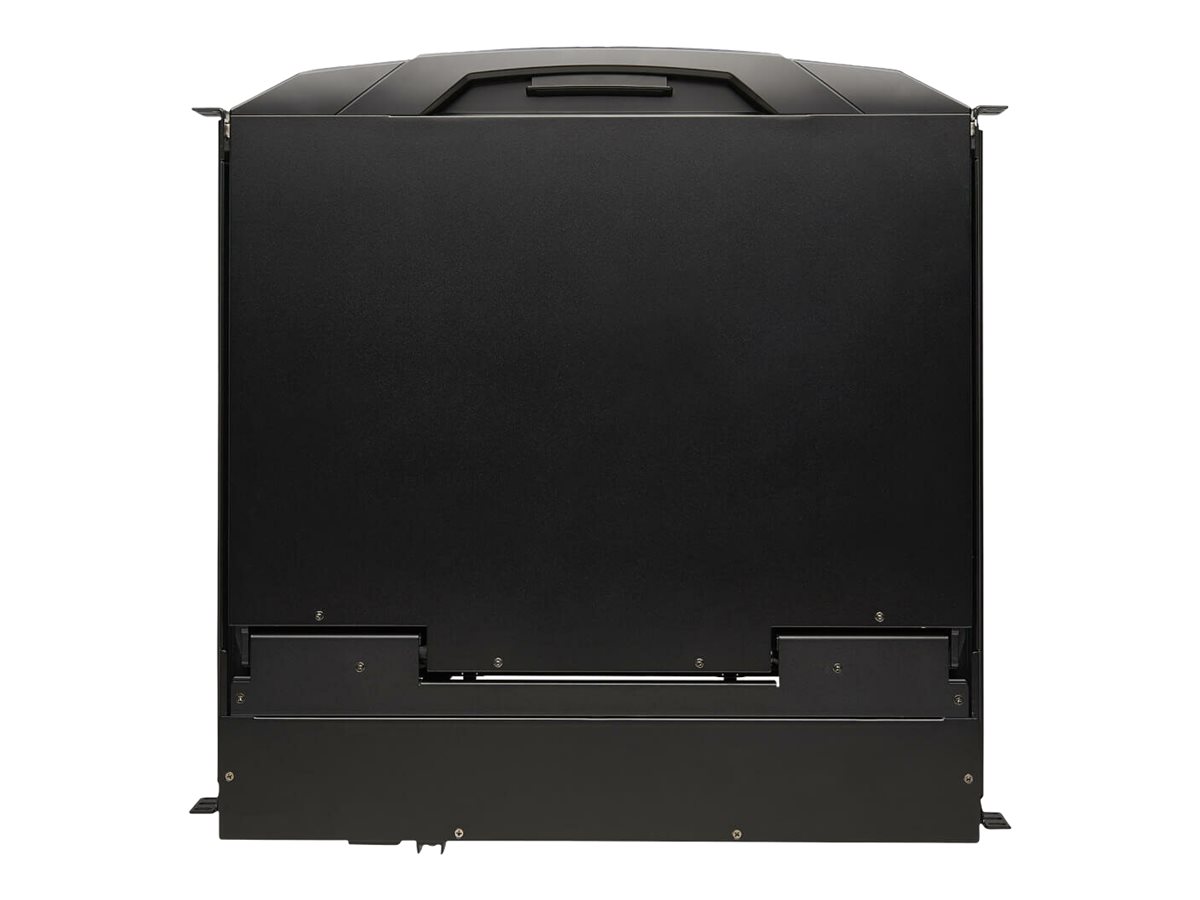

Eaton Tripp Lite Series KVM Console KVM Switch Short-Depth Rackmount w 18.5in LCD 1URM

$2,903.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM console 18.5" rack-mountable 1920 x 1080 Full HD (1080p) @ 60 Hz HDMI

Eaton Tripp Lite Series KVM Console KVM Switch Short-Depth Rackmount w 18.5in LCD 1URM

KVM console
18.5"
rack-mountable
1920 x 1080 Full HD (1080p) @ 60 Hz
HDMI
black
1U
for P/N: B024-DPU16, B024-HU16, UR020-003, UR020-006, UR020-010

Additional Details
Price:	$2,903.00
Mfr Part #:	B021-SWHD-K
SHI Part #:	45961843
Category:	Flat panel displays
UNSPSC:	43211902
Manufacturer:	Eaton
Product Type:	Hardware

Power Cables

Tripp Lite 10ft Computer Power Cord Cable 5-15P to C13 Heavy Duty 15A 14AWG 10'

Power cable
NEMA 5-15 (M) to IEC 60320 C13
AC 110 V
3 m
molded
black

$23.00

Tripp Lite 3ft Computer Power Cord Cable 5-15P to C13 Heavy Duty 15A 14AWG 3'

Power cable
NEMA 5-15 (M) to IEC 60320 C13
AC 110 V
91 cm
molded
black

$10.00

Tripp Lite 12ft Computer Power Cord Cable 5-15P to C13 Heavy Duty 15A 14AWG 12'

Power cable
NEMA 5-15 (M) to IEC 60320 C13
AC 110 V
3.7 m
molded
black

$45.00

General Information
Category	Flat panel displays
Description	Eaton Tripp Lite Series KVM Console KVM Switch Short-Depth Rackmount w 18.5in LCD 1URM - KVM console - 18.5" - rack-mountable - 1920 x 1080 Full HD (1080p) @ 60 Hz - HDMI - black - 1U - for P/N: B024-DPU16, B024-HU16, UR020-003, UR020-006, UR020-010
Manufacturer	Eaton
MSRP	$4,684.62
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	48 cm
Dimensions & Weight / Height	4.06 cm
Dimensions & Weight / Weight	9 kg
Dimensions & Weight / Width	47.5 cm
Display / Diagonal Size	18.5 in
Display / Diagonal Size (metric)	47 cm
Display / Interface	HDMI
Display / Native Resolution	1920 x 1080
Display / Type	KVM console
Header / Brand	Tripp Lite
Input Device / Type	Keyboard Keypad Touchpad
Miscellaneous / Compliant Standards	CAN/CSA-C22.2 No. 62368-1 FCC (USA) IEC 62368-1 Mexico NOM REACH RoHS3 UKCA UL 62368-1
Miscellaneous / Product Color	Black
Packaged Quantity	1
Service & Support / Type	1-year warranty
System Requirements / OS Required	Apple MacOS Linux SunOS Windows
Compatibility Information
Designed For	P/N: B024-DPU16, B024-HU16, UR020-003, UR020-006, UR020-010
Connectivity
Interfaces	HDMI 3 x USB
Dimensions & Weight (Shipping)
Shipping Weight	13.89 kg
Environmental Parameters
Humidity Range Operating	0 - 80%
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
General
Color	Black
Diagonal Size	18.5"
Dimensions (WxDxH)	47.5 cm x 48 cm x 4.06 cm
Display Type	KVM console / TFT active matrix
Features	OSD controller
Height (Rack Units)	1U
Native Resolution	Full HD (1080p) 1920 x 1080 at 60 Hz
Weight	9 kg
Input
Type	Keyboard, touchpad, keypad
KVM
Max Resolution	1920 x 1080 @ 60 Hz
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous

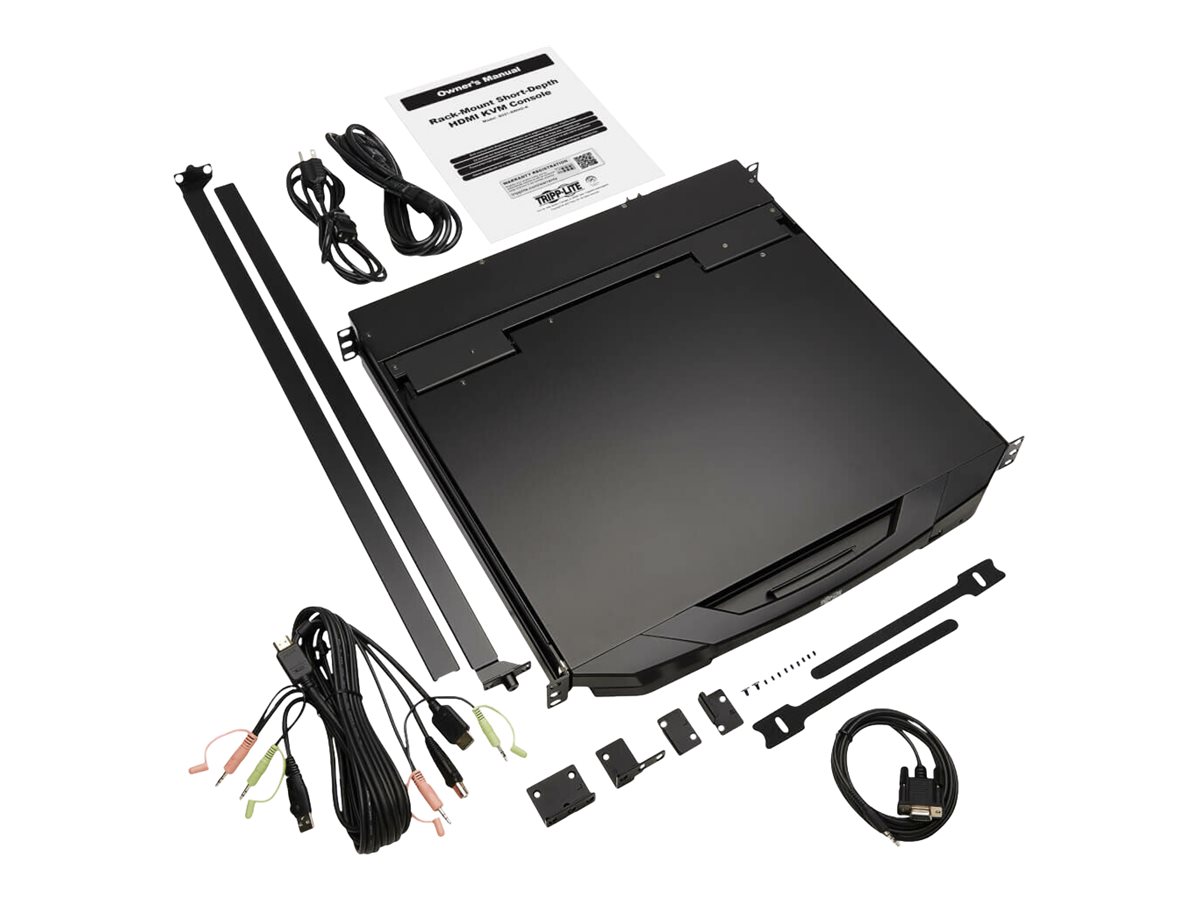

Cables Included	1 x keyboard / mouse / video / HDMI / USB cable kit
Compliant Standards	CAN/CSA-C22.2 No. 62368-1, FCC (USA), IEC 62368-1, Mexico NOM, REACH, RoHS3, UKCA, UL 62368-1
Features	3 LED indicators, USB pass-through connector
Included Accessories	C13 to NEMA 5-15P power cord, C13 to C14 power cord, DB9 stereo firmware upgrade cable
Rack Mounting Kit	Included
Power
Input Voltage	AC 100-240 V (50/60 Hz)
Software / System Requirements
OS Required	Windows, Apple MacOS, Linux, SunOS
