Hardware Monitors and Projectors Monitors and Displays

Monitors and Displays

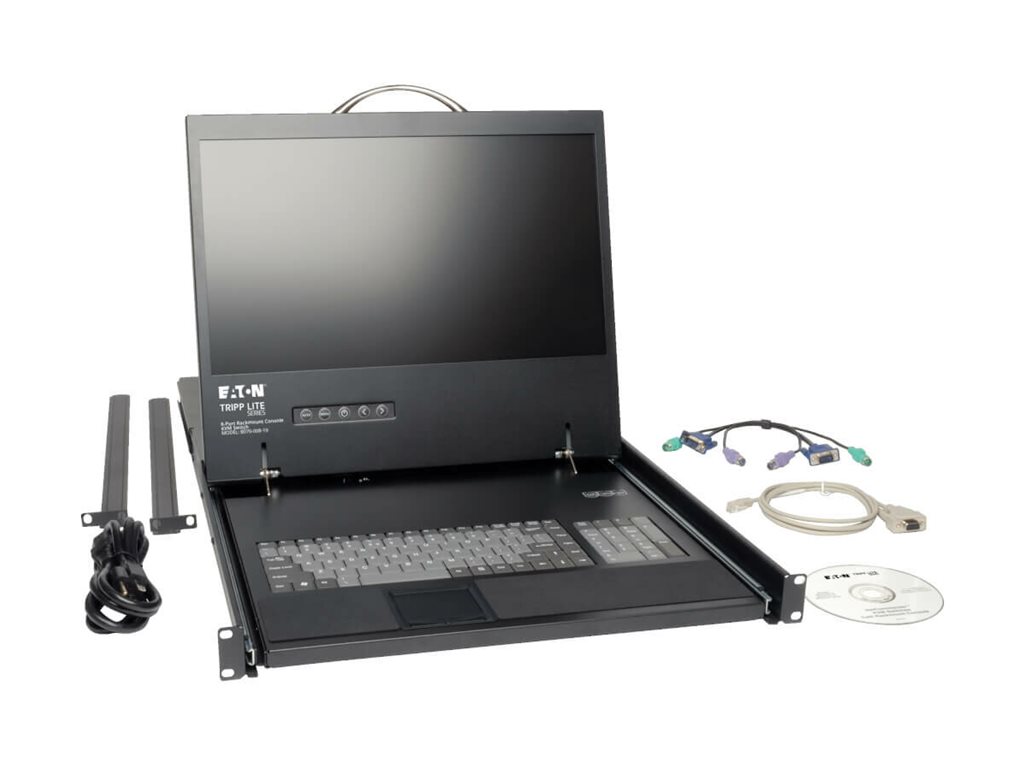

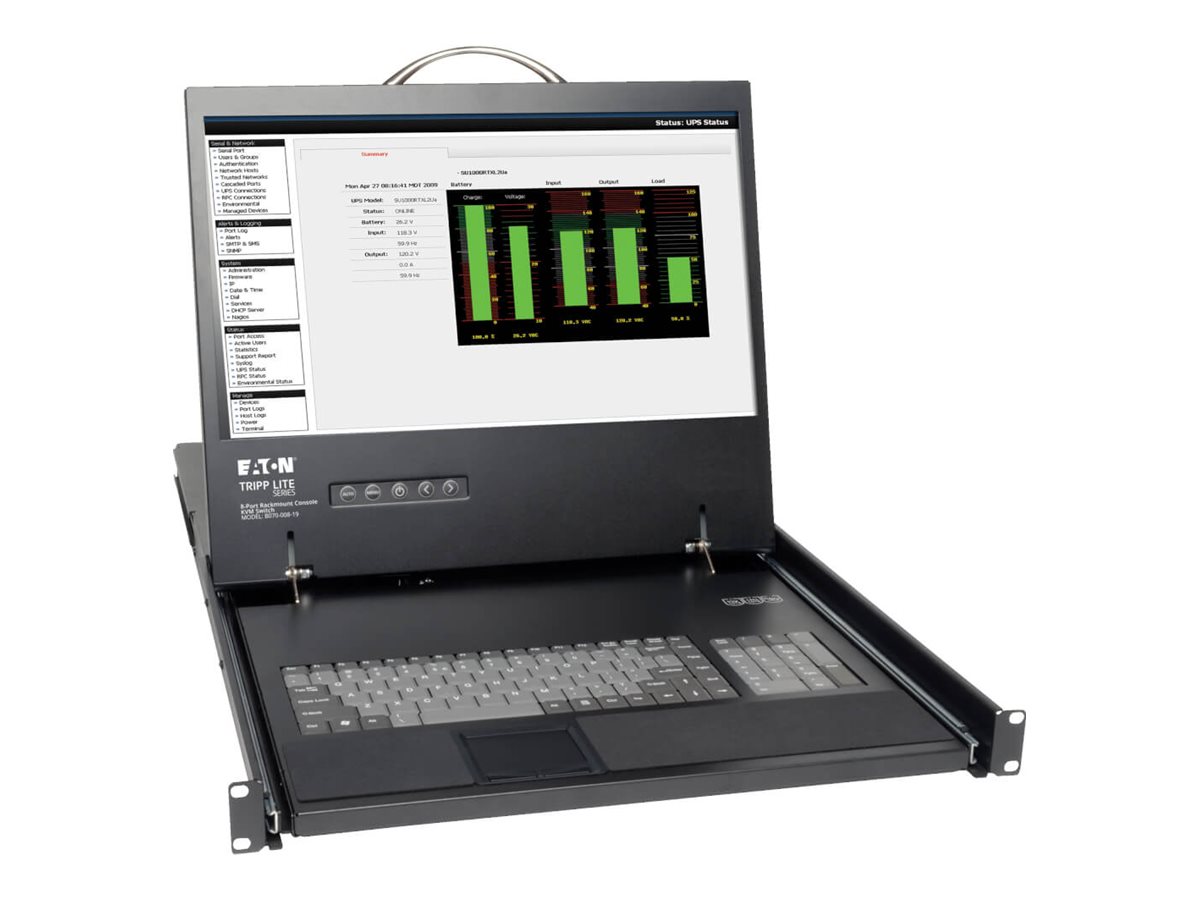

Tripp Lite 8-Port Rack Console Cat5 KVM Switch 1U RM 19" LCD Rackmount

$2,277.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM console with KVM switch 8 ports PS/2 19" rack-mountable

Tripp Lite 8-Port Rack Console Cat5 KVM Switch 1U RM 19" LCD Rackmount

KVM console with KVM switch
8 ports
PS/2
19"
rack-mountable
1280 x 1024 @ 60 Hz
VGA
black
1U

Additional Details
Price:	$2,277.00
Mfr Part #:	B070-008-19
SHI Part #:	22452953
Category:	Flat panel displays
UNSPSC:	43211902
Manufacturer:	Eaton
Product Type:	Hardware

Saves Space and Money

? Combines 8-port KVM switch, 19" LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium

? Mounts into 19"-wide rack, 27"-42" deep; can be mounted in 2-post rack with B019-000

? Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use

? Eliminates need to buy costly monitors, keyboards and mice for each computer/server

? Uses inexpensive Cat5e/6/6a Cables

? Low-cost cables lets you locate servers up to 100 ft. from the switch

? Use a plug-and-play Server Interface Unit, B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable

? For computers with Displayport or HDMI, change to VGA using adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

Simplifies IT Tasks

? Switch easily between the 8 ports via on-screen display or keyboard hot key commands

? Hot pluggable; add or remove USB computers without having to power down the switch

? Auto-scan mode automatically sequences through all active ports accessible to the user

Large 19" LCD

? Extra-wide display makes multitasking easier

? Supports video resolutions up to 1366 x 768

? DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD

Multi-Level Password Security

? Multi-level password security limits access to authorized users (administrator, supervisor or user)

? Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

? Expandable - Cascade a second level of KVM switches to control up to 128 servers from a single station using B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.

? Compatible with all major operating systems for easy integration into your existing structure

? Firmware is upgradable with included cable and utility

? Heavy-duty steel housing stands up to frequent use

TAA Compliant

? Complies with the Federal Trade Agreements Act for GSA Schedule purchases.

Audio/Video Cables

Tripp Lite 10ft Cat6 Gigabit Snagless Molded Patch Cable RJ45 M/M Gray 10'

Patch cable
RJ-45 (M) to RJ-45 (M)
3 m
UTP
CAT 6
molded, snagless, stranded

$8.00

Tripp Lite 25ft Cat6 Gigabit Snagless Molded Patch Cable RJ45 M/M Gray 25'

Patch cable
RJ-45 (M) to RJ-45 (M)
7.6 m
UTP
CAT 6
molded, snagless, stranded

$15.00

Tripp Lite USB Server Interface Unit 8 Pack KVM Switch HD15 USB RJ45 TAA

Keyboard / video / mouse / USB adapter
HD-15 (VGA) (M) to USB, RJ-45 (pack of 8)

$1,204.00

Control/Interface Boards

Tripp Lite USB Single Server Interface Unit Virtual Media KVM Switch HD15 USB RJ45 TAA

KVM extender
up to 30 m

$153.00

Tripp Lite PS/2 Server Interface Module for B070 & B072 KVM Switches

KVM extender

$133.00

General Information
Category	Flat panel displays
Description	Tripp Lite 8-Port Rack Console Cat5 KVM Switch 1U RM 19" LCD Rackmount - KVM console with KVM switch - 8 ports - PS/2 - 19" - rack-mountable - 1280 x 1024 @ 60 Hz - VGA - black - 1U
Manufacturer	Eaton
MSRP	$3,713.92
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	68.1 cm
Dimensions & Weight / Height	4.3 cm
Dimensions & Weight / Weight	16.3 kg
Dimensions & Weight / Width	48.3 cm
Display / Diagonal Size	19 in
Display / Diagonal Size (metric)	48.3 cm
Display / Interface	VGA (HD-15)
Display / Native Resolution	1280 x 1024
Display / Type	KVM console
Header / Brand	Tripp Lite
Input Device / Type	Keyboard Mouse Touchpad
Miscellaneous / Compliant Standards	CSA FCC Part 15 A IEC 60950-1 NOM RoHS UL 60950-1
Miscellaneous / Product Color	Black
Networking / Ports Qty	8
Networking / Type	KVM switch
Packaged Quantity	1
Service & Support / Type	1-year warranty
System Requirements / OS Required	Apple MacOS Linux Microsoft DOS Microsoft Windows UNIX
Compatibility Information
Designed For	P/N: B072-008-1, B072-008-1A, B072-016-1, B072-016-1A, B072-016-1-IP, B078-101-PS2, B078-101-USB-1
Connectivity
Interfaces	8 x KVM (RJ-45) Network (RJ-45) 2 x VGA 2 x mouse (PS/2) 2 x keyboard (PS/2)
Environmental Parameters
Humidity Range Operating	0 - 80% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
General
Built-in Devices	8-port KVM switch
Color	Black
Diagonal Size	19"
Dimensions (WxDxH)	48.3 cm x 68.1 cm x 4.3 cm
Display Type	KVM console / TFT active matrix
Height (Rack Units)	1U
Native Resolution	1280 x 1024 at 60 Hz
Weight	16.3 kg
Input
Type	Mouse, keyboard, touchpad
KVM
Keyboard / Mouse Interface	PS/2
Max Cascading Depth	2
Max Resolution	1280 x 1024 @ 60 Hz
Type	KVM switch - 8 ports
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Cables Included	1 x serial cable 1 x keyboard / mouse / video cable
Compliant Standards	CSA, NOM, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A
Features	Hot keys, hot-swappable
Rack Mounting Kit	Included
Power
Input Voltage	AC 120/230 V (50/60 Hz)
Power Supply	Internal
Software / System Requirements
OS Required	Microsoft DOS, UNIX, Apple MacOS, Linux, Microsoft Windows
