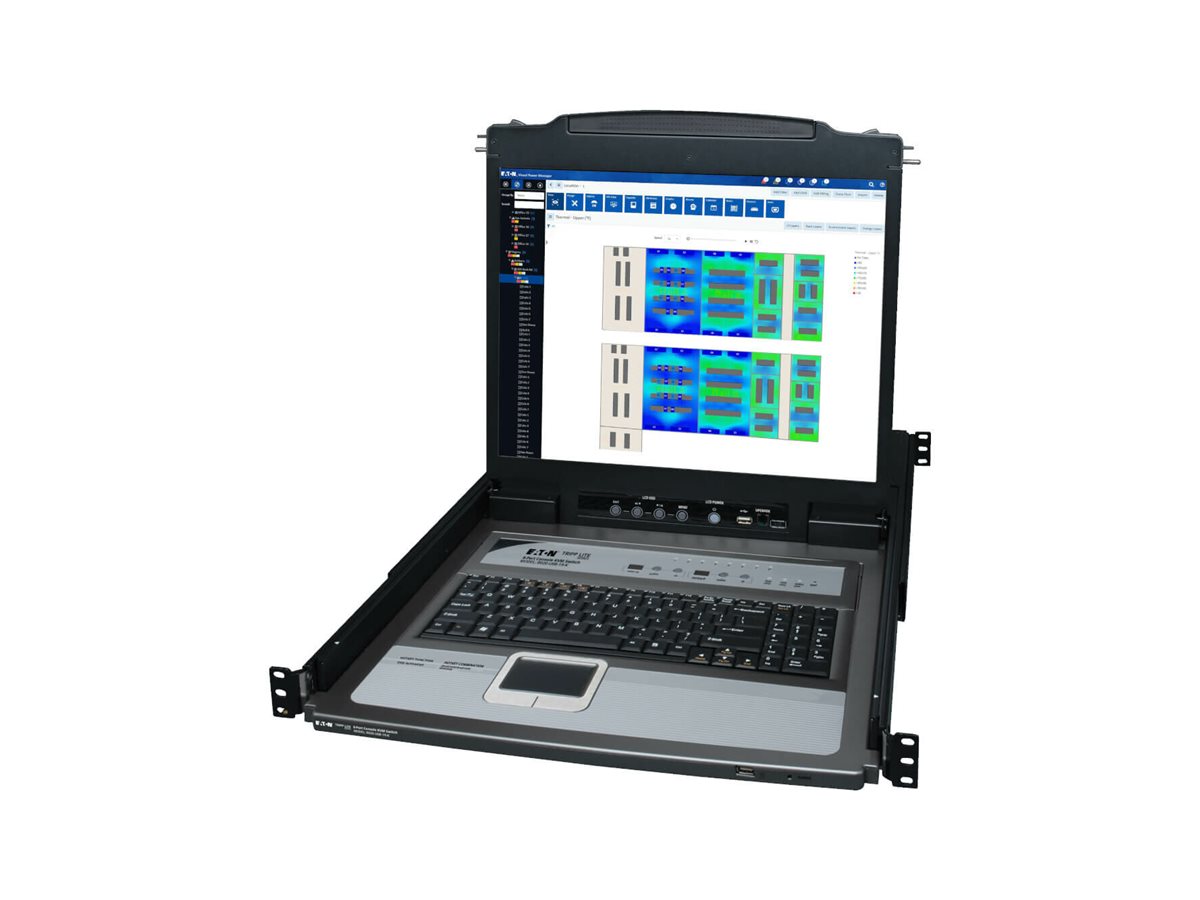

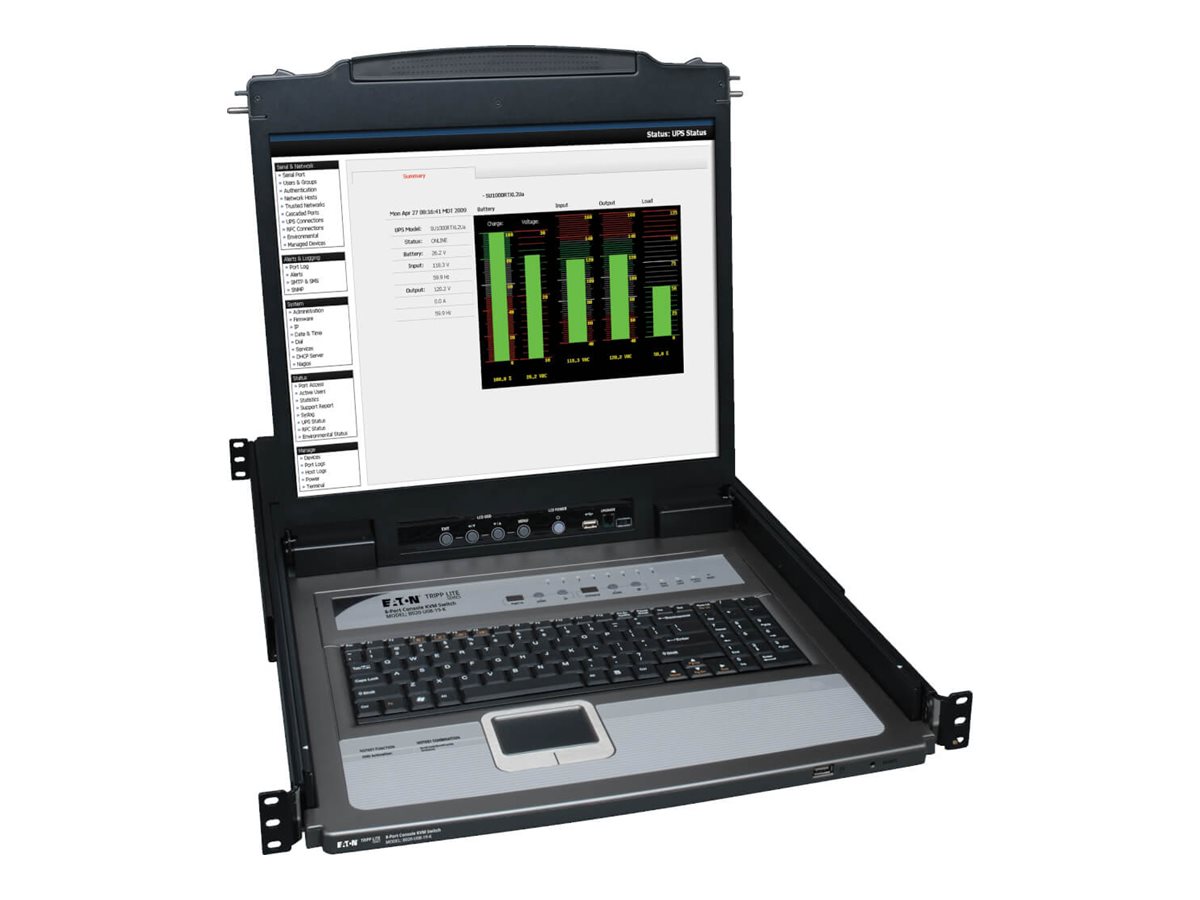

Tripp Lite 8-Port Rack Console KVM Switch w/19" LCD & 8 PS2/USB Cables 1U

$2,505.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM console with KVM switch 8 ports 19" rack-mountable 1280 x 1024 @ 75 Hz

Tripp Lite 8-Port Rack Console KVM Switch w/19" LCD & 8 PS2/USB Cables 1U

KVM console with KVM switch
8 ports
19"
rack-mountable
1280 x 1024 @ 75 Hz
VGA
black
1U

Additional Details
Price:	$2,505.00
Mfr Part #:	B020-U08-19-K
SHI Part #:	20354726
Category:	Flat panel displays
UNSPSC:	43211902
Manufacturer:	Eaton
Product Type:	Hardware

Saves Space and Money

? Combines an 8-port KVM switch, 19" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer

? Mounts into 19"-wide rack, 26"-38" deep

? Control up to 8 servers from a single, easily accessible console – ideal when rack space is at a premium

? Includes eight P778-Series cables that support computers with either PS/2 or USB connections

? Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use

? Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server

Simplifies IT Tasks

? Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese

? Hot pluggable; add or remove computers without having to power down the switch

? Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19" LCD

? Extra-wide display makes multitasking easier

? Supports video resolutions up to 1280 x 1024

? DDC emulation allows optimal output to the LCD

Multi-Level Password Security

? Enhances security by limiting access to an administrator and up to 4 local users

? Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

? Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches

? A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit

? An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers

? Compatible with all major operating systems for easy integration into your existing structure

? Firmware is upgradable with included cable and utility

? Heavy-duty steel housing stands up to frequent use.

Audio/Video Cables

Tripp Lite 6ft USB / PS2 Cable Kit for KVM Switches B020-U08 / U16 & B022-U16 6'

Keyboard / video / mouse (KVM) cable
USB, PS/2, HD-15 (VGA) (M)
1.8 m
molded
black

$38.00

Eaton Tripp Lite Series VGA to DisplayPort and USB-A Adapter Cable Kit for Tripp Lite B020-U and B022-U KVM, 6 ft. (1.8m)

Adapter cable
USB, DisplayPort (M) to HD-15 (VGA) (M)
DisplayPort 1.1
1.8 m
1080p support
black

$116.00

Tripp Lite 10ft USB / PS2 Cable Kit for KVM Switch B020-U08 / U16 10'

Keyboard / video / mouse / USB cable
18 pin SPHD (M) to USB, PS/2, HD-15 (VGA) (M)
3 m
black

$46.00

Storage Networking (SAN)

Tripp Lite 24U Rack Enclosure Server Cabinet 33" Deep w/ Doors & Sides

Rack cabinet
black
24U
19"

$1,561.00

Tripp Lite 2 Post Console KVM Rackmount Kit, B020,B021,B040, B070 Consoles

Rack mounting kit
black powder

$150.00

General Information
Category	Flat panel displays
Description	Tripp Lite 8-Port Rack Console KVM Switch w/19" LCD & 8 PS2/USB Cables 1U - KVM console with KVM switch - 8 ports - 19" - rack-mountable - 1280 x 1024 @ 75 Hz - VGA - black - 1U
Manufacturer	Eaton
MSRP	$4,265.33
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	68.6 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	13.9 kg
Dimensions & Weight / Width	43.2 cm
Display / Diagonal Size	19 in
Display / Diagonal Size (metric)	48.3 cm
Display / Interface	VGA (HD-15)
Display / Native Resolution	1280 x 1024
Display / Type	KVM console
Header / Brand	Tripp Lite
Input Device / Type	Keyboard Touchpad
Miscellaneous / Compliant Standards	CSA FCC FCC Part 15 A IEC 60950-1 RoHS UL 60950-1
Miscellaneous / Product Color	Black
Networking / Ports Qty	8
Networking / Type	KVM switch
Packaged Quantity	1
Service & Support / Type	1-year warranty
System Requirements / OS Required	Apple MacOS Linux Microsoft Windows Vista / 2000 / XP SunSoft Solaris
Connectivity
Interfaces	8 x KVM (SPHD-18) 2 x USB Management (RJ-11) Stacking (DB-25)
Environmental Parameters
Humidity Range Operating	0 - 80%
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
General
Built-in Devices	8-port KVM switch
Color	Black
Color Temperature	9300K, 6500K, 7500K
Controls & Adjustments	Brightness, contrast, H/V position, color temperature, phase, clock
Diagonal Size	19"
Dimensions (WxDxH)	43.2 cm x 68.6 cm x 4.4 cm
Display Type	KVM console / TFT active matrix
Height (Rack Units)	1U
Native Resolution	1280 x 1024 at 75 Hz
Weight	13.9 kg
Input
Type	Keyboard, touchpad
KVM
Max Cascading Depth	504
Max Resolution	1280 x 1024 @ 75 Hz
Type	KVM switch - 8 ports
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Cables Included	8 x keyboard / mouse / video / USB cable - 1.8 m
Compliant Standards	CSA, FCC, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A
Features	Administrator password
Rack Mounting Kit	Included
Power
Input Voltage	AC 120/230 V (50/60 Hz)
Power Supply	Internal
Software / System Requirements
OS Required	SunSoft Solaris, Apple MacOS, Linux, Microsoft Windows Vista / 2000 / XP
