Tripp Lite 16-Port Rack Console Cat5 KVM Switch 1U RM 19" LCD Rackmount

$2,683.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM console with KVM switch 16 ports 19" rack-mountable 1366 x 768 @ 75 Hz

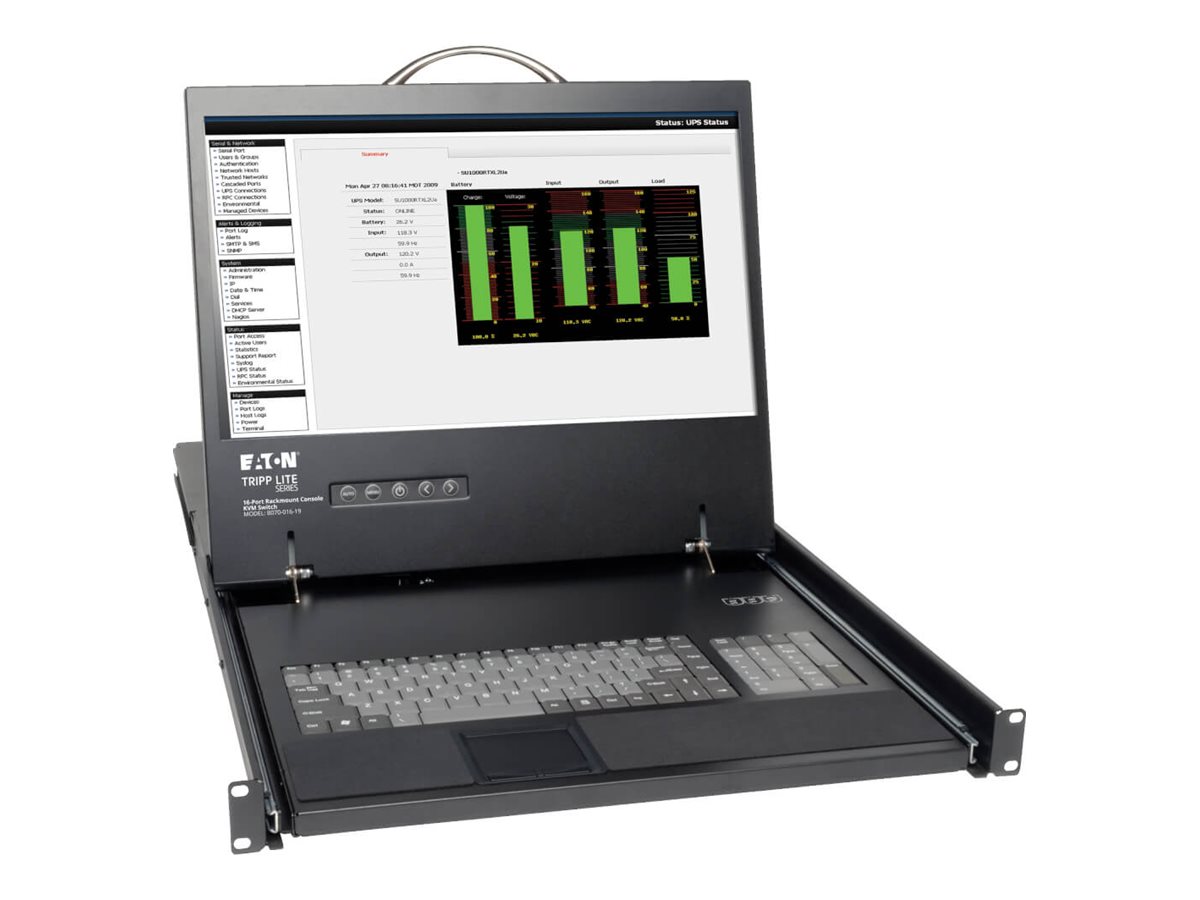

Tripp Lite 16-Port Rack Console Cat5 KVM Switch 1U RM 19" LCD Rackmount

KVM console with KVM switch
16 ports
19"
rack-mountable
1366 x 768 @ 75 Hz
VGA
black
1U

Additional Details
Price:	$2,683.00
Mfr Part #:	B070-016-19
SHI Part #:	20332411
Category:	Flat panel displays
UNSPSC:	43211902
Manufacturer:	Eaton
Product Type:	Hardware

Saves Space and Money

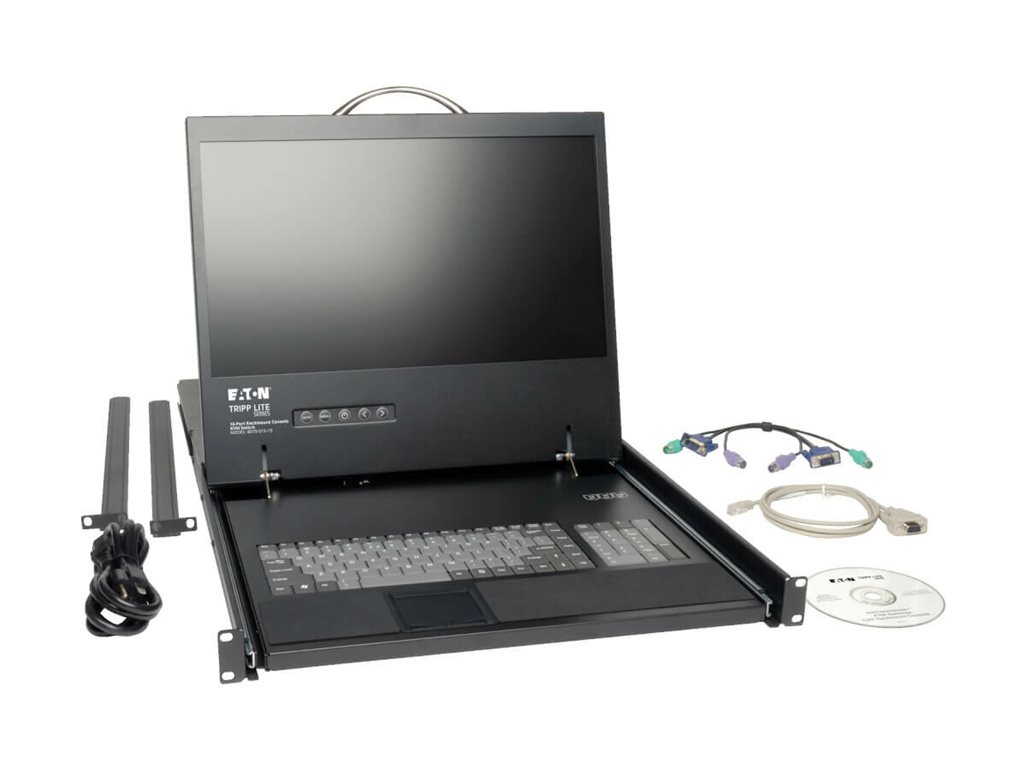

? Combines 16-port KVM switch, 19" LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium

? Mounts into 19"-wide rack, 27"-42" deep; can be mounted in 2-post rack with B019-000

? Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use

? Eliminates need to buy costly monitors, keyboards and mice for each computer/server

Uses inexpensive Cat5e/6/6a Cables

? Low-cost cables lets you locate servers up to 100 ft. from the switch

? Use plug-and-play Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable

? For computers with Displayport or HDMI, change to VGA using adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

Simplifies IT Tasks

? Switch easily between the 16 ports via on-screen display or keyboard hot key commands

? Hot pluggable; add or remove USB computers without having to power down the switch

? Auto-scan mode automatically sequences through all active ports accessible to the user

Large 19" LCD

? Extra-wide display makes multitasking easier

? Supports video resolutions up to 1366 x 768

? DDC emulation allows optimal output to the LCD

Multi-Level Password Security

? Multi-level password security limits access to authorized users (administrator, supervisor or user)

? Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

? Expandable - Cascade a second level of KVM switches to control up to 256 servers from a single station using B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.

? Compatible with all major operating systems for easy integration into your existing structure

? Firmware is upgradable with included cable and utility

? Heavy-duty steel housing stands up to frequent use

TAA Compliant

? Complies with the Federal Trade Agreements Act for GSA Schedule purchases.

Audio/Video Cables

Tripp Lite 10ft Cat6 Gigabit Snagless Molded Patch Cable RJ45 M/M Gray 10'

Patch cable
RJ-45 (M) to RJ-45 (M)
3 m
UTP
CAT 6
molded, snagless, stranded

$8.00

Tripp Lite 25ft Cat6 Gigabit Snagless Molded Patch Cable RJ45 M/M Gray 25'

Patch cable
RJ-45 (M) to RJ-45 (M)
7.6 m
UTP
CAT 6
molded, snagless, stranded

$15.00

Tripp Lite USB Server Interface Unit 8 Pack KVM Switch HD15 USB RJ45 TAA

Keyboard / video / mouse / USB adapter
HD-15 (VGA) (M) to USB, RJ-45 (pack of 8)

$1,204.00

Control/Interface Boards

Tripp Lite USB Single Server Interface Unit Virtual Media KVM Switch HD15 USB RJ45 TAA

KVM extender
up to 30 m

$153.00

Tripp Lite PS/2 Server Interface Module for B070 & B072 KVM Switches

KVM extender

$133.00

General Information
Category	Flat panel displays
Description	Tripp Lite 16-Port Rack Console Cat5 KVM Switch 1U RM 19" LCD Rackmount - KVM console with KVM switch - 16 ports - 19" - rack-mountable - 1366 x 768 @ 75 Hz - VGA - black - 1U
Manufacturer	Eaton
MSRP	$4,568.61
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	68.1 cm
Dimensions & Weight / Height	4.3 cm
Dimensions & Weight / Weight	16.3 kg
Dimensions & Weight / Width	48.3 cm
Display / Diagonal Size	19 in
Display / Diagonal Size (metric)	48.3 cm
Display / Interface	VGA (HD-15)
Display / Native Resolution	1366 x 768
Display / Type	KVM console
Header / Brand	Tripp Lite
Input Device / Type	Keyboard Mouse
Miscellaneous / Product Color	Black
Networking / Ports Qty	16
Networking / Type	KVM switch
Packaged Quantity	1
Service & Support / Type	1-year warranty
System Requirements / OS Required	Apple MacOS BSD/OS Linux Microsoft DOS Microsoft Windows 2000 Microsoft Windows 95 Microsoft Windows 98 Microsoft Windows 98 Second Edition Microsoft Windows Millennium Edition Microsoft Windows NT Microsoft Windows Server 2003 Microsoft Windows Vista Microsoft Windows XP UNIX
Compatibility Information
Designed For	P/N: B072-008-1, B072-008-1A, B072-016-1, B072-016-1A, B072-016-1-IP, B078-101-PS2, B078-101-USB-1
Connectivity
Interfaces	VGA
Environmental Parameters
Humidity Range Operating	0 - 80%
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
General
Color	Black
Diagonal Size	19"
Dimensions (WxDxH)	48.3 cm x 68.1 cm x 4.3 cm
Display Type	KVM console / TFT active matrix
Height (Rack Units)	1U
Native Resolution	1366 x 768 at 75 Hz
Weight	16.3 kg
Input
Type	Mouse, keyboard
KVM
Max Resolution	1600 x 1200 @ 75 Hz
Type	KVM switch - 16 ports
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Power
Input Voltage	AC 120/230 V (50 - 60 Hz)
Power Supply	Internal
Software / System Requirements
OS Required	Microsoft DOS, Microsoft Windows 95, Microsoft Windows 98, UNIX, Apple MacOS, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows 2000, BSD/OS, Microsoft Windows NT, Microsoft Windows Millennium Edition, Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows Vista
