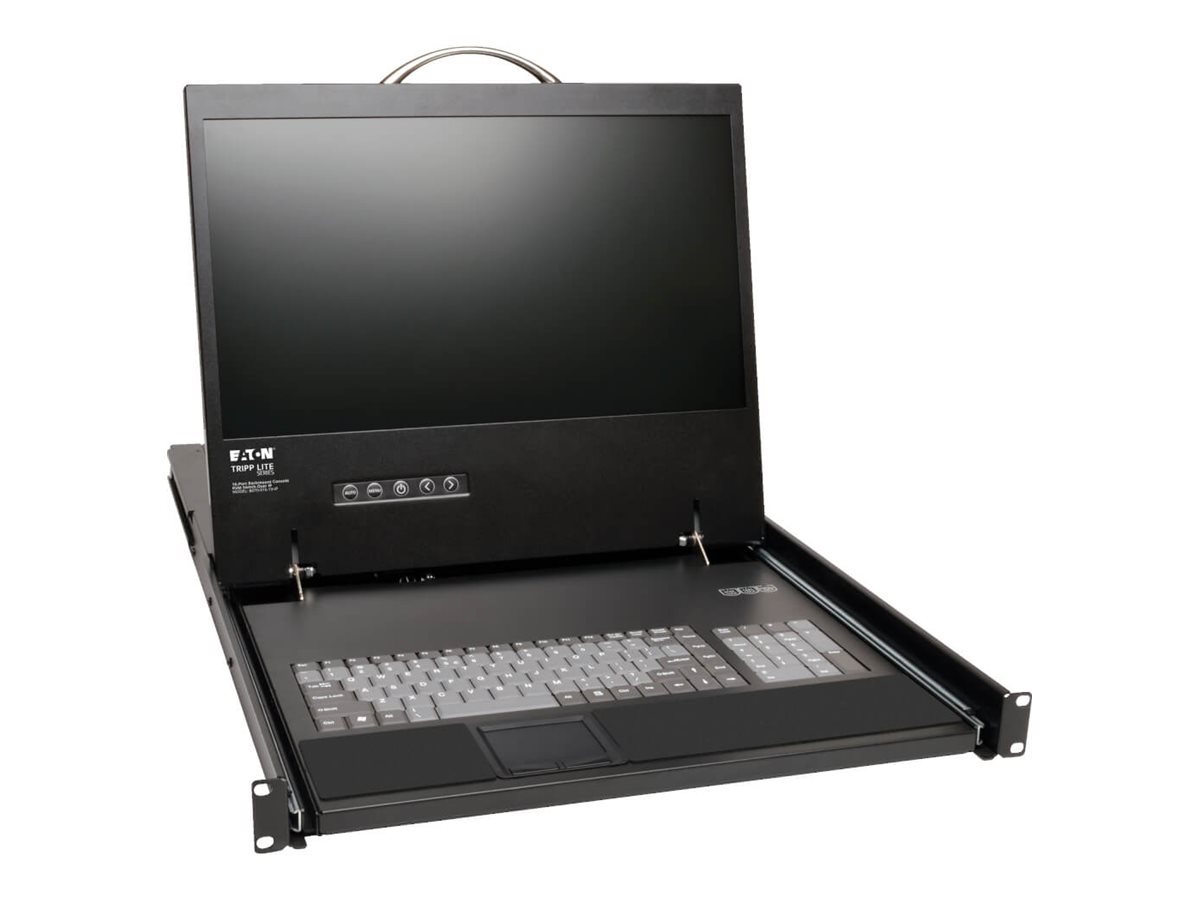

Tripp Lite 16-Port IP Rack Console Cat5 KVM Switch 19" LCD 1+1 User 1URM

$3,092.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM console with KVM switch 16 ports PS/2 19" rack-mountable

Tripp Lite 16-Port IP Rack Console Cat5 KVM Switch 19" LCD 1+1 User 1URM

KVM console with KVM switch
16 ports
PS/2
19"
rack-mountable
1366 x 768 @ 60 Hz
black
1U

Additional Details
Price:	$3,092.00
Mfr Part #:	B070-016-19-IP
SHI Part #:	20254561
Category:	Flat panel displays
UNSPSC:	43211902
Manufacturer:	Eaton
Product Type:	Hardware

Saves Space and Money

? Combines 16-port KVM switch, 19" LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer

? Mounts into 19"-wide rack, 27"-42" deep; to mount in a 2-post rack, use B019-000

? Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch

? Use a Server Interface Unit, B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable

? To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room

? Remote access means there's no need to travel to the server room or network closet

? Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection

? A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java

? 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session

? Supports both IPv4 and IPv6

? Free Management Software available to Access and Control all of your NetCommander IP KVM's (B070 and B072 IP series) from a single interface

Simplifies IT Tasks

? On-screen display, hot keys and remote toolbar for easy use

? 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers

? Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port

? Virtual Media allows a .iso file to be mounted to a target server and accessed as if it were directly stored on it

? Fast Virtual Media KVM System patented under Pat. No. US 9,417,720

? System-sent messages to SNMP server notify you of LAN failures

? Supports RADIUS and LDAP/S authentication

? Log tracks events on your installation

Large 19" LCD

? Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely

? DDC emulation allows for optimal output to LCD

Advanced Security Features

? Multi-level password protection: create administrator accounts with full access and user accounts with limited access

? Supports TLS 1.2 security protocol

? You can install SSL certificates to ensure secure transactions between web servers and browsers

Long-Lasting Reliability

? Flash-upgradeable firmware over the network

? Heavy-duty steel housing stands up to use

TAA Compliant

? Complies with the Federal Trade Agreements Act for GSA Schedule purchases.

Audio/Video Cables

Tripp Lite USB Server Interface Unit 8 Pack KVM Switch HD15 USB RJ45 TAA

Keyboard / video / mouse / USB adapter
HD-15 (VGA) (M) to USB, RJ-45 (pack of 8)

$1,204.00

Tripp Lite USB (2) Server Interface Unit Virtual Media KVM Switch HD15 USB RJ45

Keyboard / video / mouse / USB adapter
HD-15 (VGA) (M) to USB, RJ-45

$205.00

Tripp Lite 7ft Cat6 Gigabit Molded Shielded Patch Cable STP RJ45 M/M Gray 7'

Patch cable
RJ-45 (M) to RJ-45 (M)
2.1 m
STP
CAT 6
molded, stranded

$11.00

Control/Interface Boards

Tripp Lite USB Single Server Interface Unit Virtual Media KVM Switch HD15 USB RJ45 TAA

KVM extender
up to 30 m

$153.00

Tripp Lite PS/2 Server Interface Module for B070 & B072 KVM Switches

KVM extender

$133.00

General Information
Category	Flat panel displays
Description	Tripp Lite 16-Port IP Rack Console Cat5 KVM Switch 19" LCD 1+1 User 1URM - KVM console with KVM switch - 16 ports - PS/2 - 19" - rack-mountable - 1366 x 768 @ 60 Hz - black - 1U
Manufacturer	Eaton
MSRP	$5,042.18
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	68.1 cm
Dimensions & Weight / Height	4.3 cm
Dimensions & Weight / Weight	17 kg
Dimensions & Weight / Width	48.3 cm
Display / Diagonal Size	19 in
Display / Diagonal Size (metric)	48.3 cm
Display / Native Resolution	1366 x 768
Display / Type	KVM console
Header / Brand	Tripp Lite
Input Device / Type	Keyboard Mouse Touchpad
Miscellaneous / Compliant Standards	128-bit SSL CSA FCC Part 15 A IEC 60950-1 RoHS UL 60950-1
Miscellaneous / Product Color	Black
Networking / Ports Qty	16
Networking / Type	KVM switch
Packaged Quantity	1
Service & Support / Type	1-year warranty
System Requirements / OS Required	Apple MacOS FreeBSD Linux Microsoft DOS Microsoft Windows 95/98/ME/2000/XP/Vista Microsoft Windows 98 Second Edition Microsoft Windows NT Microsoft Windows Server 2003 UNIX
Connectivity
Interfaces	16 x KVM (RJ-45) Network (RJ-45) 2 x VGA 2 x mouse (PS/2) 2 x keyboard (PS/2)
Environmental Parameters
Humidity Range Operating	0 - 80%
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
General
Built-in Devices	16-port KVM switch
Color	Black
Diagonal Size	19"
Dimensions (WxDxH)	48.3 cm x 68.1 cm x 4.3 cm
Display Type	KVM console / TFT active matrix
Height (Rack Units)	1U
Native Resolution	1366 x 768 at 60 Hz
Weight	17 kg
Input
Type	Mouse, keyboard, touchpad
KVM
Features	IP-based user connection
Keyboard / Mouse Interface	PS/2
Max Cascading Depth	2
Max Resolution	1920 x 1080 @ 60 Hz
Type	KVM switch - 16 ports
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Cables Included	1 x serial cable 1 x keyboard / mouse / video cable
Compliant Standards	CSA, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A, 128-bit SSL
Features	Hot keys, hot-swappable
Rack Mounting Kit	Included
Power
Input Voltage	AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Required	Microsoft DOS, UNIX, Apple MacOS, Microsoft Windows 98 Second Edition, Linux, FreeBSD, Microsoft Windows NT, Microsoft Windows Server 2003, Microsoft Windows 95/98/ME/2000/XP/Vista
