Tripp Lite 8-Port Rack Console KVM Switch built in IP w/ 19" LCD 1U

$4,487.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM console with KVM switch 8 ports 19" rack-mountable 1280 x 1024 @ 75 Hz

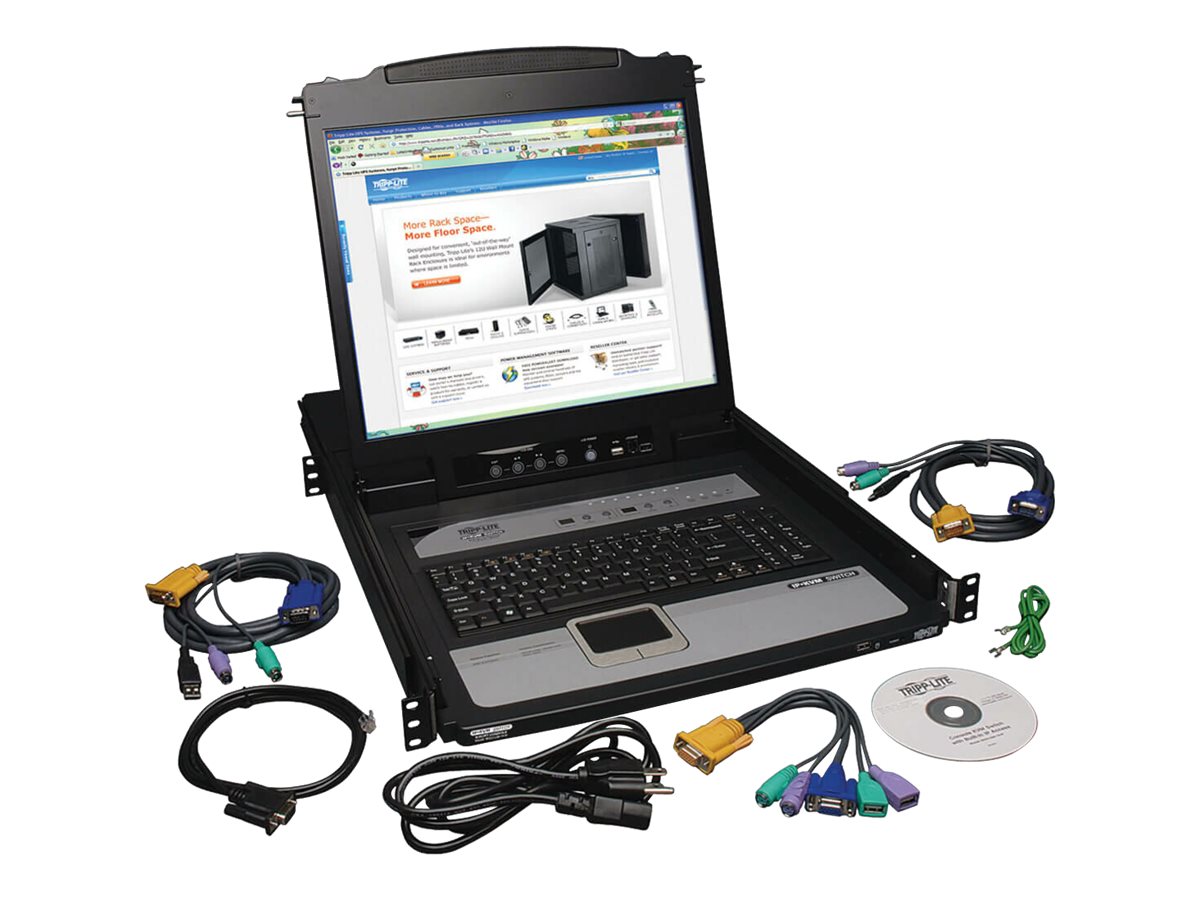

Tripp Lite 8-Port Rack Console KVM Switch built in IP w/ 19" LCD 1U

KVM console with KVM switch
8 ports
19"
rack-mountable
1280 x 1024 @ 75 Hz
VGA
black
1U

Additional Details
Price:	$4,487.00
Mfr Part #:	B020-U08-19-IP
SHI Part #:	21844511
Category:	Flat panel displays
UNSPSC:	43211902
Manufacturer:	Eaton
Product Type:	Hardware

Saves Space and Money

? Combines 8-port KVM switch, 19-in. LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium

? Mounts into 19"-wide rack, 26"-38" deep

? Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use

IP Remote Access for Fewer Trips to the Server Room

? Remote access offers convenience of controlling servers from anywhere…no need to travel to the server room or network closet

? Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping

Simplifies IT Tasks

? Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese

? Panel array mode lets you monitor multiple ports at same time

? Supports RADIUS and LDAP/S authentication

? Auto-scan mode automatically sequences through all active ports accessible to the user

? Includes USB port for an external mouse and a USB 1.1 port for sharing a peripheral across the installation

? Log server tracks events on your installation

Large 19" LCD

? Extra-wide display makes multitasking easier

? Supports video resolutions up to 1280 x 1024; remote monitor resolutions up to 1600 x 1200

? DDC emulation allows for optimal output to the LCD

Advanced Security Features

? Includes password protection and advanced encryption: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL

? Allows up to 64 user accounts, with 3 levels of access

Expandability and Long-Lasting Reliability

? Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches

? Compatible with all major operating systems for easy integration into existing structure

? Firmware is upgradable so your software remains up-to-date

? Heavy-duty steel housing stands up to frequent use.

Audio/Video Cables

Tripp Lite 6ft USB / PS2 Cable Kit for KVM Switches B020-U08 / U16 & B022-U16 6'

Keyboard / video / mouse (KVM) cable
USB, PS/2, HD-15 (VGA) (M)
1.8 m
molded
black

$38.00

Eaton Tripp Lite Series VGA to DisplayPort and USB-A Adapter Cable Kit for Tripp Lite B020-U and B022-U KVM, 6 ft. (1.8m)

Adapter cable
USB, DisplayPort (M) to HD-15 (VGA) (M)
DisplayPort 1.1
1.8 m
1080p support
black

$116.00

Tripp Lite 10ft USB / PS2 Cable Kit for KVM Switch B020-U08 / U16 10'

Keyboard / video / mouse / USB cable
18 pin SPHD (M) to USB, PS/2, HD-15 (VGA) (M)
3 m
black

$46.00

Storage Networking (SAN)

Tripp Lite 24U Rack Enclosure Server Cabinet 33" Deep w/ Doors & Sides

Rack cabinet
black
24U
19"

$1,561.00

Tripp Lite 42U Rack Enclosure Server Cabinet w/ Doors & Sides

Rack
cabinet
black
42U
19"

$2,345.00

Eaton Tripp Lite Series 25U Rack Enclosure Server Cabinet w Doors & Sides -Special Price

Rack cabinet
black
25U
19"

$1,810.00

General Information
Category	Flat panel displays
Description	Tripp Lite 8-Port Rack Console KVM Switch built in IP w/ 19" LCD 1U - KVM console with KVM switch - 8 ports - 19" - rack-mountable - 1280 x 1024 @ 75 Hz - VGA - black - 1U
Manufacturer	Eaton
MSRP	$7,317.99
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	68.6 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	14.1 kg
Dimensions & Weight / Width	48 cm
Display / Diagonal Size	19 in
Display / Diagonal Size (metric)	48.3 cm
Display / Interface	VGA (HD-15)
Display / Native Resolution	1280 x 1024
Display / Type	KVM console
Header / Brand	Tripp Lite
Input Device / Type	Keyboard Touchpad
Miscellaneous / Compliant Standards	CSA EN 60950-1 FCC Part 15 A UL 60950-1
Miscellaneous / Product Color	Black
Networking / Ports Qty	8
Networking / Type	KVM switch
Packaged Quantity	1
Connectivity
Interfaces	8 x KVM Management (RJ-45) Stacking (DB-25) USB
Environmental Parameters
Humidity Range Operating	0 - 80%
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
General
Color	Black
Diagonal Size	19"
Dimensions (WxDxH)	48 cm x 68.6 cm x 4.4 cm
Display Type	KVM console / TFT active matrix
Height (Rack Units)	1U
Native Resolution	1280 x 1024 at 75 Hz
Weight	14.1 kg
Input
Type	Keyboard, touchpad
KVM
Features	IP-based user connection
Max Cascading Depth	504
Max Resolution	1600 x 1200 @ 60 Hz
Type	KVM switch - 8 ports
Miscellaneous
Cables Included	2 x keyboard / mouse / video / USB cable - 1.8 m 1 x serial cable
Compliant Standards	CSA, FCC Part 15 A, UL 60950-1, EN 60950-1
Rack Mounting Kit	Included
Power
Input Voltage	AC 120/230 V (50/60 Hz)
Power Supply	Internal
