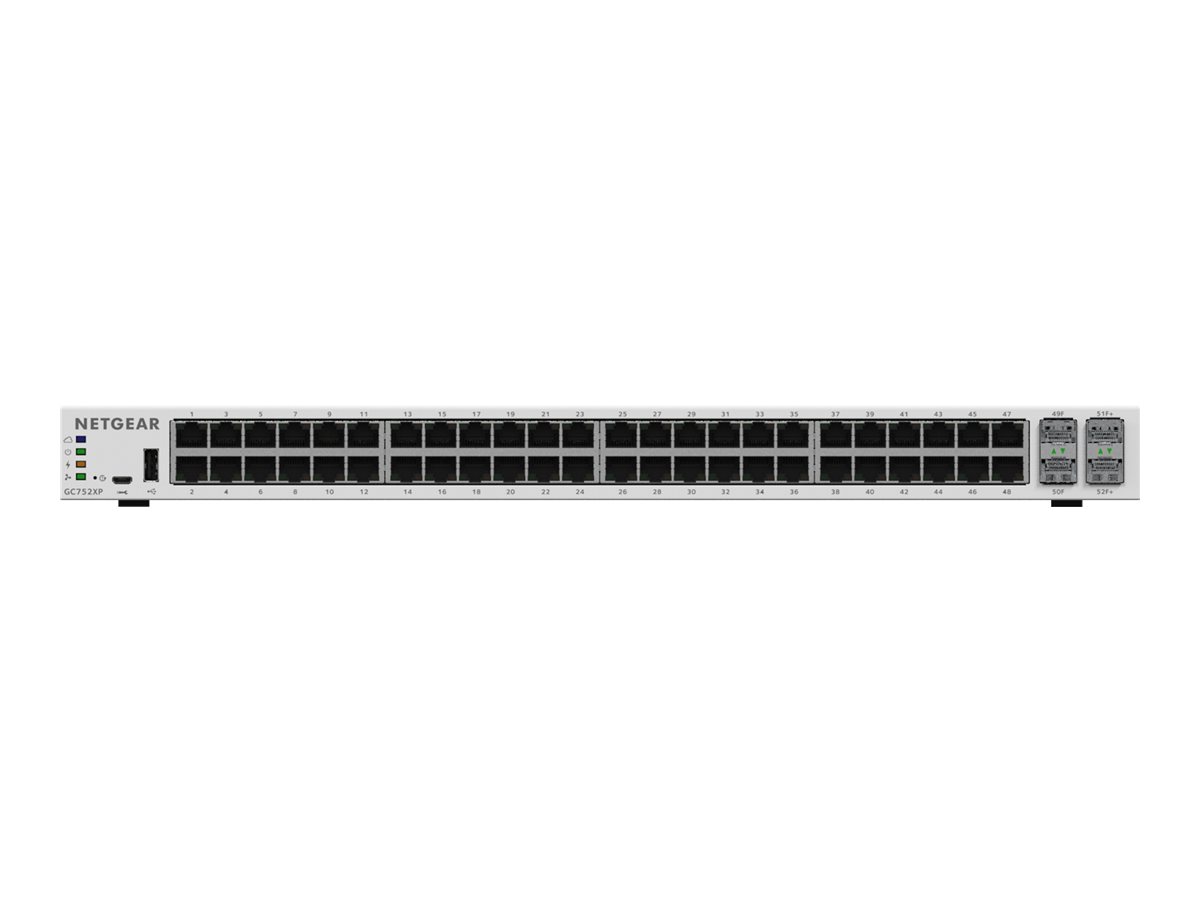

NETGEAR Smart GC752XP
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR Smart GC752XP
- Switch
- L3
- smart
- 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x 10 Gigabit SFP+ (uplink)
- desktop, rack-mountable
- PoE+ (505 W)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | GC752XP-100NAS |
| SHI Part #: | 35571667 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
Networking Software
- 10 managed devices
- hosted
- for P/N: BR500-100NAS, BRK500-100NAS, GC752X-100NAS, GC752XP-100NAS, SRR60-100NAS
- 100 managed devices
- hosted
- for P/N: BR500-100NAS, BRK500-100NAS, GC752X-100NAS, GC752XP-100NAS, SRR60-100NAS
- 10 managed devices
- hosted
- for P/N: BR500-100NAS, BRK500-100NAS, GC752X-100NAS, GC752XP-100NAS, SRR60-100NAS
| General Information | |
|---|---|
| Category | Network switches |
| Description | NETGEAR Smart GC752XP - Switch - L3 - smart - 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x 10 Gigabit SFP+ (uplink) - desktop, rack-mountable - PoE+ (505 W) |
| Manufacturer | NETGEAR |
| MSRP | $1,111.06 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 32 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.79 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | NETGEAR |
| Header / Country Kits | Americas |
| Miscellaneous / Product Color | White |
| Networking / Form Factor |
|
| Networking / Ports Qty | 52 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 32 cm |
| Height | 4.4 cm |
| Weight | 4.79 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 52 ports - L3 - smart |
| Enclosure Type | Desktop, rack-mountable |
| Encryption Algorithm | MD5, TLS 1.0, SSL 3.0, PEAP |
| Features | ARP support, IGMP snooping, Syslog support, SPI, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, LACP support, LLDP support, DHCP relay, DHCP client, Energy Efficient Ethernet, MVR, dual firmware images, SPQ, NDP, 2MB packet buffer, loop prevention, security lock slot (cable lock sold separately), ToS, DSCP support, 3 fans, cable test, administrator's password, ICMP IRDP, DNS client, guest access, WRR, loopback detection |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 16K entries |
| Performance |
|
| PoE Budget | 505 W |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 Cortex-A9: 400 MHz |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD |
| Status Indicators | Power, status, fan, link/activity/speed |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | CCC, UL 60950-1 Second Edition, KCC, K60950-1, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class A, GB 4943.1-2011, EN 55024:2010+A1:2015, KN32, KN35, BSMI CNS13438:2006 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Included Accessories | Rubber feet |
| Localization | Americas |
| MTBF | 455,682 hours |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 623.6 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
