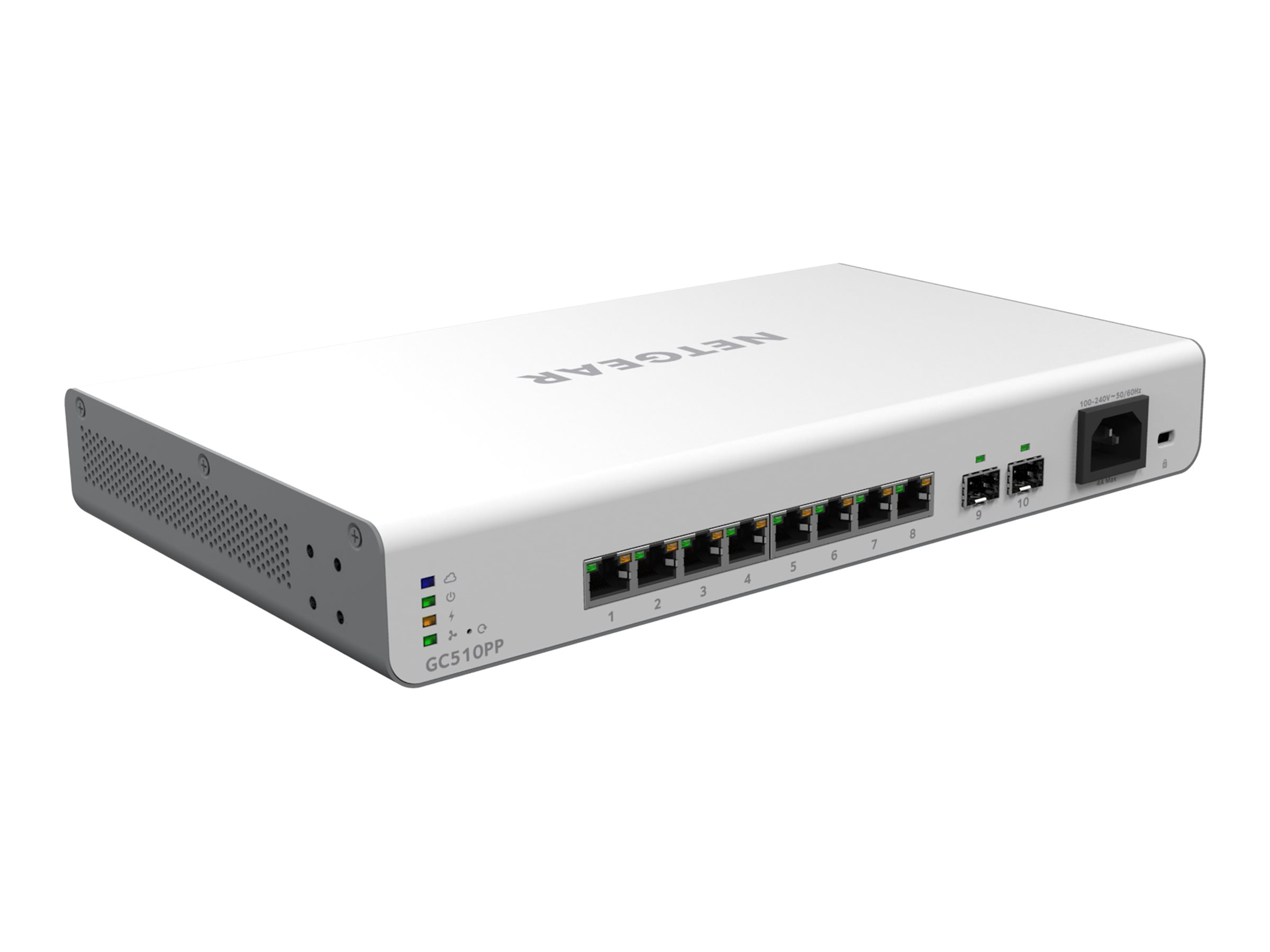

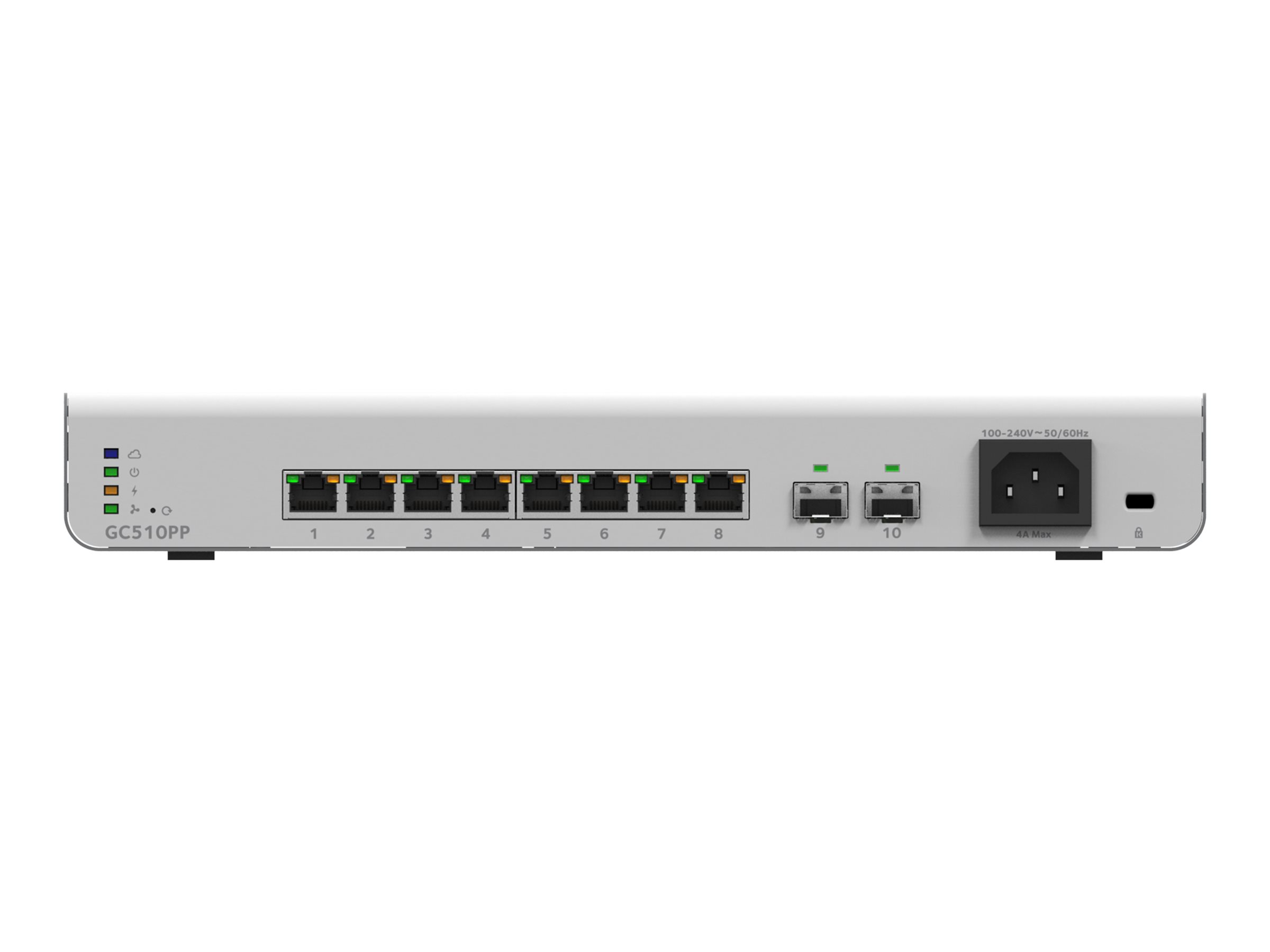

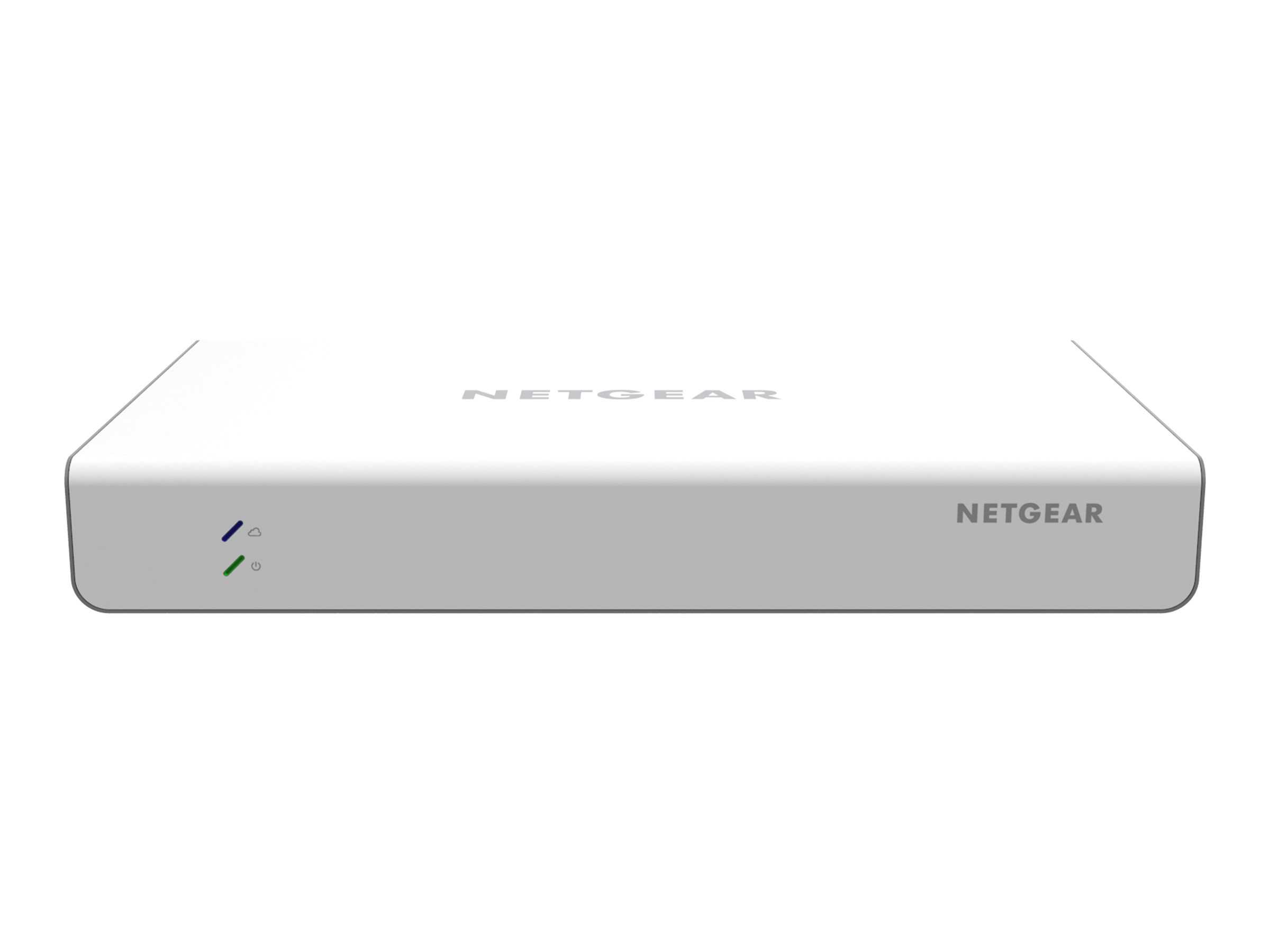

NETGEAR Smart GC510PP
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR Smart GC510PP
- Switch
- L2+
- smart
- 8 x 10/100/1000 (PoE+) + 2 x SFP
- desktop, rack-mountable, wall-mountable
- PoE+ (195 W)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | GC510PP-100NAS |
| SHI Part #: | 34270529 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
Networking Software
- 10 managed devices
- hosted
- for P/N: BR500-100NAS, BRK500-100NAS, GC752X-100NAS, GC752XP-100NAS, SRR60-100NAS
- 100 managed devices
- hosted
- for P/N: BR500-100NAS, BRK500-100NAS, GC752X-100NAS, GC752XP-100NAS, SRR60-100NAS
- 10 managed devices
- hosted
- for P/N: BR500-100NAS, BRK500-100NAS, GC752X-100NAS, GC752XP-100NAS, SRR60-100NAS
| General Information | |
|---|---|
| Category | Network switches |
| Description | NETGEAR Smart GC510PP - Switch - L2+ - smart - 8 x 10/100/1000 (PoE+) + 2 x SFP - desktop, rack-mountable, wall-mountable - PoE+ (195 W) |
| Manufacturer | NETGEAR |
| MSRP | $289.99 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.8 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 2.23 kg |
| Dimensions & Weight / Width | 31.4 cm |
| Header / Brand | NETGEAR |
| Header / Country Kits |
|
| Miscellaneous / Product Color | White |
| Networking / Form Factor |
|
| Networking / Ports Qty | 10 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 18.8 cm |
| Height | 4.4 cm |
| Weight | 2.23 kg |
| Width | 31.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Humidity Range Storage | 0 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, UPnP |
| Device Type | Switch - 10 ports - L2+ - smart |
| Enclosure Type | Desktop, rack-mountable, wall-mountable |
| Encryption Algorithm | MD5, SSL, TLS, PEAP |
| Features | IGMP snooping, Syslog support, DoS attack prevention, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, LACP support, DHCP relay, Energy Efficient Ethernet, GVRP, dual firmware images, loop prevention, SP, security lock slot (cable lock sold separately), 802.1x authentication, ToS, DSCP support, 1.5MB packet buffer, Protocol-based VLANs support, cable test, schedule PoE, DNS client, 1 fan, Voice VLAN, LLDP-MED, Private VLAN, Guest VLAN, ingress rate limiting, protected ports, ZTP, PoE timer, BPDU Filter, MAC based VLAN, Auto VoIP, MAC lockdown |
| Flash Memory | 264 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 16K entries |
| Performance |
|
| PoE Budget | 195 W |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 Cortex-A9: 400 MHz |
| RAM | 256 MB |
| Remote Management Protocol | HTTPS, TFTP |
| Status Indicators | Power, PoE, fan, link/activity/speed |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | BSMI CNS 13438 Class A, UL 60950-1 Second Edition, KCC, GB 9254-2008, K60950-1, RCM, BSMI CNS 14336-1, IEC 60950-1:2005 Second Edition, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class A, GB 4943.1-2011, EN 55024:2010+A1:2015, KN32, KN35, EN 55032:2012+AC:2013 Class A, AS/NZS 60950-1:2015, CISPR 32:2015 Class A, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, ICES-003:2016, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localization | Latin America, North America |
| MTBF | 381,503 hours |
| Rack Mounting Kit | Included |
| Power | |
| Installed Qty | 1 |
| Power Consumption Operational | 200 Watt |
| Power Device | Internal power supply |
