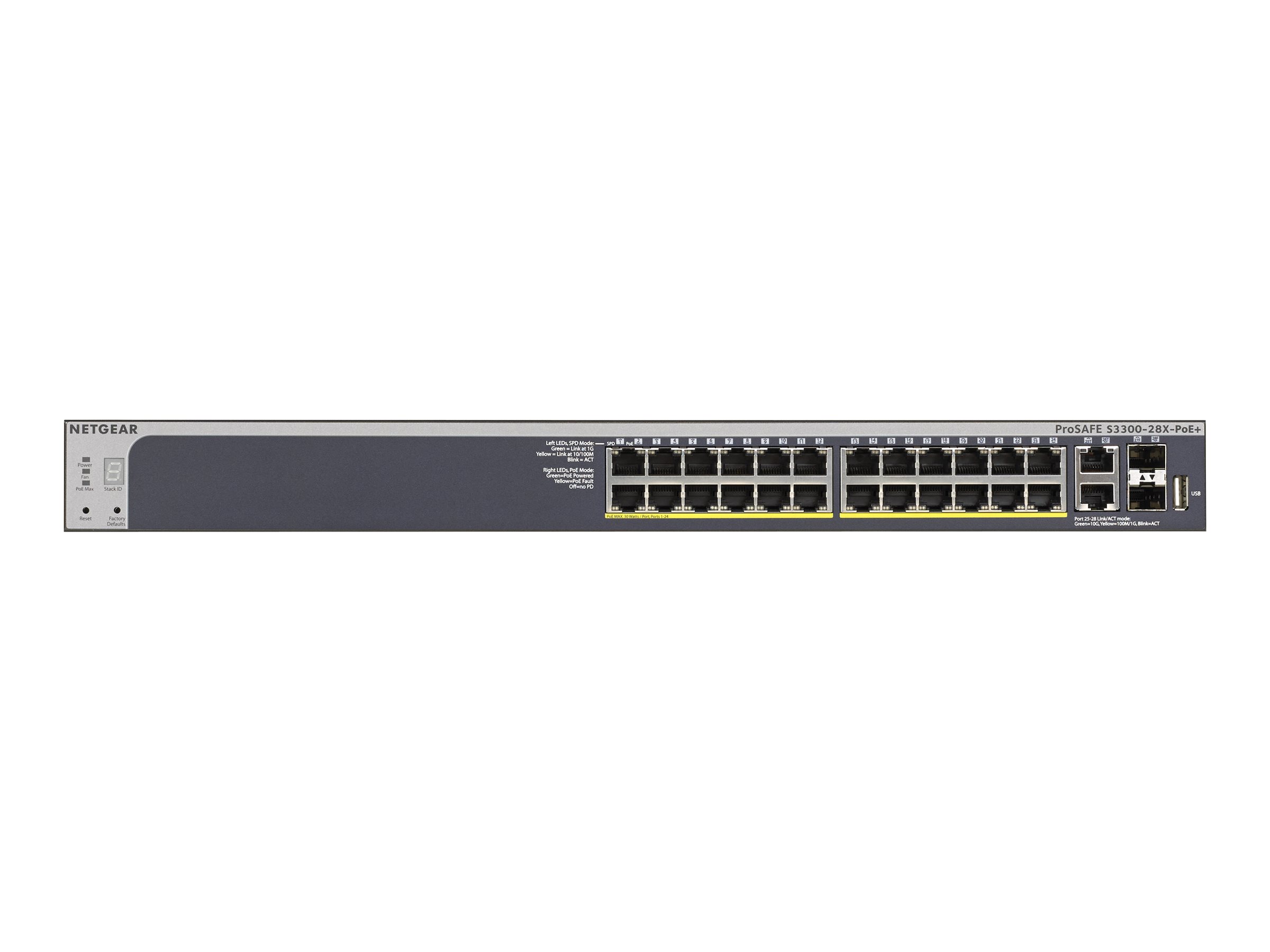

NETGEAR Smart S3300-28X-PoE+

$1,656.00
NETGEAR Smart S3300-28X-PoE+
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • smart
  • 24 x 10/100/1000 (PoE+) + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+
  • rack-mountable
  • PoE+ (195 W)
NETGEAR Smart S3300-28X-PoE+
  • Switch
  • smart
  • 24 x 10/100/1000 (PoE+) + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+
  • rack-mountable
  • PoE+ (195 W)
  • AC 100/230 V
  Additional Details
Price: $1,656.00
Mfr Part #: GS728TXP-100NES
SHI Part #: 29611133
Category: Network switches
UNSPSC: 43222612
Manufacturer: NETGEAR
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionNETGEAR Smart S3300-28X-PoE+ - Switch - smart - 24 x 10/100/1000 (PoE+) + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+ - rack-mountable - PoE+ (195 W) - AC 100/230 V
ManufacturerNETGEAR
MSRP$1,389.46
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth25.7 cm
Dimensions & Weight / Height4.3 cm
Dimensions & Weight / Weight3.77 kg
Dimensions & Weight / Width44 cm
Header / BrandNETGEAR
Header / Country Kits
  • Europe
  • Latin America
  • North America
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty28
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth25.7 cm
Height4.3 cm
Weight3.77 kg
Width44 cm
Environmental Parameters
Humidity Range Operating0 - 90% (non-condensing)
Humidity Range Storage0 - 95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-20 °C
Expansion / Connectivity
Interfaces
  • 24 x 1000Base-T RJ-45 PoE+
  • 2 x 10GBase-T RJ-45 uplink/stacking
  • 2 x 10Gbit LAN SFP+ uplink/stacking
  • 1 x USB 2.0 Type A
General
Authentication MethodRADIUS, TACACS+
Capacity
  • VLANs supported: 256
  • ACL entries: 100
  • IPv4 routes (static): 32
  • DHCP snooping entries: 8000
  • ARP entries: 512
  • Forwarding table entries (Multicast): 512
  • Priority queues per port: 8
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.1BA
Device TypeSwitch - 28 ports - smart - stackable
Enclosure TypeRack-mountable 1U
FeaturesFlow control, trunking, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, ALG support, port mirroring, DiffServ support, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, WRED, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, DHCP client, Energy Efficient Ethernet, dual firmware images, SPQ, CoS, IP source guard
Flash Memory128 MB
Jumbo Frame Support9KB
MAC Address Table Size16K entries
Max Units In A Stack6
PerformanceBandwidth: 128 Gbps
PoE Budget195 W
Ports24 x 10/100/1000 (PoE+) + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+
Power Over Ethernet (PoE)PoE+
Processor: 800 MHz
RAM512 MB
Remote Management ProtocolSNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, HTTPS, TFTP, CLI
Routing ProtocolStatic IPv4 routing
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - replacement - lifetime - response time: next business day
  • Technical support - lifetime
Miscellaneous
Compliant StandardsCISPR 22 Class A, cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, CCC, RoHS, FCC Part 15 A, C-Tick Class A, VCCI Class A
LocalizationLatin America, North America, Europe
MTBF147,965 hours
Rack Mounting KitIncluded
Power
Power Consumption Operational748.18 watt
Power DeviceInternal power supply
Voltage RequiredAC 100/230 V (50/60 Hz)
