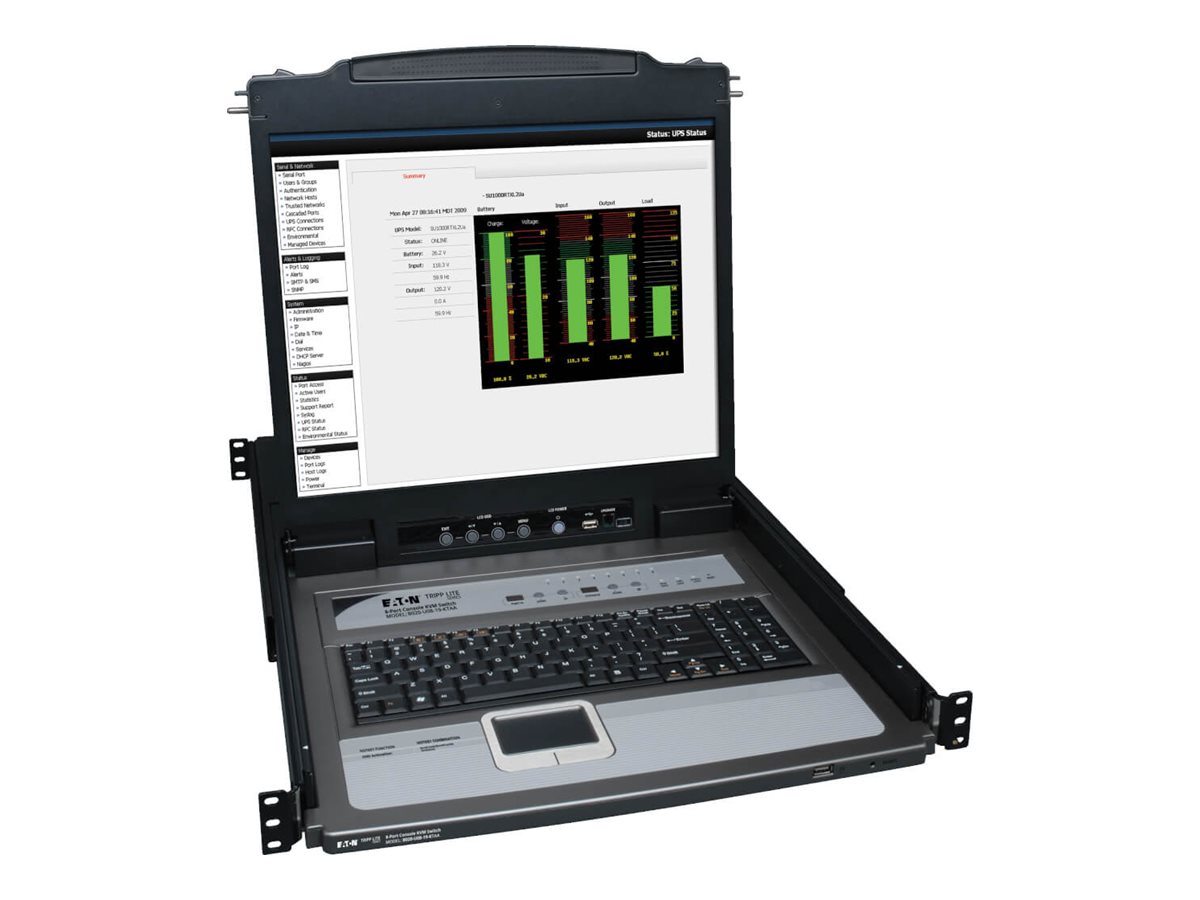

Tripp Lite 8-Port Rack Console KVM Switch w/19" LCD PS2/USB Cables 1U TAA GSA

$2,905.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM console with KVM switch 8 ports PS/2 19" rack-mountable

Tripp Lite 8-Port Rack Console KVM Switch w/19" LCD PS2/USB Cables 1U TAA GSA

KVM console with KVM switch
8 ports
PS/2
19"
rack-mountable
1280 x 1024 @ 60 Hz
VGA
black
1U
TAA Compliant

Additional Details
Price:	$2,905.00
Mfr Part #:	B020-U08-19KTAA
SHI Part #:	22203783
Category:	Flat panel displays
UNSPSC:	43211902
Manufacturer:	Eaton
Product Type:	Hardware

Saves Space and Money

? Combines 8-port KVM switch, 19" LCD screen, keyboard and touchpad in a 1U rack-mountable drawer

? Mounts into 19"-wide rack, 26"-38" deep

? Control up to 8 computers/servers from one easily accessible console – ideal when rack space is at a premium

? Includes eight P778-Series cables that support computers with either PS/2 or USB connections

? Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use

? Eliminates need to buy separate monitors, keyboards and mice for each computer/server

Simplifies IT Tasks

? Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese

? Hot pluggable; add or remove computers without having to power down the switch

? Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19" LCD

? Extra-wide display makes multitasking easier

? Supports video resolutions up to 1280 x 1024

? DDC emulation allows optimal output to LCD

Multi-Level Password Security

? Enhances security by limiting access to administrator and up to 4 local users

? Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

? Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.

? A console cable kit is included for connecting the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit

? An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral with all the connected servers

? Compatible with all major operating systems for easy integration into your existing structure

? Firmware is upgradable with included cable and utility

? Heavy-duty steel housing stands up to frequent use

TAA Compliant

? Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Audio/Video Cables

Tripp Lite 6ft USB / PS2 Cable Kit for KVM Switches B020-U08 / U16 & B022-U16 6'

Keyboard / video / mouse (KVM) cable
USB, PS/2, HD-15 (VGA) (M)
1.8 m
molded
black

$38.00

Eaton Tripp Lite Series VGA to DisplayPort and USB-A Adapter Cable Kit for Tripp Lite B020-U and B022-U KVM, 6 ft. (1.8m)

Adapter cable
USB, DisplayPort (M) to HD-15 (VGA) (M)
DisplayPort 1.1
1.8 m
1080p support
black

$116.00

Tripp Lite 10ft USB / PS2 Cable Kit for KVM Switch B020-U08 / U16 10'

Keyboard / video / mouse / USB cable
18 pin SPHD (M) to USB, PS/2, HD-15 (VGA) (M)
3 m
black

$46.00

General Information
Category	Flat panel displays
Description	Tripp Lite 8-Port Rack Console KVM Switch w/19" LCD PS2/USB Cables 1U TAA GSA - KVM console with KVM switch - 8 ports - PS/2 - 19" - rack-mountable - 1280 x 1024 @ 60 Hz - VGA - black - 1U - TAA Compliant
Manufacturer	Eaton
MSRP	$4,754.71
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	68.6 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	13.9 kg
Dimensions & Weight / Width	43.2 cm
Display / Diagonal Size	19 in
Display / Diagonal Size (metric)	48.3 cm
Display / Interface	VGA (HD-15)
Display / Native Resolution	1280 x 1024
Display / Type	KVM console
Header / Brand	Tripp Lite
Input Device / Type	Keyboard Touchpad
Miscellaneous / Compliant Standards	CSA FCC Part 15 A IEC 60950-1 UL 60950-1
Miscellaneous / Product Color	Black
Networking / Ports Qty	8
Networking / Type	KVM switch
Packaged Quantity	1
Service & Support / Type	1-year warranty
System Requirements / OS Required	Apple MacOS Linux Microsoft Windows 2000/XP/Vista/7 Microsoft Windows Server 2008 SunOS
Connectivity
Interfaces	8 x KVM (SPHD-18) 2 x USB Network (RJ-45) Stacking (DB-25) VGA 2 x keyboard (PS/2)
Environmental Parameters
Humidity Range Operating	0 - 80%
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
General
Aspect Ratio	5:4
Color	Black
Diagonal Size	19"
Dimensions (WxDxH)	43.2 cm x 68.6 cm x 4.4 cm
Display Type	KVM console / TFT active matrix
Height (Rack Units)	1U
Native Resolution	1280 x 1024 at 60 Hz
OSD Languages	English, German, French, Spanish, Japanese
Weight	13.9 kg
Input
Type	Keyboard, touchpad
KVM
Features	IP-based user connection
Keyboard / Mouse Interface	PS/2
Max Cascading Depth	504
Max Resolution	1280 x 1024 @ 60 Hz
Type	KVM switch - 8 ports
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Cables Included	8 x keyboard / mouse / video / USB cable - 1.8 m 1 x serial cable
Compliant Standards	CSA, UL 60950-1, IEC 60950-1, FCC Part 15 A
Features	Administrator password
Rack Mounting Kit	Included
TAA Compliant	Yes
Power
Power Supply	Internal
Software / System Requirements
Included Software	Drivers & Utilities
OS Required	Apple MacOS, SunOS, Linux, Microsoft Windows 2000/XP/Vista/7, Microsoft Windows Server 2008
