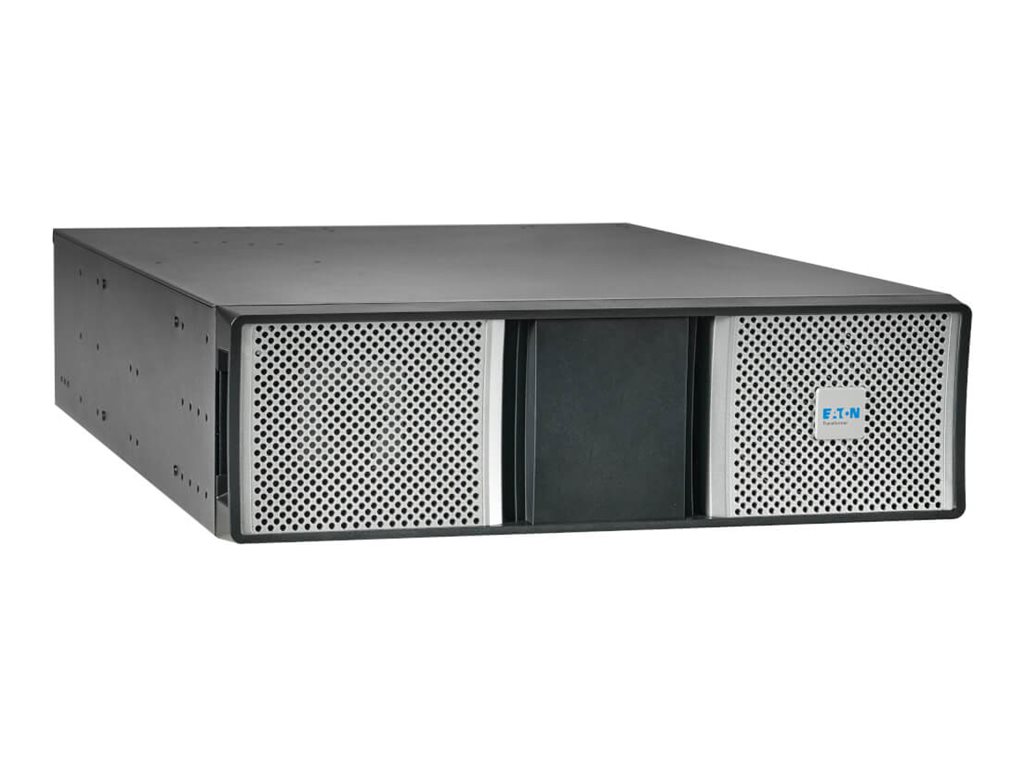

Eaton 9PX G2 9PXPPDM1G2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton 9PX G2 9PXPPDM1G2
- Power distribution unit (rack-mountable / external)
- 6000 Watt
- 6000 VA
- 1-phase
- input: NEMA L6-30P
- output connectors: 8 (NEMA 5-20R, NEMA L14-30R, NEMA L6-30R)
- 3U
- 19"
- 1.8 m cord
- for P/N: 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 9PXPPDM1G2 |
| SHI Part #: | 50011635 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Eaton 9PX G2 9PXPPDM1G2 - Power distribution unit (rack-mountable / external) - 6000 Watt - 6000 VA - 1-phase - input: NEMA L6-30P - output connectors: 8 (NEMA 5-20R, NEMA L14-30R, NEMA L6-30R) - 3U - 19" - 1.8 m cord - for P/N: 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L |
| Manufacturer | Eaton |
| MSRP | $2,706.77 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 68.4 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Width | 43.9 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Eaton |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 6000 VA |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For | P/N: 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L |
| Dimensions & Weight | |
| Depth | 68.4 cm |
| Height | 13 cm |
| Width | 43.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Cord Length | 1.8 m |
| Device Type | Power distribution unit - rack-mountable / external |
| Height (Rack Units) | 3U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 1.8 m |
| Compliant Standards | cUL, Mexico NOM, RoHS |
| Features | Built-in maintenance bypass |
| Included Accessories | 4-post rail kit, brackets |
| Rack Mounting Kit | Included |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L6-30P |
| Input Wiring | 1-phase |
| Output Voltage | AC 100/110/120/208/220/230/240 V |
| Power Capacity | 6000 Watt / 6000 VA |
| Power Output Connectors Details |
|
| Sustainability Information | |
| ENERGY STAR | Yes |
