Tripp Lite 2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord w/L5-30P, 0U, TAA

$1,456.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Power distribution unit (rack-mountable) 30 A AC 100/120/127 V 3.05 kW 1-phase

Tripp Lite 2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord w/L5-30P, 0U, TAA

Power distribution unit (rack-mountable)
30 A
AC 100/120/127 V
3.05 kW
1-phase
Ethernet 10/100
input: NEMA L5-30P
output connectors: 24 (NEMA 5-15/20R)
0U
19"
3.05 m
TAA Compliant

Additional Details
Price:	$1,456.00
Mfr Part #:	PDUMV30NETLX
SHI Part #:	34401853
Category:	Rack systems for rack mount electroni...
UNSPSC:	24102001
Manufacturer:	Eaton
Product Type:	Hardware

Distributes Network-Grade Single-Phase Power

? 2.9kW 120V switched rack PDU (rPDU)

? Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components

? NEMA L5-30P plug with 10-ft. (3.05 m) cord connects to compatible AC power source

? Firmware upgrades support future product enhancements

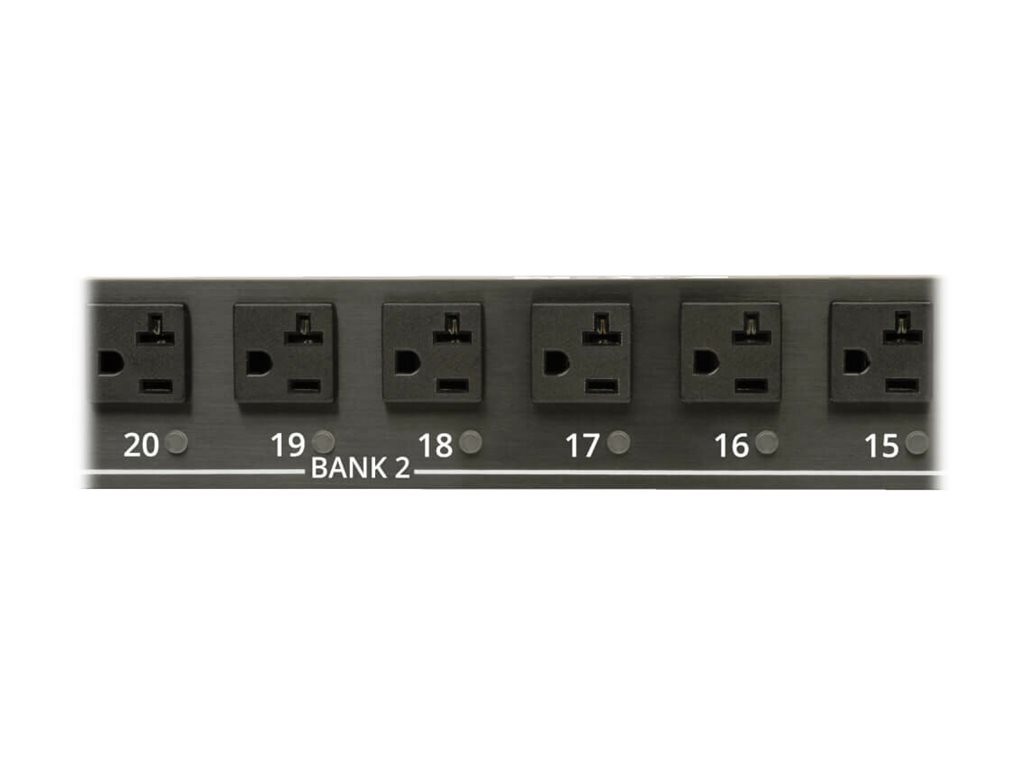

24 Switched Outlets Distribute AC Power

? 24 NEMA 5-15/20R outlets split into 2 separately breakered load banks

? Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices

? Cord retention brackets prevent cables from becoming accidentally disconnected

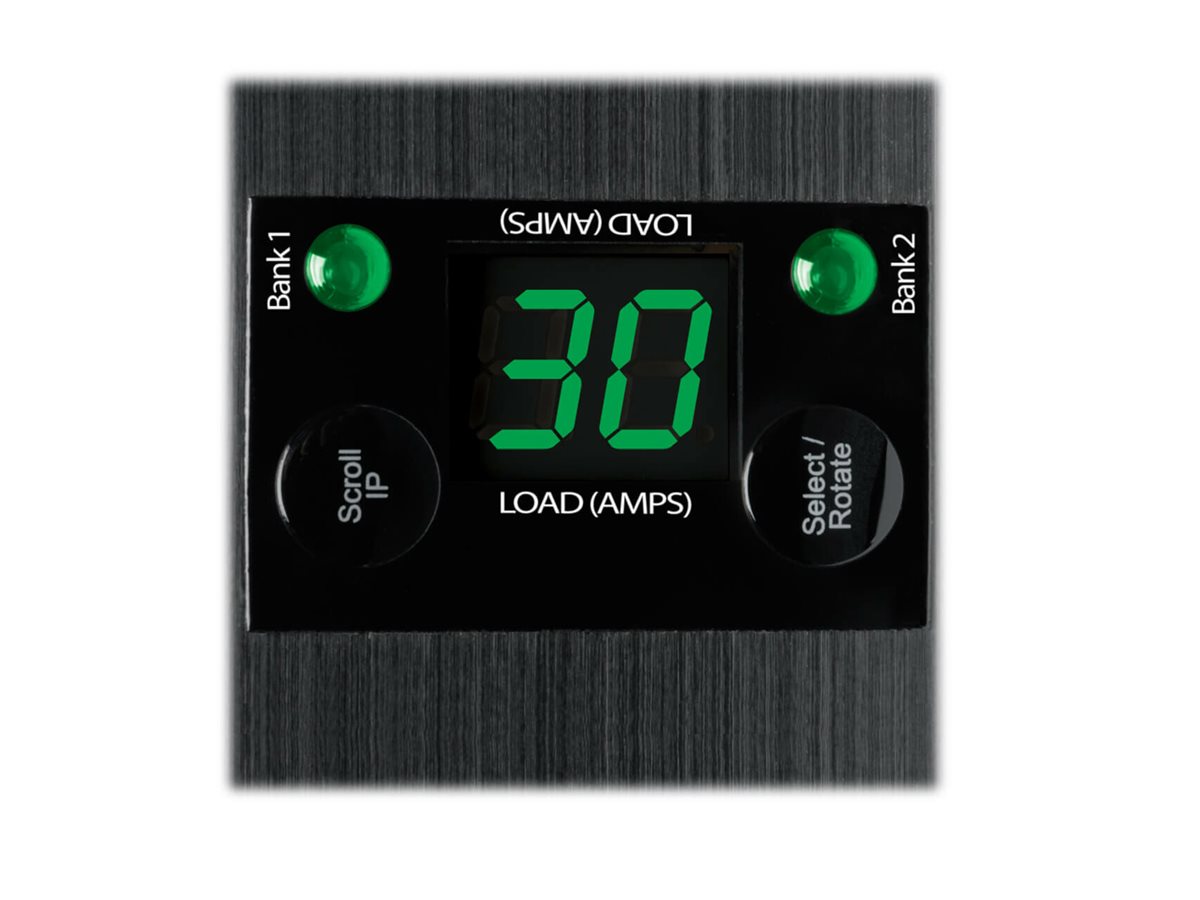

Digital Ammeter

? Reports load level on each bank and total PDU output

? Supports IP-address self-ID

? Rotates 180° for easy reading at either angle

Built-In LX Platform Interface

? Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities

? PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations

? IP-based Auto Probe detects lost connectivity and restores service autonomously

? Supports 10/100 Mbps auto-sensing for communication with an Ethernet network

? Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

? No Java required

Broad Communications Compatibility

? Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, telnet, SSH, CLI, FTP, DHCP and NTP

? Supports automatic and manual assignment of IP address

Easy 0U Installation in EIA-Standard 19 in. Racks

? Mounts vertically using included toolless buttons or rack-mounting brackets

? Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant

? Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Power Cables

Tripp Lite 6in Power Cord Adapter Cable Heavy Duty L5-20R to 5-20P 20A 12AWG 6"

Power cable
NEMA 5-20 (M) to NEMA L5-20 (F)
15 cm

$34.00

Eaton Tripp Lite Series Desktop Computer AC Power Cable, NEMA 5-15P to C13

10A, 125V, 18 AWG, 10 ft. (3.05 m), Black
Power cable
power IEC 60320 C13 to NEMA 5-15 (M)
AC 110 V
3 m
black

$10.00

Tripp Lite 6ft Computer Power Cord Cable 5-15P to C13 10A 18AWG 6'

Power cable
IEC 60320 C13 to NEMA 5-15 (M)
AC 110 V
1.8 m
black

$8.00

Warranties

Tripp Lite 2-Year Extended Warranty for select Products

Extended service agreement
parts and labor
2 years

$220.00

Tripp Lite 1-Year Extended Warranty for select Products

Extended service agreement
parts and labor
1 year

$116.00

General Information
Category	Rack systems for rack mount electroni...
Description	Tripp Lite 2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord w/L5-30P, 0U, TAA - Power distribution unit (rack-mountable) - 30 A - AC 100/120/127 V - 3.05 kW - 1-phase - Ethernet 10/100 - input: NEMA L5-30P - output connectors: 24 (NEMA 5-15/20R) - 0U - 19" - 3.05 m - TAA Compliant
Manufacturer	Eaton
MSRP	$2,399.28
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	6.73 cm
Dimensions & Weight / Height	178 cm
Dimensions & Weight / Weight	6.4 kg
Dimensions & Weight / Width	5.56 cm
General / Subcategory	Power distribution devices
Header / Brand	Tripp Lite
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	24
Power Device / Voltage Required	AC 100/120/127 V
Product Type	Power distribution unit
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	6.73 cm
Height	178 cm
Weight	6.4 kg
Width	5.56 cm
Dimensions & Weight (Shipping)
Shipping Depth	184 cm
Shipping Height	10.2 cm
Shipping Weight	7.48 kg
Shipping Width	15.2 cm
Environmental Parameters
Humidity Range Operating	95% (non-condensing)
General
Cord Length	3.05 m
Device Type	Power distribution unit - rack-mountable
Height (Rack Units)	0U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Cables Included	Power cable 3.05 m
Compliant Standards	UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, FCC Part 15 A, NOM, RoHS
Features	Overload protection, LCD display, current meter, LED indicators, vertical orientation
Included Accessories	Cable retention brackets, 24 cable ties
Rack Mounting Kit	Included
TAA Compliant	Yes
Networking
Remote Management Interface	Ethernet 10/100
Remote Management Protocol	SNMP, SSH, Telnet, HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3
Power Device
Circuit Protection	Circuit breaker
Frequency Provided	50/60 Hz
Input Connectors	1 x power NEMA L5-30P
Input Voltage	AC 100/120/127 V
Input Wiring	1-phase
Max Electric Current	30 A
Output Voltage	AC 100/120/127 V 50/60 Hz
Power Capacity	3.05 kW
Power Output Connectors Details	24 x power NEMA 5-15/20
