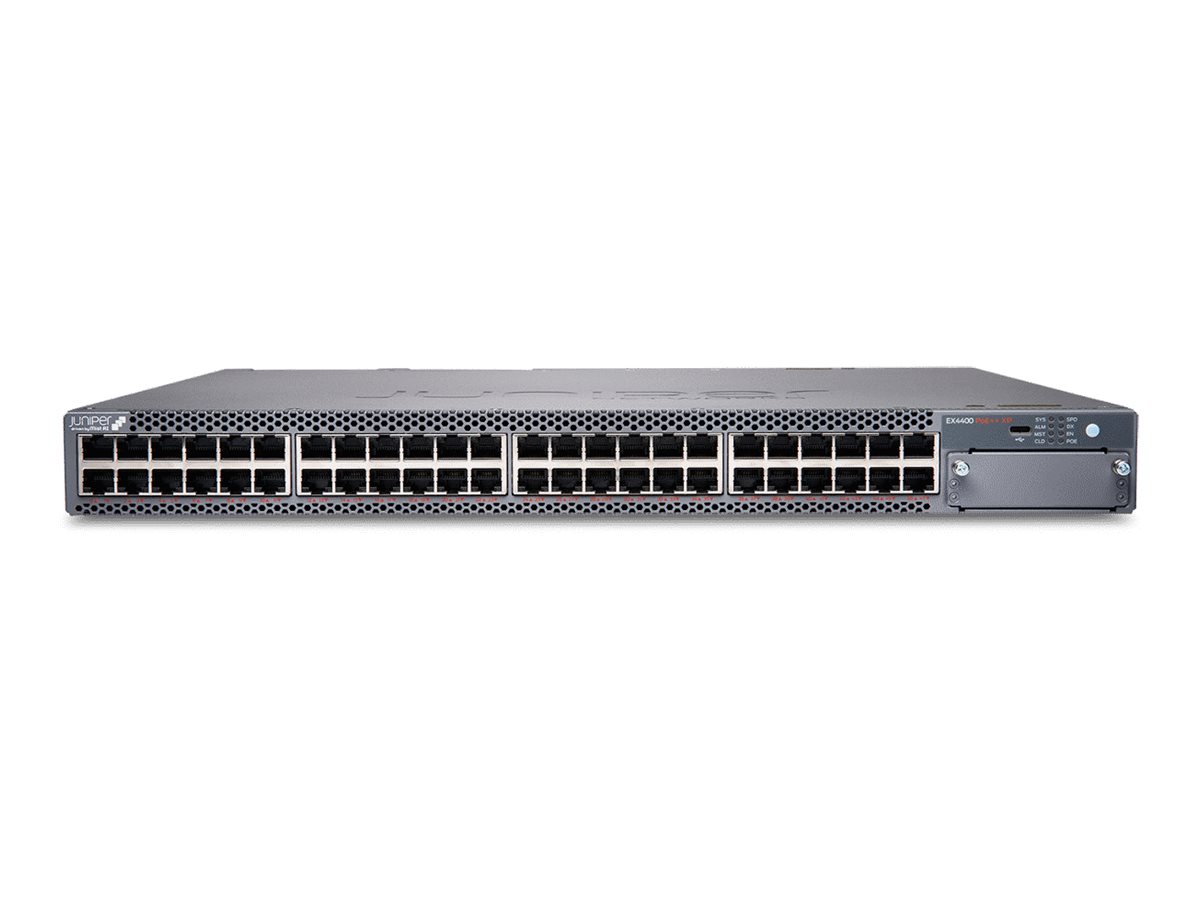

Juniper Networks EX Series EX4400-48XP

$17,369.00
Juniper Networks EX Series EX4400-48XP
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 100 Gigabit (uplink / stacking)
  • front to back airflow
Juniper Networks EX Series EX4400-48XP
  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 100 Gigabit (uplink / stacking)
  • front to back airflow
  • rack-mountable, wall-mountable
  Additional Details
Price: $17,369.00
Mfr Part #: EX4400-48XP
SHI Part #: 48996486
Category: Network switches
UNSPSC: 43222612
Manufacturer: Juniper Networks
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionJuniper Networks EX Series EX4400-48XP - Switch - L3 - managed - 48 x 10/100/1000 + 4 x 100 Gigabit (uplink / stacking) - front to back airflow - rack-mountable, wall-mountable
ManufacturerJuniper Networks
MSRP$21,114.18
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth43 cm
Dimensions & Weight / Height4.37 cm
Dimensions & Weight / Width44.17 cm
Header / BrandJuniper Networks
Miscellaneous / Product ColorGray
Networking / Form Factor
  • Rack-mountable
  • Wall-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Dimensions & Weight
Depth43 cm
Height4.37 cm
Width44.17 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-70 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 48 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W
  • 4 x 100Gbit LAN
  • 1 x management RJ-45
General
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity
  • Virtual interfaces (VLANs): 4093
  • VLAN Spanning Tree Protocol instances: 510
  • Multiple Spanning Tree Protocol instances: 64
  • Link aggregation groups: 128
  • Maximum member ports per LAG: 16
  • ARP entries: 24000
  • IPv4 routes (Unicast, prefixes): 130048
  • IPv4 routes (Unicast, host routes): 81000
  • IPv4 routes (Multicast): 40000
  • IPv6 neighbor discovery: 12000
  • IPv6 routes (Unicast, prefixes): 87000
  • IPv6 routes (Unicast, host routes): 40000
  • IPv6 routes (Multicast): 20000
  • Port-based ACL entries (ingress): 2048
  • VLAN-based ACL entries (ingress): 2048
  • Router-based ACL entries (ingress): 2048
  • Port-based ACL entries (egress): 512
  • VLAN-based ACL entries (egress): 512
  • Router-based ACL entries (egress): 1024
  • QoS hardware queues per port (multicast): 4
  • QoS hardware queues per port (unicast): 8
Compliant StandardsITU-T G.8032, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3by, IEEE 802.3u, IEEE 802.1ae, IEEE 802.3z, IEEE 802.1D, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeFront to back airflow rack-mountable, wall-mountable 1U
Encryption AlgorithmMD5, TLS, PEAP, TTLS, 256-bit AES
FeaturesEVPN, VXLAN, MACsec, traffic anomaly detection, Virtual Chassis technology, High Availability, IPFIX, 2 fans, store and forward, TDR, auto-uplink (auto MDI/MDI-X), DAI, IP source guard, proxy ARP, DHCP snooping, Captive Portal, DDoS Protection, flooding detection, port-based VLAN, Voice VLAN, RTG, PVST+, RVI, UFD, ERPS, LLDP-MED, MAC Learning Disable, MAC address learning, ECN, MAC Address Notification, Private VLAN, MVRP, CoS, flow control, MRP, port based access control, VLAN Tagging, MSTP support, STP support, RSTP support, LACP, VRF-Lite, ACL support, firewall protection, 802.1x authentication, MAC address authentication, DoS protection, AAA, DHCPv6 snooping, NDP, RA guard, GRES, LACP support, OIR support, QoS, SPQ, WDRR, DSCP support, WRED, IGMP snooping, MLD snooping, NTP, DHCP client, DHCP proxy, DHCP server, DHCP Helper, DHCP relay, SCP, DNS support, system log, temperature sensor, Telnet client, Telnet server, RARP support, BOOTP support, SNTP support
Flash Memory20 GB
Jumbo Frame Support9216 bytes
MAC Address Table Size112000 entries
Max Units In A Stack10
Performance
  • Maximum virtual chassis interconnect capacity: 400 Gbps
  • Unidirectional switching capacity: 348 Gbps
  • Bidirectional switching capacity: 696 Gbps
  • Throughput (64-byte packet size): 517 Mbps
Ports48 x 10/100/1000 + 4 x 100 Gigabit (uplink / stacking)
Processor1 x Intel: 2.2 GHz
RAM4 GB
Remote Management ProtocolRADIUS, DHCP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, NTP, TACACS+, HTTP, HTTPS, SSH-2, TFTP, ICMP, Telnet, CLI
Routing ProtocolRIP-1, RIP-2, IS-IS, BGP, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), VRRP, RIPng, OSPFv3, BGP for IPv6, IGMP, IGMPv2, IGMPv3, OSPFv2, PIM-DM, PIM-SM, PIM-SSM, CIDR, OSPF, MSDP, MLD, VRRPv3, MSTP, RSTP, STP
SubtypeGigabit Ethernet
Miscellaneous
Compliant StandardsBSMI, CISPR 22 Class A, EMC, ICES-003 Class A, UL 60950-1, IEC 60950-1, CNS 13438, EN 300 386 V1.6.1, CISPR 24:2010, EN 55024:2010, EN 55022:2010 Class A, FCC CFR47 Part 15 B Class A, KN32, KN35, IEC 62368-1, EN 55032:2015 Class A, CISPR 32:2015 Class A, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, AS/NZS CISPR32:2015 Class A, VCCI-CISPR 32:2016, EN 300 386 V2.1.1, OCT-16, TEC, CISPR 35: 2016, IEC 62368-3
Power
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power Provided2000 Watt
Power RedundancyYes
Software / System Requirements
Software IncludedJunos OS
