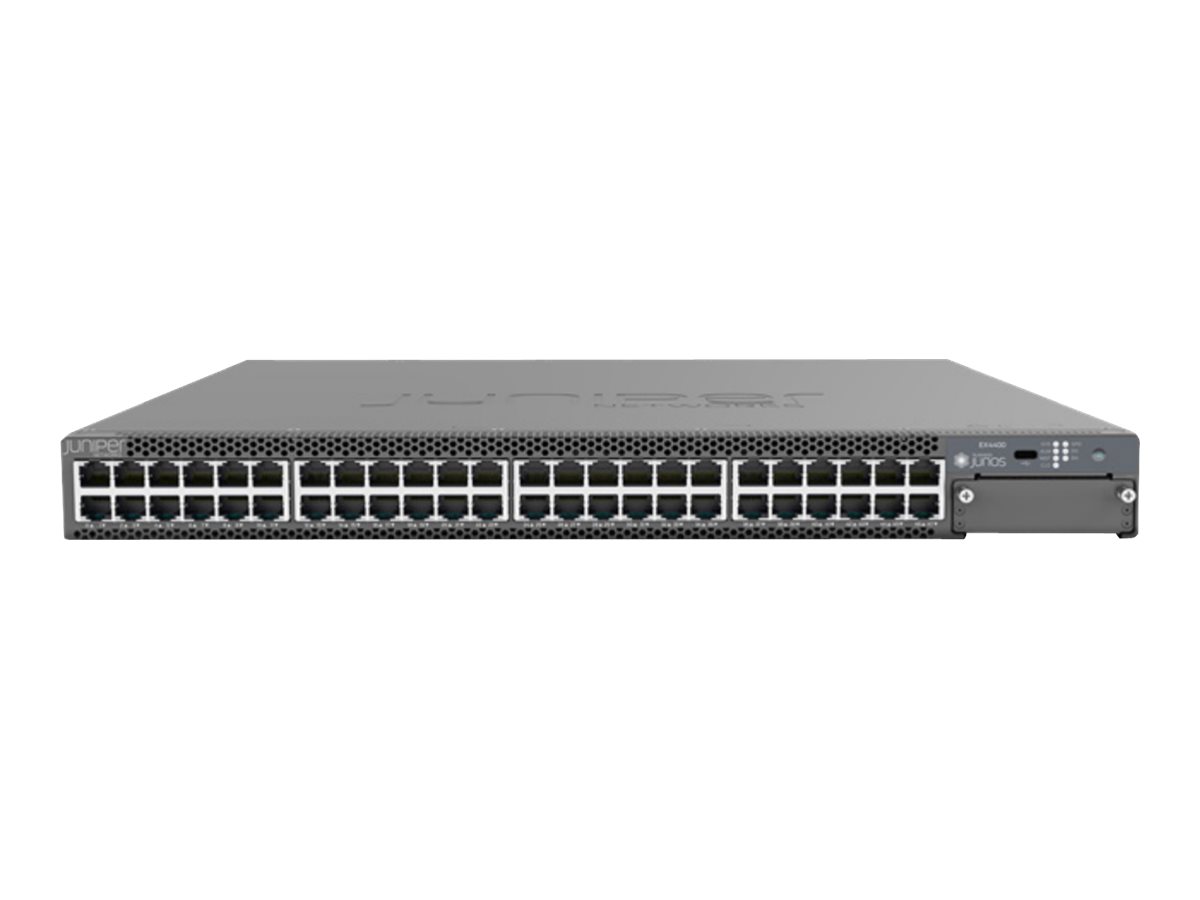

Juniper Networks EX 4400

$8,155.00
Juniper Networks EX 4400
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 + 2 x 100 Gigabit (uplink / stacking)
  • front to back airflow
Juniper Networks EX 4400
  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 + 2 x 100 Gigabit (uplink / stacking)
  • front to back airflow
  • rack-mountable, wall-mountable
  Additional Details
Price: $8,155.00
Mfr Part #: EX4400-48T
SHI Part #: 42281218
Category: Network switches
UNSPSC: 43222612
Manufacturer: Juniper Networks
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionJuniper Networks EX 4400 - Switch - L3 - managed - 48 x 10/100/1000 + 2 x 100 Gigabit (uplink / stacking) - front to back airflow - rack-mountable, wall-mountable
ManufacturerJuniper Networks
MSRP$15,961.22
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth43 cm
Dimensions & Weight / Height4.37 cm
Dimensions & Weight / Width44.17 cm
Header / BrandJuniper Networks
Miscellaneous / Product ColorBlack
Networking / Form Factor
  • Rack-mountable
  • Wall-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
System Requirements / OS RequiredJUNOS
Dimensions & Weight
Depth43 cm
Height4.37 cm
Width44.17 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage0 - 90% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max)0 (installed) / 1 (max)
Interfaces
  • 48 x 1000Base-T RJ-45
  • 2 x 100Gbit LAN
  • 1 x serial management
  • 1 x management (Gigabit LAN) RJ-45
General
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity
  • Virtual interfaces (VLANs): 4093
  • VLAN Spanning Tree Protocol instances: 510
  • Multiple Spanning Tree Protocol instances: 64
  • Link aggregation groups: 128
  • Maximum member ports per LAG: 16
  • ARP entries: 24000
  • IPv4 routes (Unicast, prefixes): 130048
  • IPv4 routes (Unicast, host routes): 81000
  • IPv4 routes (Multicast): 40000
  • IPv6 neighbor discovery: 12000
  • IPv6 routes (Unicast, prefixes): 87000
  • IPv6 routes (Unicast, host routes): 40000
  • IPv6 routes (Multicast): 20000
  • Port-based ACL entries (ingress): 2048
  • VLAN-based ACL entries (ingress): 2048
  • Router-based ACL entries (ingress): 2048
  • Port-based ACL entries (egress): 512
  • VLAN-based ACL entries (egress): 512
  • Router-based ACL entries (egress): 1024
  • QoS hardware queues per port (multicast): 4
  • QoS hardware queues per port (unicast): 8
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, ITU-T G.8032, IEEE 802.3by
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeFront to back airflow rack-mountable, wall-mountable 1U
Encryption AlgorithmMD5, PEAP, 256-bit AES, EAP-TLS, EAP-TTLS
FeaturesFlow control, firewall protection, BOOTP support, RARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, High Availability, SNTP support, WRED, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, VRF-Lite, MLD snooping, DHCP proxy, DAI, temperature sensor, RTG, TDR, Virtual Chassis technology, GRES, PVST+, LACP support, DHCP relay, LACP, MAC Address Notification, port based access control, DHCP client, MVRP, SPQ, NDP, CoS, IPFIX, Captive Portal, 802.1x authentication, DSCP support, ERPS, 2 fans, UFD, system log, IP source guard, ECN, SCP, VXLAN, EVPN, MAC address learning, MAC address authentication, NTP, AAA, WDRR, Voice VLAN, LLDP-MED, Private VLAN, RA guard, proxy ARP, DoS protection, DHCP Helper, RVI, VLAN Tagging, port-based VLAN, Telnet server, Telnet client, OIR support, DDoS Protection, traffic anomaly detection, flooding detection, MACsec, MAC Learning Disable, DNS support, MRP, DHCPv6 snooping
Flash Memory20 GB
Jumbo Frame Support9216 bytes
MAC Address Table Size112000 entries
Max Units In A Stack10
Performance
  • Maximum virtual chassis interconnect capacity: 400 Gbps
  • Unidirectional switching capacity: 348 Gbps
  • Bidirectional switching capacity: 696 Gbps
  • Throughput (64-byte packet size): 517 Mbps
Ports48 x 10/100/1000 + 2 x 100 Gigabit (uplink / stacking)
Processor1 x Intel: 2.2 GHz
RAM4 GB
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, TACACS+, RADIUS
Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIPng, MLD, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR, BGP for IPv6, MSTP, RSTP, STP
SubtypeGigabit Ethernet
Miscellaneous
Compliant StandardsCISPR 24, ICES-003, EN55024, CB, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, RoHS, BSMI CNS 13438, IEC 60825-1, EN 61000, IEC 60825-2, CAN/CSA C22.2 No. E60825-1, EN 300 386 V1.6.1, 21 CFR 1040, KN32, KN35, IEC 62368-1, TCVN 7189, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, TCVN 7317, CISPR 35, VCCI-CISPR 32:2016, EN 300 386 V2.1.1, KN 61000, EMC-221, OCT-16, IEC 61000, AS/NZS CISPR 32, TEC, IEC 62368-3, ETSI ES 203 136 V.1.1.1
Power
Installed Qty2
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power Provided550 Watt
Power RedundancyYes
Power Redundancy Scheme1+1
Voltage RequiredAC 100-120/200-240 V
Software / System Requirements
OS RequiredJUNOS
