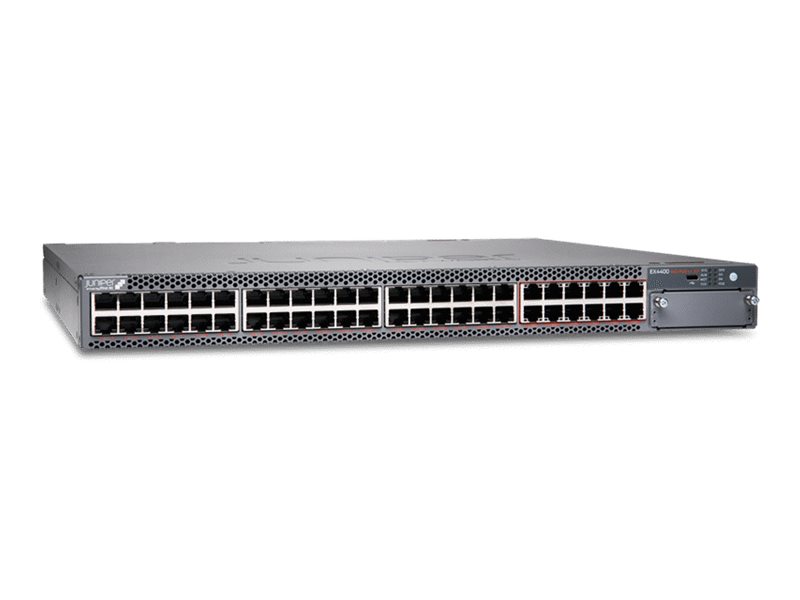

Juniper Networks EX Series EX4400-48MXP

$21,356.00
Juniper Networks EX Series EX4400-48MXP
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 12 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 36 x 100/1000/2.5G (PoE++) + 2 x 100 Gigabit (uplink / stacking)
  • front to back airflow
Juniper Networks EX Series EX4400-48MXP
  • Switch
  • L3
  • managed
  • 12 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 36 x 100/1000/2.5G (PoE++) + 2 x 100 Gigabit (uplink / stacking)
  • front to back airflow
  • rack-mountable
  • PoE++ (3600 W)
  Additional Details
Price: $21,356.00
Mfr Part #: EX4400-48MXP
SHI Part #: 48964812
Category: Network switches
UNSPSC: 43222612
Manufacturer: Juniper Networks
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionJuniper Networks EX Series EX4400-48MXP - Switch - L3 - managed - 12 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 36 x 100/1000/2.5G (PoE++) + 2 x 100 Gigabit (uplink / stacking) - front to back airflow - rack-mountable - PoE++ (3600 W)
ManufacturerJuniper Networks
MSRP$25,740.82
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth43 cm
Dimensions & Weight / Height4.37 cm
Dimensions & Weight / Width44.17 cm
Header / BrandJuniper Networks
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Dimensions & Weight
Depth43 cm
Height4.37 cm
Width44.17 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage0 - 90% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 12 x 1/2.5/5/10GBase-T (PoE++) RJ-45 PoE++
  • 2 x 100Gbit LAN uplink/stacking
  • 1 x management (Gigabit LAN) RJ-45
  • 1 x serial RJ-45 management
  • 36 x 100/1000/2.5G (PoE++) RJ-45
General
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity
  • VSTP instances: 510
  • MST instances: 64
  • Maximum member ports per LAG: 16
  • ARP entries: 24000
  • IPv4 routes (Unicast): 130048
  • IPv4 hosts (Unicast): 81000
  • IPv4 routes (Multicast): 40000
  • IPv6 neighbor discovery: 12000
  • IPv6 routes (Unicast): 87000
  • Host IPv6 routes (Unicast): 40000
  • IPv6 routes (Multicast): 20000
  • VLANs supported: 4093
Compliant StandardsIEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), ITU-T G.8032, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeFront to back airflow rack-mountable
Encryption Algorithm256-bit AES, MD5, TLS, TTLS, PEAP
FeaturesEVPN, VXLAN, MACsec, High Availability, RTG, NSB, NSR, STP support, Link Aggregation, IPv4 support, IPv6 support, DoS attack prevention, QoS, DPI, 2 fans, store and forward, TDR, auto-uplink (auto MDI/MDI-X), auto-sensing per device, VLAN support, DAI, IP source guard, proxy ARP, DHCP snooping, Captive Portal, DDoS Protection, flooding detection, port-based VLAN, Voice VLAN, PVST+, RVI, UFD, LLDP-MED, MAC address learning, MAC Learning Disable, ECN, MVRP, CoS, VLAN Tagging, MRP, flow control, MSTP support, VRF-Lite, ACL support, firewall protection, redundant hot swappable fans, GRES, SP, WRR, DSCP support, IGMP snooping, MLD snooping, DHCP server, DHCP client, DHCP proxy, DHCP relay, DHCP Helper, event log, temperature sensor, ARP support, RARP support, BOOTP support, ICMP IRDP, DiffServ support, MIB, sFlow, DNS support, JTI, PVLAN support, RA guard, WDRR, AAA, policy based routing, SCP, Syslog support, WRED, NDP, VSTP, ERPS, 90W PoE power per port
Flash Memory20 GB
Jumbo Frame Support9216 bytes
MAC Address Table Size112000 entries
Performance
  • Switching capacity (64-byte packet size, unidirectional): 510 Gbps
  • Switching capacity (64-byte packet size, bidirectional): 1020 Gbps
  • Layer 2 / layer 3 throughput (64-byte packet size): 758 Mpps
PoE Budget3600 W
Ports12 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 36 x 100/1000/2.5G (PoE++) + 2 x 100 Gigabit (uplink / stacking)
Power Over Ethernet (PoE)PoE++
Processor1 x Intel: 2.2 GHz
RAM4 GB
Remote Management ProtocolSNMP 1, SNMP 3, SNMP 2c, RMON 1, RMON 2, RMON 3, RMON 9, NTP, TACACS+, RADIUS, SSH-2, HTTP, HTTPS, TFTP, DHCP, IPv4, IPv6, RSTP, CLI, ICMP
Routing ProtocolOSPF, BGP, IS-IS, RIP-1, RIP-2, static IP routing, Bidirectional Forwarding Detection (BFD), VRRP, RIPng, OSPFv3, OSPFv2, BGP for IPv6, IGMP, IGMPv2, IGMPv3, PIM-SM, PIM-DM, PIM-SSM, MLD, MSTP, RSTP, STP, CIDR
Subtype10 Gigabit Ethernet
Miscellaneous
Compliant StandardsFCC CFR47 Part 15, ICES-003, EN 300 386 V1.6.1, EN 300 386 V2.1.1, EN 55032, CISPR 32, EN55024, CISPR 24, EN 55035, CISPR 35, AS/NZS CISPR 32, VCCI, BSMI CNS 13438, KN32, KN35, TCVN 7189, TCVN 7317, EMC-221, TEC, OCT-16, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, IEC 62368-3, FCC CFR21 Part 1040, IEC 60825-1, IEC 60825-2, ETSI ES 203 136 V.1.1.1, RoHS
Power
Installed Qty1
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power Provided2000 Watt
Power RedundancyYes
Power Redundancy Scheme1+1 (with optional power supply)
Voltage RequiredAC 100-120/200-240 V
Software / System Requirements
Software IncludedJunos OS
