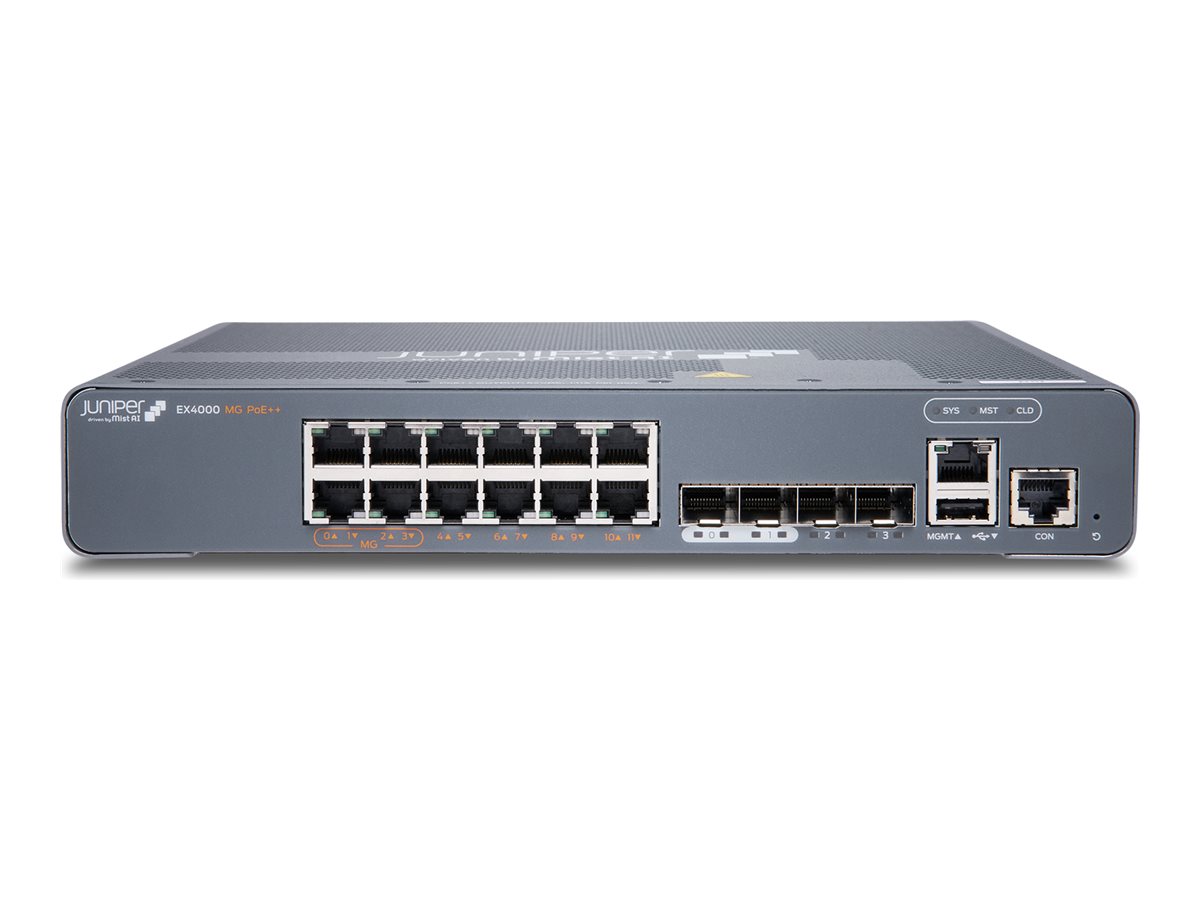

Juniper Networks EX Series EX4000-12MP

$2,061.00
Juniper Networks EX Series EX4000-12MP
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 8 x 10/100/1000 (PoE++) + 4 x 100/1000/2.5G + 4 x 10Gb Ethernet SFP+ (uplink)
  • rack-mountable
Juniper Networks EX Series EX4000-12MP
  • Switch
  • L3
  • managed
  • 8 x 10/100/1000 (PoE++) + 4 x 100/1000/2.5G + 4 x 10Gb Ethernet SFP+ (uplink)
  • rack-mountable
  • PoE++ (240 W)
  Additional Details
Price: $2,061.00
Mfr Part #: EX4000-12MP
SHI Part #: 49700386
Category: Switch matrixes
UNSPSC: 43222612
Manufacturer: Juniper Networks
Product Type: Hardware
General Information
CategorySwitch matrixes
DescriptionJuniper Networks EX Series EX4000-12MP - Switch - L3 - managed - 8 x 10/100/1000 (PoE++) + 4 x 100/1000/2.5G + 4 x 10Gb Ethernet SFP+ (uplink) - rack-mountable - PoE++ (240 W)
ManufacturerJuniper Networks
MSRP$4,055.75
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth25.37 cm
Dimensions & Weight / Height4.34 cm
Dimensions & Weight / Weight3.15 kg
Dimensions & Weight / Width26.4 cm
Header / BrandJuniper Networks
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty12
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth25.37 cm
Height4.34 cm
Weight3.15 kg
Width26.4 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 90% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 8 x 10/100/1000 Base-T RJ-45 PoE++ - 60 W
  • 4 x 100/1000/2.5G RJ-45
  • 2 x Gigabit / 10Gbit LAN SFP+ uplink
  • 2 x 10Gbit LAN SFP+ Virtual Chassis/uplink
  • 1 x console
  • 1 x USB Type A management
  • 1 x management RJ-45
General
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity
  • VLAN IDs: 4094
  • VLAN Spanning Tree Protocol instances: 253
  • Active VLANs: 1020
  • Firewall ingress filters(RACL, VACL, PACL rules): 510
  • Firewall egress filters (VACL rules): 255
  • Firewall egress filters (PACL rules): 510
  • IPv4 routes (ARP entries): 4000
  • IPv6 neighbor discovery: 3000
  • Host IPv6 routes (Unicast): 3800
  • IPv6 routes (Multicast): 1650
  • MSTP instances: 64
  • VSTP instances: 253
  • Link Access Groups (LAGs): 128
Compliant StandardsIEEE 802.3bz, IEEE 802.3bt, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3x, IEEE 802.3by, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, ITU-T G.8032
Device TypeSwitch - 12 ports - L3 - managed - stackable
Enclosure TypeRack-mountable 1U
Encryption AlgorithmMD5, TLS, PEAP, TTLS
FeaturesVirtual Chassis technology, compact, fanless, LAG, IPv4 support, IPv6 support, JTI, Link Aggregation, NSB, NSR, RTG, Juniper Mist Cloud Architecture, store and forward, Captive Portal, DHCP snooping, DDoS, DAI, ERPS, IP source guard, MAC Layer, persistent MAC, PVST+, port-based VLAN, proxy ARP, RVI, UFD, Voice VLAN, CoS, ECN, flow control, Layer 2 Control Protocol tunneling, LLDP, LLDP-MED, MAC Address Notification, MAC Learning Disable, MRP, MSTP support, MVRP, port based access control, STP support, sticky MAC, SVLAN tagging, 802.1x authentication, BFD, DoS protection, DHCPv6 snooping, DSCP support, GRES, IPv6 neighbor discovery, IPv6 Neighbor Discovery Inspection, iPv6 RA guard, IPv6 source guard, LACP, policy based routing, QoS, static routing, VRF-Lite, VRRP support, WDRR, configuration rollback, DHCP client, DHCP Helper, DHCP proxy, DHCP relay, DHCP server, FTP backup, IGMP snooping, IGMPv1/v2/v3 support, image rollback, MLD snooping, MSDP, PIM-DM snooping, PIM-SM snooping, PIM-SSM snooping, remote troubleshooting, SCP, system log, temperature sensor, traffic mirroring, traffic monitoring, WRED, reset button
Flash Memory8 GB
Jumbo Frame Support9216 bytes
MAC Address Table Size32000 entries
Max Units In A Stack6
Performance
  • Switching capacity (64-byte packet size, unidirectional): 58 Gbps
  • Switching capacity (64-byte packet size, bidirectional): 116 Gbps
  • Throughput (64-byte packet size): 86 Mpps
PoE Budget240 W
Ports8 x 10/100/1000 (PoE++) + 4 x 100/1000/2.5G + 4 x 10Gb Ethernet SFP+ (uplink)
Power Over Ethernet (PoE)PoE++
RAM4 GB
Remote Management ProtocolSNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, CLI, SSH, SSH-2, HTTP, HTTPS, NTP, IPv4, IPv6, ICMP, TACACS+, RADIUS
Routing ProtocolOSPF, BGP, IS-IS, RIP-1, RIP-2, static IP routing, Bidirectional Forwarding Detection (BFD), VRRP, static IPv4 routing, static IPv6 routing, RIPng, OSPFv3, IGMP, IGMPv2, IGMPv3, PIM-SM, PIM-DM, PIM-SSM, MLD, MSTP, RSTP, STP, CIDR
Status IndicatorsSystem, cloud, MST
Subtype10 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsFCC 47 CFR Part 15, ICES-003, BS EN 55032, BS EN 55035, EN 300 386 V1.6.1, EN 300 386 V2.2.1, EN 300 386, EN 55032, CISPR 32, EN 55035, CISPR 35, EN IEC 61000-3-2, IEC/EN 61000-3-3, AS/NZS CISPR 32, VCCI-CISPR 32, BSMI CNS 15936, KS C 9835, KS C 9832, KS C 9610, ICES-GEN, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, IEC 62368-1, CFR Title 21, CAN/CSA C22.2 No. E60825-1, IEC 60825-1, IEC 60825-2, CAN/CSA-C22.2 No. 60950-1, UL 60950-1, ECR 3.0.1, ETSI ES 203 136 V.1.1.1, VZ.TPR.9205, RoHS, ISO 7779, ANSI/TIA-1057, 802.3at, IEEE 802.3bt, ITU-T G.8032
Power
Power DeviceInternal power supply
Voltage RequiredAC 100-240 V (50/60 Hz)
Software / System Requirements
Software IncludedJunos OS
