Hardware Data Storage Storage Networking (SAN)

Storage Networking (SAN)

Geist Monitored Unit Level MN05M4W1-36CF18-3TL21A0A10-S-A

$1,930.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Power distribution unit AC 120/208 V 8.6 kW 3-phase WYE Ethernet 10/100/1000, USB, RS-232

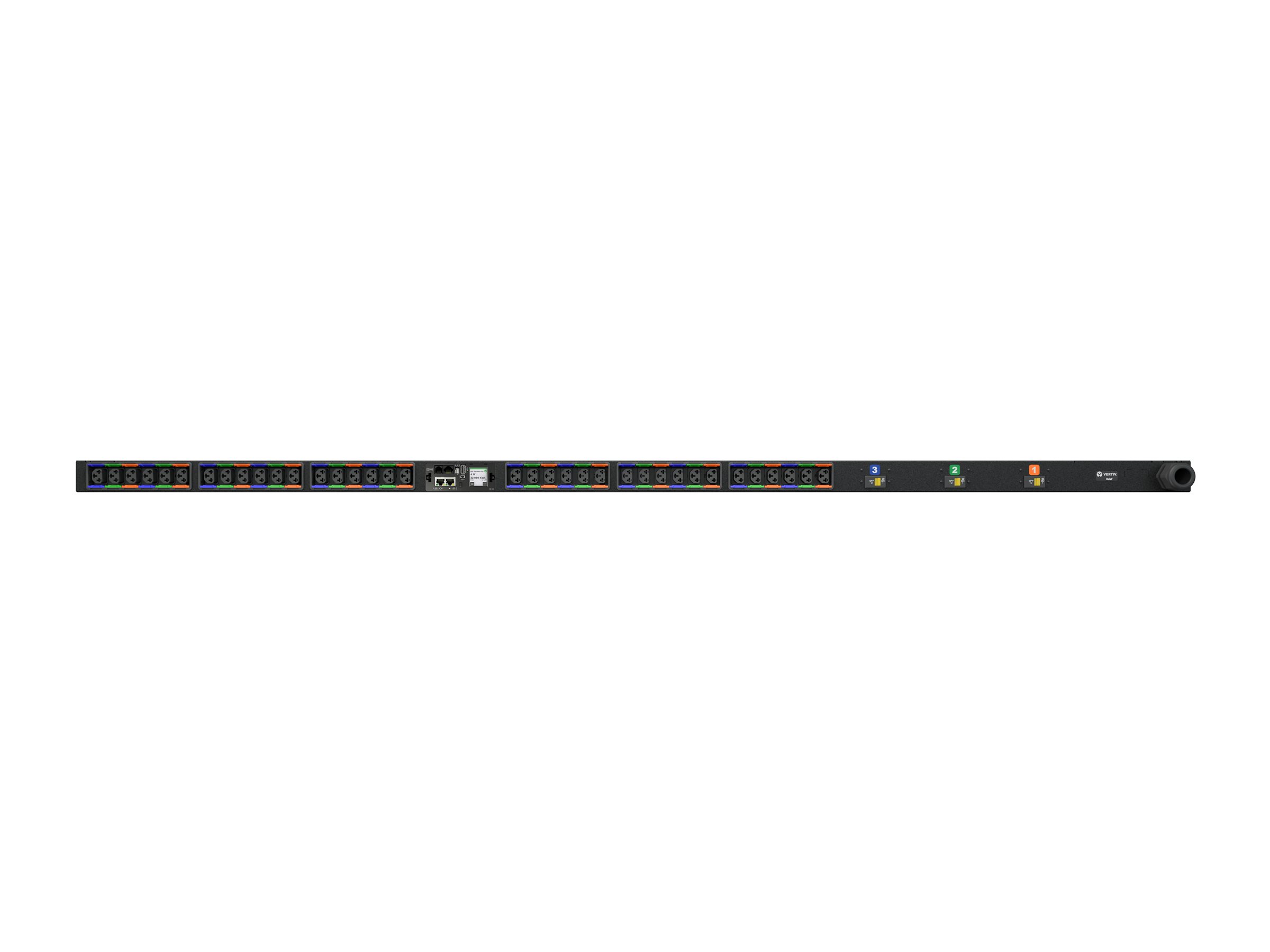

Geist Monitored Unit Level MN05M4W1-36CF18-3TL21A0A10-S-A

Power distribution unit
AC 120/208 V
8.6 kW
3-phase WYE
Ethernet 10/100/1000, USB, RS-232
input: NEMA L21-30P
output connectors: 36 (IEC 60320 C13/C19)
0U
black powder coat
TAA Compliant

Additional Details
Price:	$1,930.00
Mfr Part #:	VP4N30AN
SHI Part #:	48210941
Category:	Rack systems for rack mount electroni...
UNSPSC:	24102001
Manufacturer:	Vertiv
Product Type:	Hardware

General Information
Category	Rack systems for rack mount electroni...
Description	Geist Monitored Unit Level MN05M4W1-36CF18-3TL21A0A10-S-A - Power distribution unit - AC 120/208 V - 8.6 kW - 3-phase WYE - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L21-30P - output connectors: 36 (IEC 60320 C13/C19) - 0U - black powder coat - TAA Compliant
Manufacturer	Vertiv
MSRP	$2,689.00
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	5.1 cm
Dimensions & Weight / Height	177.8 cm
Dimensions & Weight / Width	5.1 cm
Header / Brand	Geist
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100/1000 RS-232 USB
Packaged Quantity	1
Power Device / Output Connector Qty	36
Power Device / Voltage Required	AC 120/208 V
Product Type	Power distribution unit
Service & Support / Type	5-year warranty
Dimensions & Weight
Depth	5.1 cm
Height	177.8 cm
Width	5.1 cm
Dimensions & Weight (Shipping)
Shipping Weight	7.71 kg
Environmental Parameters
Max Operating Temperature	60 °C
Expansion / Connectivity
Interfaces	2 x management (Fast Ethernet) - RJ-45 1 x sensor 1 x RS-232 - RJ-45 1 x USB
General
Color	Black powder coat
Device Type	Power distribution unit
Height (Rack Units)	0U
Manufacturer Warranty
Service & Support	Limited hardware warranty - 5 years with product registration (within 120 days of purchase) Limited warranty - 3 years
Miscellaneous
Cables Included	Power cable 3 m
Compliant Standards	RoHS, FCC Part 15 A, UL, C-UL, UL 62368-1
Features	Vertical orientation, breaker/switch combination, LED display, circuit/breaker current monitoring, IP reset button, hard reboot button, internal RMS current sensor, internal RMS voltage sensor, 3 x 20A double pole magnetic breakers
TAA Compliant	Yes
Networking
Remote Management Interface	Ethernet 10/100/1000, USB, RS-232
Remote Management Protocol	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON
Power Device
Circuit Protection	Circuit breaker
Frequency Required	50/60 Hz
Input Connectors	1 x power NEMA L21-30P
Input Voltage	AC 120/208 V
Input Voltage Range	AC 100 - 120 / 200 - 240 V
Input Wiring	3-phase WYE
Max Electric Current	30 A
Power Capacity	8.6 kW
Power Output Connectors Details	36 x power IEC 60320 C13/C19
