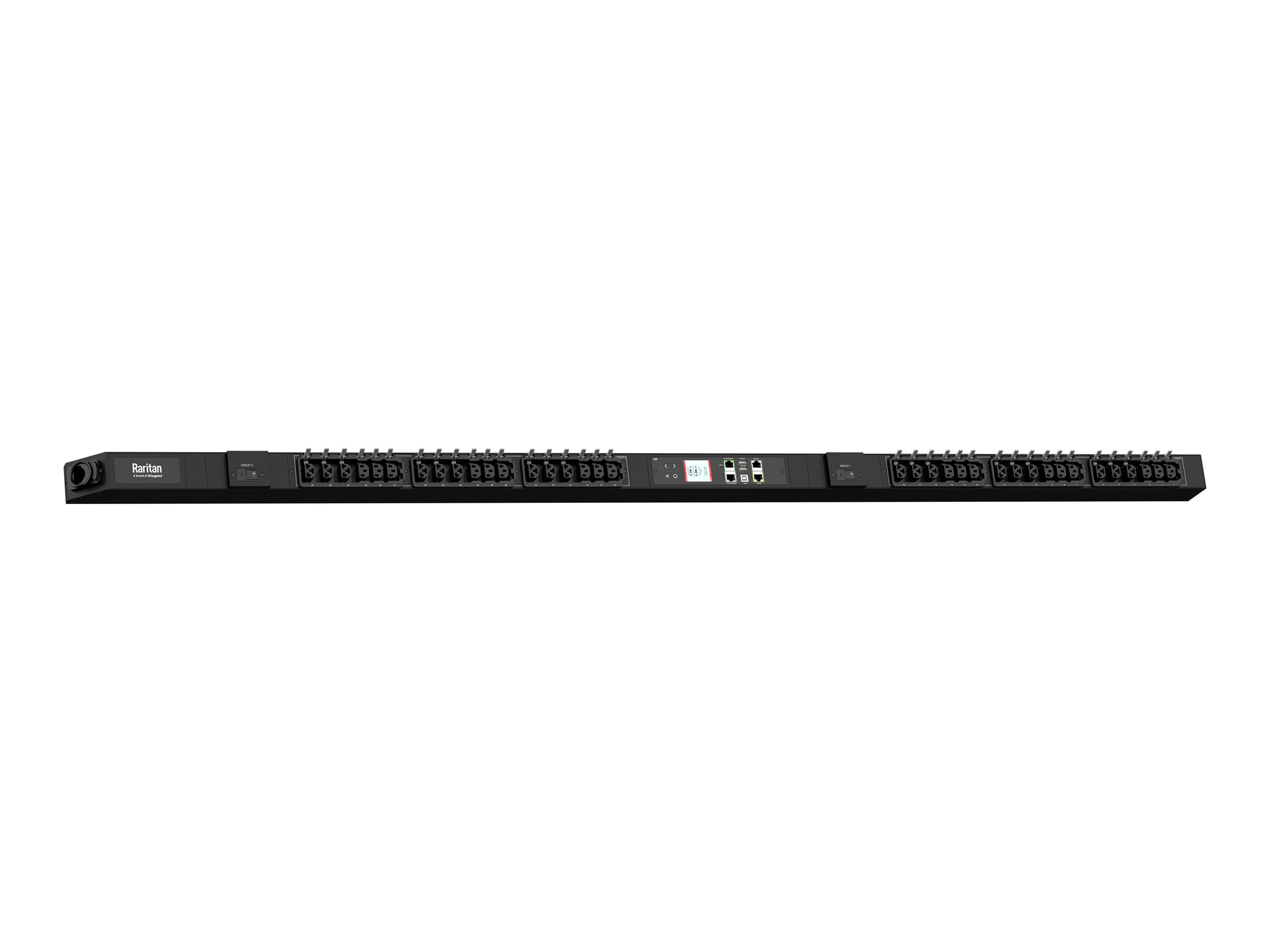

Raritan PX4-531A-E7 - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Raritan PX4-531A-E7 - Power distribution unit (rack-mountable)
- AC 208 V
- 5000 VA
- 1-phase
- RS-232, Ethernet 10/100/1000
- input: NEMA L6-30P
- output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
- 3 m cord
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX4-531A-E7 |
| SHI Part #: | 46229240 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX4-531A-E7 - Power distribution unit (rack-mountable) - AC 208 V - 5000 VA - 1-phase - RS-232, Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) - 3 m cord |
| Manufacturer | Legrand |
| MSRP | $3,770.09 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 6.35 kg |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Weight | 6.35 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 25.5 cm |
| Shipping Height | 194 cm |
| Shipping Weight | 9.89 kg |
| Shipping Width | 12.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | Redfish API, UL, cULus |
| Features | Branch Current Monitoring, voltage monitoring, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, remote outlet switching, metering per output receptacle, environmental sensor ready, cascadable, LCD display, overload protection |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | HTTPS, HTTP, SSH, CLI, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Max Electric Current | 24 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5000 VA |
| Power Output Connectors Details |
|
