Hardware Data Storage Storage Networking (SAN)

Storage Networking (SAN)

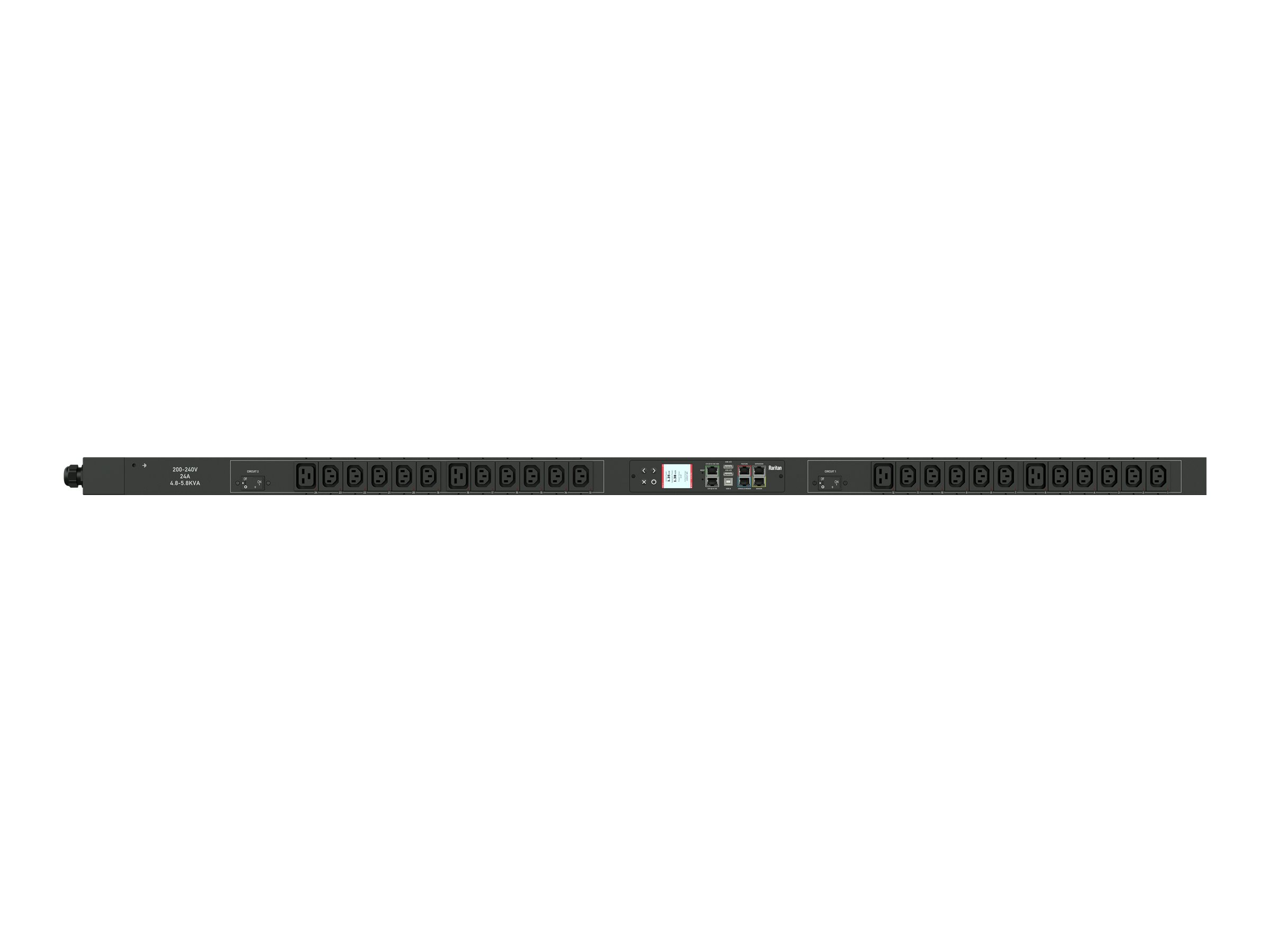

Raritan PX3-5497U - Power distribution unit (rack-mountable)

$2,770.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
AC 208 V 5000 VA Ethernet 10/100, RS-232, Ethernet 10/100/1000 input: NEMA L6-30P output connectors: 24 (4 x IEC 60320 C19, 20 x IEC 60320 C13)

Raritan PX3-5497U - Power distribution unit (rack-mountable)

AC 208 V
5000 VA
Ethernet 10/100, RS-232, Ethernet 10/100/1000
input: NEMA L6-30P
output connectors: 24 (4 x IEC 60320 C19, 20 x IEC 60320 C13)
0U
3 m cord
black

Additional Details
Price:	$2,770.00
Mfr Part #:	PX3-5497U
SHI Part #:	34327618
Category:	Rack systems for rack mount electroni...
UNSPSC:	24102001
Manufacturer:	Legrand
Product Type:	Hardware

General Information
Category	Rack systems for rack mount electroni...
Description	Raritan PX3-5497U - Power distribution unit (rack-mountable) - AC 208 V - 5000 VA - Ethernet 10/100, RS-232, Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 24 (4 x IEC 60320 C19, 20 x IEC 60320 C13) - 0U - 3 m cord - black
Manufacturer	Legrand
MSRP	$2,733.87
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	6.5 cm
Dimensions & Weight / Height	153.9 cm
Dimensions & Weight / Weight	5.4 kg
Dimensions & Weight / Width	5.2 cm
General / Subcategory	Power distribution devices
Header / Brand	Raritan
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100 Ethernet 10/100/1000 RS-232
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	24
Power Device / Power Capacity (VA)	5000 VA
Power Device / Voltage Required	AC 208 V
Product Type	Power distribution unit
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	6.5 cm
Height	153.9 cm
Weight	5.4 kg
Width	5.2 cm
Dimensions & Weight (Shipping)
Shipping Depth	11.5 cm
Shipping Height	181.5 cm
Shipping Weight	7.6 kg
Shipping Width	28 cm
Environmental Parameters
Humidity Range Operating	85%
Max Operating Temperature	60 °C
General
Color	Black
Cord Length	3 m
Device Type	Power distribution unit - rack-mountable
Height (Rack Units)	0U
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Cables Included	Power cable - integrated - 3 m
Compliant Standards	UL, ICES-003, RoHS, FCC Part 15 A, cULus, IP44, IEC 62053-21, ISO 62053-21
Features	Vertical orientation, voltage monitoring, current meter, overcurrent protection, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller
Networking
Remote Management Interface	Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol	SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Power Device
Circuit Protection	Circuit breaker
Frequency Required	50/60 Hz
Input Connectors	1 x power NEMA L6-30P
Input Voltage	AC 208 V
Input Voltage Range	AC 200 - 240 V
Max Electric Current	30 A
Output Voltage	AC 208 V
Power Capacity	5000 VA
Power Capacity Details	4.8 kVA at 200 V, 5.8 kVA at 240 V
Power Output Connectors Details	20 x power IEC 60320 C13 12 A 4 x power IEC 60320 C19 16 A
