CyberPower Switched ATS PDU44007
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

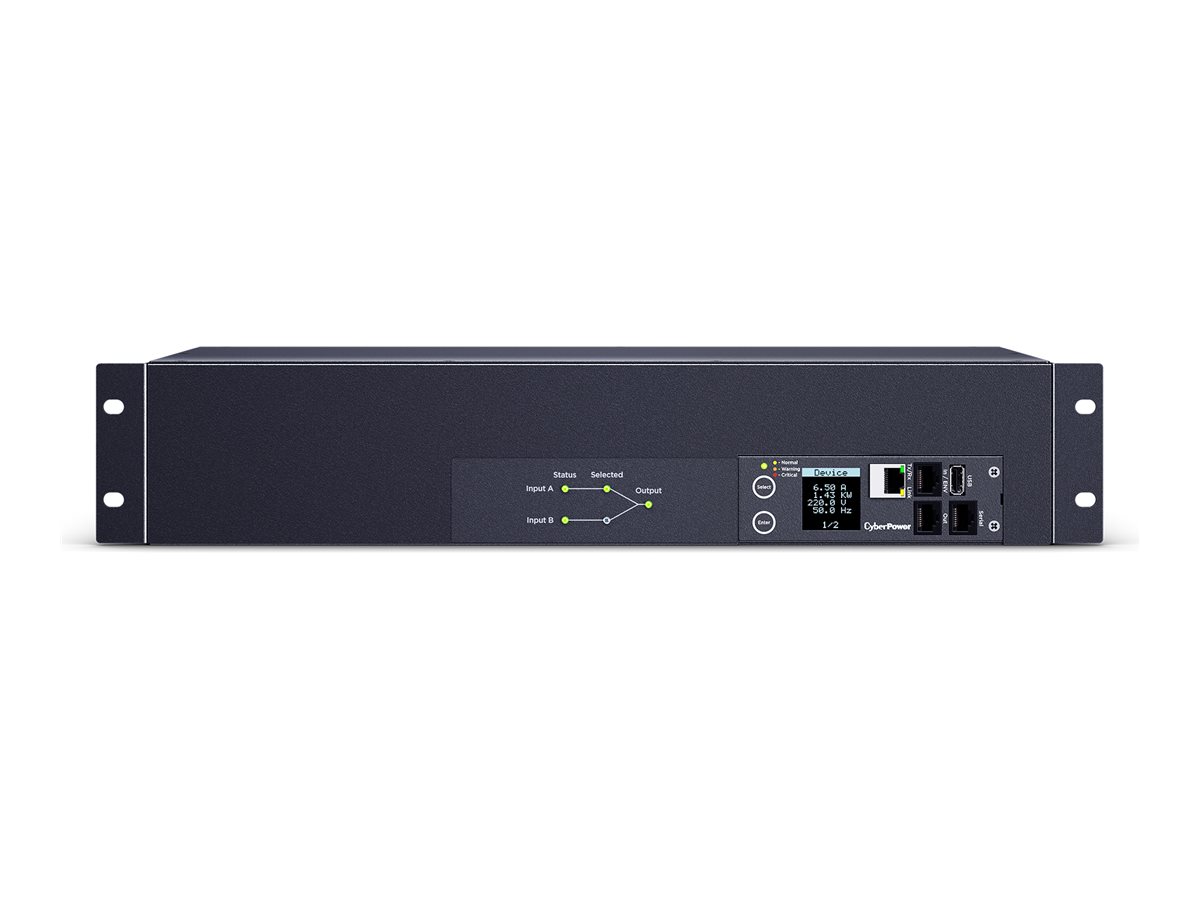

CyberPower Switched ATS PDU44007
- Power distribution unit (rack-mountable)
- AC 200
- 240 V
- 1-phase
- serial, Ethernet
- input: 2 x NEMA L6-30P
- output connectors: 19 (16 x IEC 60320 C13, 2 x IEC 60320 C19, NEMA L6-30R)
- 2U
- 3 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDU44007 |
| SHI Part #: | 45356662 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CyberPower Switched ATS PDU44007 - Power distribution unit (rack-mountable) - AC 200 - 240 V - 1-phase - serial, Ethernet - input: 2 x NEMA L6-30P - output connectors: 19 (16 x IEC 60320 C13, 2 x IEC 60320 C19, NEMA L6-30R) - 2U - 3 m cord - black |
| Manufacturer | CyberPower |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21.46 cm |
| Dimensions & Weight / Height | 8.89 cm |
| Dimensions & Weight / Weight | 7.98 kg |
| Dimensions & Weight / Width | 43.31 cm |
| Header / Brand | CyberPower |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 19 |
| Power Device / Voltage Required | AC 200 - 240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Transfer Time | 10 ms |
| Dimensions & Weight | |
| Depth | 21.46 cm |
| Height | 8.89 cm |
| Weight | 7.98 kg |
| Width | 43.31 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 39.8 cm |
| Shipping Height | 18.49 cm |
| Shipping Weight | 9.39 kg |
| Shipping Width | 54.99 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL 62368, RoHS, cTUVus |
| Features | Metal housing, LCD display, Automatic Transfer Switch (ATS), firmware upgradable, LED indicators, built-in maintenance bypass |
| Included Accessories | Cord retention tray |
| Networking | |
| Remote Management Interface | Serial, Ethernet |
| Remote Management Protocol | IPv4, HTTP, NTP, SNMP 1, DHCP, SMTP, Telnet, IPv6, SNMP 3, HTTPS, SSH, CLI, LDAP, RADIUS, Syslog |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x 2 x power NEMA L6-30P |
| Input Voltage | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 24 A |
| Output Voltage | AC 200 - 240 V |
| Power Output Connectors Details |
|
