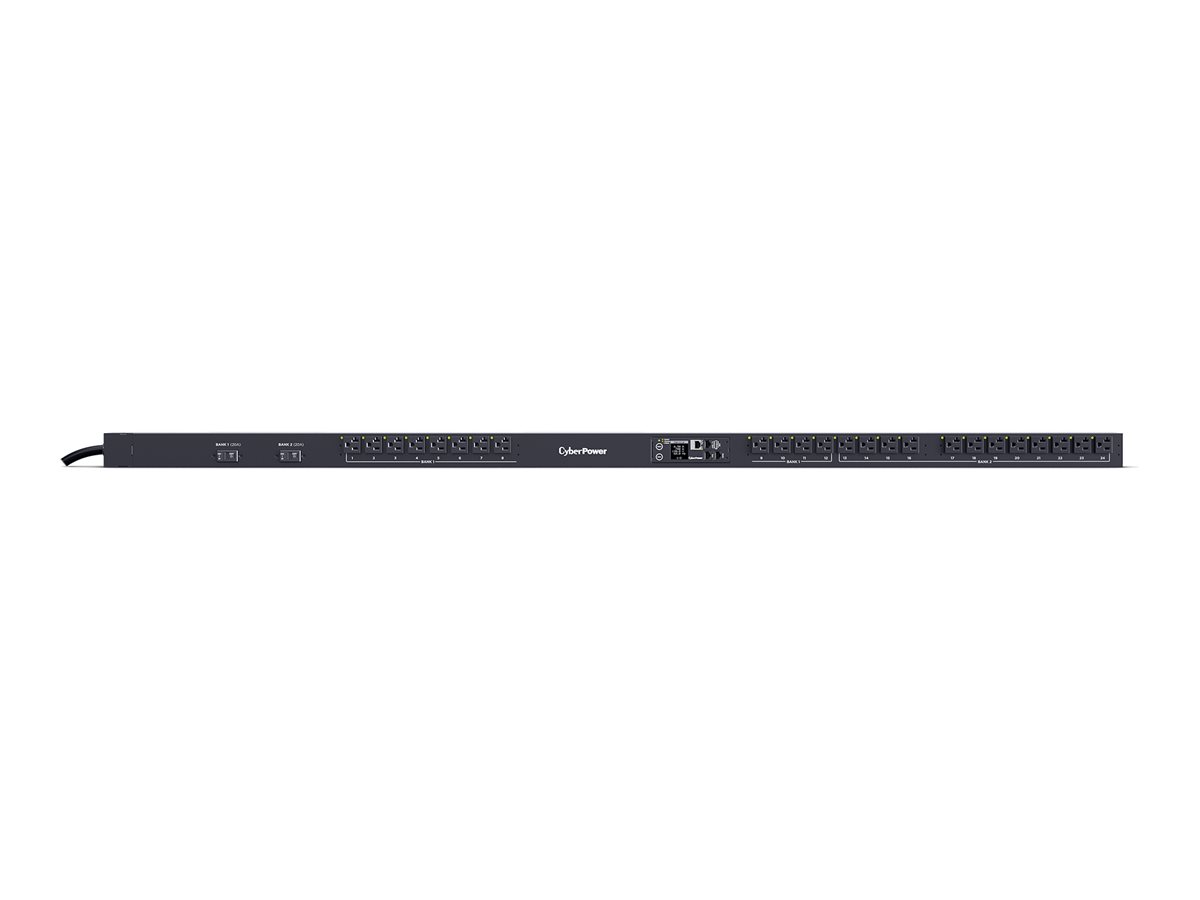

CyberPower PDU41102 - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CyberPower PDU41102 - Power distribution unit (rack-mountable)
- AC 100-120 V
- 1-phase
- Ethernet, serial
- input: NEMA L5-30P
- output connectors: 24 (24 x NEMA 5-20R)
- 0U
- 3.05 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDU41102 |
| SHI Part #: | 43413337 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CyberPower PDU41102 - Power distribution unit (rack-mountable) - AC 100-120 V - 1-phase - Ethernet, serial - input: NEMA L5-30P - output connectors: 24 (24 x NEMA 5-20R) - 0U - 3.05 m cord - black |
| Manufacturer | CyberPower |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.8 cm |
| Dimensions & Weight / Height | 166.5 cm |
| Dimensions & Weight / Weight | 7.8 kg |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | Cyberpower |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 100-120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 4.8 cm |
| Height | 166.5 cm |
| Weight | 7.8 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 189.5 cm |
| Shipping Weight | 9.7 kg |
| Shipping Width | 18.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3.05 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3.05 m |
| Compliant Standards | FCC Class A certified, UL 60950, RoHS |
| Features | Switched, firmware upgradable, LCD display, overload protection, voltage monitoring, amp meter, power measuring |
| Included Accessories | Cable ties, screws, cord retention tray |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet, serial |
| Remote Management Protocol | IPv4, IPv6, SNMP 1, SNMP 3, HTTP, HTTPS, DHCP, NTP, SMTP, SSH, Telnet, RADIUS, LDAP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Input Voltage | AC 100-120 V |
| Input Wiring | 1-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 100-120 V |
| Power Output Connectors Details | 24 x power NEMA 5-20R |
| Software / System Requirements | |
| Software Included | PowerPanel Business Edition |
