Raritan PX intelligent PX3-5334
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

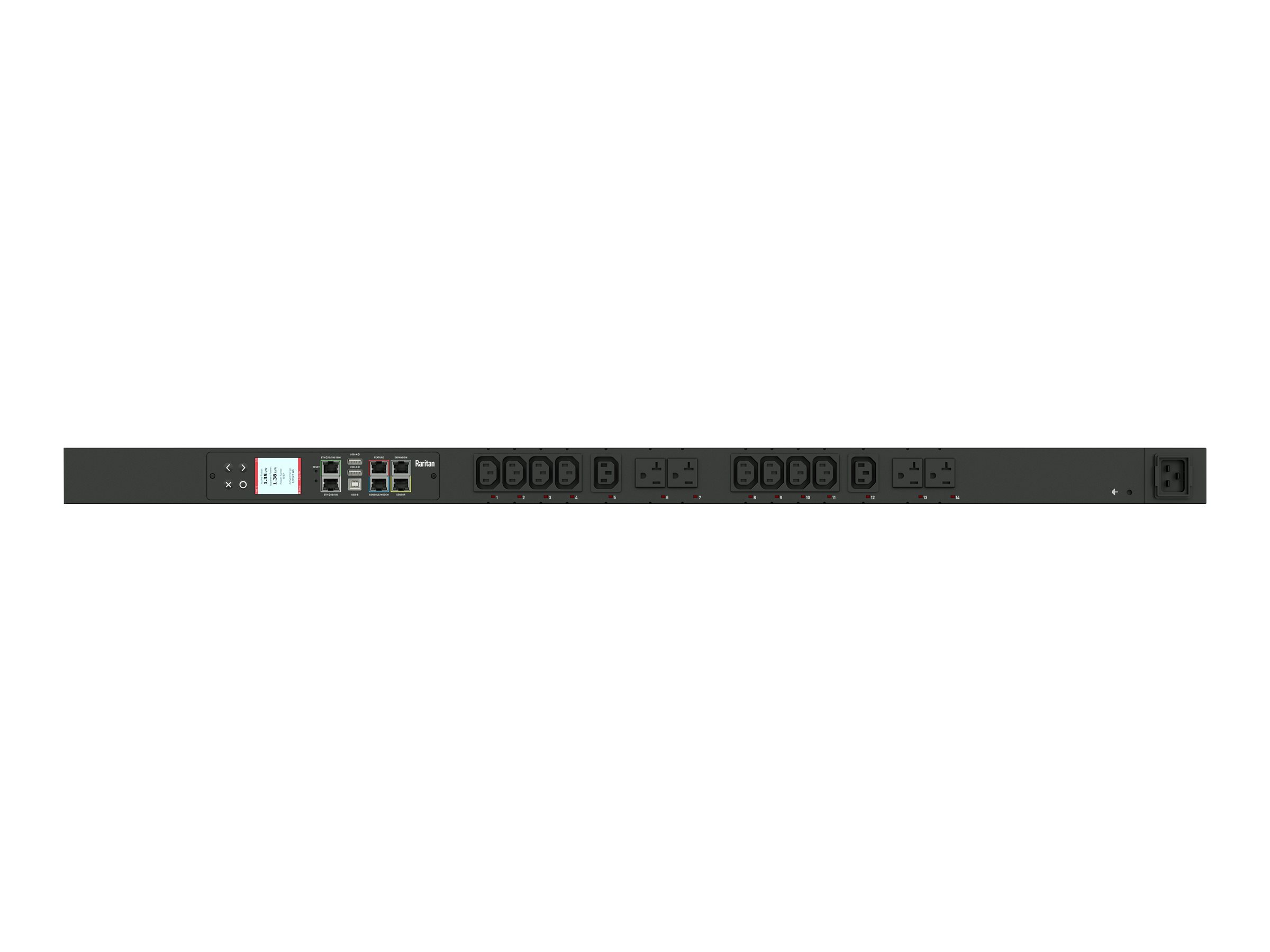

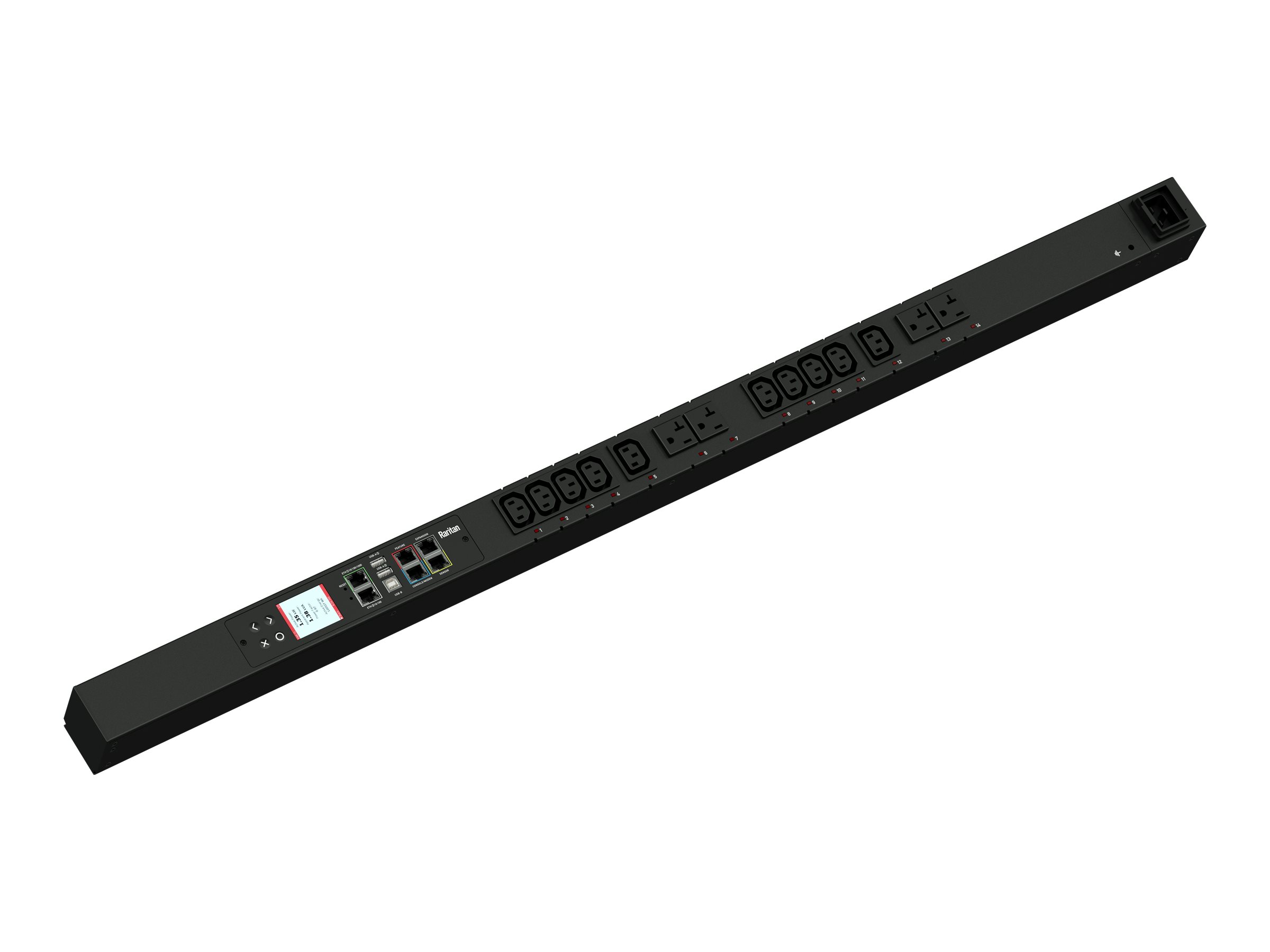

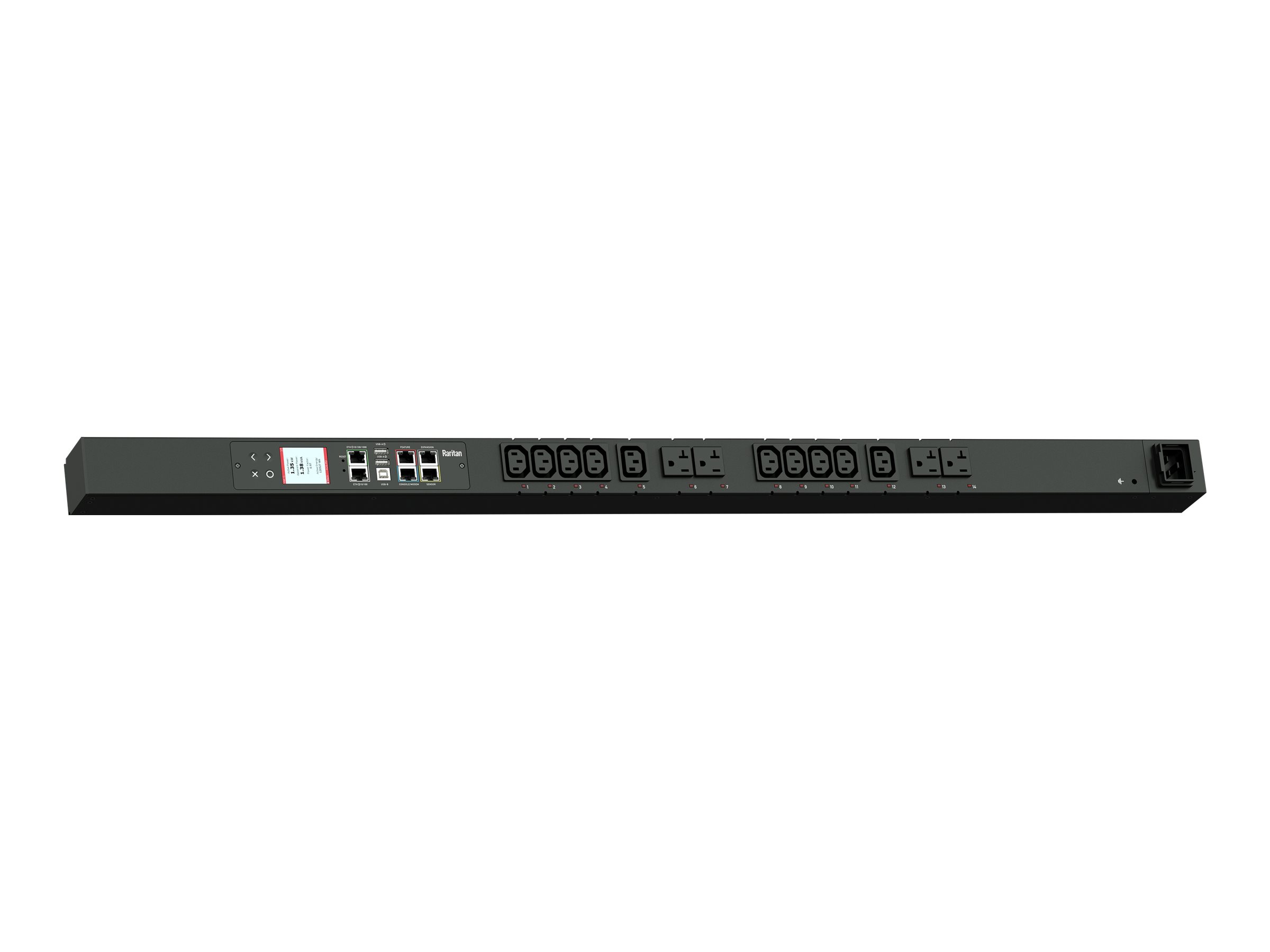

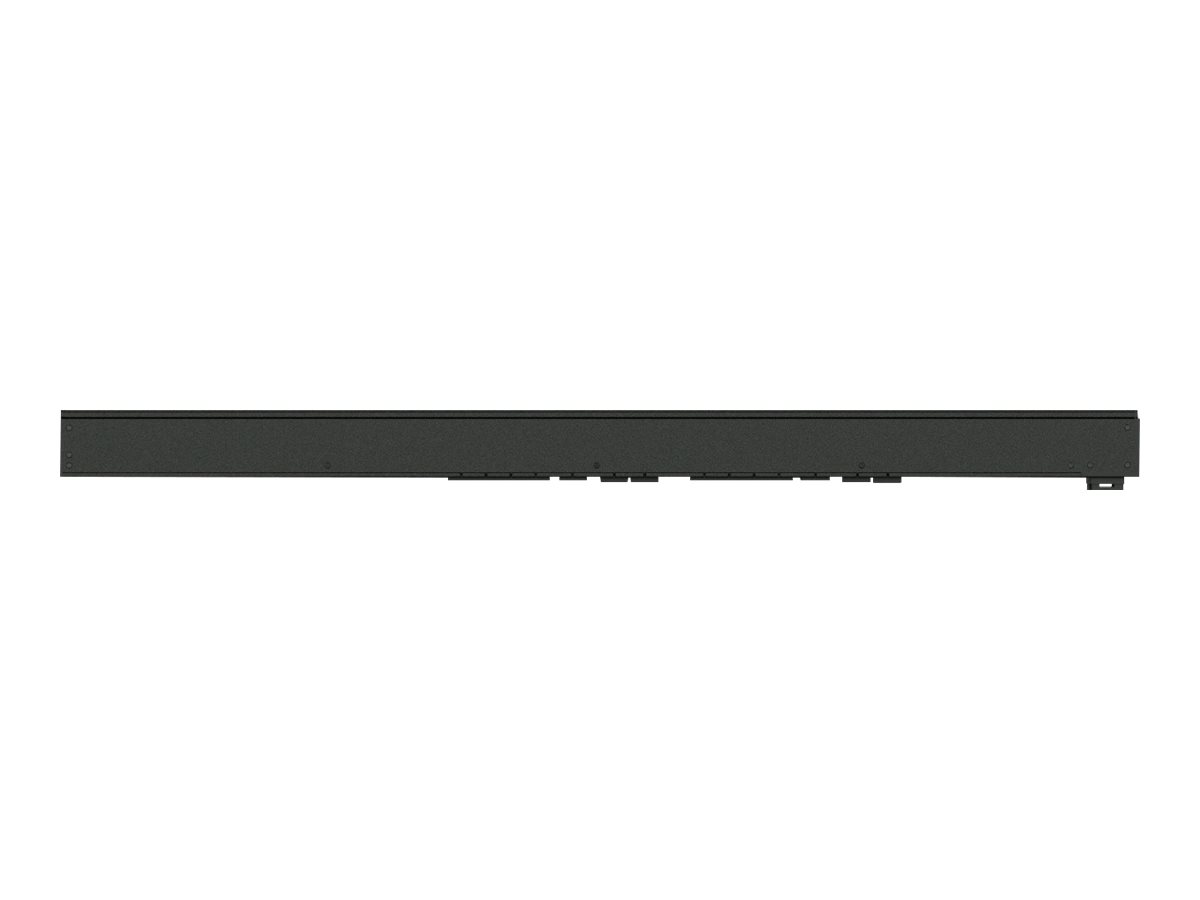

Raritan PX intelligent PX3-5334
- Power distribution unit (rack-mountable)
- AC 120 V
- 1900 VA
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: NEMA 5-20P
- output connectors: 14 (10 x IEC 60320 C13, 4 x NEMA 5-20R)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5334 |
| SHI Part #: | 35875878 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX intelligent PX3-5334 - Power distribution unit (rack-mountable) - AC 120 V - 1900 VA - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: NEMA 5-20P - output connectors: 14 (10 x IEC 60320 C13, 4 x NEMA 5-20R) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $1,984.33 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 104.4 cm |
| Dimensions & Weight / Weight | 5.3 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 14 |
| Power Device / Power Capacity (VA) | 1900 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 104.4 cm |
| Weight | 5.3 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 16 cm |
| Shipping Height | 115.4 cm |
| Shipping Weight | 8.9 kg |
| Shipping Width | 18.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21, ISO 62053-21 |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per output receptacle, replaceable controller, monitored, switched |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-20P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 120 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V |
| Power Capacity | 1900 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 1.9 kVA at 120 V |
| Power Output Connectors Details |
|
