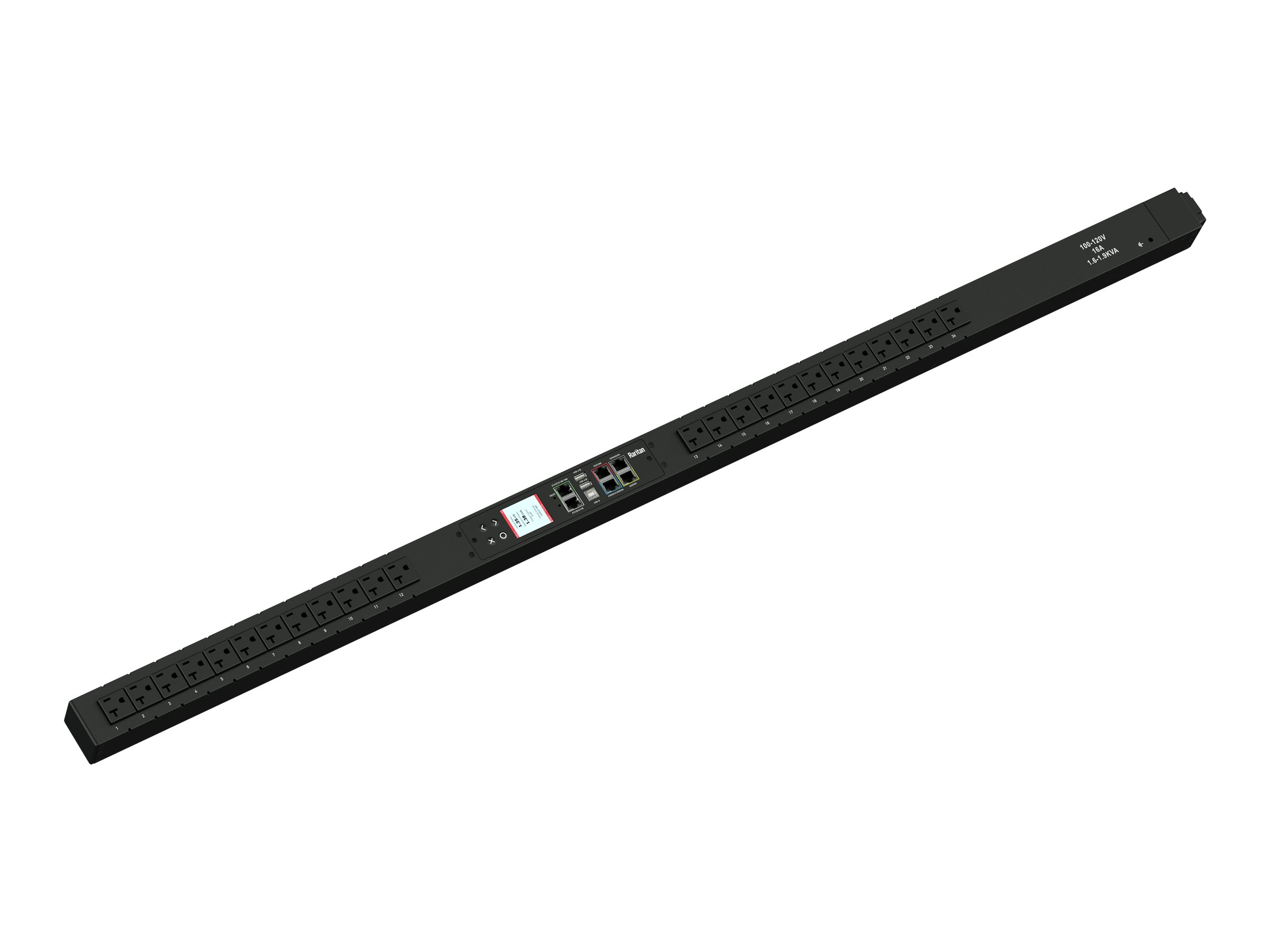

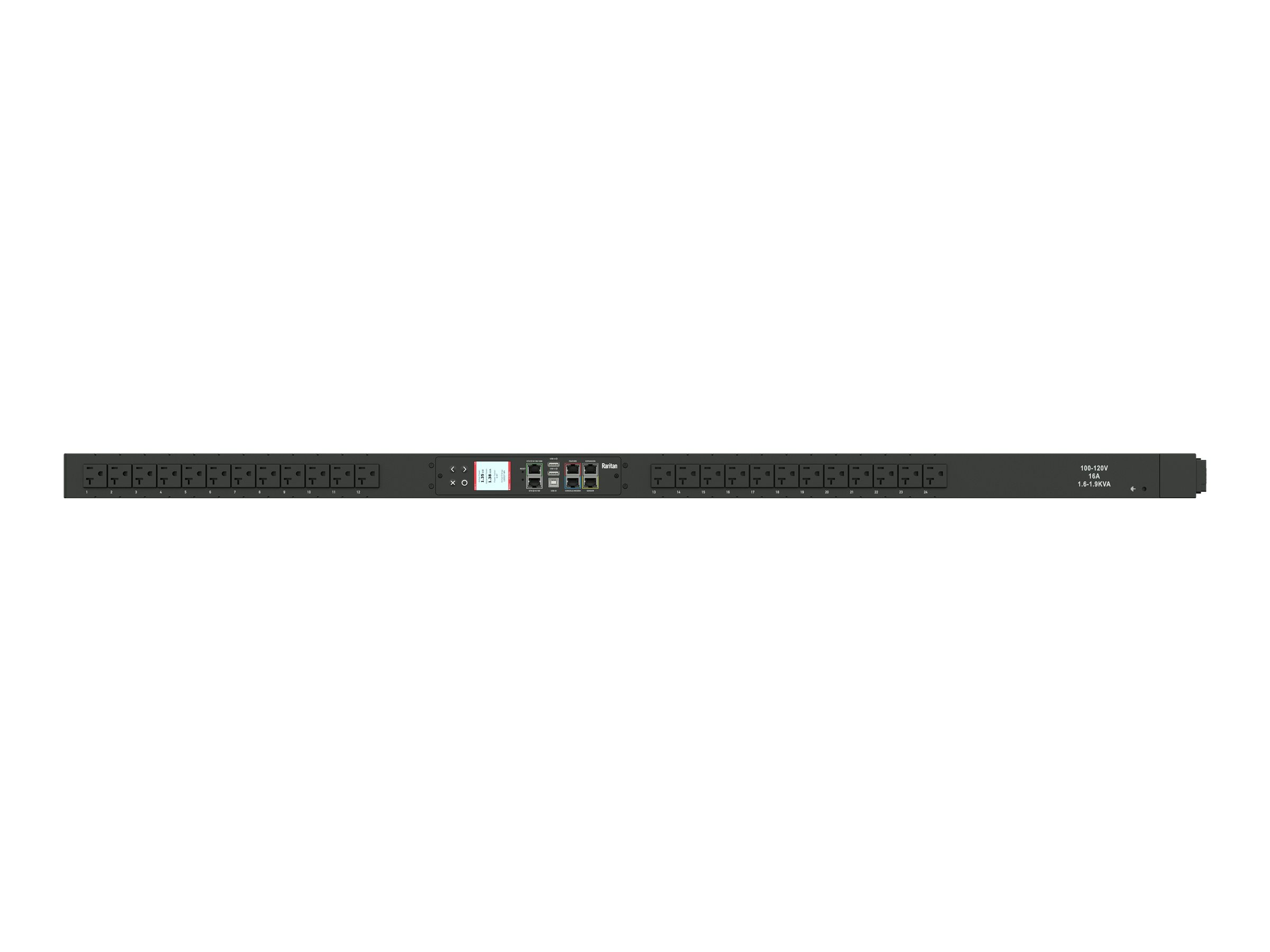

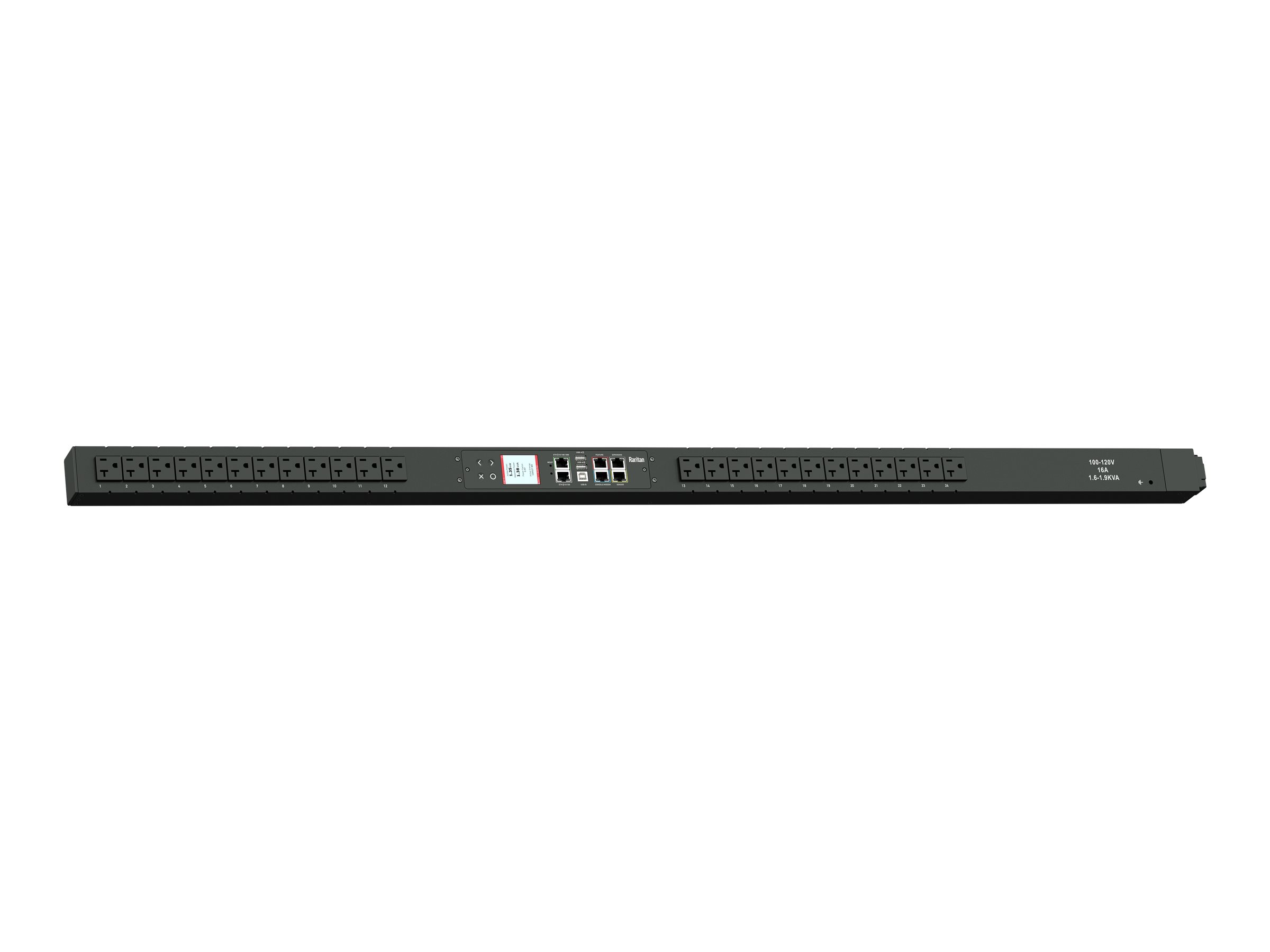

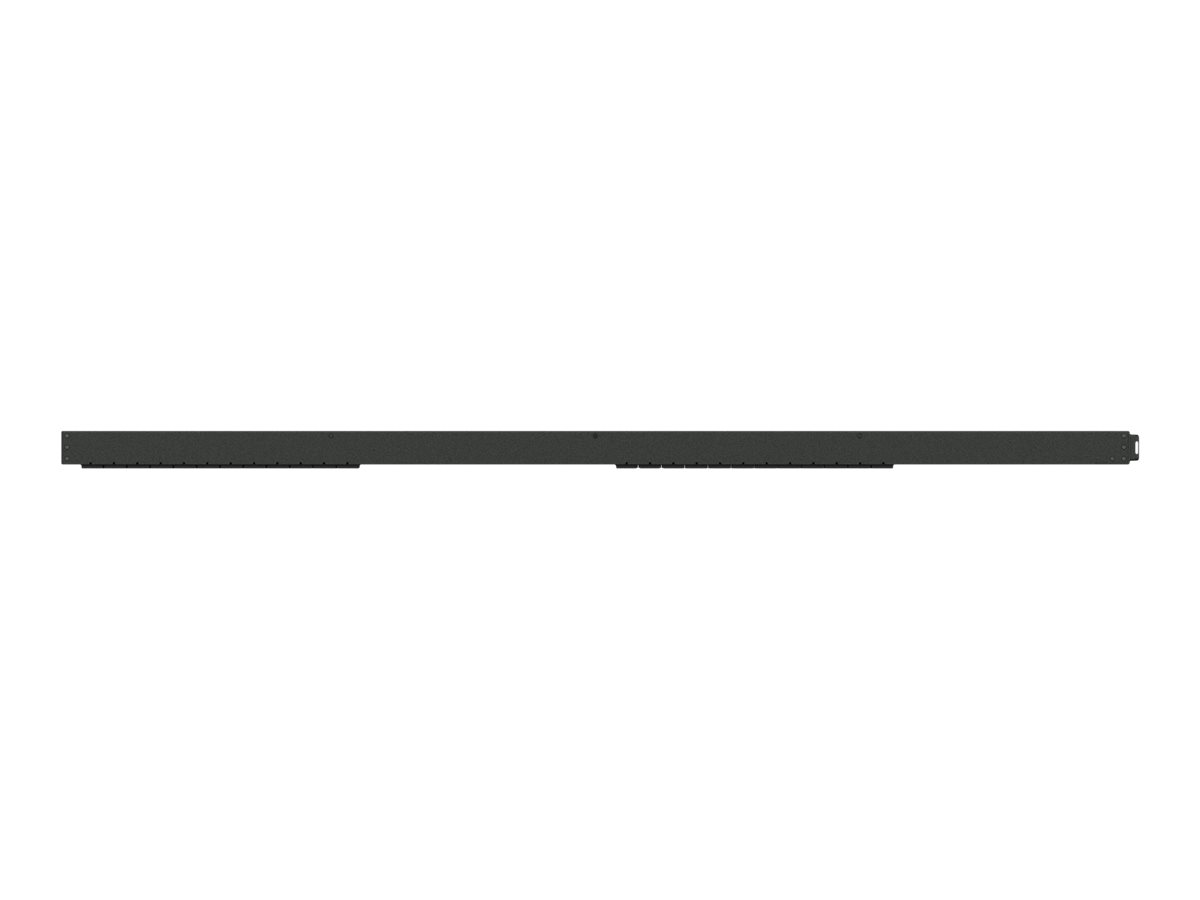

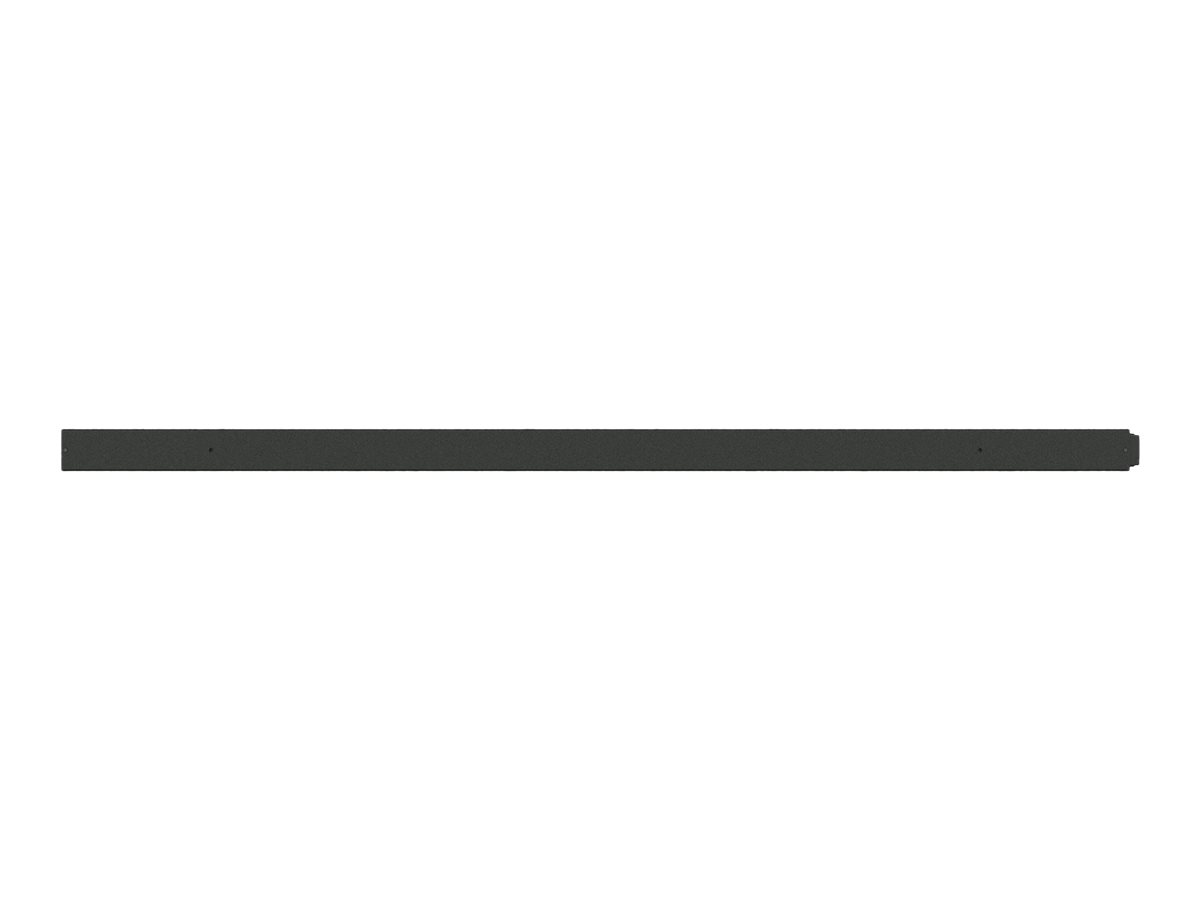

Raritan PX3-1475V - Power distribution unit (rack-mountable)

$1,006.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
AC 120 V 1900 VA 1-phase Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 input: NEMA L5-20P

Raritan PX3-1475V - Power distribution unit (rack-mountable)

AC 120 V
1900 VA
1-phase
Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
input: NEMA L5-20P
output connectors: 24 (24 x NEMA 5-20R)
0U
3 m cord
black powder coat

Additional Details
Price:	$1,006.00
Mfr Part #:	PX3-1475V
SHI Part #:	35656229
Category:	Rack systems for rack mount electroni...
UNSPSC:	24102001
Manufacturer:	Legrand
Product Type:	Hardware

General Information
Category	Rack systems for rack mount electroni...
Description	Raritan PX3-1475V - Power distribution unit (rack-mountable) - AC 120 V - 1900 VA - 1-phase - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: NEMA L5-20P - output connectors: 24 (24 x NEMA 5-20R) - 0U - 3 m cord - black powder coat
Manufacturer	Legrand
MSRP	$992.86
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	4.3 cm
Dimensions & Weight / Height	129.8 cm
Dimensions & Weight / Weight	3.2 kg
Dimensions & Weight / Width	5.2 cm
General / Subcategory	Power distribution devices
Header / Brand	Raritan
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100 Ethernet 10/100/1000 RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	24
Power Device / Power Capacity (VA)	1900 VA
Power Device / Voltage Required	AC 120 V
Product Type	Power distribution unit
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	4.3 cm
Height	129.8 cm
Weight	3.2 kg
Width	5.2 cm
Dimensions & Weight (Shipping)
Shipping Depth	18.5 cm
Shipping Height	140.8 cm
Shipping Weight	6 kg
Shipping Width	18.5 cm
Environmental Parameters
Humidity Range Operating	85%
Max Operating Temperature	60 °C
Expansion / Connectivity
Interfaces	1 x management (Gigabit Ethernet) - RJ-45 1 x management (Fast Ethernet) - RJ-45 1 x management (USB) - 4 pin USB Type B 2 x USB - 4 pin USB Type A 1 x cascading - RJ-45 1 x management (RS-232) - RJ-45 1 x sensor - RJ-45
General
Color	Black powder coat
Cord Length	3 m
Device Type	Power distribution unit - rack-mountable
Height (Rack Units)	0U
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Cables Included	Power cable 3 m
Compliant Standards	UL, ICES-003, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21
Features	Vertical orientation, tool-less button mount, LCD display, current meter, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, metering per input line, replaceable controller, power cable IP44 compliant, cord retention, removable controller, Auto-Flip Current Display, voltage meter, environmental sensor ready
Networking
Remote Management Interface	Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol	SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI, JSON-RPC, SMTP, Modbus, DHCP
Power Device
Frequency Required	50/60 Hz
Input Connectors	1 x power NEMA L5-20P
Input Voltage	AC 120 V
Input Voltage Range	AC 100 - 120 V
Input Wiring	1-phase
Max Electric Current	20 A
Output Voltage	AC 120 V
Power Capacity	1900 VA
Power Capacity Details	1.6 kVA at 100 V, 1.9 kVA at 120 V
Power Output Connectors Details	24 x power NEMA 5-20R 16 A
