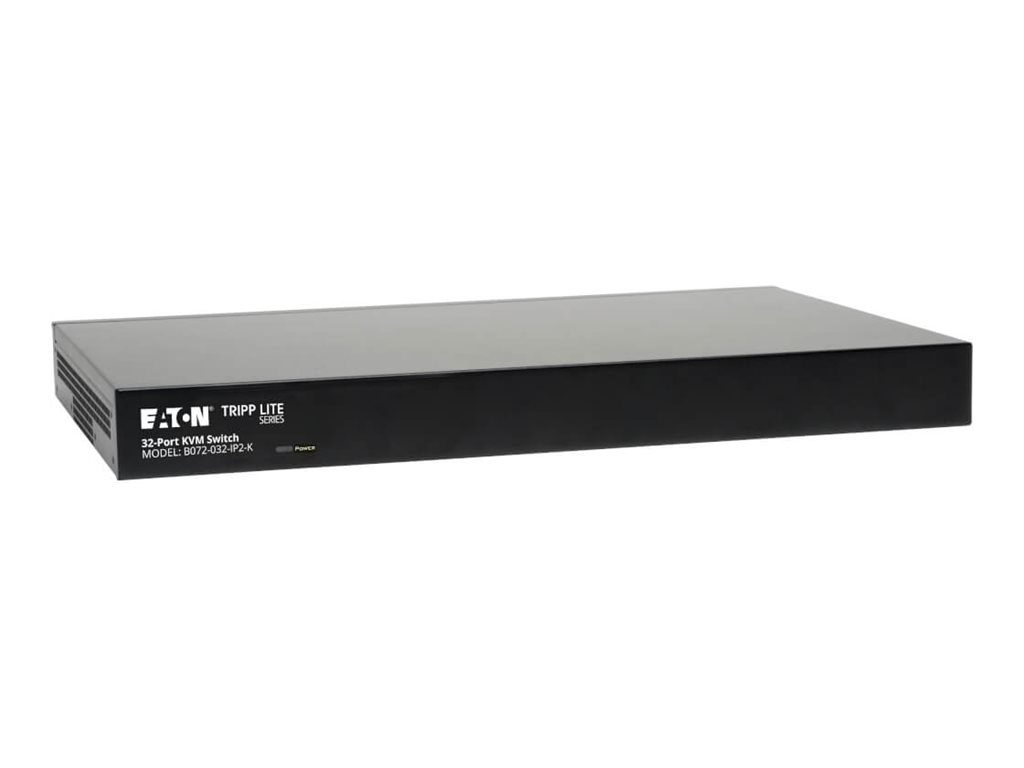

Tripp Lite 32-Port Cat5 IP KVM Switch 1 Local 2 Remote 16 USB Dongles Rackmount

Saves Space and Money

? Mounts in a standard 19 in. rack

? Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch

? Use a Server Interface Unit, B078-101-USB-1 or B078-101-USB2 (for USB) or B078-101-PS2 (for PS/2) with each server that will be connected with Cat5 cable; 16 B078-101-USB-1 units are included

? To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room

? Remote access means there's no need to travel to the server room or network closet

? Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection

? A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java

? 1 local + 2 remote users can access different ports concurrently; up to 5 users can share a single remote session

? Supports both IPv4 and IPv6

Simplifies IT Tasks

? On-screen display, hot keys and remote toolbar for easy use

? Free NetCommander-AXS Management Software gives you remote access and control over all your NetCommander IP KVM switches (B070 and B072 series)

? Video resolutions up to 1920 x 1080 @ 60 Hz are supported

? 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; assign individual ports to an IP PDU port to power on/off the server connected to that port

? BIOS-level control of any brand and model server, regardless of the server's condition and network connectivity

? Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were directly stored on it

? Virtual Media data transfer rates up to 12 Mbps are supported when using a B078-101-USB2 Server Interface Unit; the included B078-101-USB-1 Server Interface Units can be used for Virtual Media support, but only at speeds up to 1Mbps

? Fast Virtual Media KVM System patented under Pat. No. US 9,417,720

? System-sent messages to SNMP server notify you of network failures

? Supports RADIUS and LDAP/S authentication

? Log tracks events such as logins, reboots and network setting changes on your installation

Advanced Security Features

? Multi-level password protection: create administrator accounts with full access and user accounts with limited access

? Supports TLS 1.2 security protocol

? You can install SSL certificates to ensure secure transactions between web servers and browsers

Built to Last

? Flash-upgradable firmware over the network

? Heavy-duty steel housing stands up to frequent use

? Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
