Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

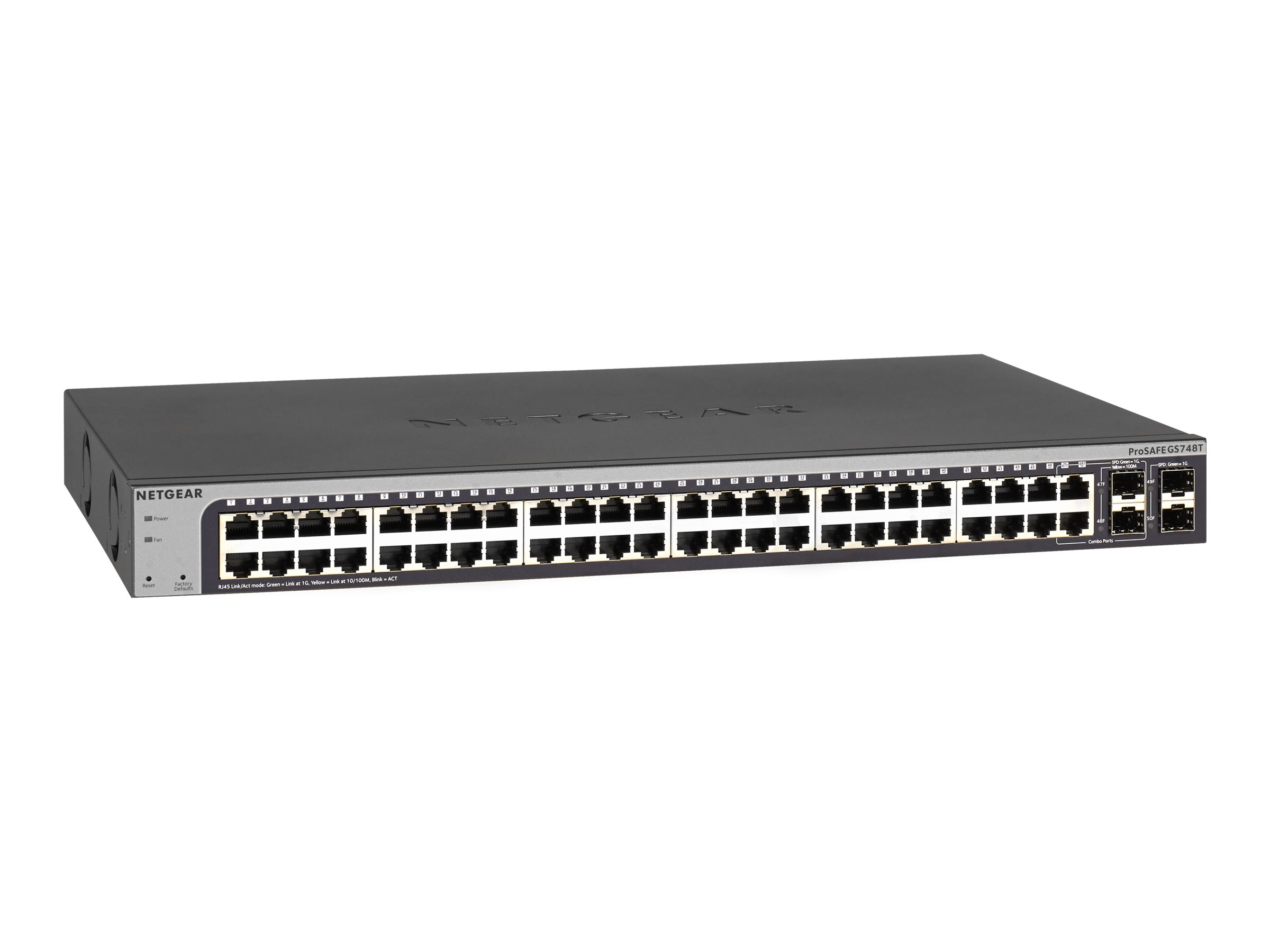

NETGEAR Smart GS748T

$717.00
NETGEAR Smart GS748T
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • V5
  • switch
  • L3 Lite
  • smart
  • 48 x 10/100/1000 + 2 x Gigabit SFP + 2 x combo Gigabit SFP
NETGEAR Smart GS748T
  • V5
  • switch
  • L3 Lite
  • smart
  • 48 x 10/100/1000 + 2 x Gigabit SFP + 2 x combo Gigabit SFP
  • desktop, rack-mountable
  Additional Details
Price: $717.00
Mfr Part #: GS748T-500NAS
SHI Part #: 28112760
Category: Network switches
UNSPSC: 43222612
Manufacturer: NETGEAR
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionNETGEAR Smart GS748T - V5 - switch - L3 Lite - smart - 48 x 10/100/1000 + 2 x Gigabit SFP + 2 x combo Gigabit SFP - desktop, rack-mountable
ManufacturerNETGEAR
MSRP$597.13
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth25.7 cm
Dimensions & Weight / Height4.3 cm
Dimensions & Weight / Weight3.46 kg
Dimensions & Weight / Width44 cm
Header / BrandNETGEAR
Header / Country Kits
  • Latin America
  • North America
Miscellaneous / Product ColorGray
Networking / Form Factor
  • Desktop
  • Rack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeNETGEAR lifetime warranty
Dimensions & Weight
Depth25.7 cm
Height4.3 cm
Weight3.46 kg
Width44 cm
Environmental Parameters
Humidity Range Operating0 - 90% (non-condensing)
Humidity Range Storage0 - 95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-20 °C
Expansion / Connectivity
Interfaces
  • 48 x 1000Base-T RJ-45
  • 2 x 1000Base-X SFP uplink
  • 2 x 1000Base-X SFP
General
Authentication MethodRADIUS, TACACS+
Capacity
  • Virtual interfaces (VLANs): 256
  • ACL entries: 100
  • Static routes: 32
  • Layer 2 multicast groups: 512
Compliant StandardsIEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3az
Device TypeSwitch - 48 ports - L3 Lite - smart
Enclosure TypeDesktop, rack-mountable 1U
FeaturesFlow control, full duplex capability, auto-sensing per device, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, WRED, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, MLD snooping, DAI, LACP support, LLDP support, Energy Efficient Ethernet, SPQ, 2MB packet buffer, VoIP support, DSCP support
Jumbo Frame Support9KB
MAC Address Table Size16K entries
PerformanceBandwidth: 100 Gbps
Ports48 x 10/100/1000 + 2 x Gigabit SFP + 2 x combo Gigabit SFP
Remote Management ProtocolSNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP
Routing ProtocolStatic IP routing
Status IndicatorsPort transmission speed, power, link/activity, fan
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportNETGEAR lifetime warranty
Miscellaneous
Compliant StandardsCISPR 22 Class A, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, CCC, FCC Part 15 A, C-Tick Class A, VCCI Class A
LocalizationLatin America, North America
MTBF390,728 hour(s)
Rack Mounting KitIncluded
Power
Power Consumption Operational41.4 Watt
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
Software / System Requirements
Software IncludedDrivers & Utilities
These links will open documents stored on other websites. SHI does not own this content.

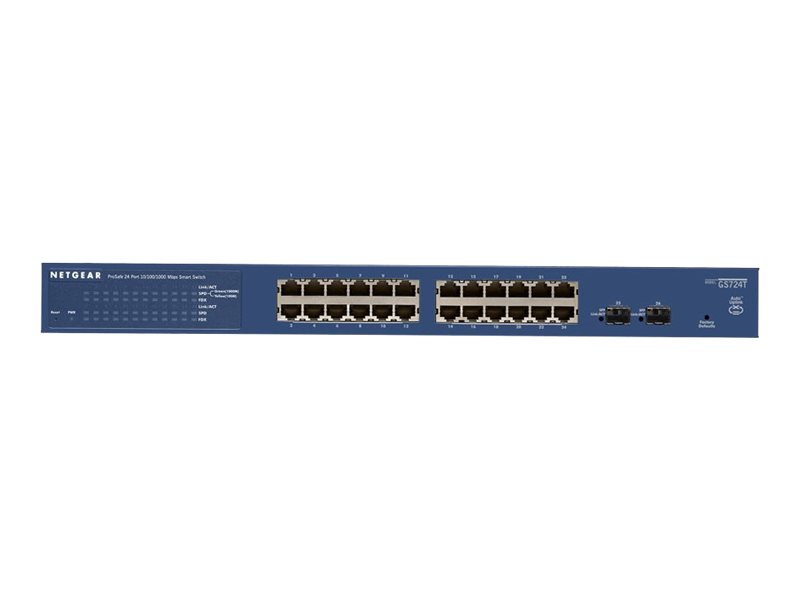

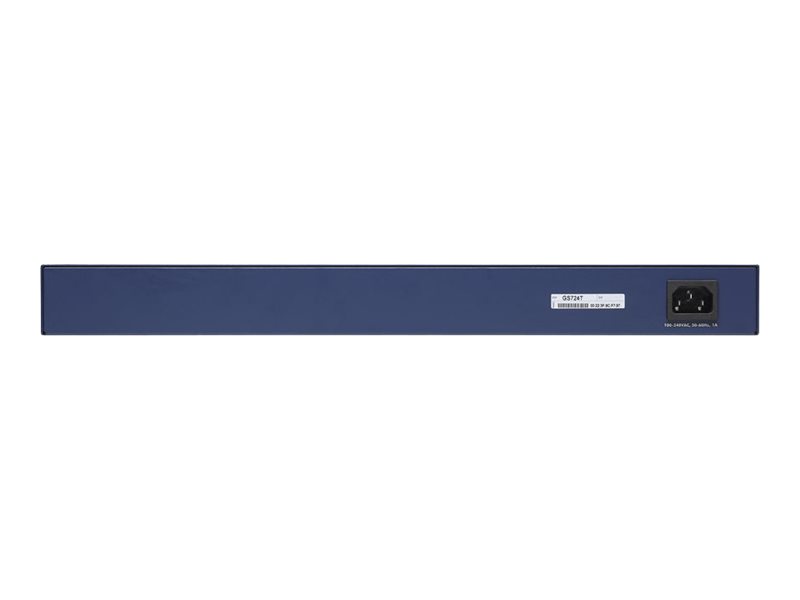

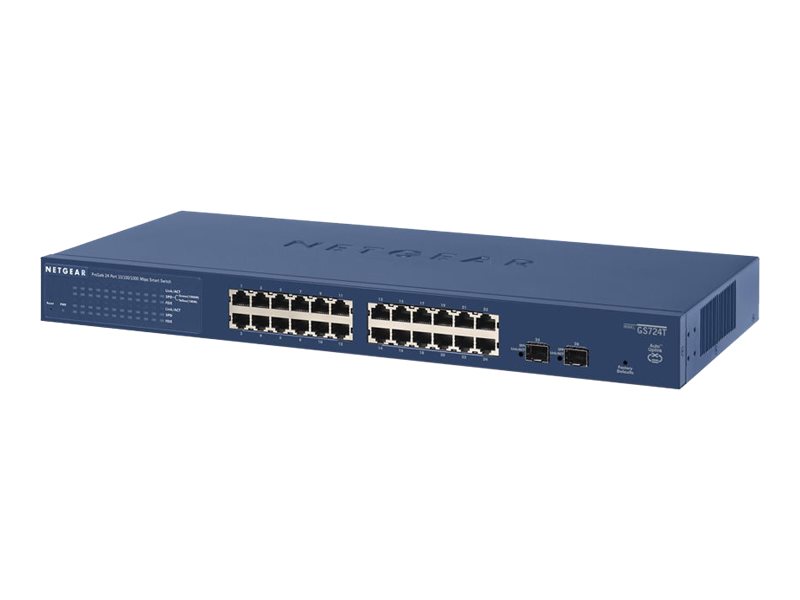

NETGEAR Smart GS724T
