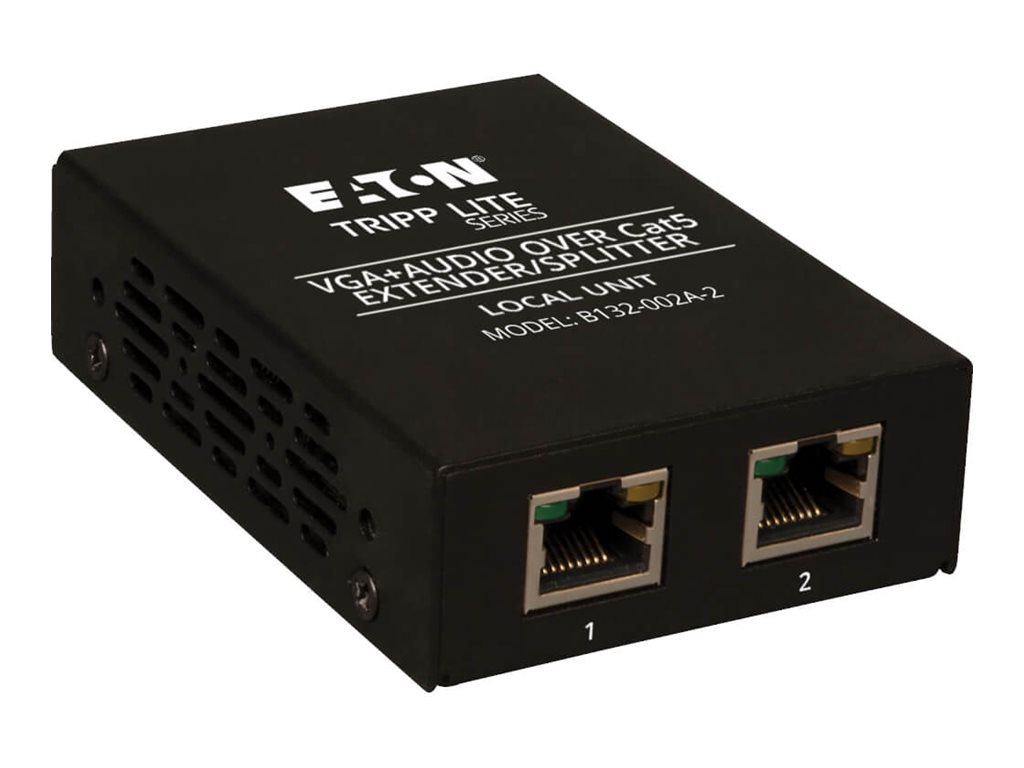

Tripp Lite 2-Port VGA with Audio over Cat5 / Cat6 Extender Splitter Transmitter

Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440(60Hz) Video and Audio signal up to 152.4 m (500-ft.), or a 1024 x 768(60Hz) Video and Audio signal up to 304.8 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY(Cat5) and N222-01K-GY(Cat6).

The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain(3 repeaters and 1 receiver), with a set of monitor and speakers at each location. A 1920 x 1440(60Hz) Video and Audio signal can be extended up to 152.4 m (500-ft.) from the first repeater in the chain to the last receiver. A 1024 x 768(60Hz) Video and Audio signal can be extended up to 304.8 m (1,000-ft.) from the first repeater in the chain to the last receiver.

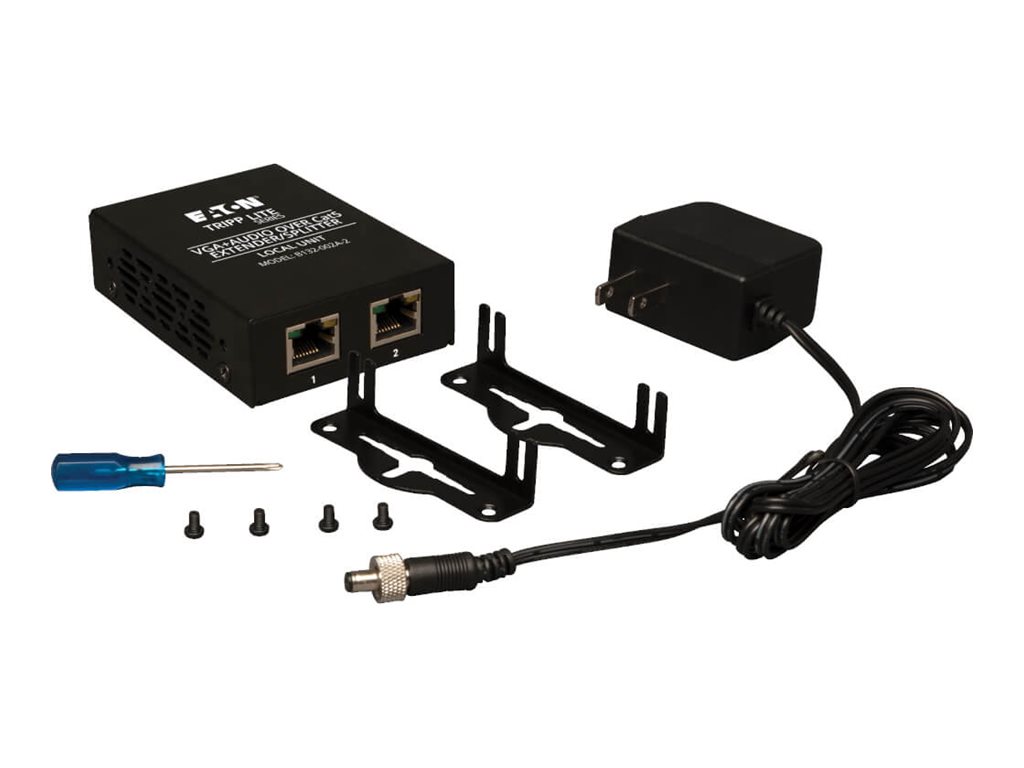

For optimal video image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wall mounted, rack mounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
