Tripp Lite 4-Port HDMI Over Cat5/Cat6 Video Extender / Splitter TAA / GSA

Extends High-Definition Signals

? Extends a 1080i (60 Hz) signal up to 175-ft. (53.3 m), a 1080p (60 Hz) signal up to 125-ft. (38.1 m) and a 3D signal up to 100-ft. (30.5 m) with each optional B126-110 remote repeater

? Extends a 1080i (60 Hz) signal up to 200-ft. (61 m), a 1080p (60 Hz) signal up to 150-ft. (45.7 m) and a 3D signal up to 125-ft. (38.1 m) with B126-1A0 or B126-1A0-WP-1 active remote receiver

? Extends a 1080i (60 Hz) signal up to 100-ft. (30.5 m) and a 1080p (60 Hz) signal up to 50-ft. (15.2 m) with B126-1P0 or B126-1P0-WP-1 passive remote receiver

? Add up to 3 remote repeaters on each channel for maximum signal range

? Daisy-chain up to 3 units to extend the original signal to as many as 13 display monitors (1 local, 12 remote)

? Connects to next link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as N202-Series)

Supports the Latest Video and Audio Resolutions

? Works with all operating systems and HDMI video sources

? Supports HD resolutions up to 1080p (60 Hz)

? Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio

? Supports 24-bit True Color (8 bits per channel) and HDCP

Easy to Set Up and Use

? Plug-and-play engineering-no software or drivers to download and install

? Connects quickly to source and local monitor with HDMI cable, such as P568-Series

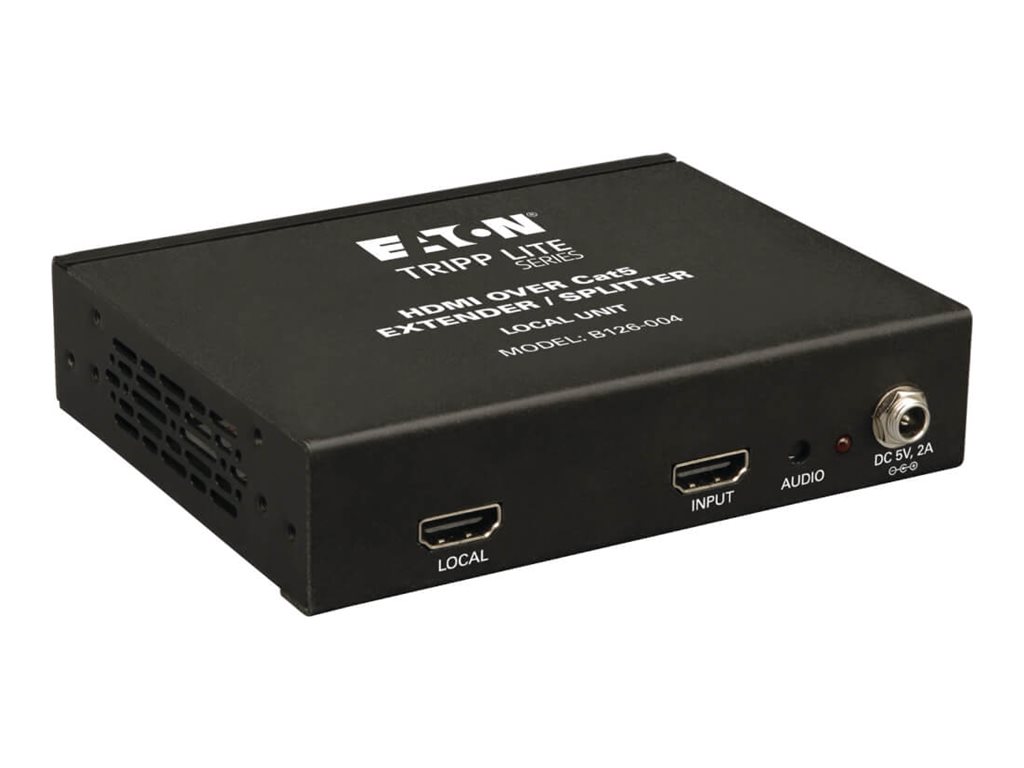

? LEDs indicate at a glance when the unit is receiving power and an HDMI signal from the source

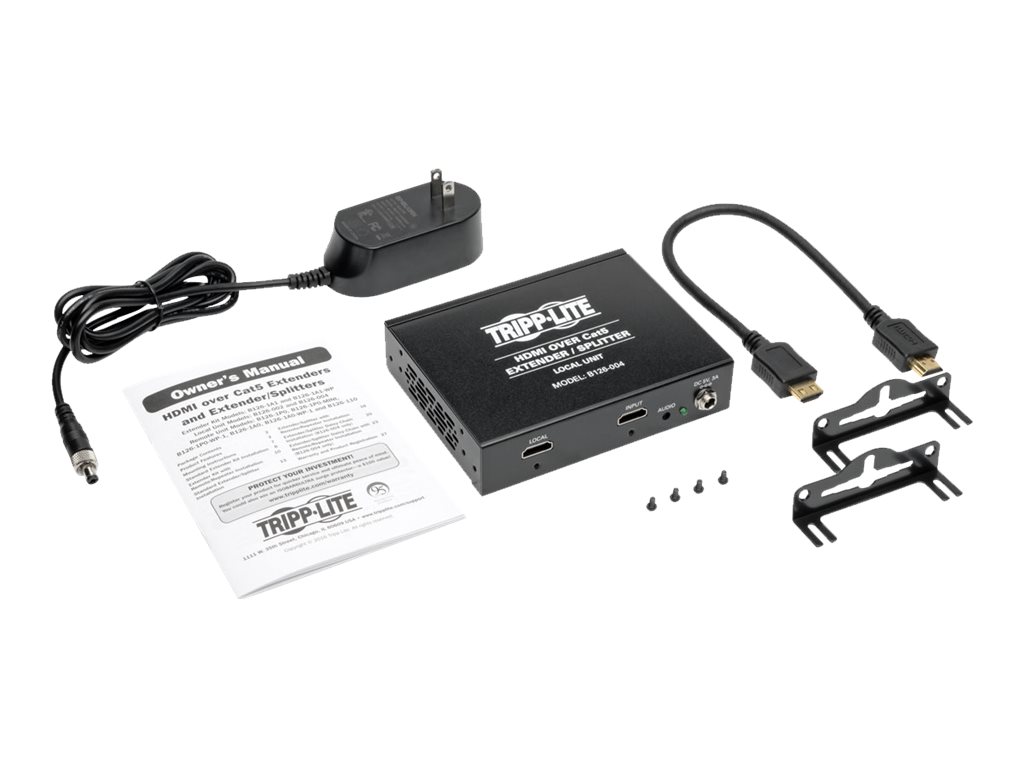

? Included mounting hardware lets you install the unit on a wall, rack or pole

? Included HDMI cable with latching connectors provides a more secure conntection

? Mount up to 3 units in 1U of rack space using a B132-004-RB rack-mount bracket

TAA-Compliant

? Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
