Hardware Power Management

Power Management

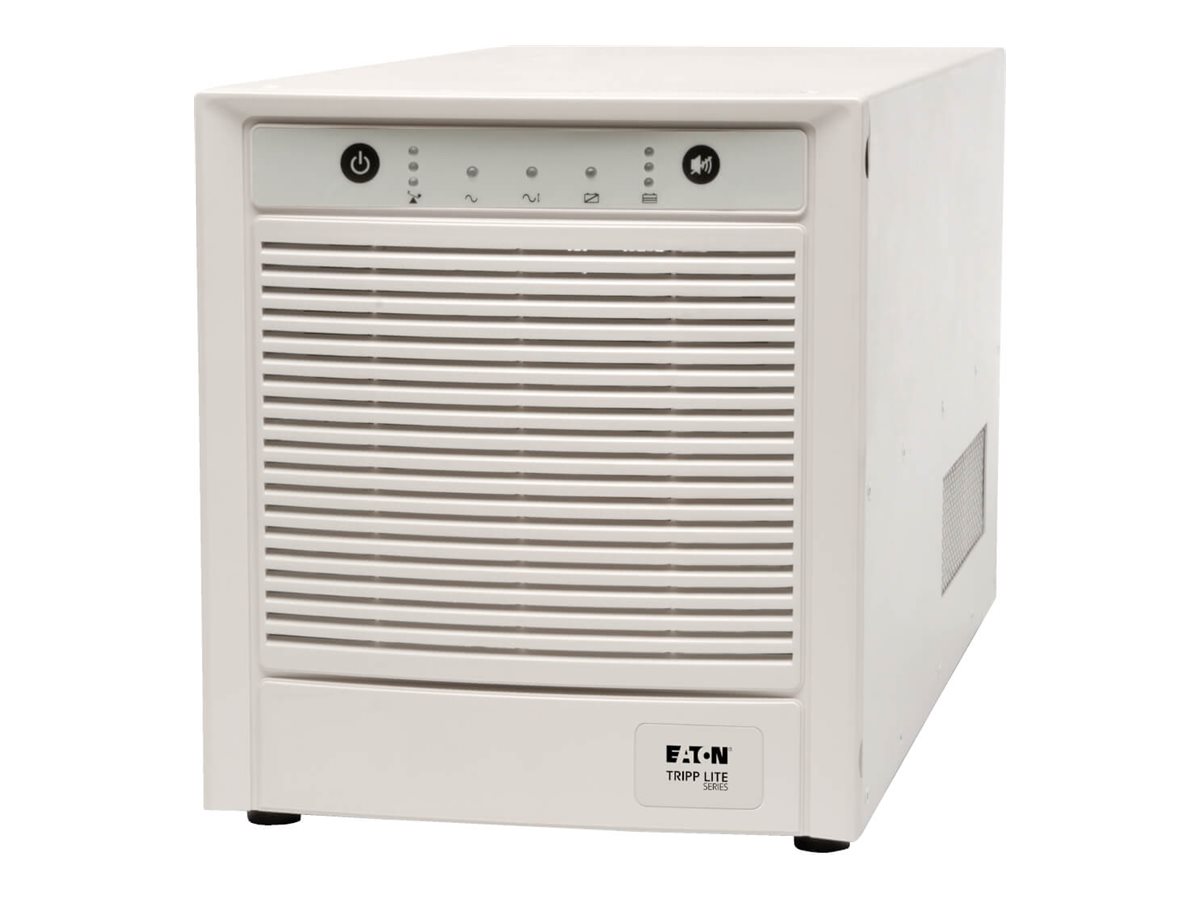

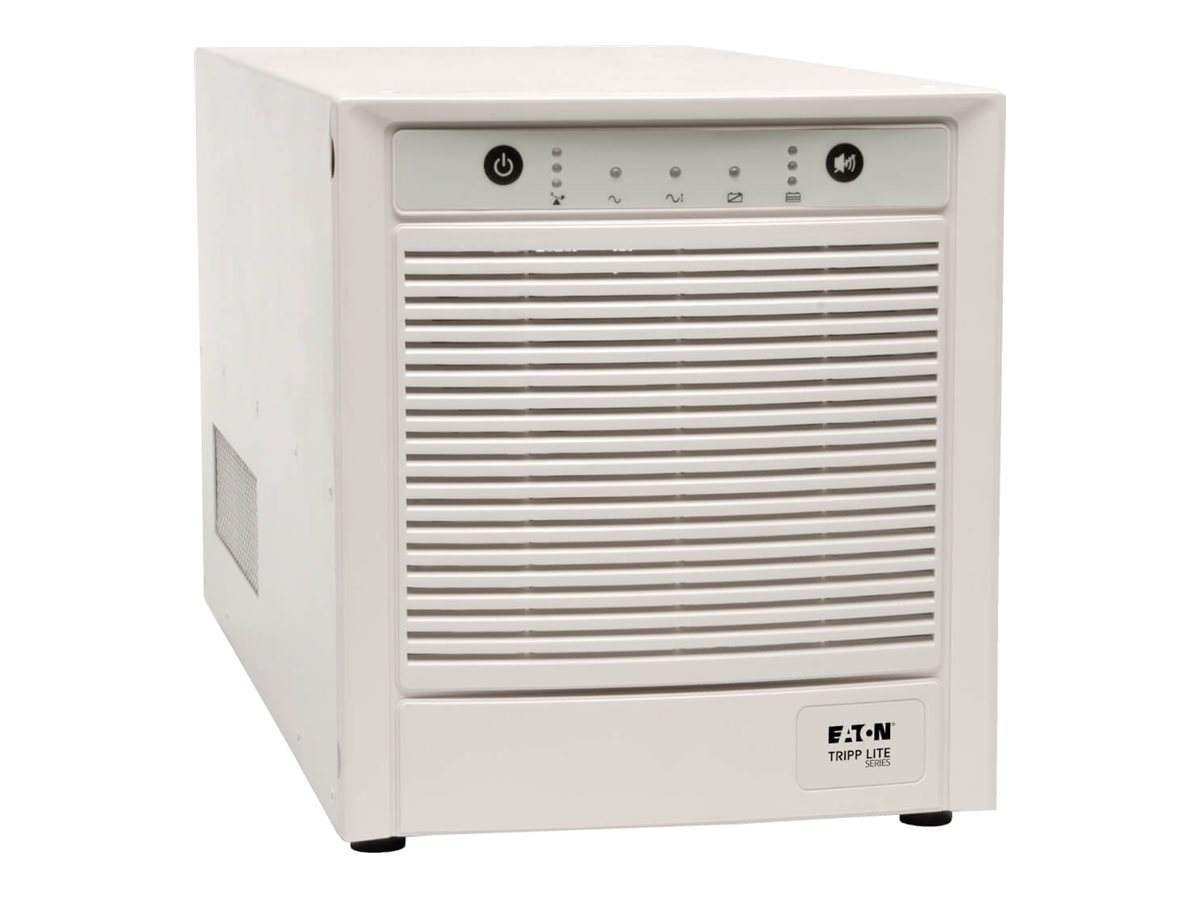

Tripp Lite UPS Smart 2200VA 1920W Tower Hospital Medical AVR 120V Pure Sign Wave USB DB9

$3,927.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
UPS AC 120 V 1920 Watt 2200 VA RS-232, USB

Tripp Lite UPS Smart 2200VA 1920W Tower Hospital Medical AVR 120V Pure Sign Wave USB DB9

UPS
AC 120 V
1920 Watt
2200 VA
RS-232, USB
output connectors: 8

Additional Details
Price:	$3,927.00
Mfr Part #:	SMART2500XLHG
SHI Part #:	26877999
Category:	Power conditioning equipment
UNSPSC:	39121000
Manufacturer:	Eaton
Product Type:	Hardware
Product Line:	Tripp Lite

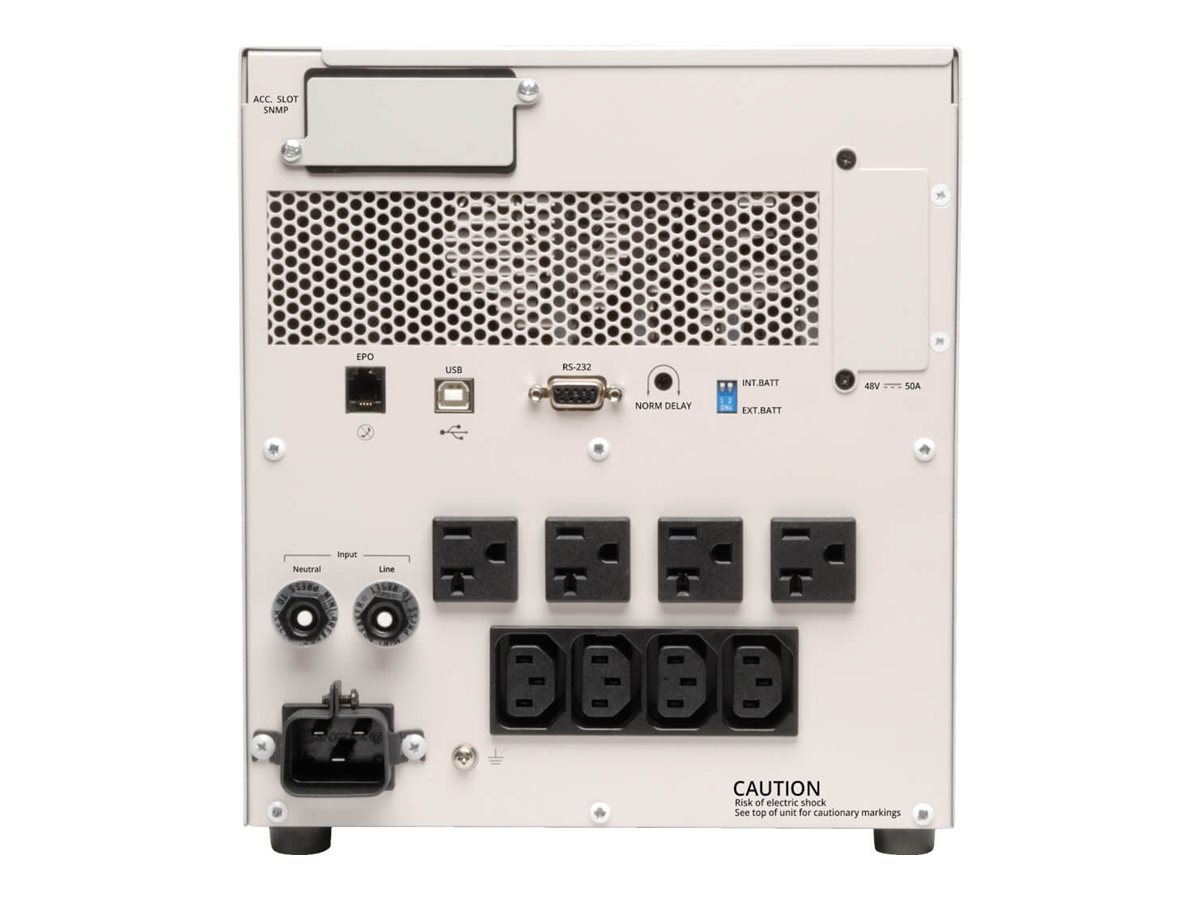

UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite's SMART2500XLHG SmartPro Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 µA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application. The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure.

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART2500XLHG in this type of application will void the battery warranty.

General Information
Category	Power conditioning equipment
Description	Tripp Lite UPS Smart 2200VA 1920W Tower Hospital Medical AVR 120V Pure Sign Wave USB DB9 - UPS - AC 120 V - 1920 Watt - 2200 VA - RS-232, USB - output connectors: 8
Manufacturer	Eaton
MSRP	$5,992.39
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	48.5 cm
Dimensions & Weight / Height	24.7 cm
Dimensions & Weight / Weight	32.2 kg
Dimensions & Weight / Width	22.6 cm
General / Subcategory	UPS
Header / Brand	Tripp Lite
Networking / Remote Management Interface	RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Output Connector Qty	8
Power Device / Power Capacity (VA)	2200 VA
Power Device / UPS Technology	Line interactive
Power Device / Voltage Required	AC 120 V
Product Type	UPS
Service & Support / Type	2-year warranty
Battery
Recharge Time	4.5 hours
Run Time (Up To)	4.4 min at full load 13 min at half load
Type	Expandable
Voltage Provided	48 V
Dimensions & Weight
Depth	48.5 cm
Height	24.7 cm
Weight	32.2 kg
Width	22.6 cm
Dimensions & Weight (Shipping)
Shipping Depth	59.51 cm
Shipping Height	40.48 cm
Shipping Width	35.99 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management (USB)
General
Battery Enclosure Type	Internal
Device Type	UPS - external
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous

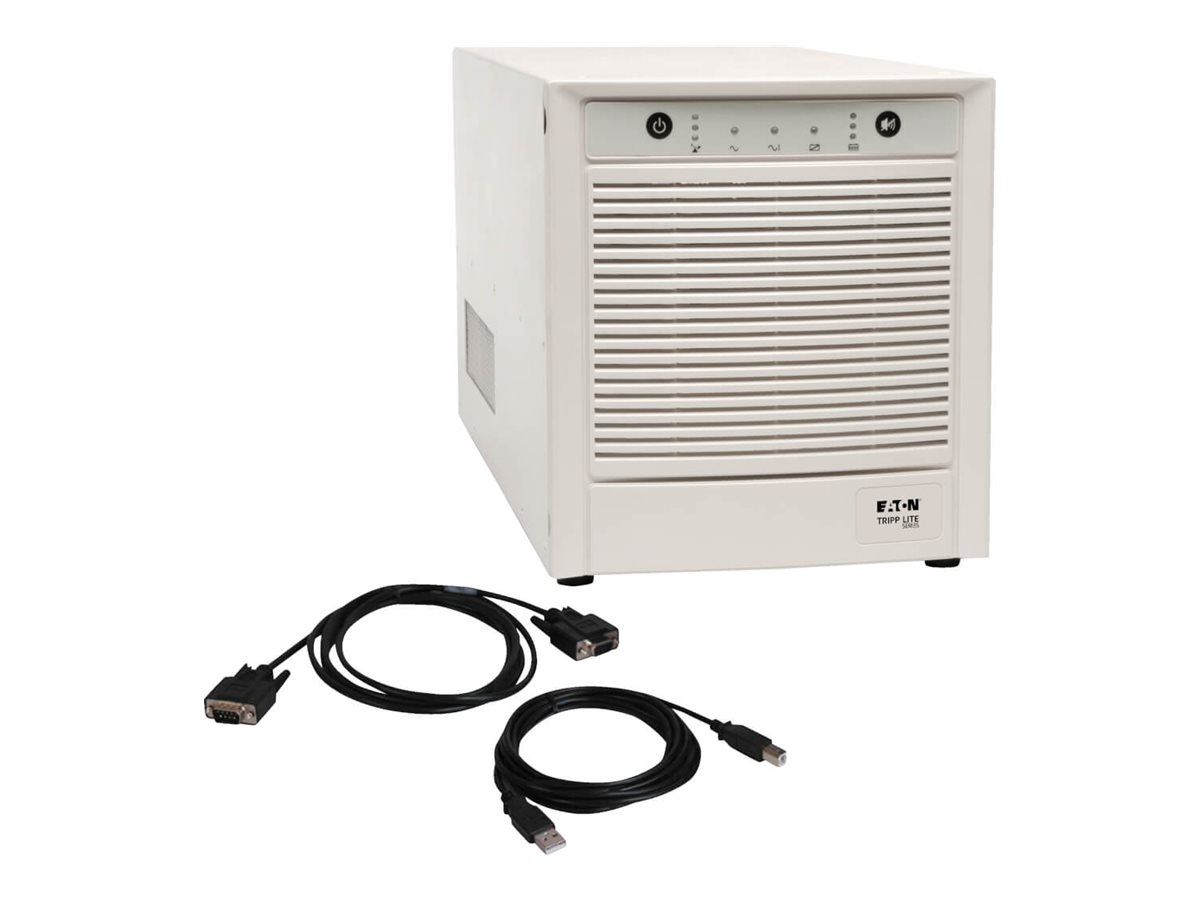

Cables Included	Power cable 1.8 m USB cable - external Serial cable - external
Compliant Standards	CSA, UL 1778, UL 60601-1, FCC Part 15 A
Features	Built-in cooling fan, audible alarm, Automatic Voltage Regulation (AVR), LED indicators, built-in isolation transformer, noise filtering, overvoltage protection, undervoltage protection, cold-start function, disconnect switch, hot-swappable batteries
Networking
Remote Management Interface	RS-232, USB
Power Device
Circuit Protection	Circuit breaker
Frequency Provided	60 Hz
Input Connectors	Power IEC 60320 C20
Input Voltage	AC 120 V
Output Voltage	AC 115/120 V + 8% / - 18% - 60 Hz
Output Waveform	Sinewave
Power Capacity	1920 Watt / 2200 VA
Power Output Connectors Details	4 x power NEMA 5-15/20 4 x power IEC 60320 C13
Surge Energy Rating	510 Joules
Surge Suppression	Yes
UPS Technology	Line interactive
Software / System Requirements
Software Included	TrippLite PowerAlert
