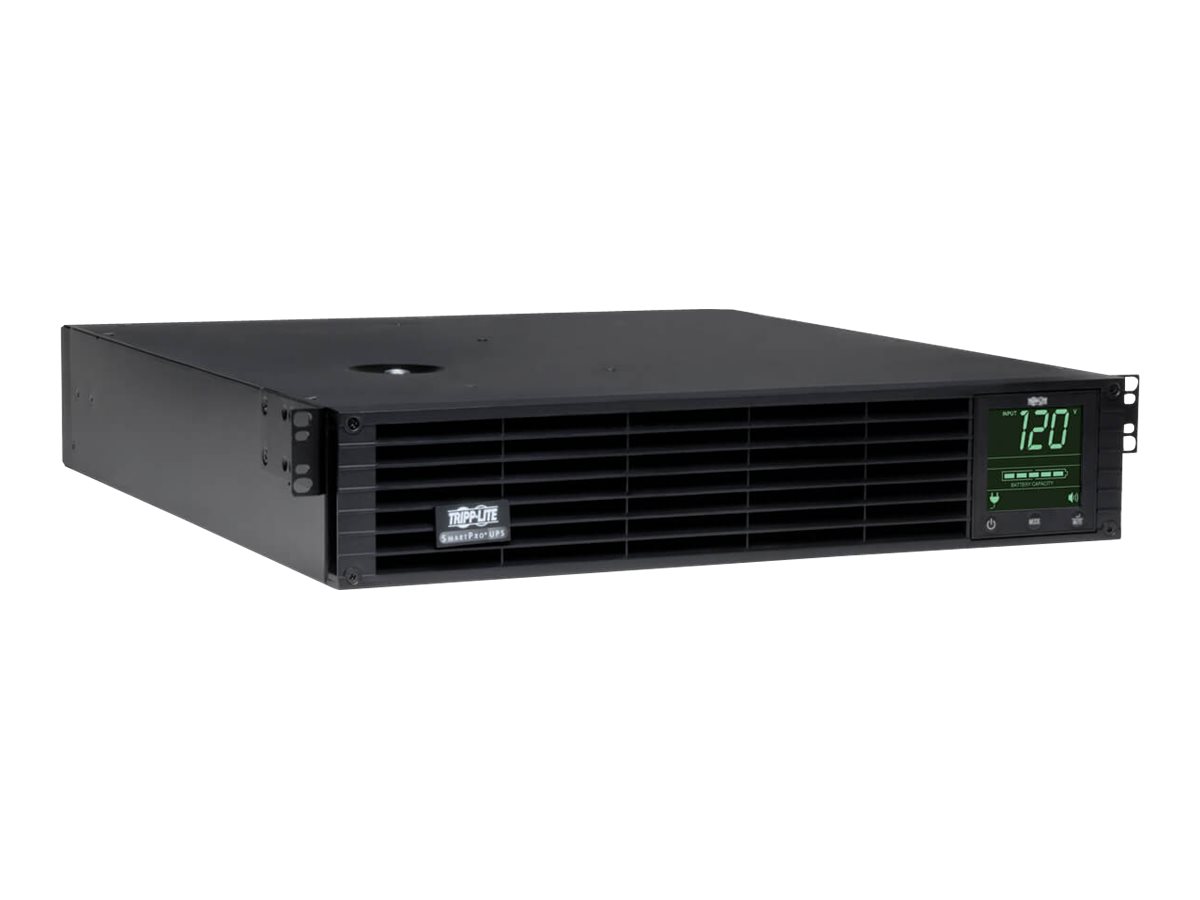

Tripp Lite UPS Smart 2200VA 1600W Rackmount AVR 100-120V Pure Sine Wave USB DB9 2U TAA GSA

$2,224.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
UPS 20 A AC 120 V 1920 Watt 2200 VA

Tripp Lite UPS Smart 2200VA 1600W Rackmount AVR 100-120V Pure Sine Wave USB DB9 2U TAA GSA

UPS
20 A
AC 120 V
1920 Watt
2200 VA
RS-232, USB
output connectors: 8
2U
19"
TAA Compliant

Additional Details
Price:	$2,224.00
Mfr Part #:	SM2200RMXL2UTAA
SHI Part #:	20794282
Category:	Power conditioning equipment
UNSPSC:	39121000
Manufacturer:	Eaton
Product Type:	Hardware
Product Line:	Tripp Lite

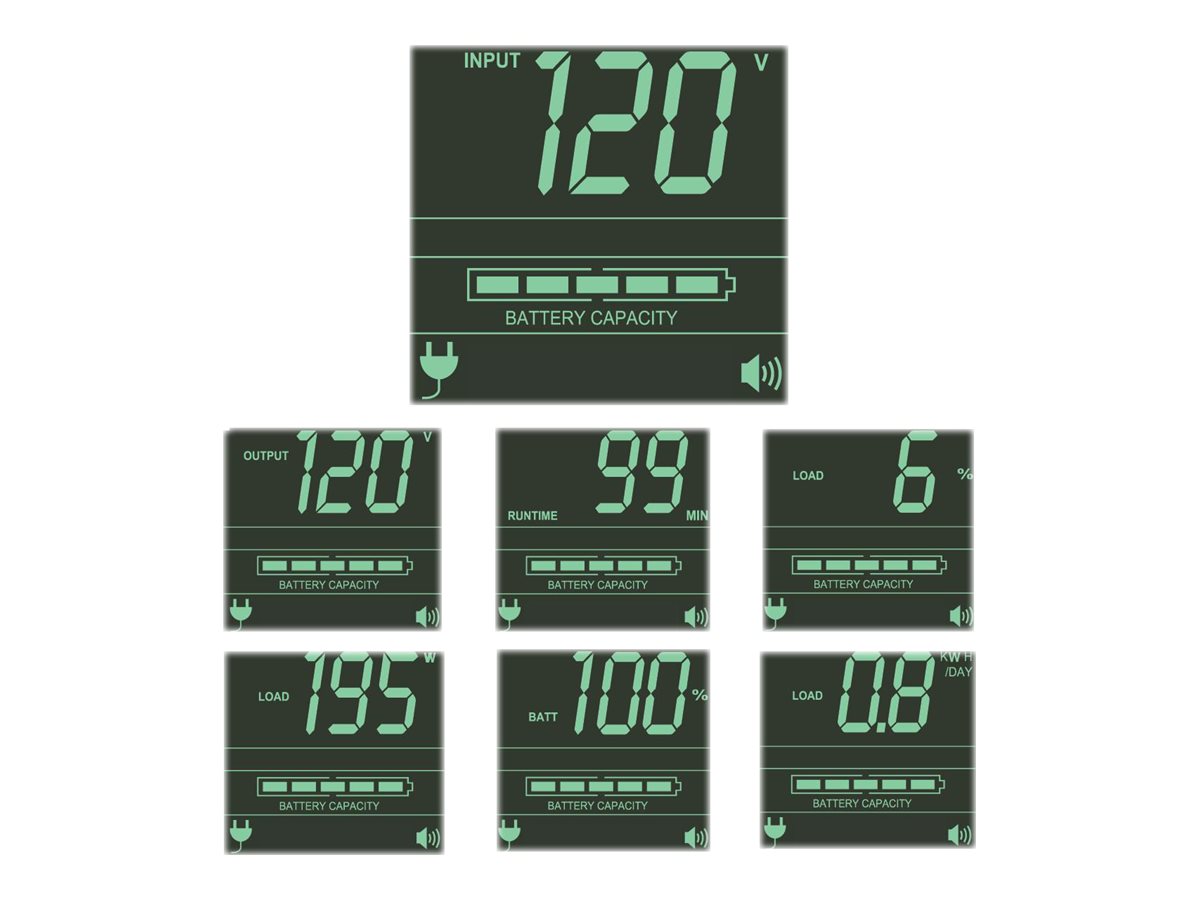

The SM2200RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Communications interfaces support communications via USB, DB9 serial and a slot for an optional network management card. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring and auto-shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

Network Interface Cards

Eaton Tripp Lite Series Network Management Card for Select UPS Systems, TAA

Remote management adapter
10/100 Ethernet
TAA Compliant
for P/N: SMART1000RM2ULN, SRCOOL12KE, SRCOOL12KWTE, SU2200RTXLCD2UTAA, SU3000RTXLCD2UTAA

$657.00

Tripp Lite UPS Web Management Accessory Card SNMP Remote Monitoring

Remote management adapter
100Mb LAN
100Base-TX

$690.00

Storage Networking (SAN)

Tripp Lite PDU Basic 120V 2.4kW 20A 5-15/20R 13 Outlet 5-20P Horizontal 1U

Horizontal rackmount
power distribution unit (rack-mountable)
20 A
AC 120 V
2.4 kW
input: NEMA 5-20

$261.00

Tripp Lite SmartRack 4-Post Rack-Mount Shelf Kit Universal for Wallmount Racks 1U

Rack shelf mounting kit
rack mountable
silver
1U
19"

$111.00

Eaton Tripp Lite Series PDU Hot-Swap 120V 20A Single-Phase with Manual Bypass

6 NEMA 5-20R Outlets, 2 5-20P Inputs, 1U Rack/Wall
Power distribution unit (rack-mountable)
20 A
AC 100/120/127 V
2.03 kW
input: NEMA 5-20

$374.00

General Information
Category	Power conditioning equipment
Description	Tripp Lite UPS Smart 2200VA 1600W Rackmount AVR 100-120V Pure Sine Wave USB DB9 2U TAA GSA - UPS - 20 A - AC 120 V - 1920 Watt - 2200 VA - RS-232, USB - output connectors: 8 - 2U - 19" - TAA Compliant
Manufacturer	Eaton
MSRP	$3,393.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	49 cm
Dimensions & Weight / Height	8.8 cm
Dimensions & Weight / Weight	26.2 g
Dimensions & Weight / Width	44 cm
General / Subcategory	UPS
Header / Brand	Tripp Lite
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Output Connector Qty	8
Power Device / Power Capacity (VA)	2200 VA
Power Device / UPS Technology	Line interactive
Power Device / Voltage Required	AC 120 V
Product Type	UPS
Service & Support / Type	2-year warranty
Battery
Recharge Time	4.5 hours
Run Time (Up To)	4.5 min at full load 12 min at half load
Voltage Provided	48 V
Dimensions & Weight
Depth	49 cm
Height	8.8 cm
Weight	26.2 g
Width	44 cm
Dimensions & Weight (Shipping)
Shipping Depth	61.5 cm
Shipping Height	23 cm
Shipping Weight	31.2 kg
Shipping Width	57 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x expansion slot
Interfaces	1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management (USB) - 4 pin USB Type B 1 x EPO (emergency power off)
General
Battery Enclosure Type	Internal
Device Type	UPS - external
Height (Rack Units)	2U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Cables Included	Power cable 3 m Serial cable - external USB cable - external
Compliant Standards	CSA, NOM, UL 1778, RoHS, FCC Part 15 A
Features	Audible alarm, Automatic Voltage Regulation (AVR), LED indicators, overvoltage protection, undervoltage protection
Rack Mounting Kit	Included
TAA Compliant	Yes
Networking
Remote Management Interface	RS-232, USB
Power Device
Frequency Provided	60 Hz
Frequency Required	60 Hz
Input Connectors	1 x power NEMA 5-20
Input Voltage	AC 120 V
Max Electric Current	20 A
Output Voltage	AC 120 V + 6% / - 14% - 60 Hz
Output Waveform	Sinewave
Power Capacity	1920 Watt / 2200 VA
Power Output Connectors Details	4 x power NEMA 5-15 4 x power NEMA 5-15/20
Surge Energy Rating	570 Joules
Surge Suppression	Yes
UPS Technology	Line interactive
