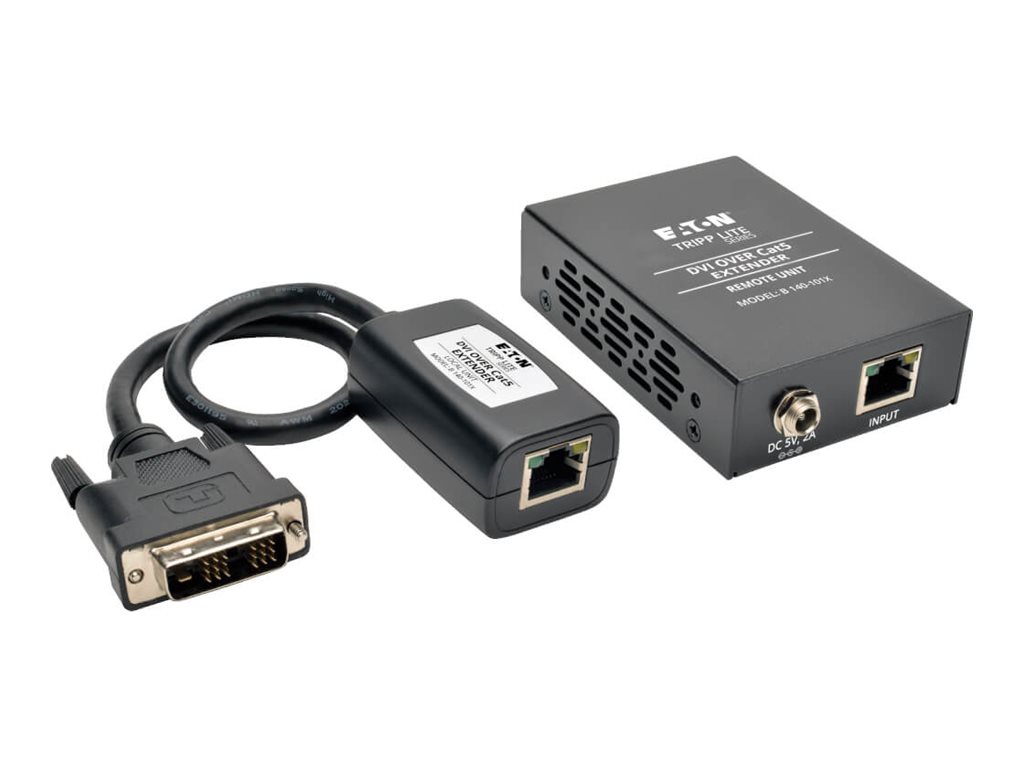

Tripp Lite DVI Over Cat5/Cat6 Video Extender Kit Transmitter Receiver 200'

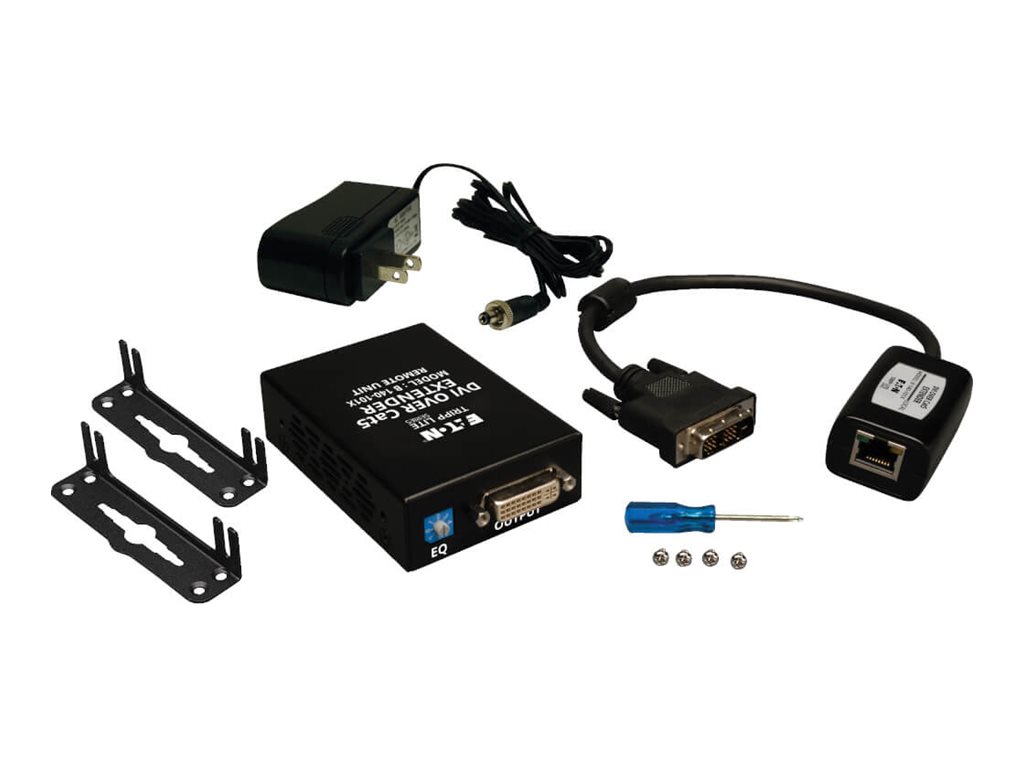

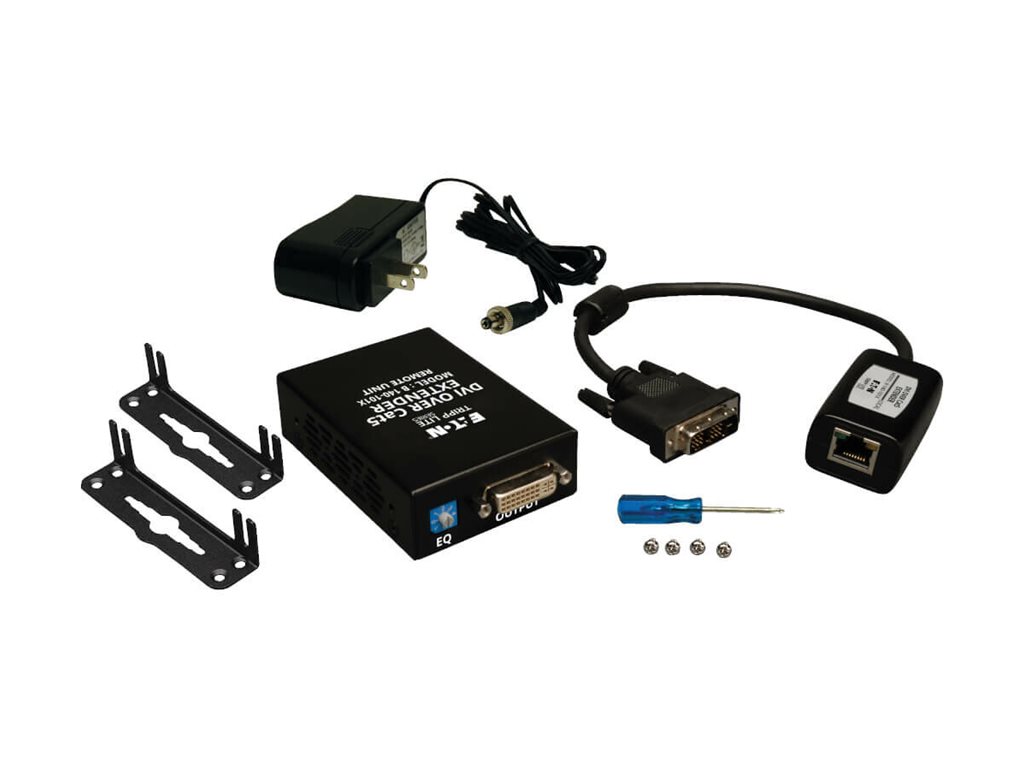

? Extender kit comes with transmitter and receiver units

? Transmit a DVI-D Single-Link signal up to 200-ft. (61 m) away using a single Cat5e/6 patch cable

? Supports DVI-D Single-Link video resolutions up to 1920 x 1080 at 60 Hz

? Extends a 1920 x 1080 at 60 Hz signal up to 150-ft. (45.7 m), or a 1024 x 768 at 60 Hz signal up to 200-ft. (61 m)

? Use 24 AWG Solid Wire Cat5e/6 cable, such as N202-Series, to achieve maximum distance and resolution

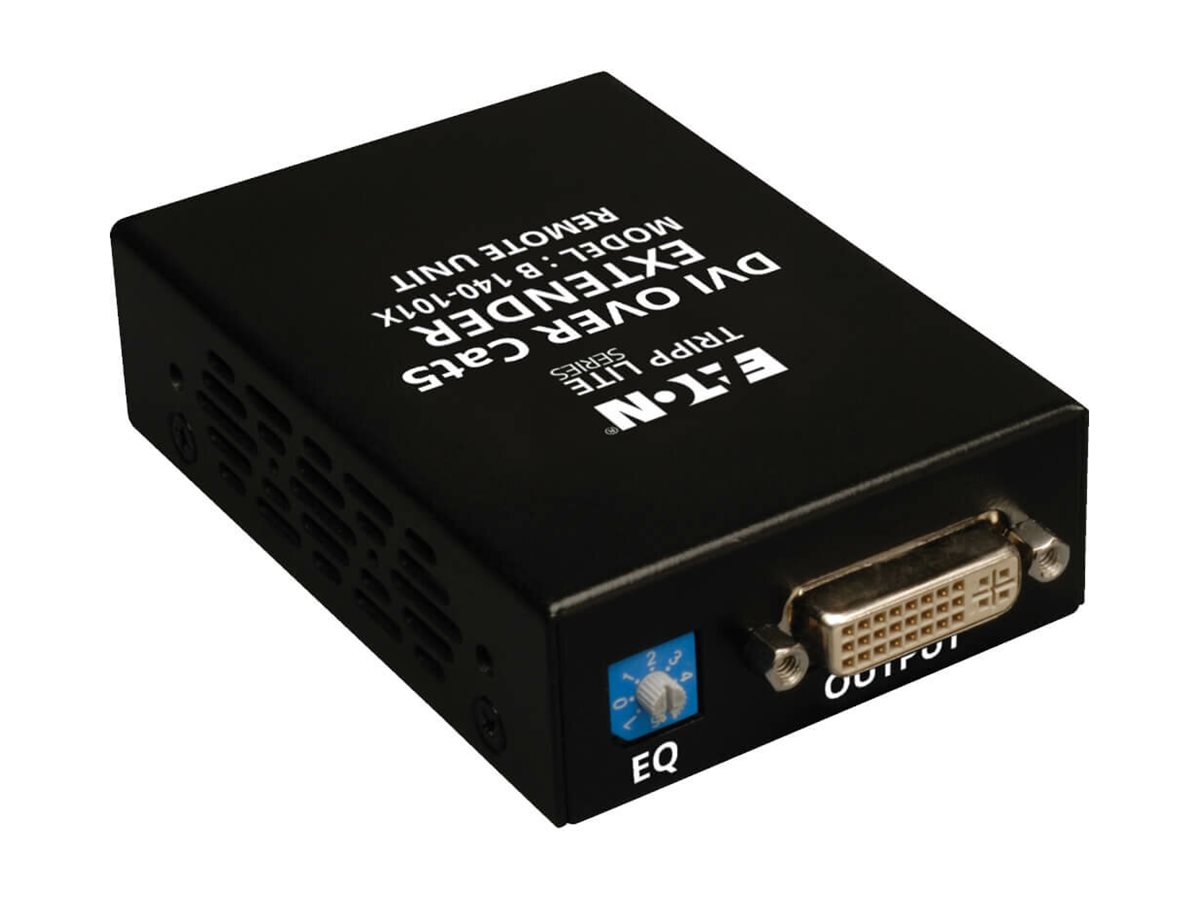

? Features a built-in Equalization control for adjustment of the video image

? Further expand the range and number of monitors by using a B140-110 repeater unit

? Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a channel)

? A 1920 x 1080 at 60 Hz signal can be extended up to 125-ft. (38.1 m) from each repeater to the next unit in the chain, or a 1024 x 768 at 60 Hz signal can be extended up to 175-ft. (53.3 m)

? HDCP compatible

? Compatible with all operating systems

? Plug and play; no software or drivers required

? Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
