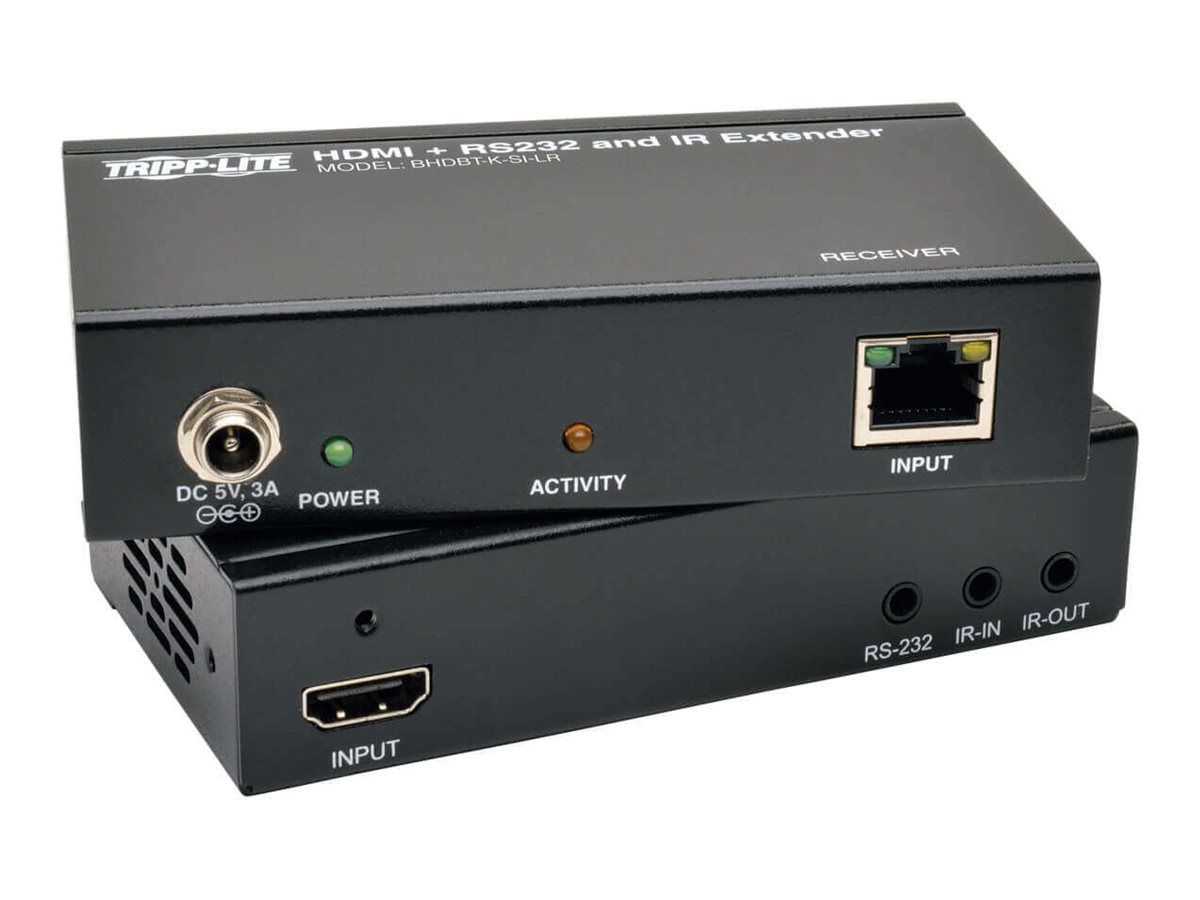

Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K 100m 328ft
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K 100m 328ft
- Video/audio/infrared/serial extender
- up to 100 m
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | BHDBT-K-SI-LR |
| SHI Part #: | 30415269 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Audio/Video Cables
- HDMI cable
- HDMI (M) to HDMI (M)
- 3.1 m
- double shielded
- black
- 4K support
- Serial cable
- DB-9 (M) to DB-9 (F)
- 1.8 m
- molded
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 15.3 m
- CAT 6
- booted, snagless, solid
- blue
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K 100m 328ft - Video/audio/infrared/serial extender - up to 100 m - TAA Compliant |
| Manufacturer | Eaton |
| MSRP | $729.64 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 2.8 cm |
| Dimensions & Weight / Width | 11.4 cm |
| Header / Brand | Tripp Lite |
| Networking / Connectivity Technology | Wired |
| Networking / Form Factor | External |
| Networking / Type | Video/audio/infrared/serial extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 2.8 cm |
| Width | 11.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 2 x serial cable |
| Compliant Standards | Plug and Play, VESA EDID, FCC, RoHS, REACH, GSA, EDID compatible |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Features | HDCP compliant, 4K resolution support, 7.1 channel audio support, HDBaseT technology, 2K resolution support |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Transfer Distance | 100 m |
| Power | |
| Installed Qty | 2 |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
These links will open documents stored on other websites. SHI does not own this content.
- Video/audio/infrared/serial extender
- up to 100 m
- TAA Compliant
- Video/audio/infrared/serial extender
- up to 70 m
- TAA Compliant
