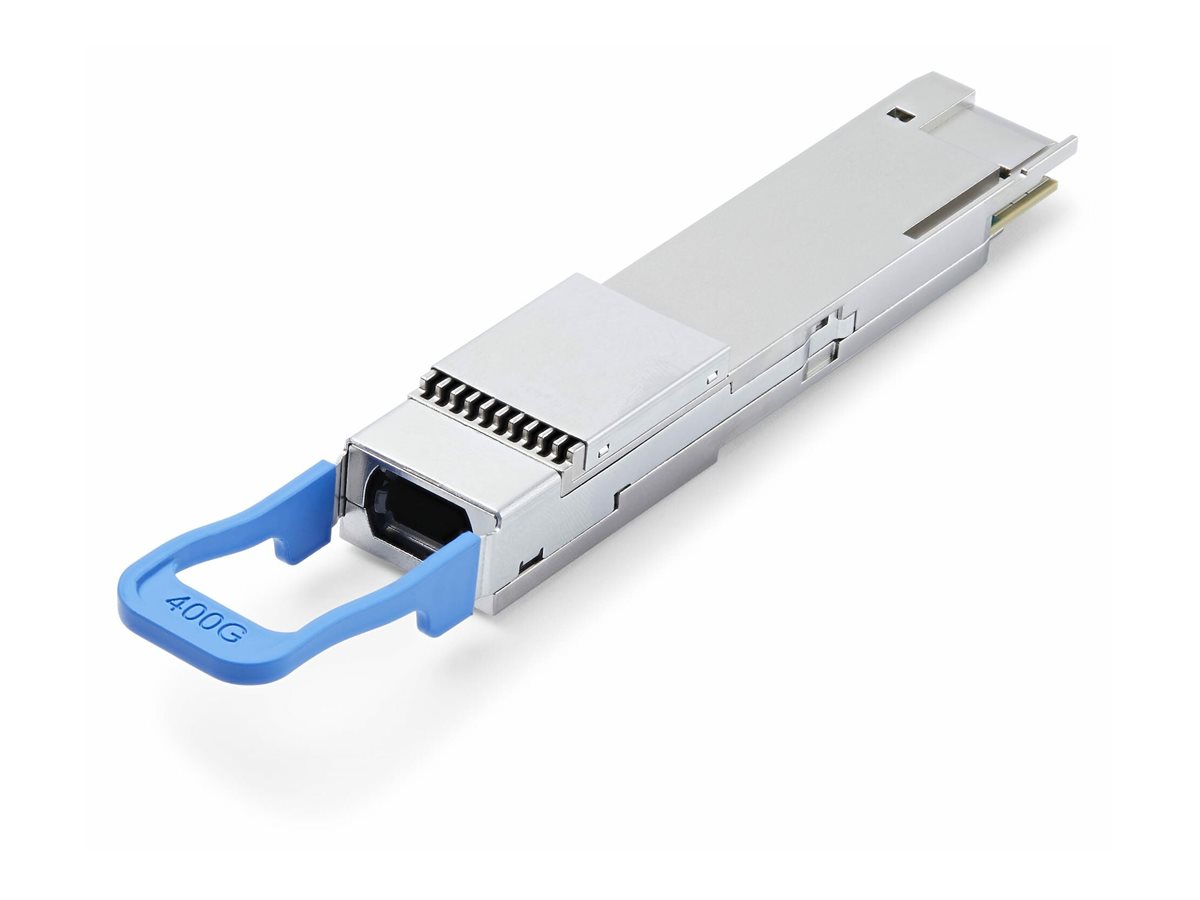

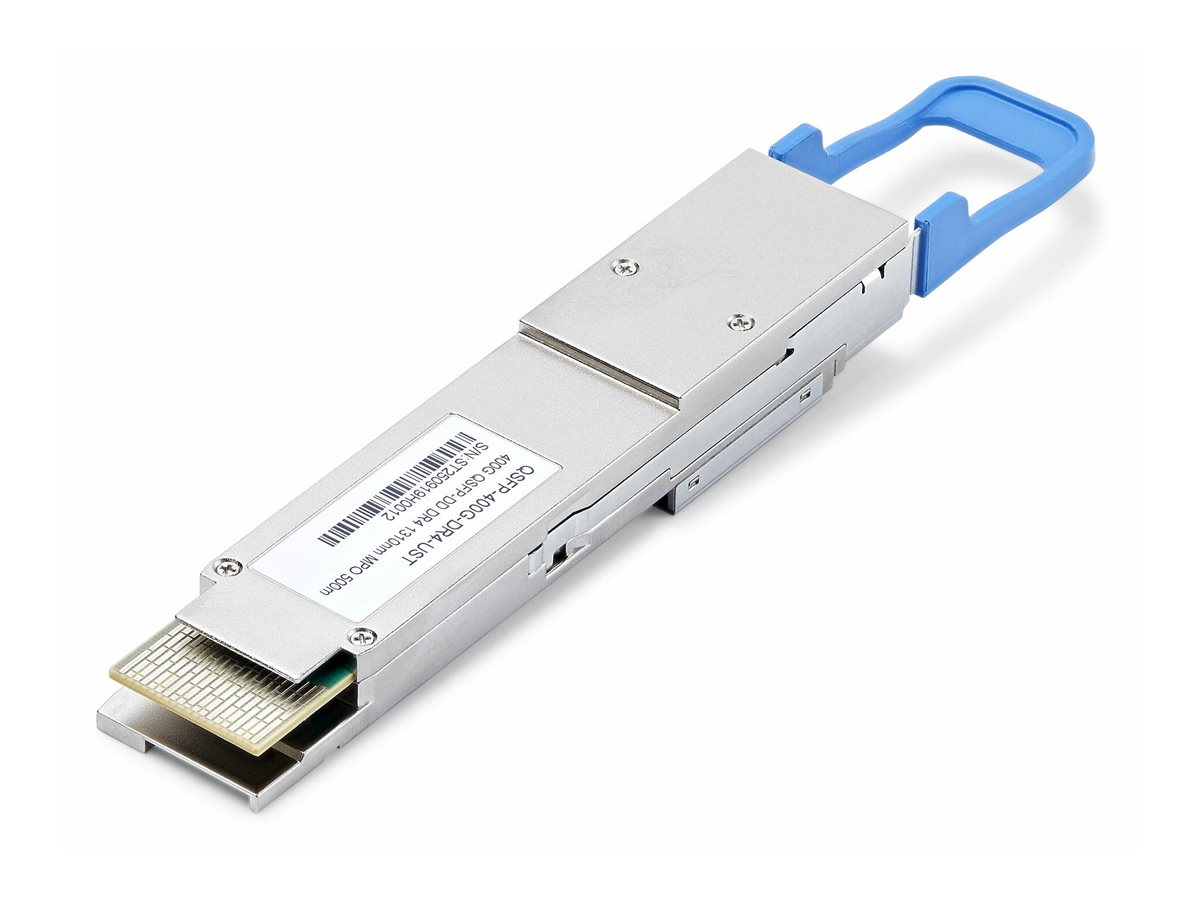

Startech - QSFP-DD transceiver module
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Startech - QSFP-DD transceiver module
- 400GbE
- 400GBase-DR4
- MPO single-mode
- up to 500 m
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | QSFP-400G-DR4-UST |
| SHI Part #: | 51877509 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Startech - QSFP-DD transceiver module - 400GbE - 400GBase-DR4 - MPO single-mode - up to 500 m - 1310 nm |
| Manufacturer | StarTech.com |
| MSRP | $3,023.24 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.78 cm |
| Dimensions & Weight / Height | 1.26 cm |
| Dimensions & Weight / Width | 1.9 cm |
| Header / Brand | Startech |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 400 Gigabit Ethernet |
| Networking / Data Transfer Rate | 400 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | QSFP-DD transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 11.78 cm |
| Height | 1.26 cm |
| Width | 1.9 cm |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 400GBase-DR4 (uncoded) - MPO single-mode female |
| General | |
| Device Type | QSFP-DD transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | MSA |
| MTBF | 2,603,285 hours |
| Networking | |
| Cabling Type | 400GBase-DR4 |
| Compliant Standards | IEEE 802.3bs |
| Connectivity Technology | Wired |
| Data Link Protocol | 400GbE |
| Data Transfer Rate | 400 Gbps |
| Features | Digital Diagnostics Monitoring (DDM), full duplex mode, single-mode, uncoded SFP transceiver support |
| Max Transfer Distance | 500 m |
| Optical Wave Length | 1310 nm |
| Power | |
| Power Consumption Operational | 12 watt |
