Eaton Tripp Lite Series
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

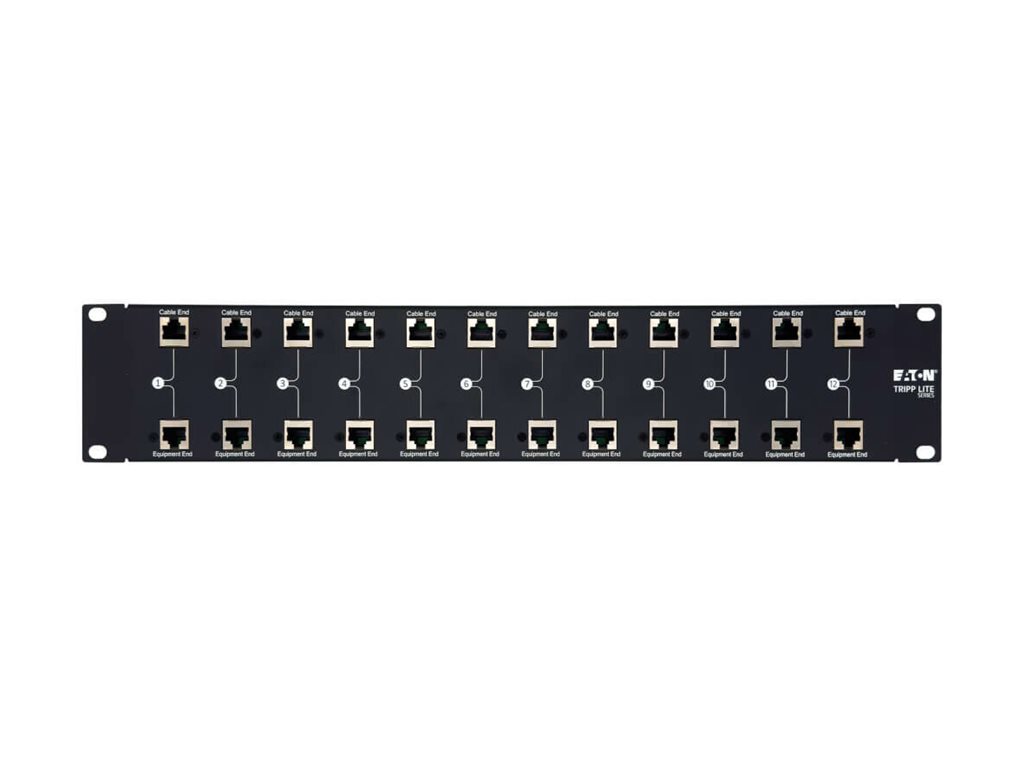

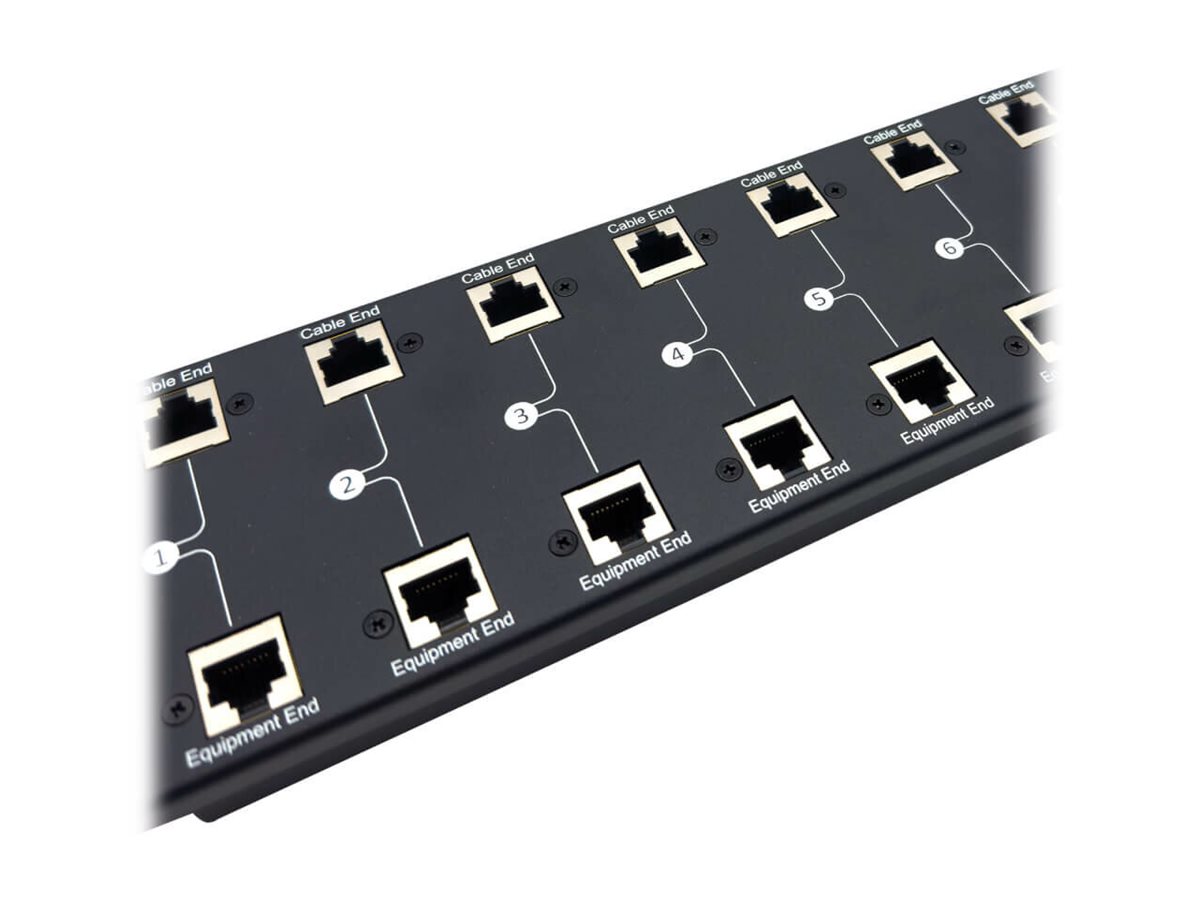

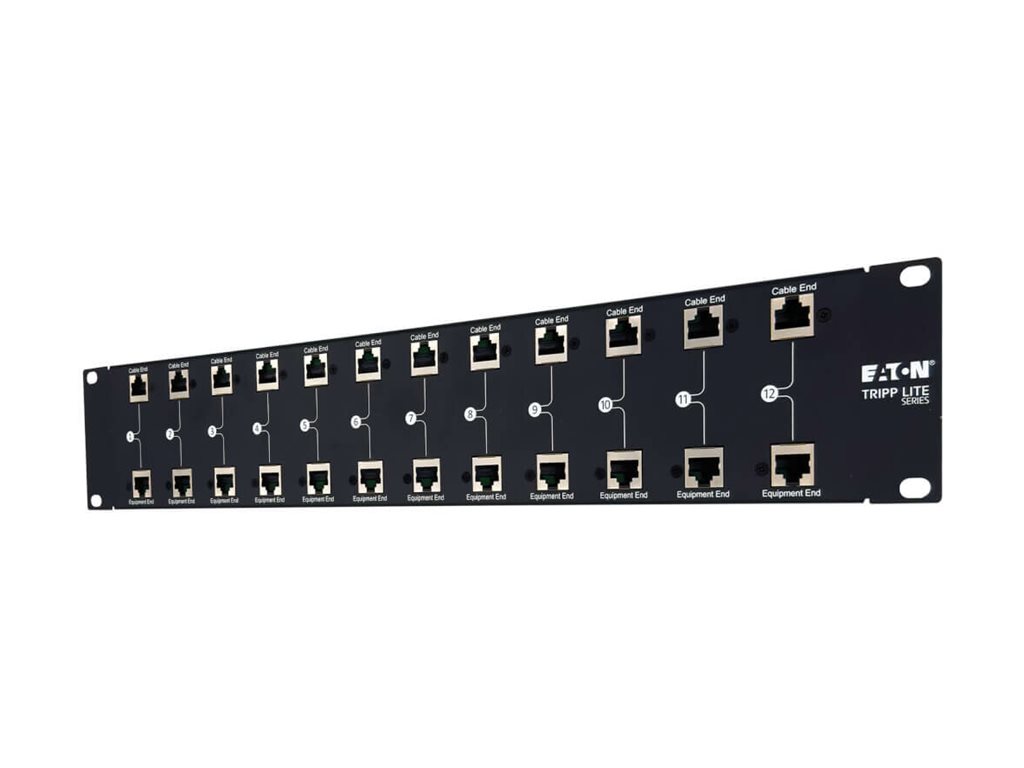

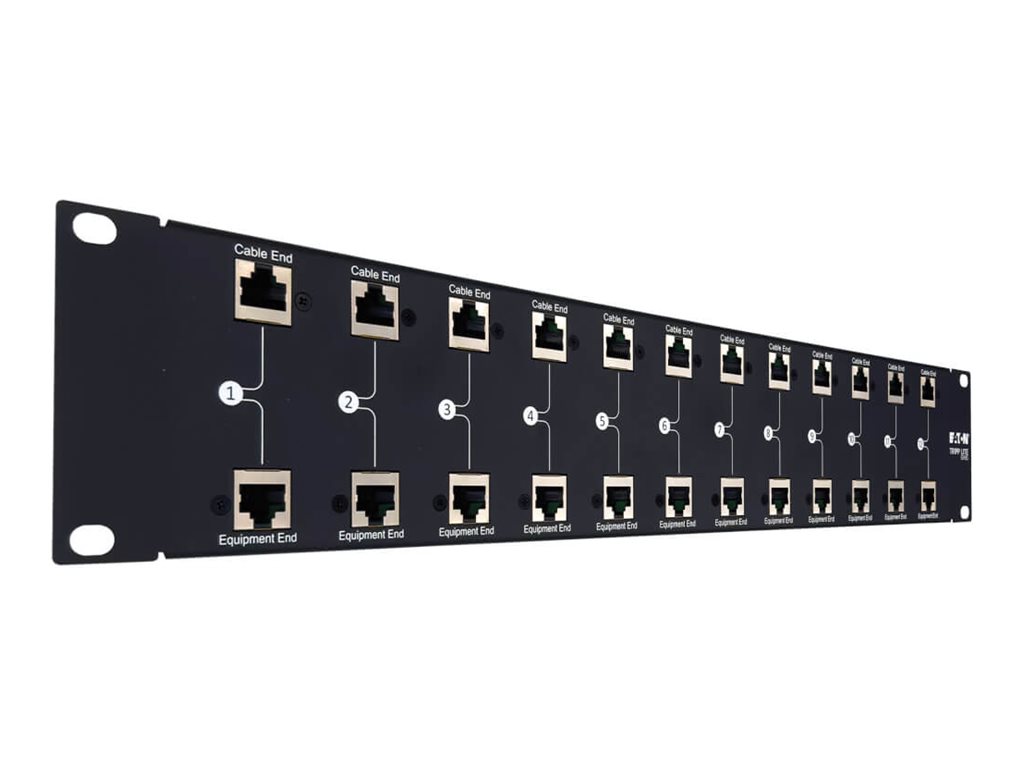

Eaton Tripp Lite Series
- PoE surge protector (rack-mountable)
- in-line
- 100 Watt
- output connectors: 12
- 2U
- 19"
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | B110-SPPOEC-J12 |
| SHI Part #: | 50740922 |
| Category: | Surge suppressers |
| UNSPSC: | 39121610 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surge suppressers |
| Description | Eaton Tripp Lite Series - PoE surge protector (rack-mountable) - in-line - 100 Watt - output connectors: 12 - 2U - 19" - black - TAA Compliant |
| Manufacturer | Eaton |
| MSRP | $1,348.50 |
| UNSPSC | 39121610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 2.39 cm |
| Dimensions & Weight / Height | 8.81 cm |
| Dimensions & Weight / Weight | 1.15 kg |
| Dimensions & Weight / Width | 48.2 cm |
| Header / Brand | Eaton |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Product Type | PoE surge protector |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 2.39 cm |
| Height | 8.81 cm |
| Weight | 1.15 kg |
| Width | 48.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 85% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 12 x 10 Gigabit LAN - RJ-45 |
| General | |
| Color | Black |
| Device Type | PoE surge protector - rack-mountable |
| Height (Rack Units) | 2U |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Ground cable - external - 30 cm |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEC 61000, RoHS, UKCA, WEEE, IEC |
| Features | Metal housing, 2kA (8/20µs) lightning protection, 2kV EFT protection, 15kV ESD protection (Air), 8kV ESD protection (Contract), 6kV (8/20µs) lightning protection, silicon avalanche diodes (SAD) |
| Included Accessories | 4 mounting screws, ground wire screw |
| TAA Compliant | Yes |
| Power Device | |
| Dataline Surge Protection | Ethernet 10/100/1000/10GBase-T - RJ-45 - 12 lines |
| Input Connectors | 12 x RJ-45 |
| Power Capacity | 100 Watt |
| Surge Response Time | 0.7 ns |
| Surge Suppression | Yes |
