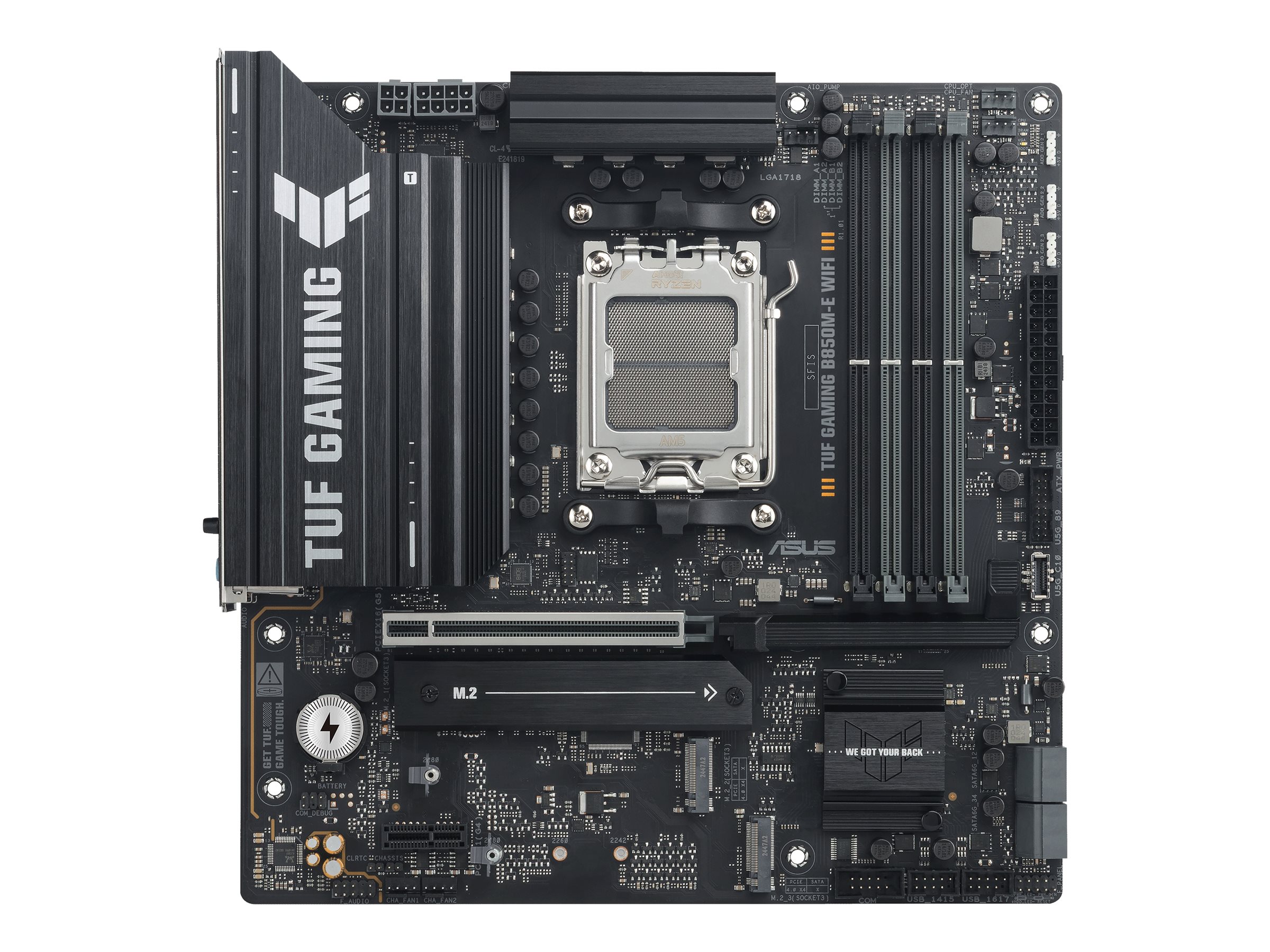

ASUS TUF GAMING B850M-E WIFI
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS TUF GAMING B850M-E WIFI
- Motherboard
- micro ATX
- Socket AM5
- AMD B850 Chipset
- USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1
- Wi-Fi 6E, Bluetooth, 2.5 Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TUF GAMING B850M-E WIFI |
| SHI Part #: | 50716871 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS TUF GAMING B850M-E WIFI - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1 - Wi-Fi 6E, Bluetooth, 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | AMD B850 |
| Mainboard / Processor Socket | Socket AM5 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Compliant Standards | DTS Audio, High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| RAID Features | AMD RAID Xpert2 Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| BIOS Type | AMI |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), TUF LANGuard, ASUS DIGI+ VRM, ASUS Aura Sync, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack button, BIOS FlashBack LED, ESD Guards, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 8 Layer PCB, 8+2+1 Phase Power Design, AI Cache Boost, chipset heatsink, enlarged M.2 heatsink |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | AMD B850 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Interfaces | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Depth | 24.4 cm |
| Included Accessories | ASUS Wi-Fi Q-antenna, TUF GAMING sticker, 1 x M.2 rubber package, M.2 screw package |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS TUF GAMING CPU-Z, Norton 360 for Gamers (60 days trial), WinRAR (40 days trial), ASUS AI Advisor |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 8000 MT/s (O.C.) |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | On-die ECC, non-ECC, ECC |
| Technology | DDR5 |
