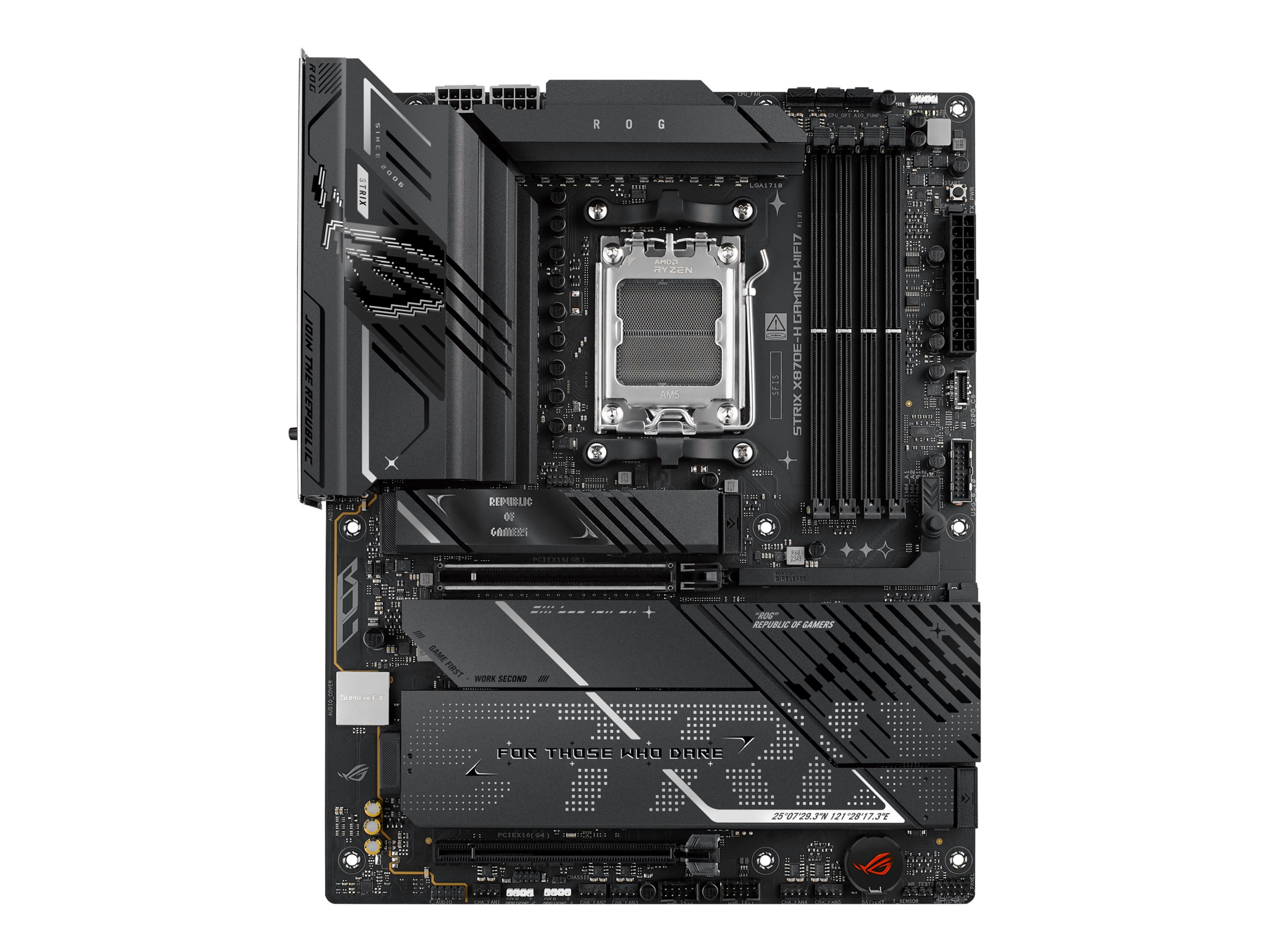

ASUS ROG STRIX X870E-H GAMING WIFI7

$658.00
ASUS ROG STRIX X870E-H GAMING WIFI7
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
ASUS ROG STRIX X870E-H GAMING WIFI7
  • Motherboard
  • ATX
  • Socket AM5
  • AMD X870E Chipset
  • USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
  • Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $658.00
Mfr Part #: ROG STRIX X870E-H GAMING WIFI7
SHI Part #: 50694668
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG STRIX X870E-H GAMING WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD X870E
Mainboard / Processor SocketSocket AM5
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC1220P
Compliant StandardsHigh Definition Audio, Dolby Atmos
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (2280/22110 M.2 Key M slot)
  • 2 x M.2 socket (2280 M.2 slot)
Interfaces
  • 2 x antenna
  • 1 x HDMI
  • 1 x LAN (5Gigabit Ethernet)
  • 2 x USB4
  • 1 x USB-C 3.2 Gen 2
  • 3 x USB 3.2 Gen 2
  • 6 x USB 3.2 Gen 1
  • 2 x USB 2.0
  • 1 x microphone - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x SPDIF out
Internal Interfaces
  • 1 x USB-C 3.2 Gen 2x2 - header
  • 2 x USB 3.2 Gen 1 - header
  • 4 x USB 2.0 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
RAID FeaturesAMD RAID Xpert2 Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesCrashFree BIOS 3, ASUS Enhanced Memory Profile (AEMP), Preboot eXecution Environment (PXE), 5K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS Button, M.2 heatsink, M.2 Q-Latch, M.2 Q-Release, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, Start button, VRM heatsink design, LANGuard, 16+2+1 Phase Power Design, AI Cache Boost, AI Cooling II, AI Networking II, AI Overclocking, aluminum heatsink design
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeAMD X870E
Compatible Processors(supports Ryzen 7000/8000/9000 Series)
Max Processors Qty1
Processor SocketSocket AM5
Product TypeMotherboard - ATX
LAN
Network ControllerRealtek RTL8922AE
Network Interfaces802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsDisplayPort 1.4a
Depth24.4 cm
Included AccessoriesASUS Wi-Fi Q-antenna, cable ties, M.2 Q-Latch, ROG key chain, ROG Strix sticker, 4 x M.2 rubbers
Software IncludedROG CPU-Z, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Advisor, ASUS DriverHub, AIDA64 Extreme (60 days trial), HWiNFO, ASUS GlideX, TurboV Core, Adobe Creative Cloud (free trial), Norton 360 for Gamers (60 days trial), WinRAR (40 days trial), USB Wattage Watcher
Width30.5 cm
Supported RAM
Bus Clock8000 MT/s (O.C.)
FeaturesDual channel memory architecture, AMD EXPO technology
Max Size256 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckOn-die ECC, non-ECC, ECC
TechnologyDDR5
