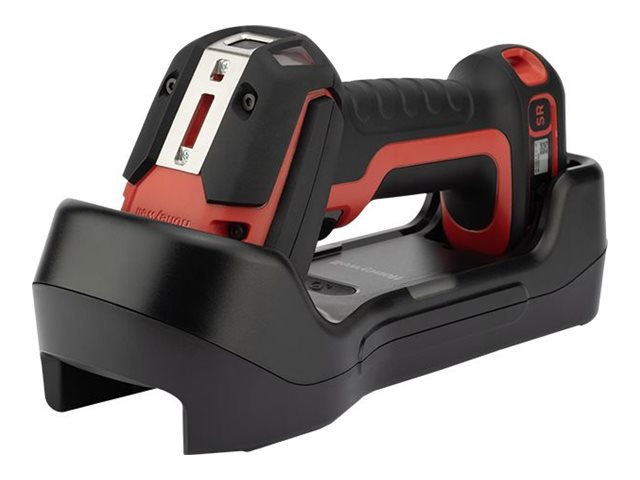

Honeywell Granit Ultra 2105iXLR
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Honeywell Granit Ultra 2105iXLR
- RS-232 Kit
- barcode scanner
- portable
- XLR
- 2D imager
- decoded
- Bluetooth 4.2, RF(2.4 GHz)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 2105IXLR-3SER-CLHN |
| SHI Part #: | 50622172 |
| Category: | Light pen or barcode scanner |
| UNSPSC: | 43211707 |
| Manufacturer: | Honeywell |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Light pen or barcode scanner |
| Description | Honeywell Granit Ultra 2105iXLR - RS-232 Kit - barcode scanner - portable - XLR - 2D imager - decoded - Bluetooth 4.2, RF(2.4 GHz) |
| Manufacturer | Honeywell |
| MSRP | $2,620.87 |
| UNSPSC | 43211707 |
| Main Specifications | |
| Dimensions & Weight / Depth | 19.48 cm |
| Dimensions & Weight / Height | 13.95 cm |
| Dimensions & Weight / Weight | 425 g |
| Dimensions & Weight / Width | 7.58 cm |
| Header / Brand | Honeywell |
| Header / Country Kits | North America |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 3-year warranty |
| Barcode | |
| Connectivity Technology | Wireless |
| Decode Capability | Code 128, Code 39, Code 93, Code 11, Code 32, Pharmacode, Codabar, EAN/JAN, UPC, China Post, GS1 DataBar, Aztec, Data Matrix, QR code, Micro QR code, MaxiCode, Chinese Sensible Code, Han Xin, Postal Code, PDF417, DotCode, Digimarc Barcode, MICR E-13B, OCR-A, OCR-B, SEMI |
| Features | Green LED aimer, rugged, 3300 mAh battery, 20 kV ESD protection (air discharge), 8 kV ESD protection (contact discharge) |
| Interface Type | Bluetooth 4.2, RF(2.4 GHz) |
| Light Source Wave Length | 520 nm |
| Max Working Distance | 7.5 m |
| Minimum Bar Width | 2.5 mil |
| OK Notification | Beeper, LED indicator, vibration |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Scan Element Type | 2D imager - green LED |
| Scan Engine Focus Range | Extrime Longe Range (XLR) |
| Scan Mode | Single-pass |
| Sensor Resolution | 1900 x 800 |
| Skew (Degrees) | 65 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 19.48 cm |
| Height | 13.95 cm |
| Weight | 425 g |
| Width | 7.58 cm |
| Environmental Parameters | |
| Drop Specification | 3 m |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Localization | North America |
| Type | Barcode scanner - portable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Compliant Standards | IP65, IP68, MIL-STD 810G, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B, ICES-003 issue 7, EN 62368-1, IEC 62368-1, IEC 62471, IEC 63000, UL 62368-1, CSA C22.2 No. 62368-1, IEC 60825, FCC 47 CFR Part 15 Subpart C, EN 300 328, RSS-247, RSS-GEN |
| Included Accessories | Charger/communication base |
| Networking | |
| Wireless Connectivity | Bluetooth 4.2 |
| Power | |
| Battery | 1 x lithium ion |
| Electric Current Required | 120 mA (standby) |
| Voltage | DC 4.4 - 5.5 V |
