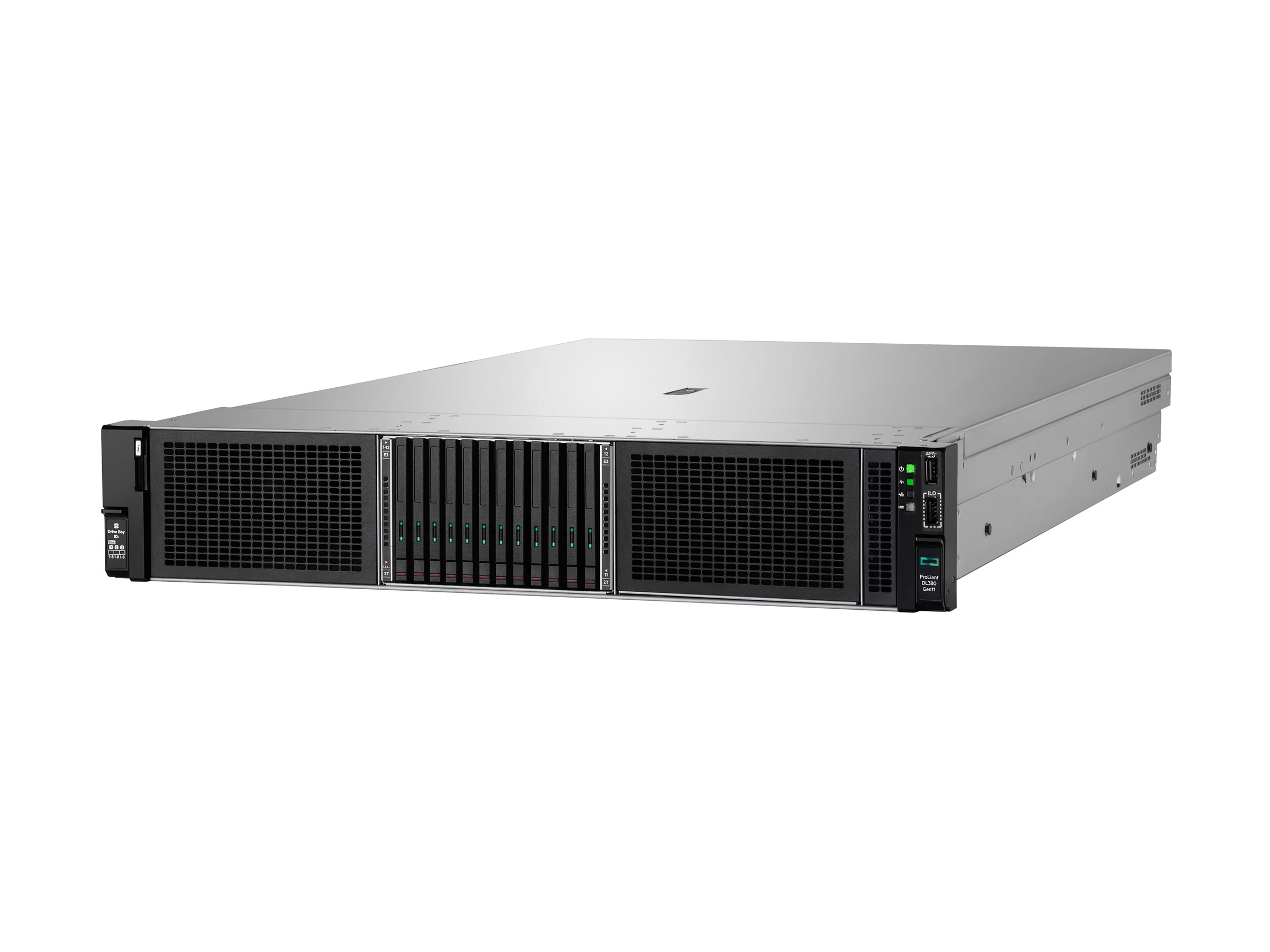

HPE ProLiant DL380 Gen11
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL380 Gen11
- Server
- rack-mountable 2U
- 2-way
- 1 x Xeon Silver 4510 / up to 4.1 GHz
- RAM 64 GB
- SATA/SAS/NVMe
- hot-swap 2.5" bay(s)
- SSD 7.68 TB
- NVMe
- Gigabit Ethernet
- no OS
- monitor: none
- Smart Choice
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | P86710-005 |
| SHI Part #: | 50611874 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL380 Gen11 - Server - rack-mountable 2U - 2-way - 1 x Xeon Silver 4510 / up to 4.1 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 7.68 TB - NVMe - Gigabit Ethernet - no OS - monitor: none - Smart Choice |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $8,356.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/SAS/NVMe |
| Dimensions & Weight / Depth | 72.7 cm |
| Dimensions & Weight / Height | 8.75 cm |
| Dimensions & Weight / Weight | 16 kg |
| Dimensions & Weight / Width | 44.8 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 7.68 TB |
| Header / Brand | HPE |
| Header / Country Kits | North America |
| Mainboard / Chipset Type | Intel C741 |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.4 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 12-core |
| Processor / Processor Number | 4510 |
| Processor / Type | Xeon Silver |
| RAM / Data Integrity Check | Advanced ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 7.68 TB |
| System / Type | Server |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | L3 cache - 30 MB |
| Dimensions & Weight | |
| Depth | 72.7 cm |
| Height | 8.75 cm |
| Weight | 16 kg |
| Width | 44.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Capacity | 1 x 7.68 TB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | AES, TLS v1.2, ASHRAE Class A3, ASHRAE Class A4, ErP Lot 9, WEEE 2002/95/EC, FIPS 140-2, low halogen, Triple DES, SMBIOS 3.4, Redfish API, ACPI 6.4, Active Directory v1.0 |
| Included Accessories | 4 standard fans |
| Manufacturer Selling Program | HPE Smart Choice |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Features | PXE support, Wake on LAN (WoL) |
| Remote Management Controller | Integrated Lights-Out 6 |
| Operating System / Software | |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1, VMware ESXi 8.0 update 2, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, SUSE Linux Enterprise Micro 5.3, Canonical Ubuntu 20.04.5 LTS, Canonical Ubuntu 22.04 LTS, Oracle Linux 9 |
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 800 Watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 100-240 V |
| Processor / Chipset | |
| Chipset Type | Intel C741 |
| Clock Speed | 2.4 GHz |
| CPU | Intel Xeon Silver 4510 |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 12-core |
| RAM | |
| Configuration Features | 2 x 32 GB |
| Features | Registered, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only |
| Form Factor | DIMM 288-pin |
| Installed Size | 64 GB (installed) / 8 TB (max) |
| Slots | 32 (total) / 30 (empty) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Storage Controller | |
| Buffer Size | 8 GB |
| Channel Qty | 16 |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR416i-o Gen11 SPDM |
| Type | 1 x RAID - OCP |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
