Lenovo - SSD - Mixed Use
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

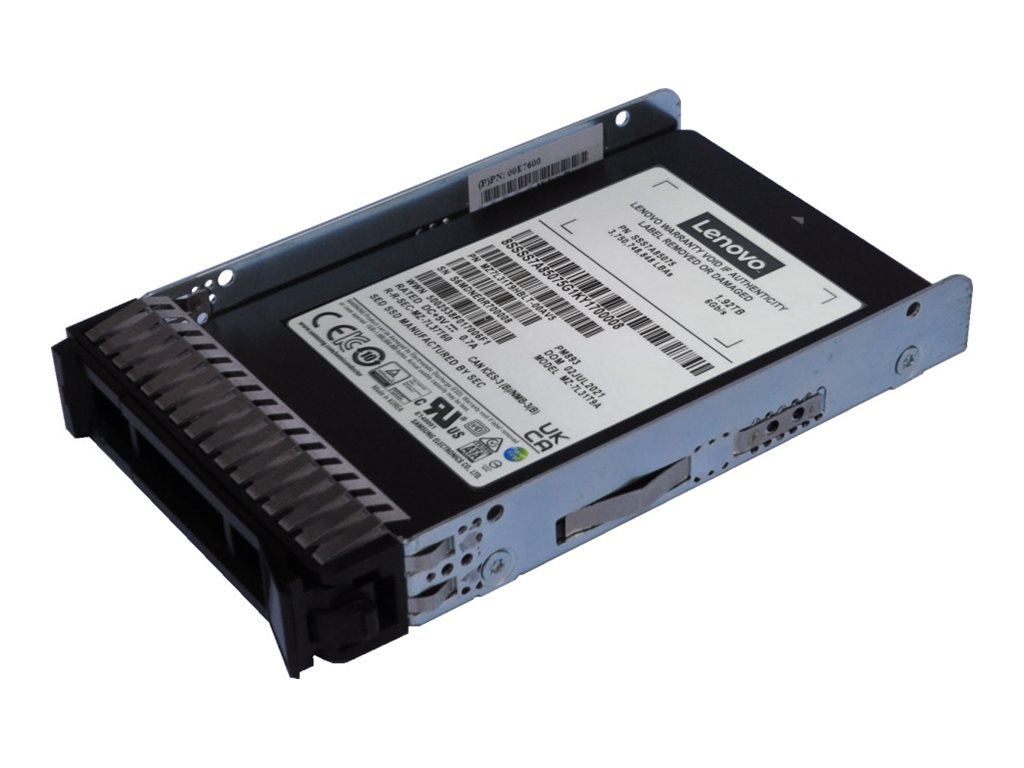

Lenovo - SSD - Mixed Use
- encrypted
- 960 GB
- hot-swap
- 2.5"
- SATA 6Gb/s
- Self-Encrypting Drive (SED), TCG Opal Encryption
- for ThinkSystem SR250 V3; SR630 V4; SR650 V4; SR650a V4; SR65X V3; SR665 V3; ST250 V3
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 4XB7B09973 |
| SHI Part #: | 50476072 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Lenovo - SSD - Mixed Use - encrypted - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - Self-Encrypting Drive (SED), TCG Opal Encryption - for ThinkSystem SR250 V3; SR630 V4; SR650 V4; SR650a V4; SR65X V3; SR665 V3; ST250 V3 |
| Manufacturer | Lenovo |
| MSRP | $2,139.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 960 GB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Lenovo |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 g @ 20-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Capacity | 960 GB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | V-NAND Technology, Advanced ECC Engine, End-to-end data protection, Power Loss Protection (PLP), S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | UL, TUV, FCC, C-Tick, BSMI, KCC |
| Performance | |
| 4KB Random Read | 81000 IOPS |
| 4KB Random Write | 48500 IOPS |
| Drive Class | Mixed Use |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Writes Per Day (DWPD) | 4 |
| Internal Data Rate | 480 MBps (read) / 460 MBps (write) |
| SSD Endurance | 7008 TB |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
