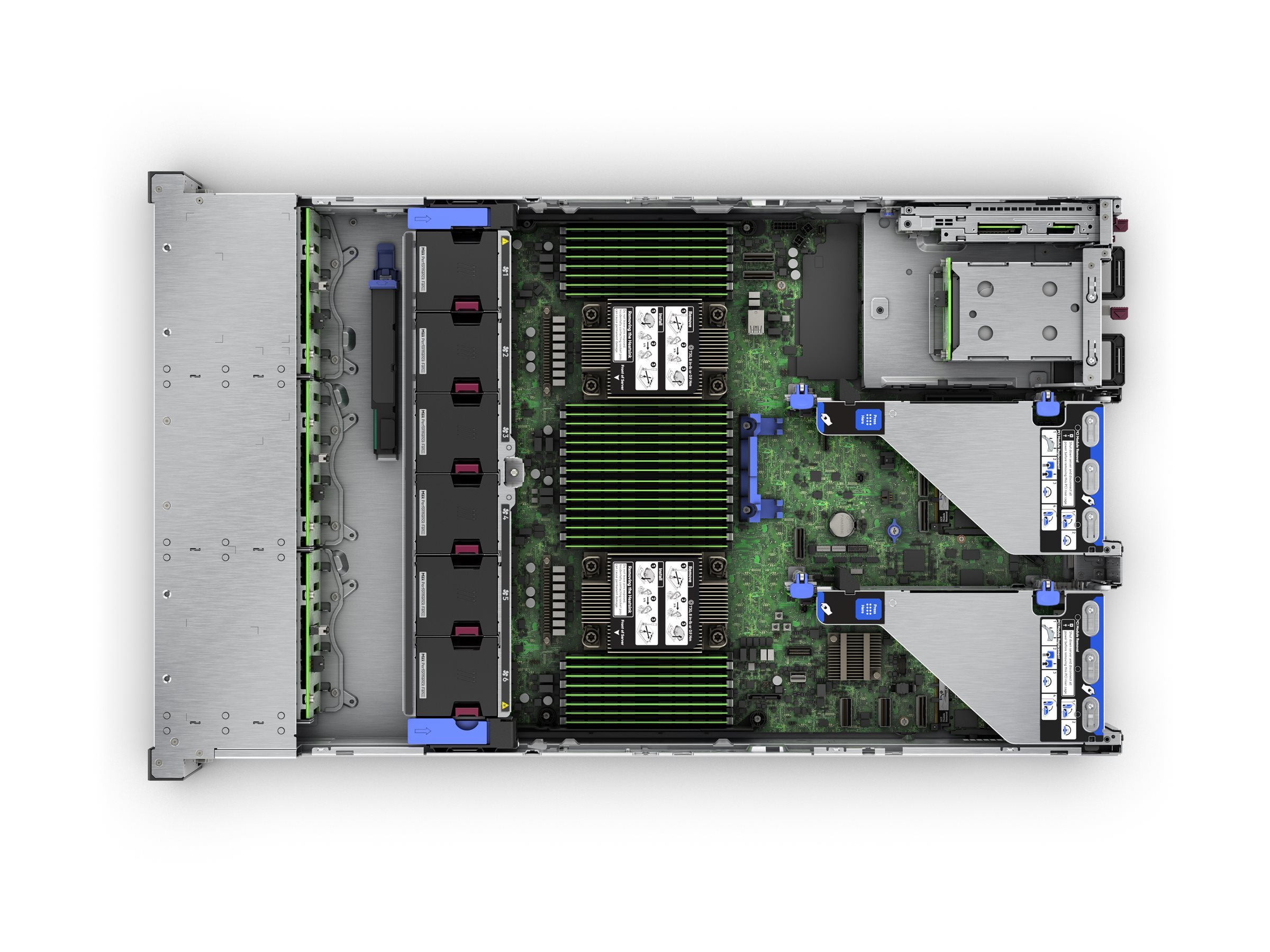

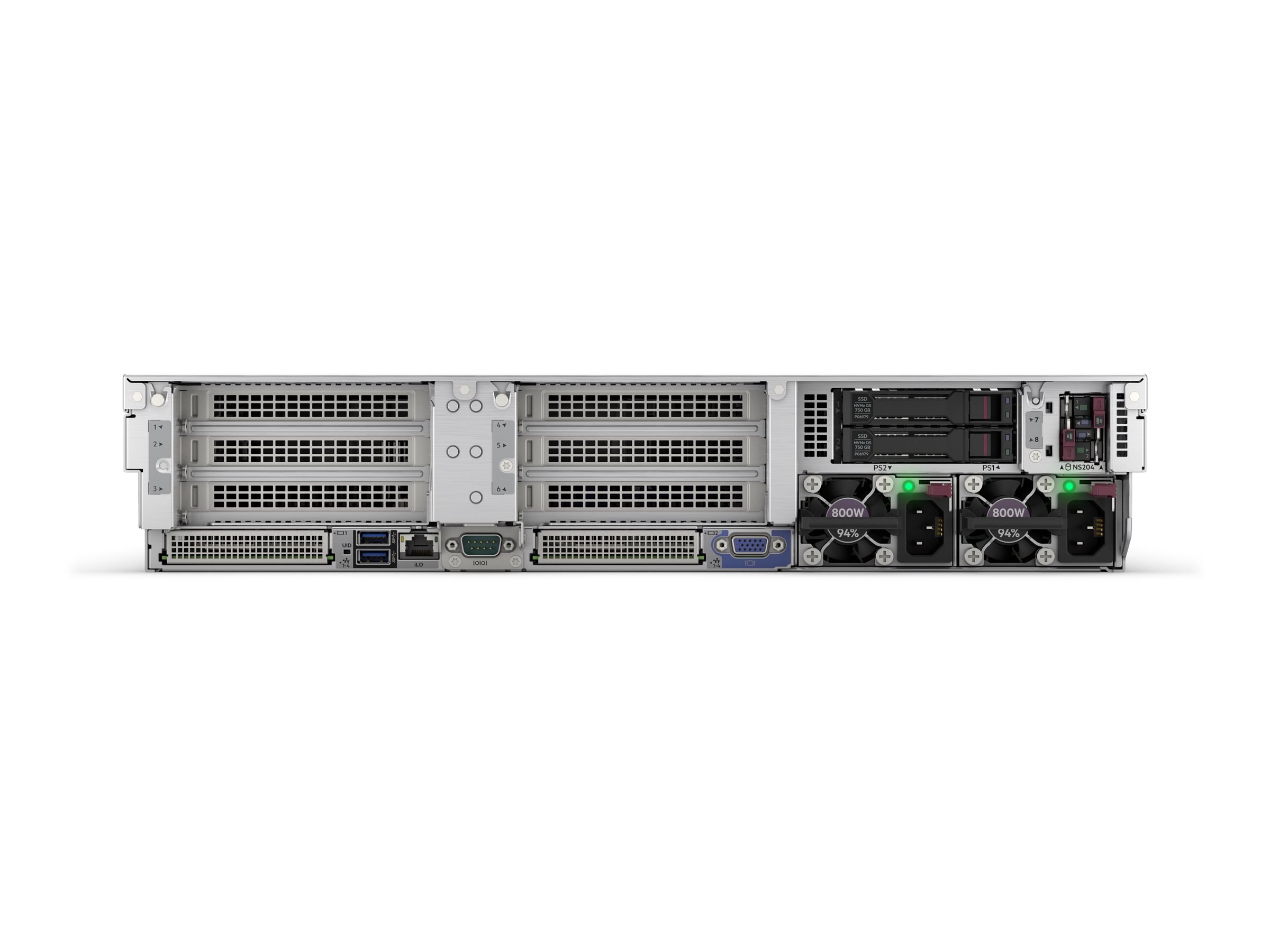

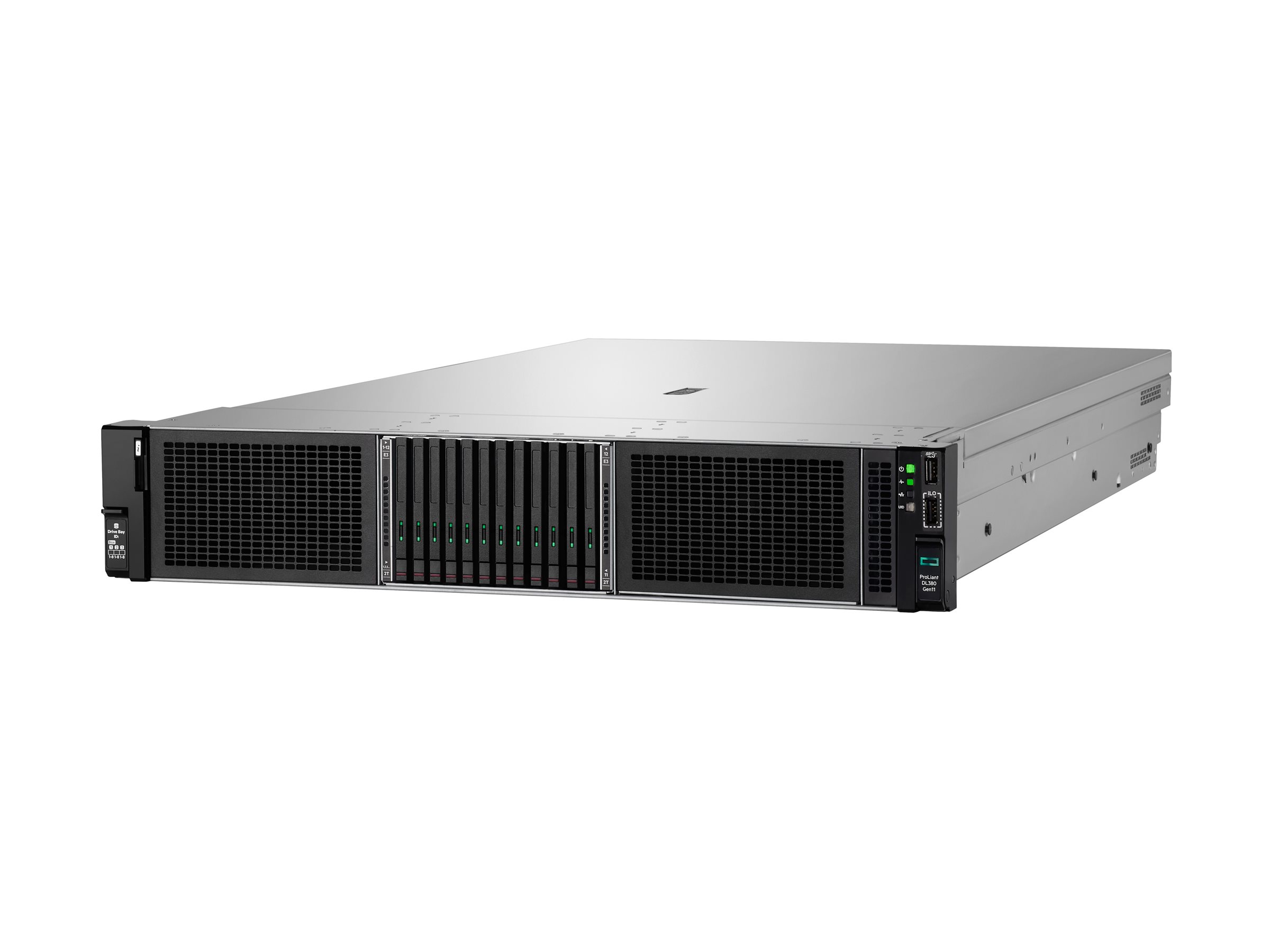

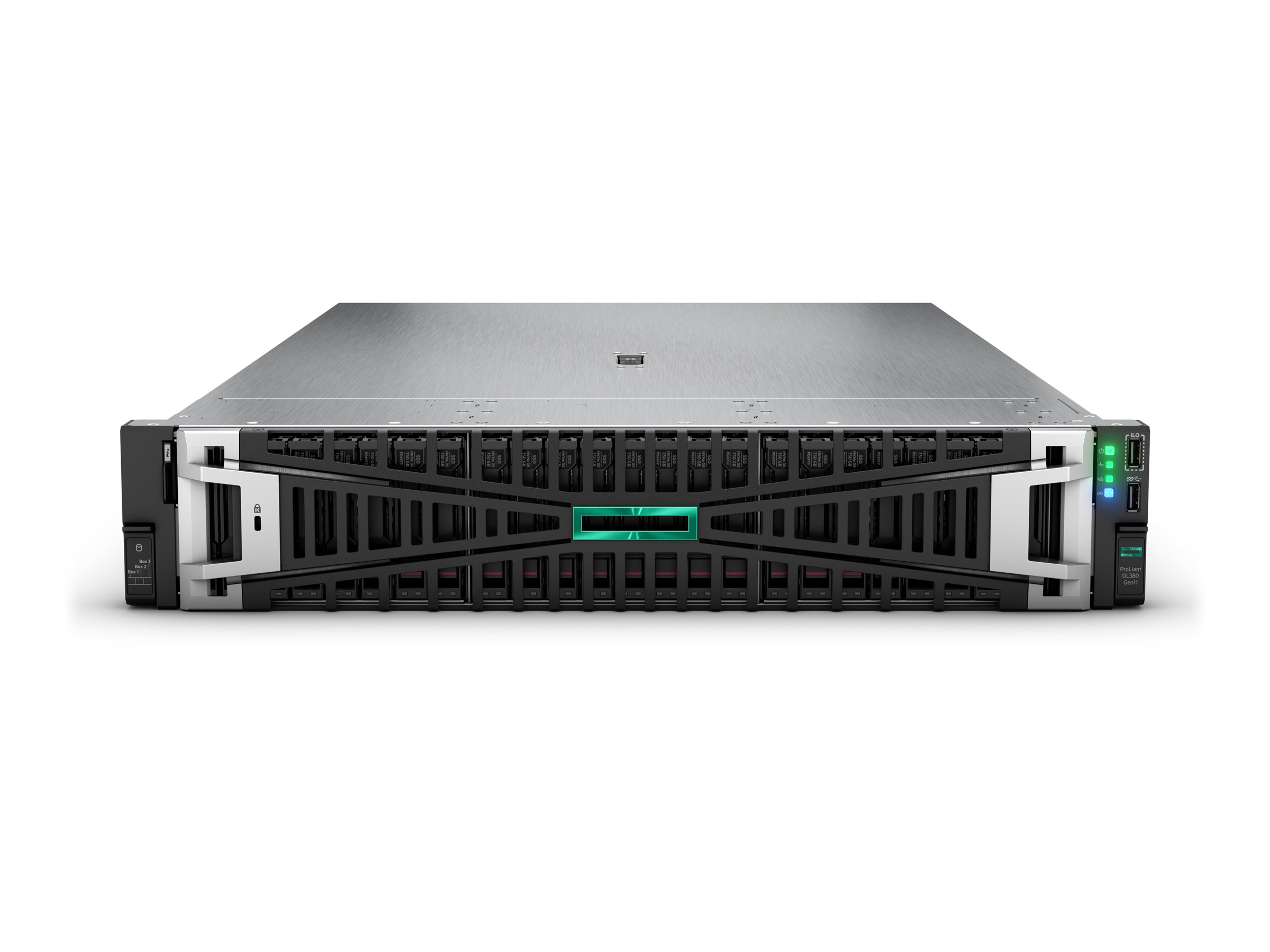

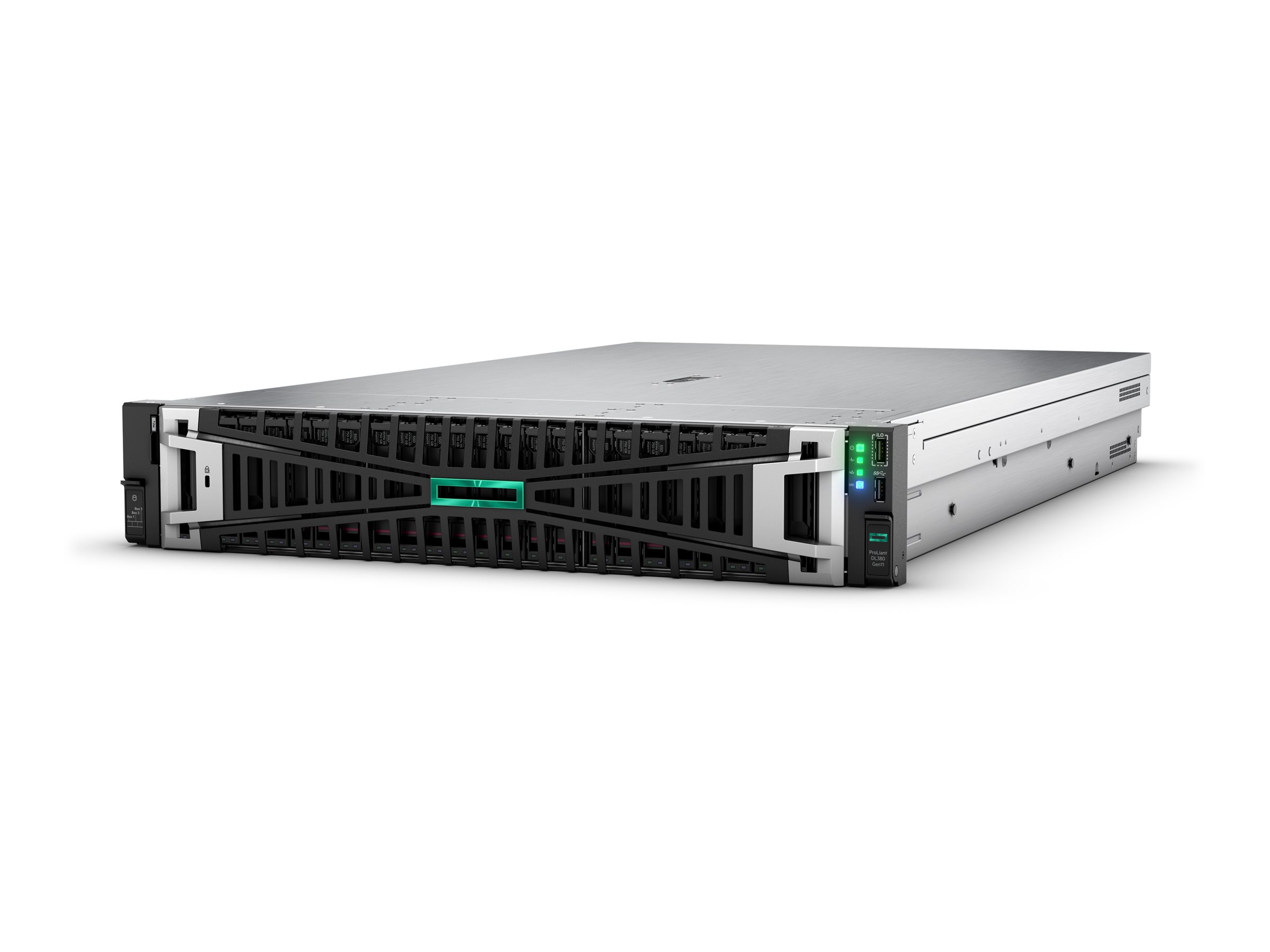

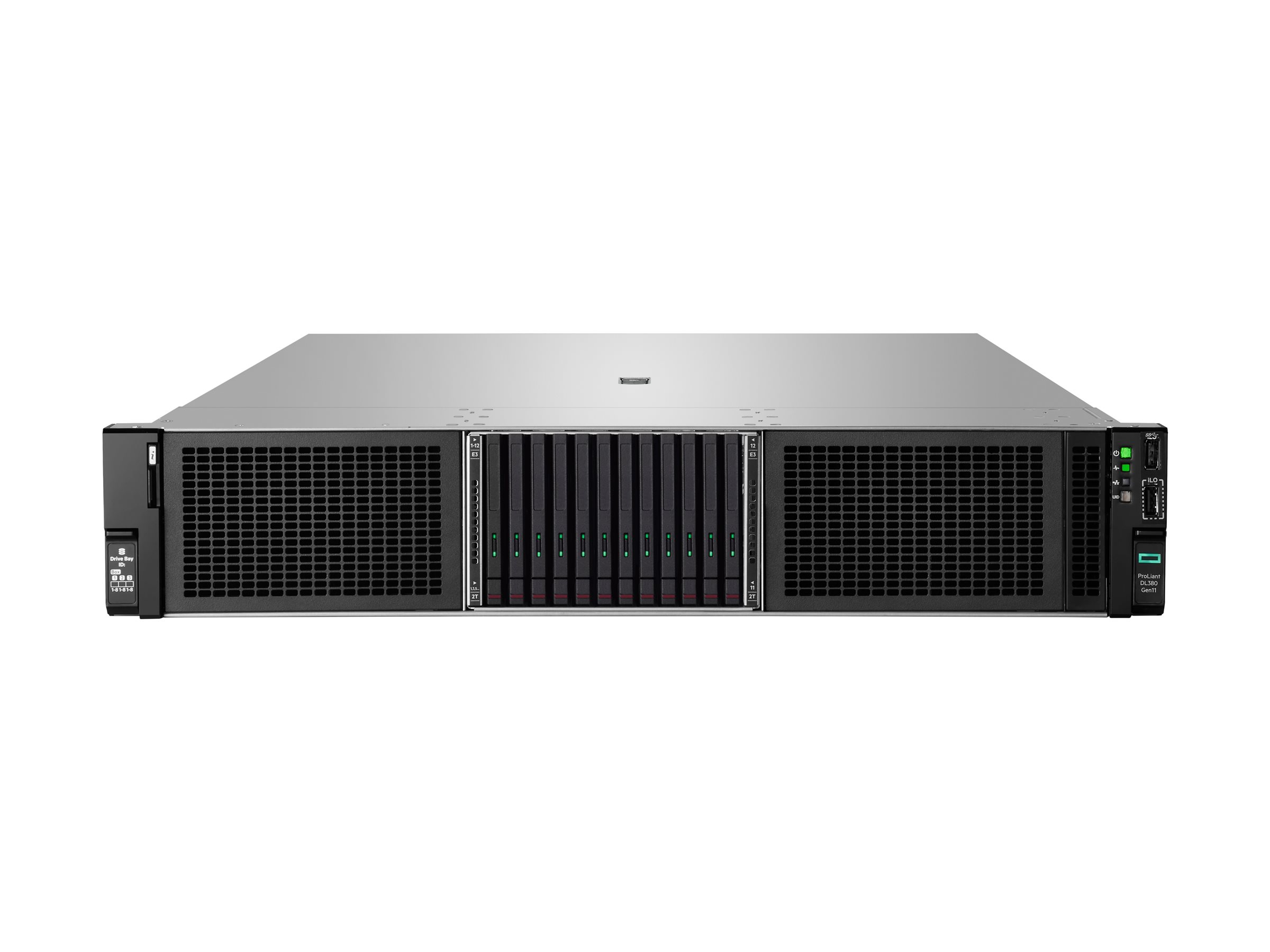

HPE ProLiant DL380 Gen11
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL380 Gen11
- Server
- rack-mountable 2U
- 2-way
- 1 x Xeon Gold 5418Y / up to 3.8 GHz
- RAM 64 GB
- SATA/SAS/NVMe
- hot-swap 2.5" bay(s)
- SSD 2 x 960 GB
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | P83311-005 |
| SHI Part #: | 50381555 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL380 Gen11 - Server - rack-mountable 2U - 2-way - 1 x Xeon Gold 5418Y / up to 3.8 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 960 GB - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $12,053.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/SAS/NVMe |
| Dimensions & Weight / Depth | 72.7 cm |
| Dimensions & Weight / Height | 8.75 cm |
| Dimensions & Weight / Width | 44.8 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 960 GB |
| Header / Brand | HPE |
| Header / Country Kits | North America |
| Mainboard / Chipset Type | Intel C741 |
| Miscellaneous / Product Color |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 24-core |
| Processor / Processor Number | 5418Y |
| Processor / Type | Xeon Gold |
| RAM / Data Integrity Check | Advanced ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2200 MHz |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 1.92 TB |
| System / Type | Server |
| Cache Memory | |
| Cache Per Processor | 45 MB |
| Installed Size | L3 cache - 45 MB |
| Dimensions & Weight | |
| Depth | 72.7 cm |
| Height | 8.75 cm |
| Width | 44.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Capacity | 2 x 960 GB |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | AES, TLS v1.2, ACPI 6.3, ASHRAE Class A3, ASHRAE Class A4, ErP Lot 9, WEEE 2002/95/EC, FIPS 140-2 |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | OCP 3.0 |
| Features | Wake on LAN (WoL), PXE support |
| Remote Management Controller | Integrated Lights-Out 6 |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1000 watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V |
| Processor / Chipset | |
| Chipset Type | Intel C741 |
| Clock Speed | 2 GHz |
| CPU | Intel Xeon Gold 5418Y |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| Max Turbo Speed | 3.8 GHz |
| Number of Cores | 24-core |
| RAM | |
| Configuration Features | 2 x 32 GB |
| Effective Memory Speed | 2200 MHz |
| Features | Registered, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only |
| Form Factor | DIMM 288-pin |
| Installed Size | 64 GB (installed) / 8 TB (max) |
| Slots | 32 (total) / 30 (empty) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Storage Controller | |
| Buffer Size | 8 GB |
| Channel Qty | 16 |
| Controller Interface Type | SATA 6Gb/s / SAS 4.0 / PCI Express (NVMe) |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Storage Controller Name | HPE MR416i-o Gen11 SPDM |
| Type | 1 x RAID - OCP |
