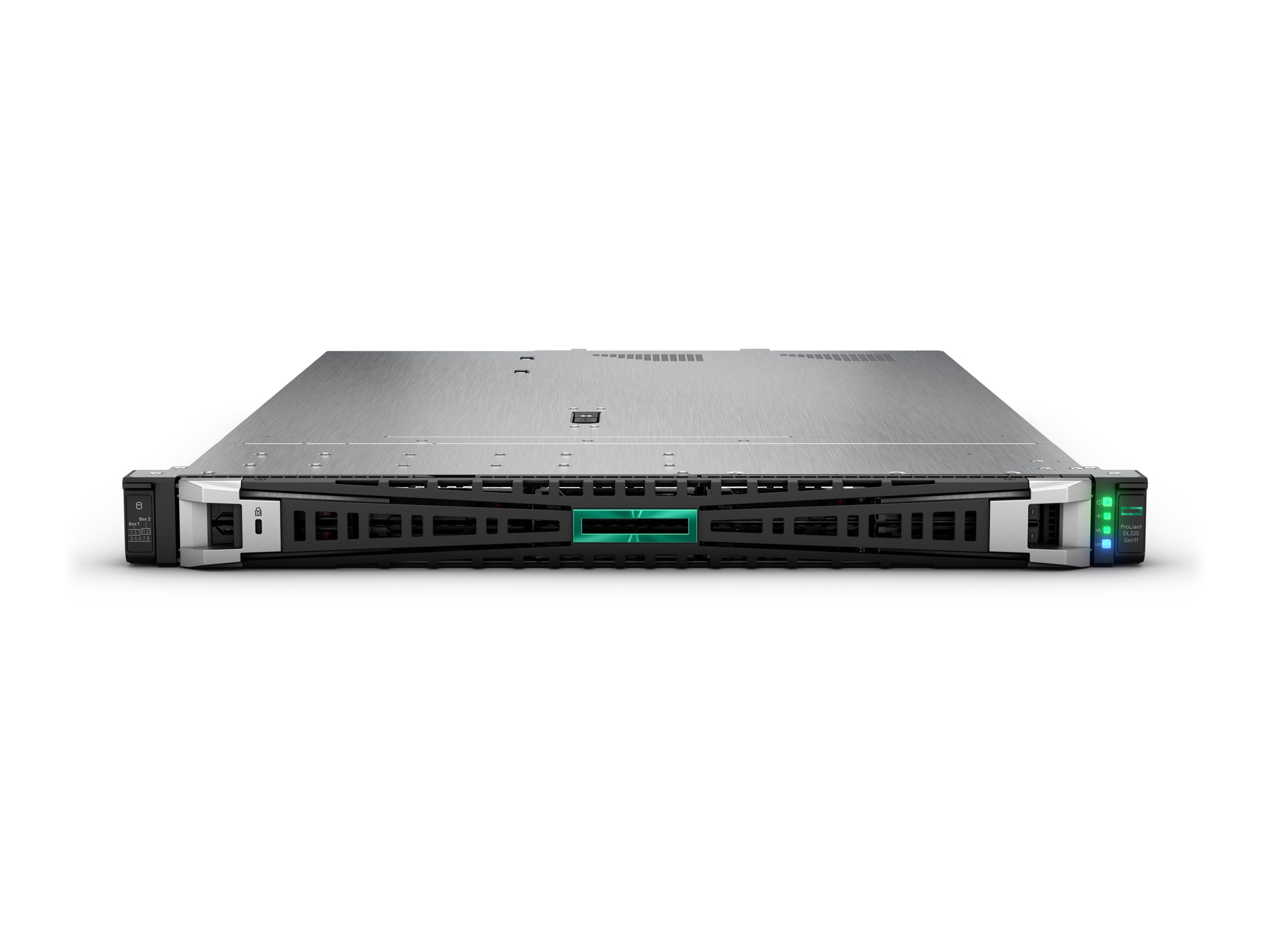

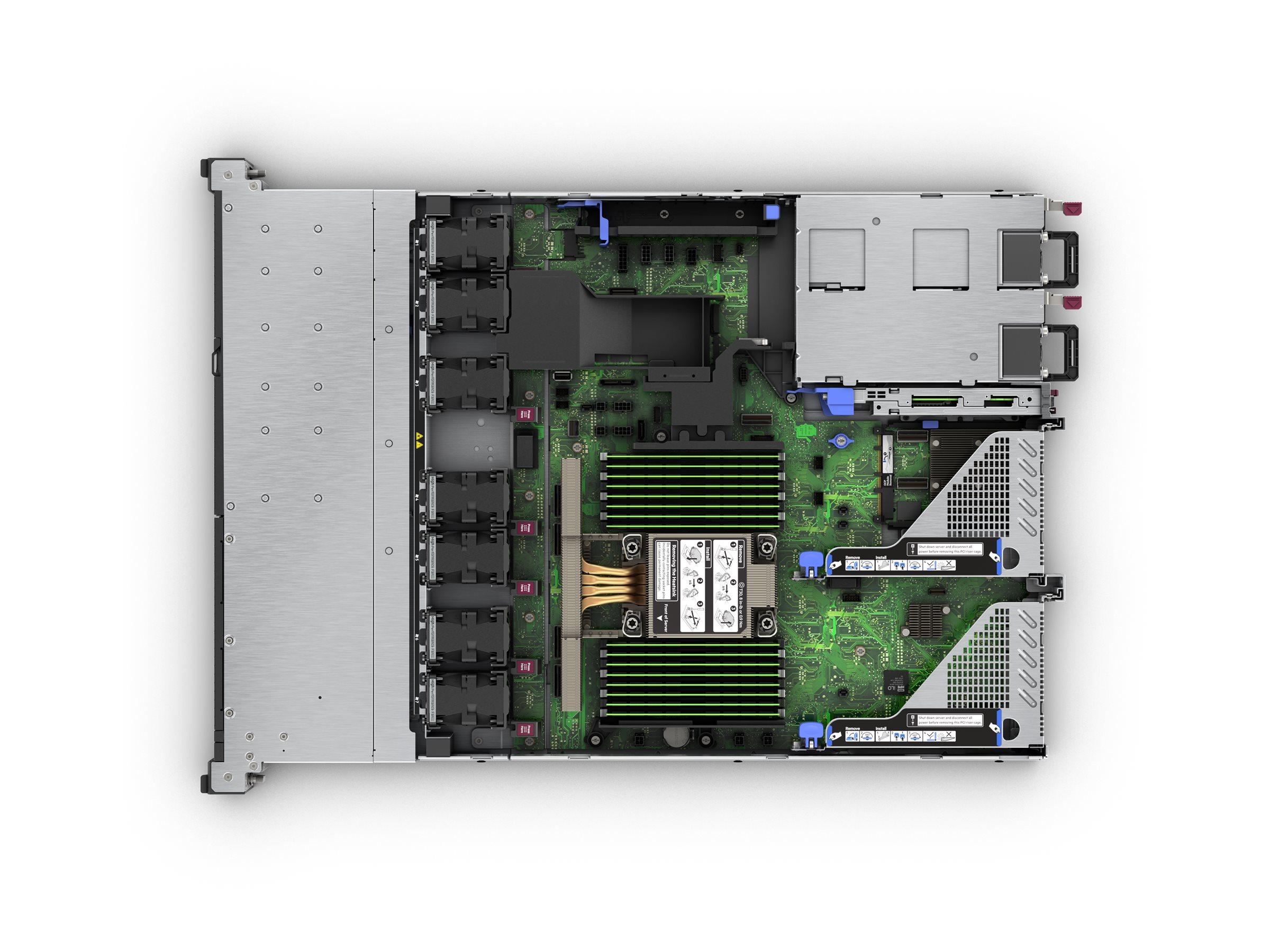

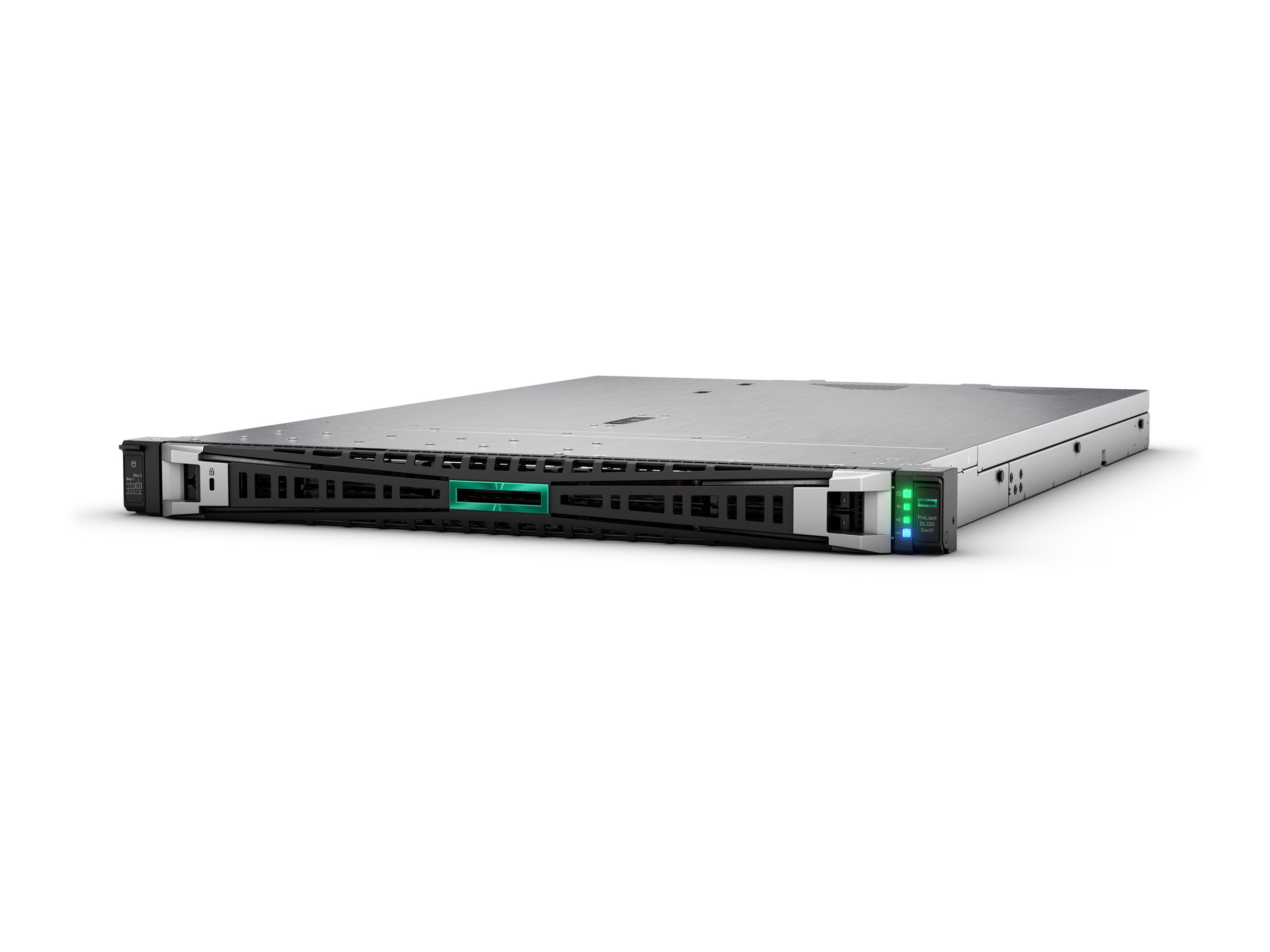

HPE ProLiant DL320 Gen11
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL320 Gen11
- Server
- rack-mountable 1U
- 1-way
- 1 x Xeon Silver 4510 / up to 4.1 GHz
- RAM 32 GB
- SATA/SAS/NVMe
- hot-swap 2.5" bay(s)
- no HDD
- Gigabit Ethernet
- no OS
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | P83284-005 |
| SHI Part #: | 50381547 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL320 Gen11 - Server - rack-mountable 1U - 1-way - 1 x Xeon Silver 4510 / up to 4.1 GHz - RAM 32 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $13,946.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/SAS/NVMe |
| Dimensions & Weight / Depth | 60.51 cm |
| Dimensions & Weight / Height | 4.28 cm |
| Dimensions & Weight / Weight | 12 kg |
| Dimensions & Weight / Width | 43.46 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 480 GB |
| Header / Brand | HPE |
| Header / Country Kits | North America |
| Mainboard / Chipset Type | Intel C741 |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.4 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 12-core |
| Processor / Processor Number | 4510 |
| Processor / Type | Xeon Silver |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity |
|
| System / Type | Server |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | L3 cache - 30 MB |
| Dimensions & Weight | |
| Depth | 60.51 cm |
| Height | 4.28 cm |
| Weight | 12 kg |
| Width | 43.46 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3, Active Directory v1.0, SMBIOS 3.2, UEFI 2.7 |
| Included Accessories | 7 x high performance fans |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | ACPI support, PXE support, Wake on LAN (WoL) |
| Remote Management Controller | Integrated Lights-Out 6 |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Operating System / Software | |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, Ubuntu 22.04 LTS, CentOS |
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE GreenLake for Compute Ops Management (subscription included) |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 500 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Processor / Chipset | |
| Chipset Type | Intel C741 |
| Clock Speed | 2.4 GHz |
| CPU | Intel Xeon Silver 4510 |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 12-core |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, 150W TDP |
| RAM | |
| Configuration Features | 1 x 32 GB |
| Effective Memory Speed | 4400 MT/s |
| Features | HPE SmartMemory, registered |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 2.04 TB (max) |
| Rated Memory Speed | 5600 MT/s |
| Slots | 16 (total) / 15 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Buffer Size | 4 GB |
| Channel Qty | 8 |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Type | 1 x RAID - OCP |
| Storage Controller (2nd) | |
| Controller Interface Type | NVM Express |
| RAID Level | RAID 1 |
| Storage Controller Name | HPE NS204i-u |
| Type | 1 - M.2 2280 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
