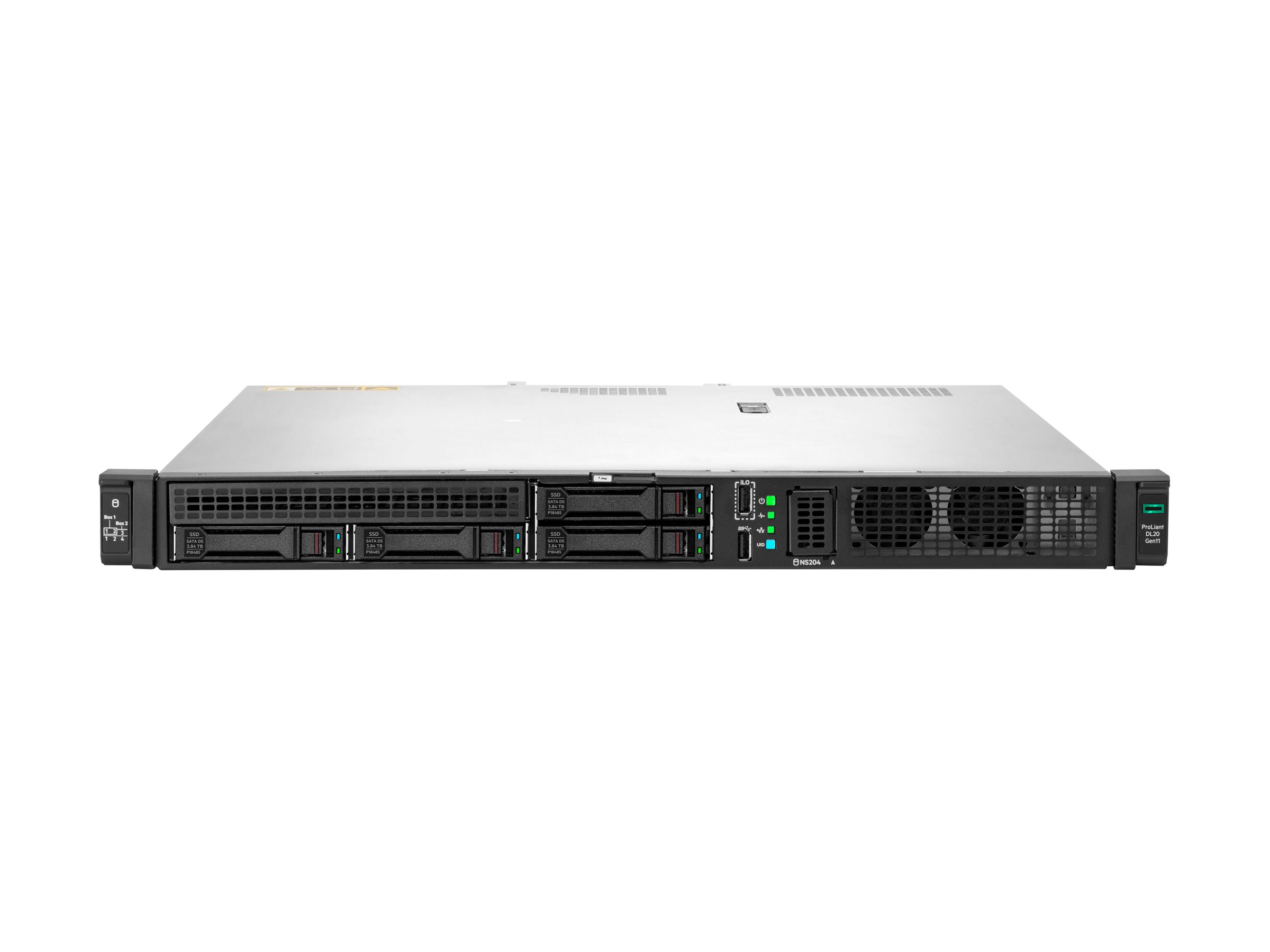

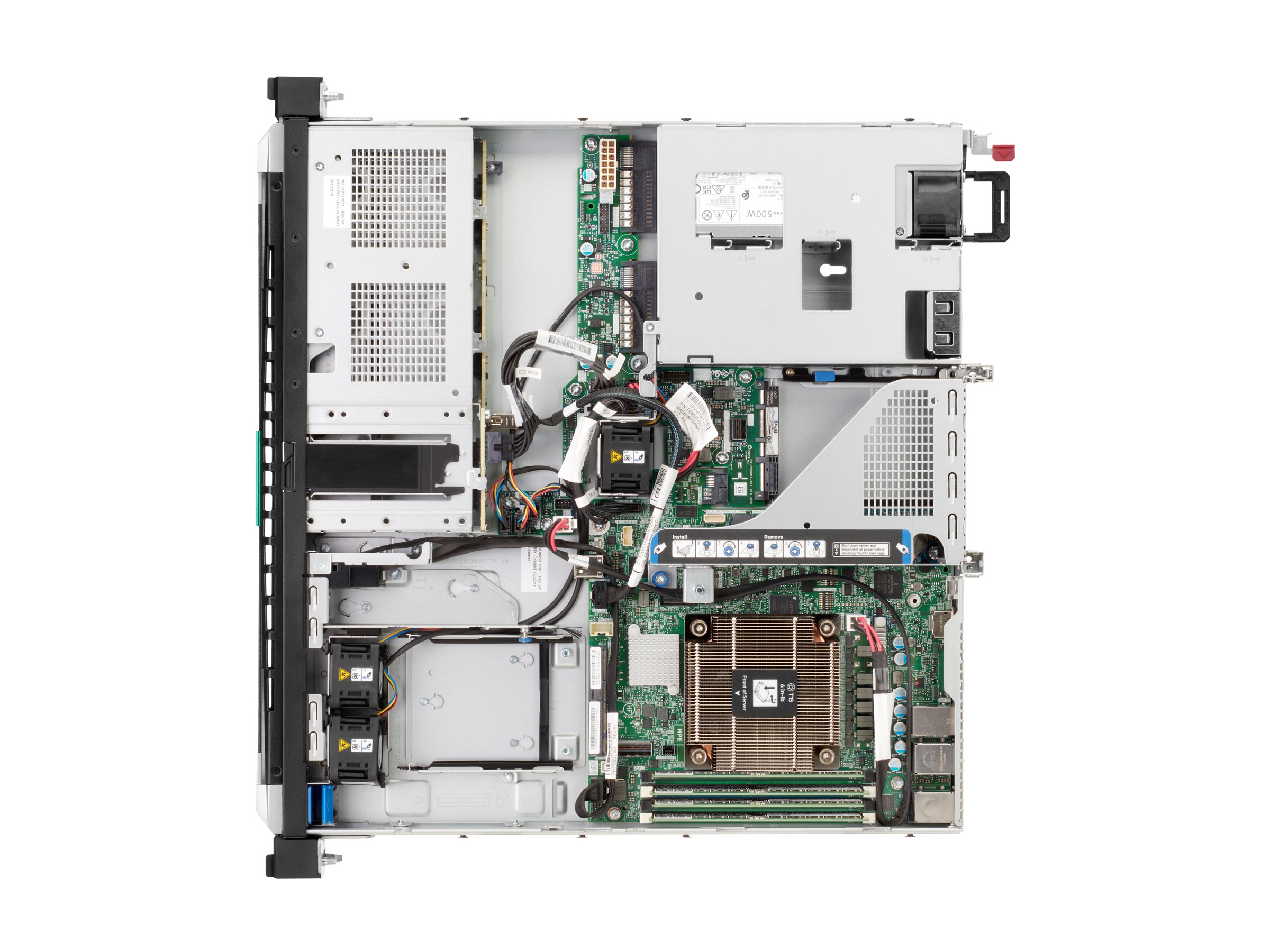

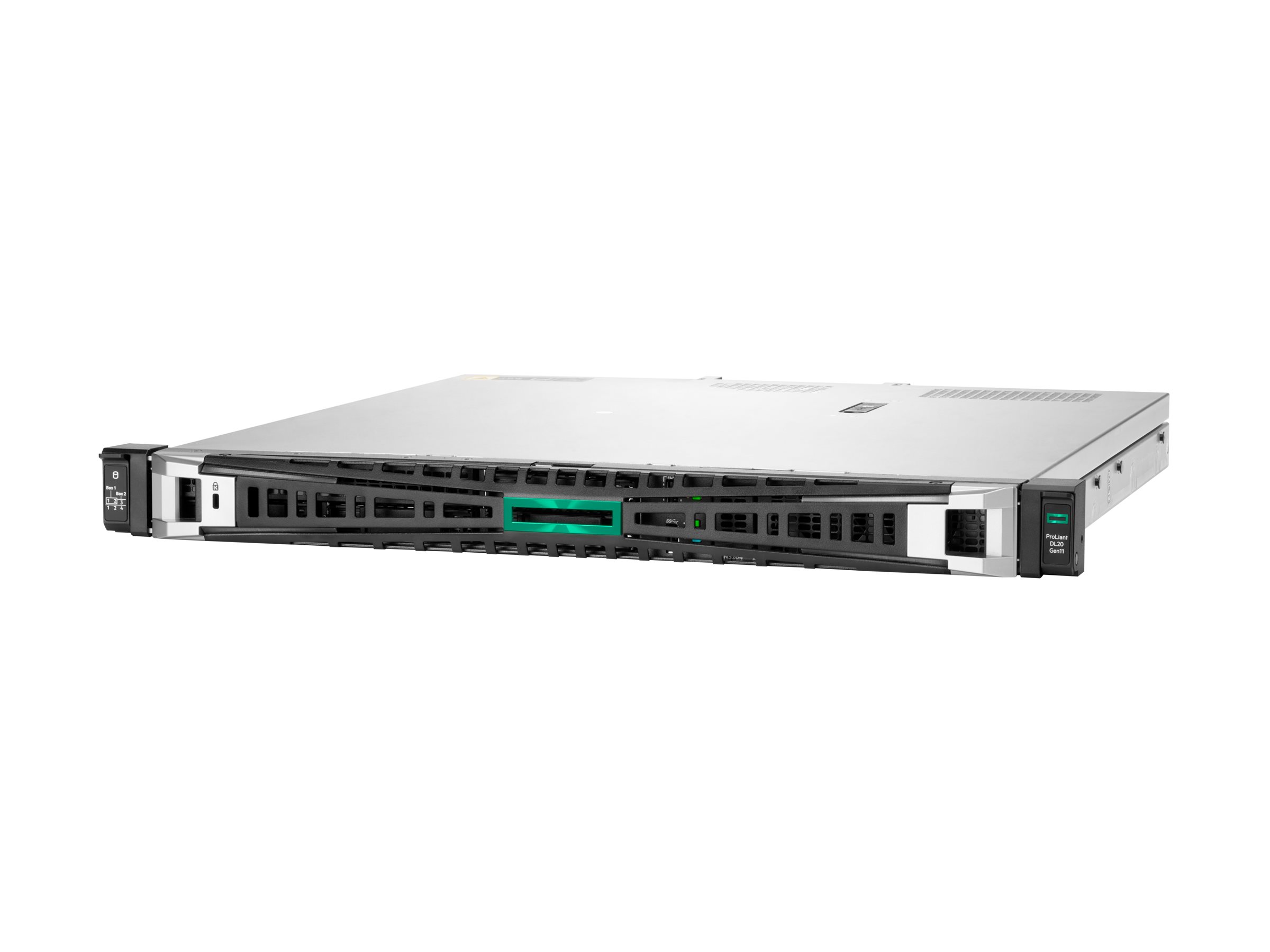

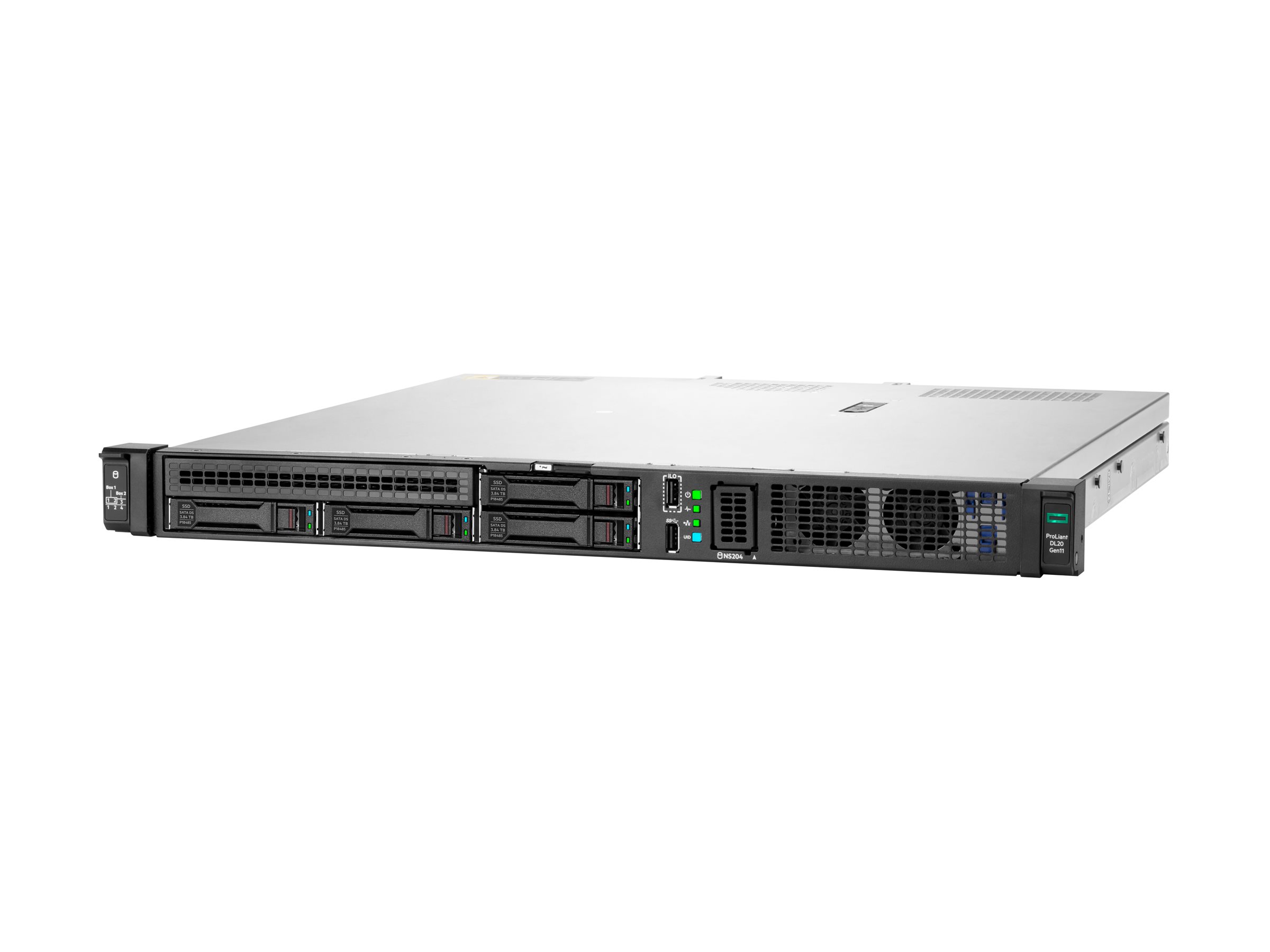

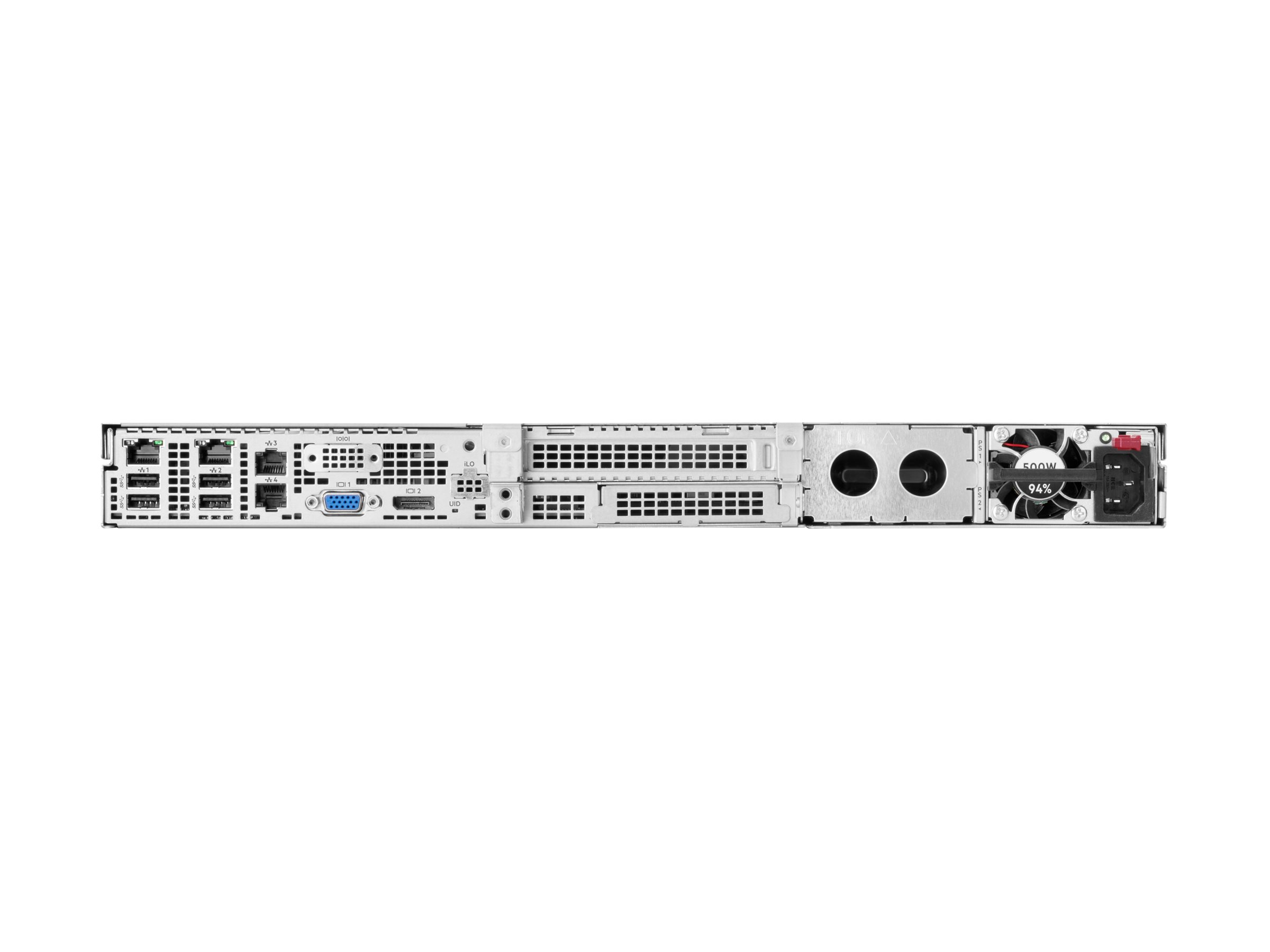

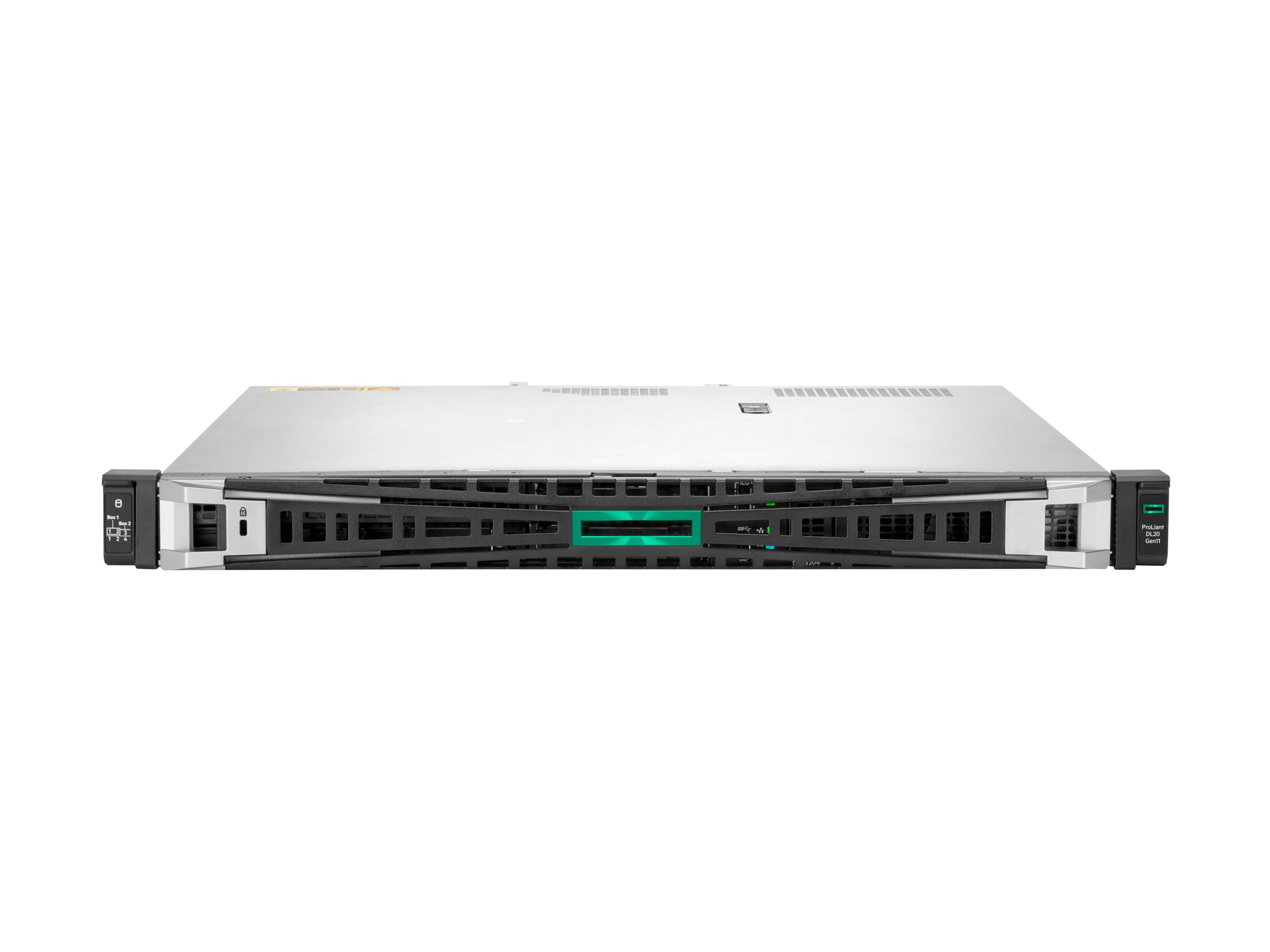

HPE ProLiant DL20 Gen11
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL20 Gen11
- Server
- rack-mountable 1U
- 1-way
- 1 x Xeon 6325P / up to 5.2 GHz
- RAM 32 GB
- SATA
- hot-swap 2.5" bay(s)
- SSD 2 x 960 GB
- Matrox G200
- Gigabit Ethernet
- no OS
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | P83282-005 |
| SHI Part #: | 50381545 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
Audio/Video Cables
CD/DVD/Blu-Ray Drives
- 8x/8x/5x
- Serial ATA
- internal
- HP jack black
- for Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10
- DVD±RW (±R DL) / DVD-RAM
- USB
- external
- for Apollo 4200 Gen10; Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL20 Gen11 - Server - rack-mountable 1U - 1-way - 1 x Xeon 6325P / up to 5.2 GHz - RAM 32 GB - SATA - hot-swap 2.5" bay(s) - SSD 2 x 960 GB - Matrox G200 - Gigabit Ethernet - no OS - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA |
| Dimensions & Weight / Depth | 37.84 cm |
| Dimensions & Weight / Height | 4.32 cm |
| Dimensions & Weight / Weight | 10.88 kg |
| Dimensions & Weight / Width | 43.46 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 960 GB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | HPE |
| Header / Country Kits | North America |
| Mainboard / Chipset Type | Intel C262 |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.5 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | Quad-Core |
| Processor / Processor Number | 6325P |
| Processor / Type | Xeon |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 1.92 TB |
| System / Type | Server |
| Video Output / Graphics Processor | Matrox G200 |
| Cache Memory | |
| Cache Per Processor | 12 MB |
| Installed Size | L3 cache - 12 MB |
| Dimensions & Weight | |
| Depth | 37.84 cm |
| Height | 4.32 cm |
| Weight | 10.88 kg |
| Width | 43.46 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 4 |
| Localization | Region: North America |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Video Interfaces | DisplayPort, VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Capacity | 2 x 960 GB |
| Features | HPE Multi Vendor, Read Intensive |
| Interface Type | SATA 6Gb/s |
| Manufacturer | HPE |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | AES, Triple DES, ACPI 6.3, SMBIOS 3.2, Redfish API, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Active Directory v1.0, UEFI 2.9, PCI DSS, FIPS 140-2, IPv6 Ready, WEEE 2002/95/EC |
| Included Accessories | 3 high performance fans |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Features | ACPI support, PXE support, Wake on LAN (WoL) |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Operating System / Software | |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 8.0 update 2 |
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 500 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-120/200-240 V |
| Processor / Chipset | |
| Chipset Type | Intel C262 |
| Clock Speed | 3.5 GHz |
| CPU | Intel Xeon 6325P |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.2 GHz |
| Number of Cores | Quad-Core |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Smart Cache, 55W TDP |
| RAM | |
| Configuration Features | 1 x 32 GB |
| Effective Memory Speed | 4400 MT/s |
| Features | HPE Standard Memory, unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 4800 MT/s |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Storage Controller Name | Intel VROC SATA Software RAID |
| Type | 1 x SATA |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
