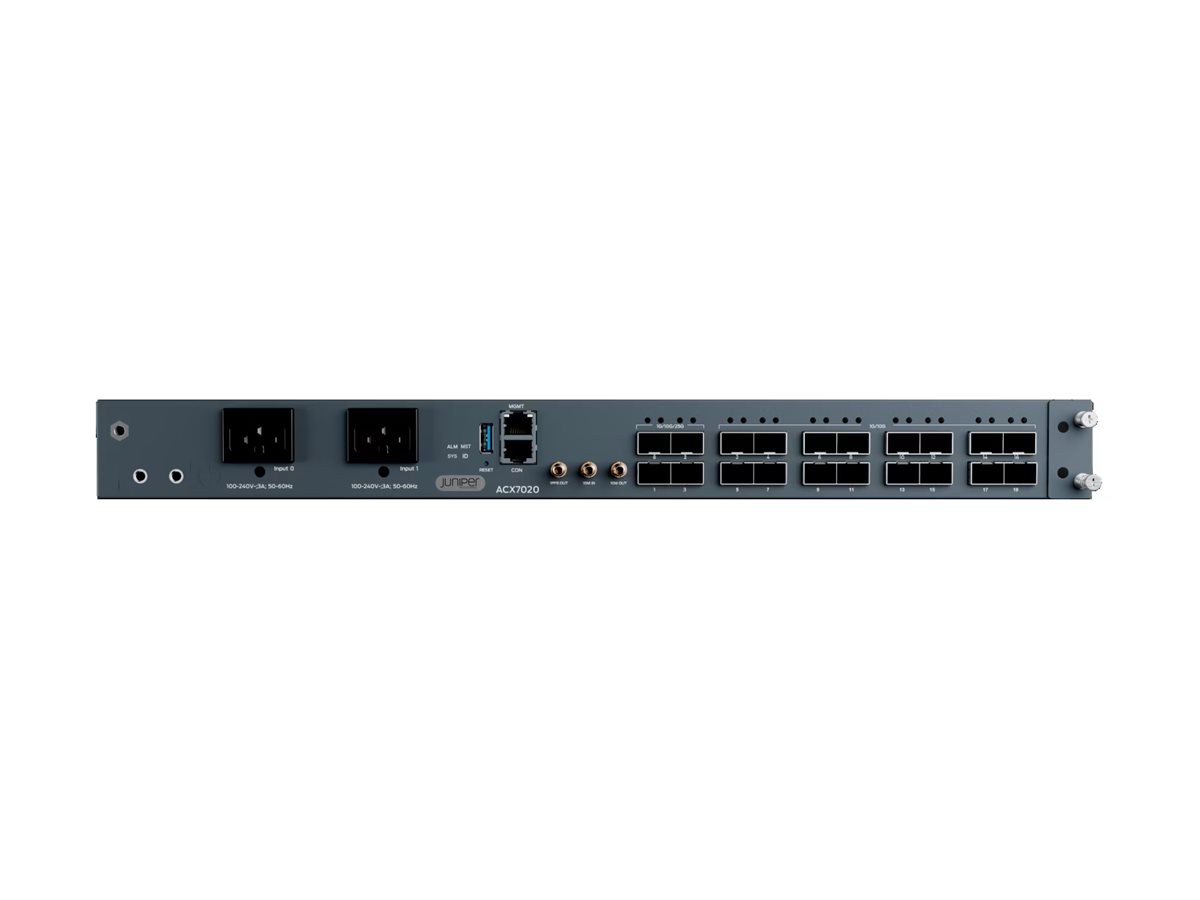

Juniper Networks ACX Series Universal Metro Router 7020
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Juniper Networks ACX Series Universal Metro Router 7020
- Router 10GbE, 25GbE
- side to side airflow
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ACX7020-AC |
| SHI Part #: | 50123921 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Juniper Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Juniper Networks ACX Series Universal Metro Router 7020 - Router 10GbE, 25GbE - side to side airflow - rack-mountable |
| Manufacturer | Juniper Networks |
| MSRP | $15,704.06 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.5 cm |
| Dimensions & Weight / Height | 4.37 cm |
| Dimensions & Weight / Weight | 4.45 kg |
| Dimensions & Weight / Width | 44.9 cm |
| Header / Brand |
|
| Miscellaneous / Product Color | Gray |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Router |
| OS Provided / Type | Junos Evolved Limited |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 23.5 cm |
| Height | 4.37 cm |
| Weight | 4.45 kg |
| Width | 44.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | BSMI CNS 13438, NCC C6357, RoHS 2 (2011/65/EU), Directive 2012/19/EU, Regulation EC 1907/2006, TSCA, EC 278/2009, EN55022, SJ/T 11364-2014, China RoHS, IEC 60255-21-2, IEC 62368-1 Second Edition, IEC 60255-21-1, IEC 60255-21-3, GR-63-CORE, Issue 5, EN/ETSI 300 019-2-1 v2.1.2, EN 300 019-1-2 Class 2.3, EN 61000-6-1, EN 61000-6-3, FCC 47 CFR Part 15, ICES-003, BS EN 55032, BS EN 55035, EN 300 386 V1.6.1, EN 300 386 V2.2.1, EN 300 386, EN 55032, CISPR 32, EN 55035, CISPR 35, EN 61000, EN IEC 61000-3-2, IEC/EN 61000-3-3, AS/NZS CISPR 32, VCCI-CISPR 32, BSMI CNS 15936, KS C 9835, KS C 9832, EN 300 386 V2.1.1, EN 55032:2012, EN 55024:2010, IEC/EN 61000, KN32, KN35, KN 61000, AS/NZS CISPR 32:2015, VCCI-CISPR 32:2016, TEC, EMC-221, NEBS, GR-1089-CORE, Issue 7 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Device Type | Router |
| Enclosure Type | Side to side airflow rack-mountable - 1U |
| Features | Rugged, ZTS, modular design, EMI/RFI protection, SR |
| Performance | ASIC throughput: 100 Gbps |
| Routing Protocol | MPLS, static IPv6 routing |
| Power | |
| Installed Qty | 2 (max) |
| Power Consumption Operational | 65 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 110-240 V |
| Software / System Requirements | |
| OS Provided | Junos Evolved Limited |
