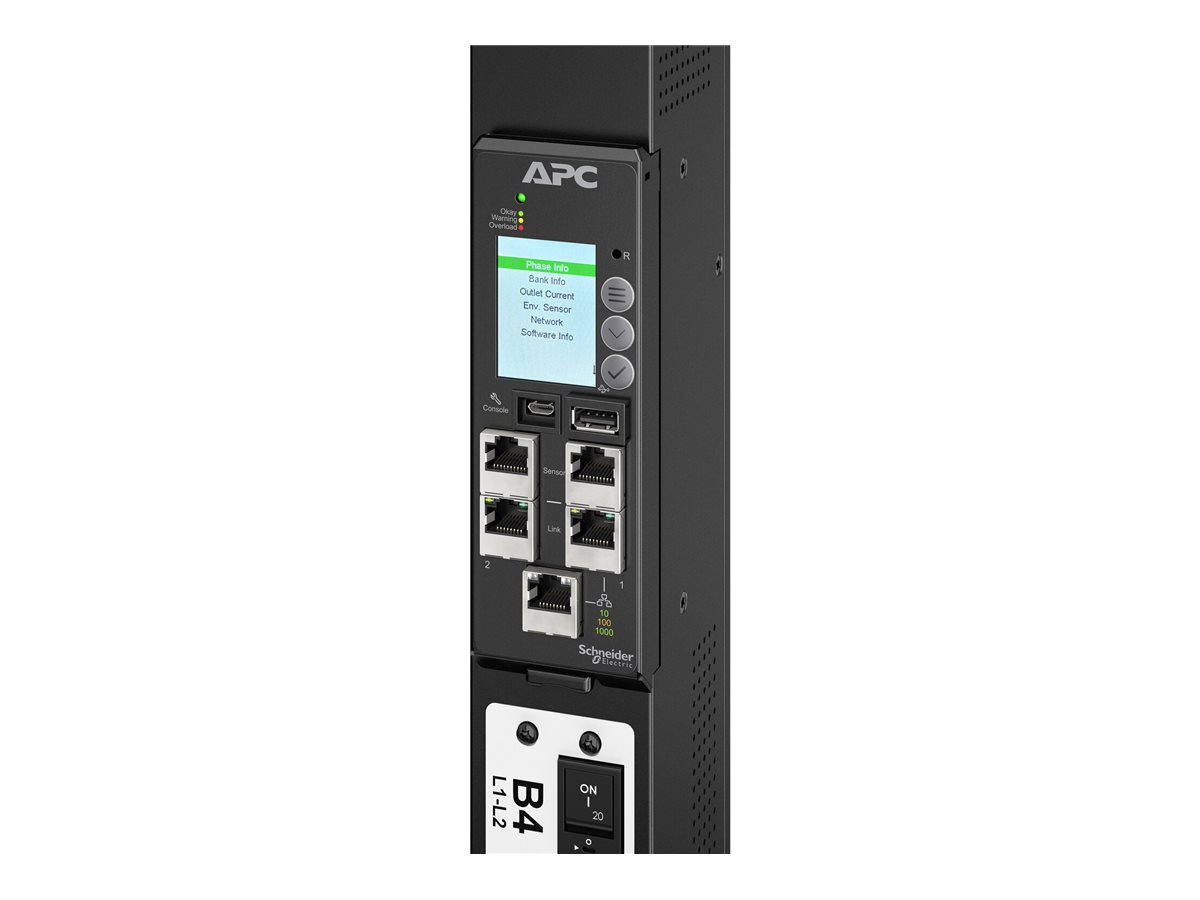

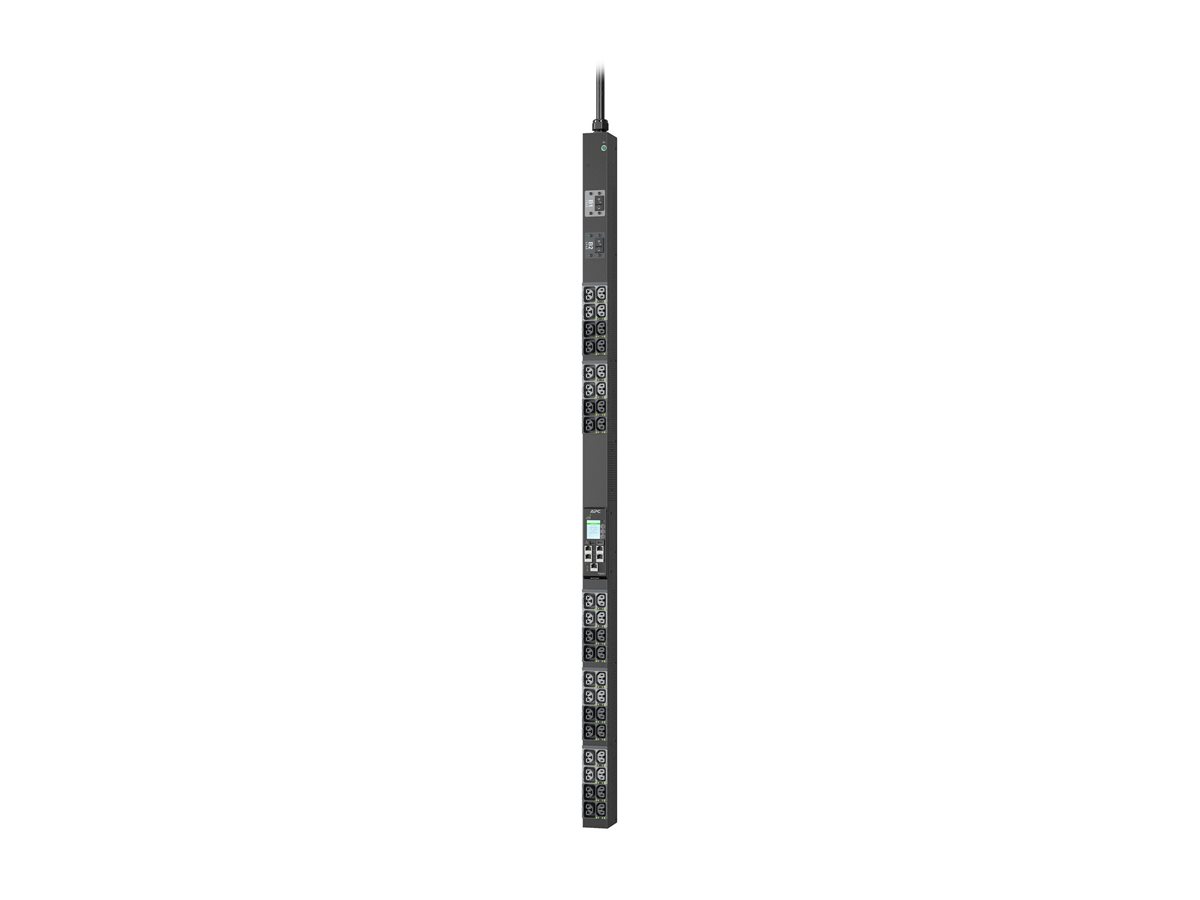

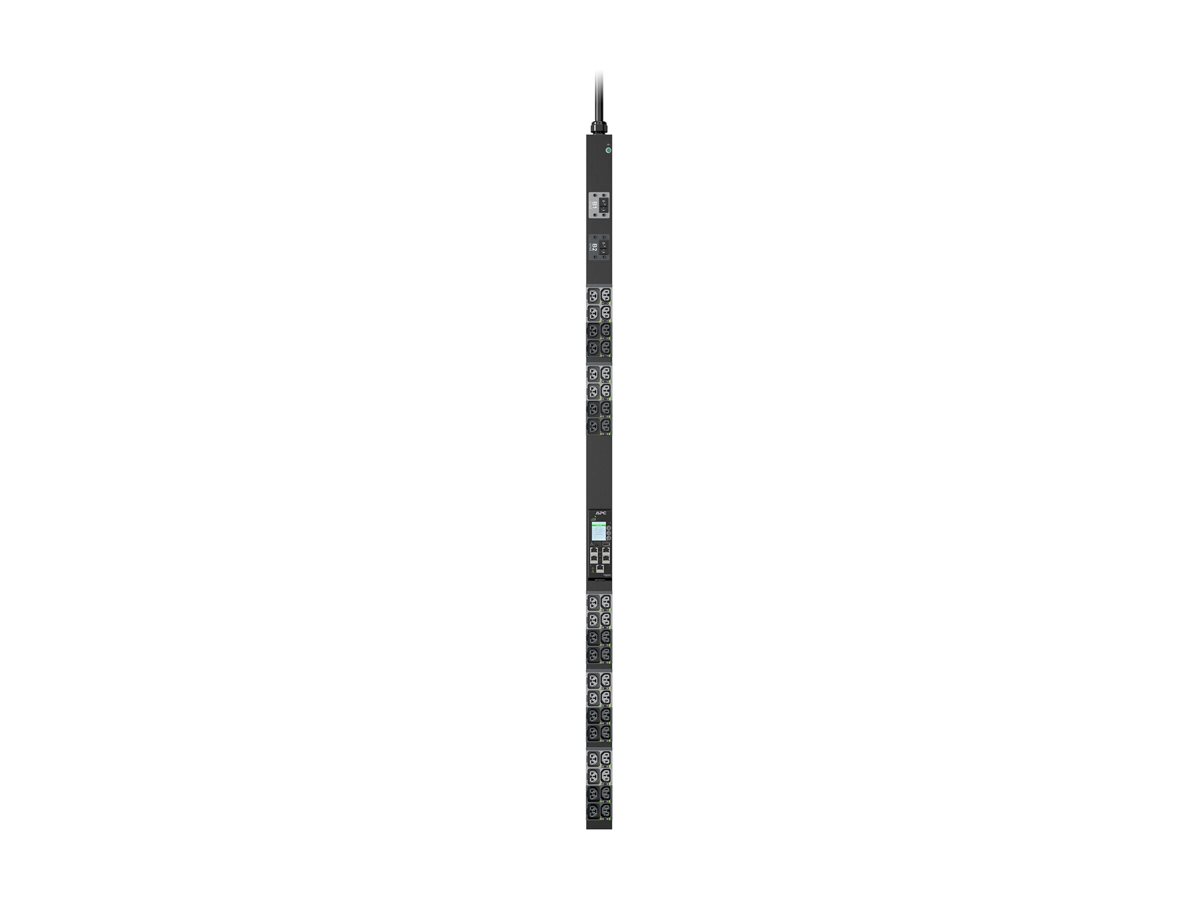

APC NetShelter Rack PDU Advanced
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC NetShelter Rack PDU Advanced
- Gen 2
- power distribution unit (rack-mountable)
- switched, 208V, 30A
- AC 208 V
- 5 kW
- 4992 VA
- 1-phase
- Ethernet 10/100/1000
- input: NEMA L6-30P
- output connectors: 40 (20 x IEC 60320 C13/C15/C19/C21, 20 x IEC 60320 C13/C15)
- 0U
- 3 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | APDU11151SW |
| SHI Part #: | 50066136 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | APC NetShelter Rack PDU Advanced - Gen 2 - power distribution unit (rack-mountable) - switched, 208V, 30A - AC 208 V - 5 kW - 4992 VA - 1-phase - Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 40 (20 x IEC 60320 C13/C15/C19/C21, 20 x IEC 60320 C13/C15) - 0U - 3 m cord - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,650.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.5 cm |
| Dimensions & Weight / Height | 149 cm |
| Dimensions & Weight / Weight | 7.7 g |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 40 |
| Power Device / Power Capacity (VA) | 4992 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 7.5 cm |
| Height | 149 cm |
| Weight | 7.7 g |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 20.8 cm |
| Shipping Height | 172 cm |
| Shipping Weight | 9.7 kg |
| Shipping Width | 11.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years |
| Miscellaneous | |
| Cables Included | AC input cable 3 m |
| Compliant Standards | UL, CSA, UKCA, PSE Mark, KC, China RoHS, RCM, CMIM, IP44 |
| Features | Vertical orientation, LCD display, cascadable, switched, remote ON/OFF function |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V 50/60 Hz |
| Power Capacity | 5 kW / 4992 VA |
| Power Output Connectors Details |
|
