Samsung The Wall MM015F
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Samsung The Wall MM015F
- MMF Series LED display unit
- digital signage 27.1" 384 x 216 per unit
- Flip-chip RGB LED
- HDR
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LH015MMFRGS/ZA |
| SHI Part #: | 50060988 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Samsung The Wall MM015F - MMF Series LED display unit - digital signage 27.1" 384 x 216 per unit - Flip-chip RGB LED - HDR |
| Manufacturer | Samsung |
| MSRP | $2,199.99 |
| UNSPSC | 52161505 |
| Main Specifications | |

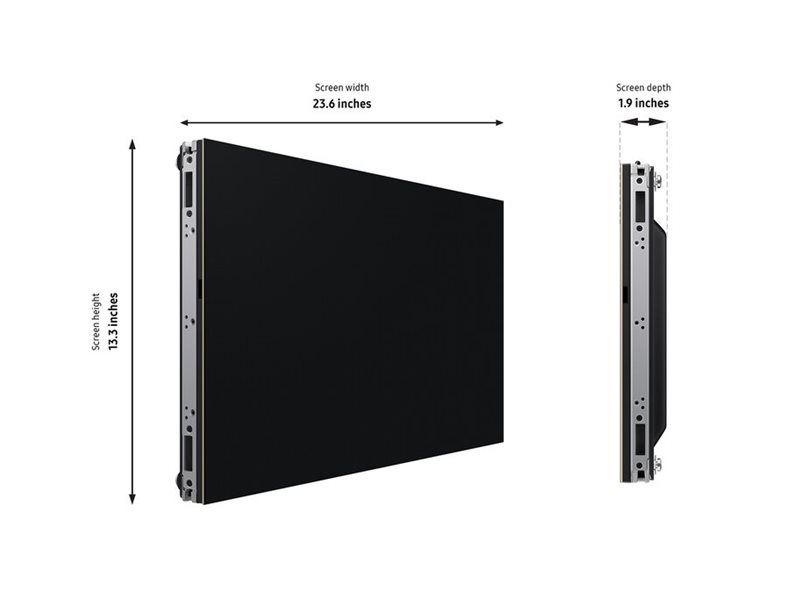

| Dimensions & Weight / Depth | 4.98 cm |
| Dimensions & Weight / Height | 33.75 cm |
| Dimensions & Weight / Weight | 5.1 kg |
| Dimensions & Weight / Width | 60 cm |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 600 cd/m² |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 14 cm |
| Height (Shipping) | 40.8 cm |
| Weight (Shipping) | 6.9 kg |
| Width (Shipping) | 68 cm |
| Display | |
| Additional Features | MagicInfo, 20-bit processing, 16-bit support |
| Brightness | 600 cd/m² |
| Color Temperature | 6500K |
| Frame Rate & Enhancement Technology | 60 Hz Video Rate, 50 Hz Video Rate, 3840 Hz Frame Rate |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 4.98 cm |
| Dimensions | Display units assembly |
| HDR Capable | Yes |
| HDR Format | HDR10, HDR10+ |
| Height | 33.75 cm |
| Picture Enhancements | AI Picture, True Black |
| Product Type | LED display unit |
| Sensors | Temperature sensor |
| Series | MMF Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Processor | NQM AI |
| Weight | 5.1 kg |
| Width | 60 cm |
| Miscellaneous | |
| Compliant Standards | TUV Eye Comfort certified, Safety 62368-1, Safety 60950-1, EMC Class A |
| Power | |
| Heat Generation Details |
|
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Power Device | Power adapter |
| Video Wall Display Unit Power Consumption (Max) | 94.6 W |
| Video Wall Display Unit Power Consumption (Typical) | 37 W |
| Video Wall Power Consumption (Max) | 467.2 W/m² |
| Video Wall Power Consumption (Typical) | 183 W/m² |
| Video Wall Display Unit | |
| Cabinet Diagonal Size | 27.1" |
| LED Type | Flip-chip RGB LED |
| Maintenance | Front |
| Modules Configuration (Per Cabinet) | 4x2 |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Pitch | 1.56 mm |
| Resolution | 384 x 216 |
