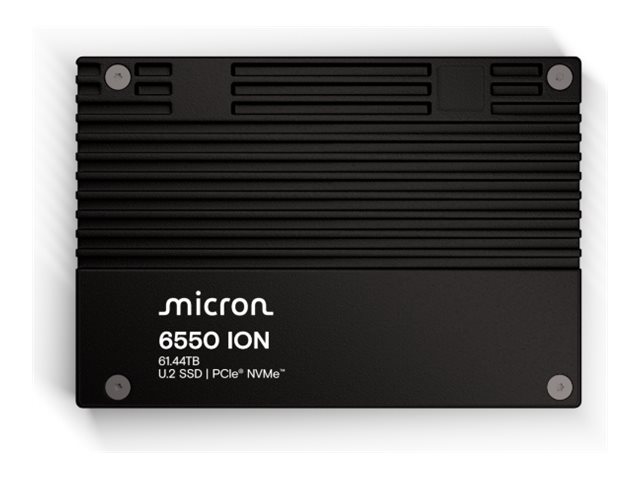

Micron 6550 ION - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Micron 6550 ION - SSD
- Enterprise
- encrypted
- 30.72 TB
- internal
- 2.5"
- U.2 PCIe 5.0 x4 (NVMe)
- SHA-512, FIPS 140-3 Level 2
- Self-Encrypting Drive (SED), TCG Opal Encryption
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MTFDLAL30T7THL-1BK1DFCYYR |
| SHI Part #: | 49886548 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Micron Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Micron 6550 ION - SSD - Enterprise - encrypted - 30.72 TB - internal - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - SHA-512, FIPS 140-3 Level 2 - Self-Encrypting Drive (SED), TCG Opal Encryption - TAA Compliant |
| Manufacturer | Micron Technology |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100.45 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 178 g |
| Dimensions & Weight / Width | 70.1 mm |
| Hard Drive / Capacity | 30.72 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Header / Brand | Micron |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 1.651 cm |
| Shipping Height | 9.779 cm |
| Shipping Weight | 208 g |
| Shipping Width | 13.004 cm |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 5.0 x4 (NVMe) |
| General | |
| Bytes per Sector | 512 |
| Capacity | 30.72 TB |
| Depth | 100.45 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | SHA-512, FIPS 140-3 Level 2 |
| Features | NVM Express (NVMe) 2.0b, Security Protection Data Model (SPDM) 1.2, low power consumption, Open Compute Project 2.5, Data Path Protection, RAIN technology, NVMe Management Interface (NVMe-MI), Firmware Activate without Reset, Secure Erase function, Secure Boot, Hardware Root of Trust, Secure Signed Firmware, Active Garbage Collection, TRIM support, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Weight | 178 g |
| Width | 70.1 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | Micron Green Standard, FCC, UL/cUL, BSMI, RCM, KC RRL, WEEE, TUV, VCCI, IC, Morocco, UkrSEPRO, UKCA, PCI-SIG |
| TAA Compliant | Yes |
| Performance | |
| 4KB Random Read | 2000000 IOPS |
| 4KB Random Write | 70000 IOPS |
| Drive Class | Enterprise |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 14000 MBps (read) / 8000 MBps (write) |
| SSD Endurance | 14000 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
