Quick Details
Video switch 4 x 4 4 x HDMI desktop for P/N: P568-035-2A, P568-050-2A, P568-060-2A

Eaton Tripp Lite series

Video switch
4 x 4
4 x HDMI
desktop
for P/N: P568-035-2A, P568-050-2A, P568-060-2A

Additional Details
Price:	$1,499.00
Mfr Part #:	B119-4X4-4K6-VW
SHI Part #:	49766269
Category:	Videoconferencing systems
UNSPSC:	45111902
Manufacturer:	Eaton
Product Type:	Hardware

Extends 4K Video in 2 Operational Modes: 4x4 Matrix and Video Wall

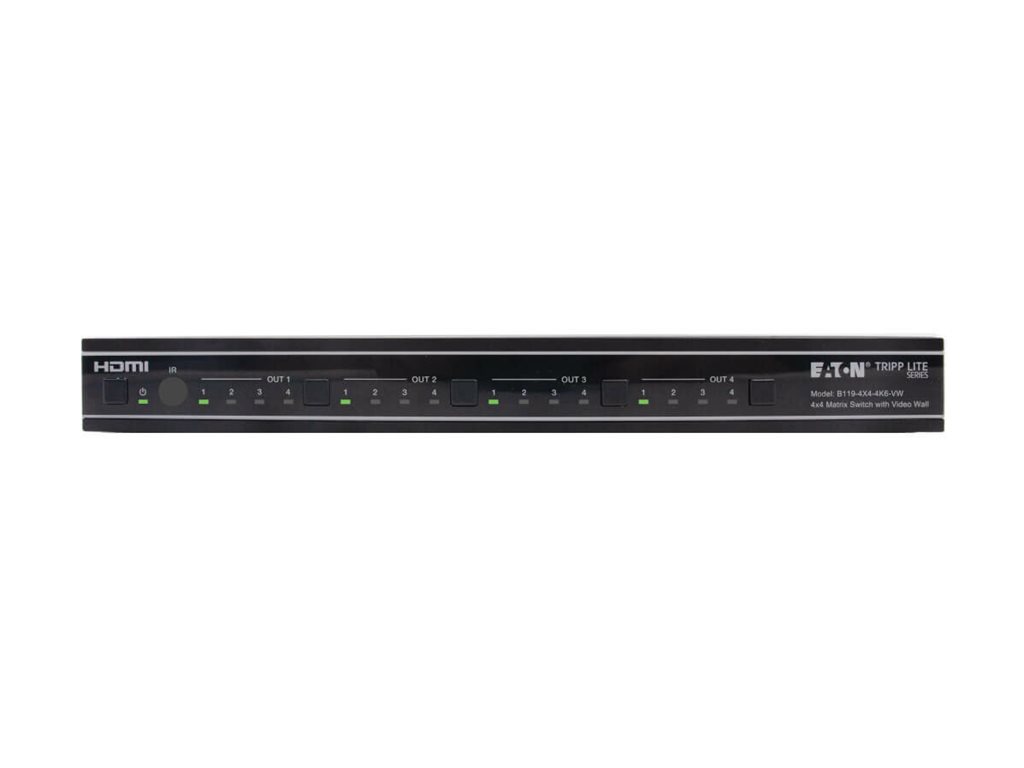

This Matrix Switch is a multi-purpose high-speed video processing system that you can configure for two different output modes: 4x4 matrix (with seamless switching) and video wall. It features four HDMI inputs with resolution up to 4K at 60 Hz and four HDMI outputs to create 10 video wall modes: 2x2, 1x2-2, 1x2, 2x1-2, 2x1, 1x3, 1x4, 3x1, and 4x1. You can set display modes via front-panel buttons, the included IR remote, RS-232 commands or TCP/IP. Access the web GUI to visualize content shared over multiple displays.

Transmits 4K Video with HDR and 4:4:4 Color

The B119-4X4-4K6-VW supports Ultra HD 4K resolutions at 60 Hz with LPCM, Dolby Digital/Plus/EX and DTS audio. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions

Say you have a brand new 4K/60 Hz HDTV in the living room, but want to also connect your Blu-ray player or media server to the older 1080p TV in the kitchen and the 4K/30 Hz monitor in your home office. The B119-4X4-4K6-VW is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected television to display video at its maximum resolution without affecting the other outputs.

Plug-and-Play Operation for Quick Setup and Immediate Use

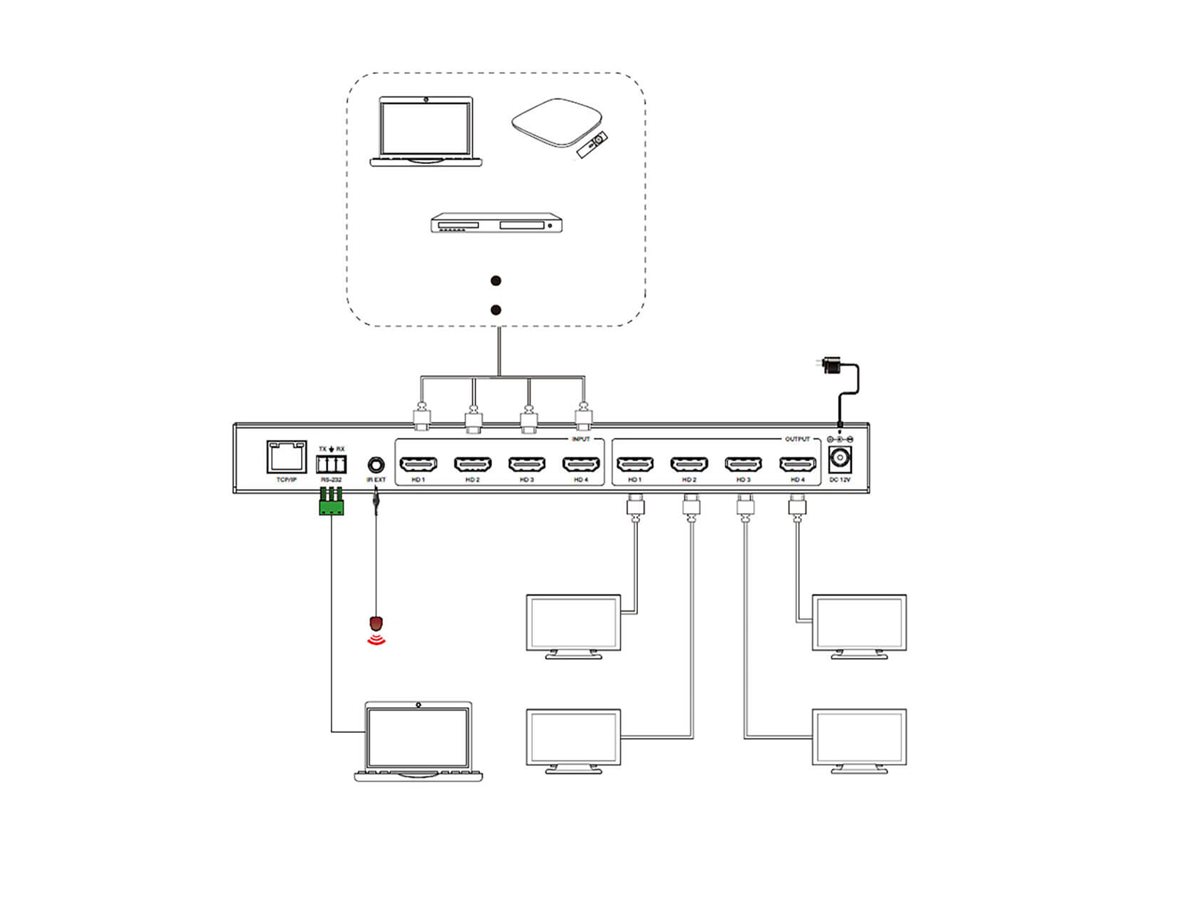

The unit works right out of the box with no software required. Mounting hardware is included for installing the units on a wall, under a desk or in a 19-inch rack. Connect up to four 4K source devices to the HDMI inputs and up to four 4K displays to the HDMI outputs with user-supplied cables. The external power supply comes with four international plug adapters to ensure an AC connection anywhere.

Audio/Video Cables

Eaton Tripp Lite Series Slim High-Speed HDMI Cable w Ethernet and Digital Video/Audio UHD 4K 60Hz MM White 3ft

HDMI cable with Ethernet
HDMI male to HDMI male
91 cm
white
passive, 4K60Hz (4096 x 2160) support
for P/N: B119-002-BDS, B119-1X4-4K6-VW, B119-4X4-4K6-VW, B127U-002-PDPH2, P569-006-SLIM-W

$12.00

Eaton Tripp Lite Series Slim High-Speed HDMI Cable w Ethernet and Digital Video/Audio UHD 4K 60Hz MM White 6ft

HDMI cable with Ethernet
HDMI male to HDMI male
1.83 m
white
passive, 4K60Hz (4096 x 2160) support
for P/N: B119-002-BDS, B119-1X4-4K6-VW, B119-4X4-4K6-VW, B127U-002-PDPH2

$17.00

Eaton Tripp Lite Series HDMI Cable

8K @ 60 Hz, Dynamic HDR, 4:4:4, HDCP 2.2, M/M, Black, 3 ft.
HDMI cable
HDMI male to HDMI male
90 cm
double shielded
black

$30.00

General Information
Category	Videoconferencing systems
Description	Eaton Tripp Lite series - Video switch - 4 x 4 - 4 x HDMI - desktop - for P/N: P568-035-2A, P568-050-2A, P568-060-2A
Manufacturer	Eaton
MSRP	$2,286.69
UNSPSC	45111902
Main Specifications
Dimensions & Weight / Depth	16.51 cm
Dimensions & Weight / Height	3.05 cm
Dimensions & Weight / Width	26.9 cm
Header / Brand	Eaton
Header / Country Kits	Australia Europe North America United Kingdom
Miscellaneous / Product Color	Black
Networking / Form Factor	Desktop
Networking / Ports Qty	2
Networking / Type	Video switch
Packaged Quantity	1
Service & Support / Type	3-year warranty
Compatibility Information
Designed For	P/N: P568-035-2A, P568-050-2A, P568-060-2A
Dimensions & Weight
Depth	16.51 cm
Height	3.05 cm
Width	26.9 cm
Dimensions & Weight (Shipping)
Shipping Depth	23.3 cm
Shipping Height	9 cm
Shipping Weight	2.05 kg
Shipping Width	35.3 cm
Environmental Parameters
Humidity Range Operating	20 - 90% RH (non-condensing)
Max Operating Temperature	40 °C
Max Storage Temperature	60 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-20 °C
Expansion / Connectivity
Expansion Slots	Serial RS-232

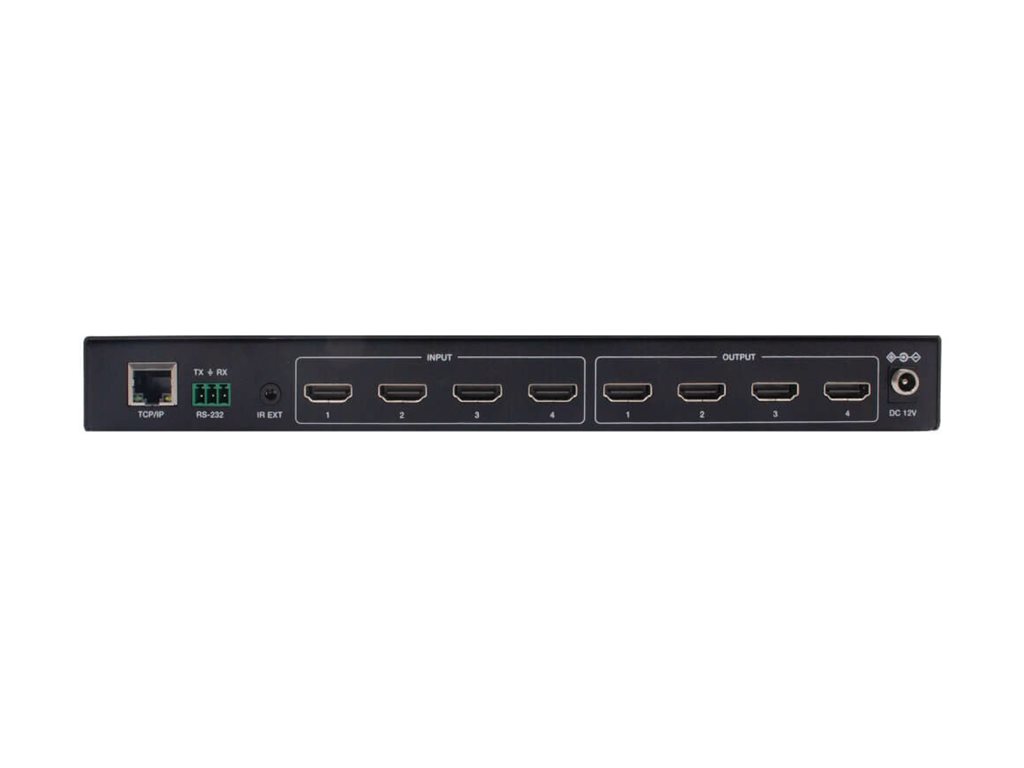

Interfaces	4 x HDMI input female 4 x HDMI output female
General
Compliant Standards	HDCP 2.2
Device Type	Video switch - 4 x 4 - 2 ports
Enclosure Type	Desktop
Features	Pushbutton/Hotkey switching, 4:4:4 chroma subsampling support, DTS support, Dolby support, Dolby Digital EX support, Dolby Digital Plus support, Dolby Digital support, 3D support, HDR support, 12-bit Deep Color support, metal housing, YCbCr 4:2:0, YCbCr 4:4:4, YCbCr 4:2:2, Dolby TrueHD support, DTS 96/24 support, DTS-HD Master Audio support, LPCM support, multi resolution support
Max Resolution	3840 x 2160 @ 60 Hz
Ports	4 x HDMI
Status Indicators	Power, standby, signal
Subtype	HDMI
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Miscellaneous
Cables Included	1 x IR extension cable - 1.5 m 1 x RS-232 adapter
Color	Black
Compliant Standards	FCC, RoHS, UKCA, UL, WEEE, HDCP 2.2, EDID compatible, CEC

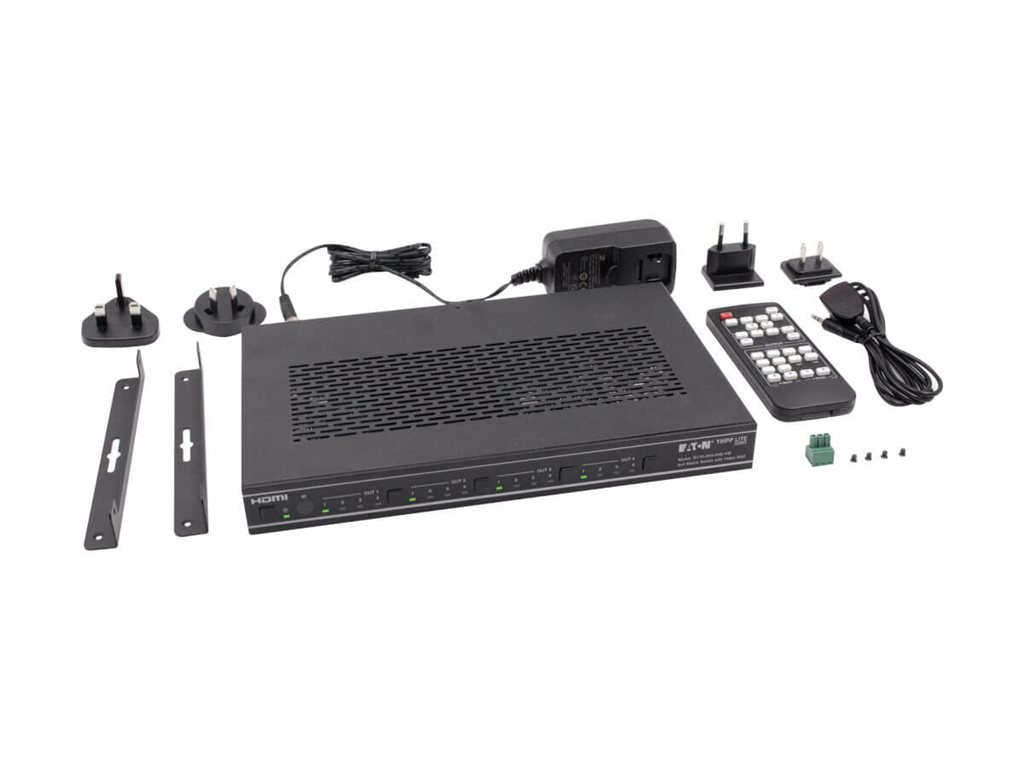

Included Accessories	Mounting brackets, remote control, 4 screws, international power plugs, IR receiver cable, IR remote
Localization	Australia, Europe, North America, United Kingdom
Power
Electric Current Required	0.8 A
Power Device	External power adapter
Power Provided	12 V - 2.5 A
Voltage Required	AC 100-240 V (50/60 Hz)
