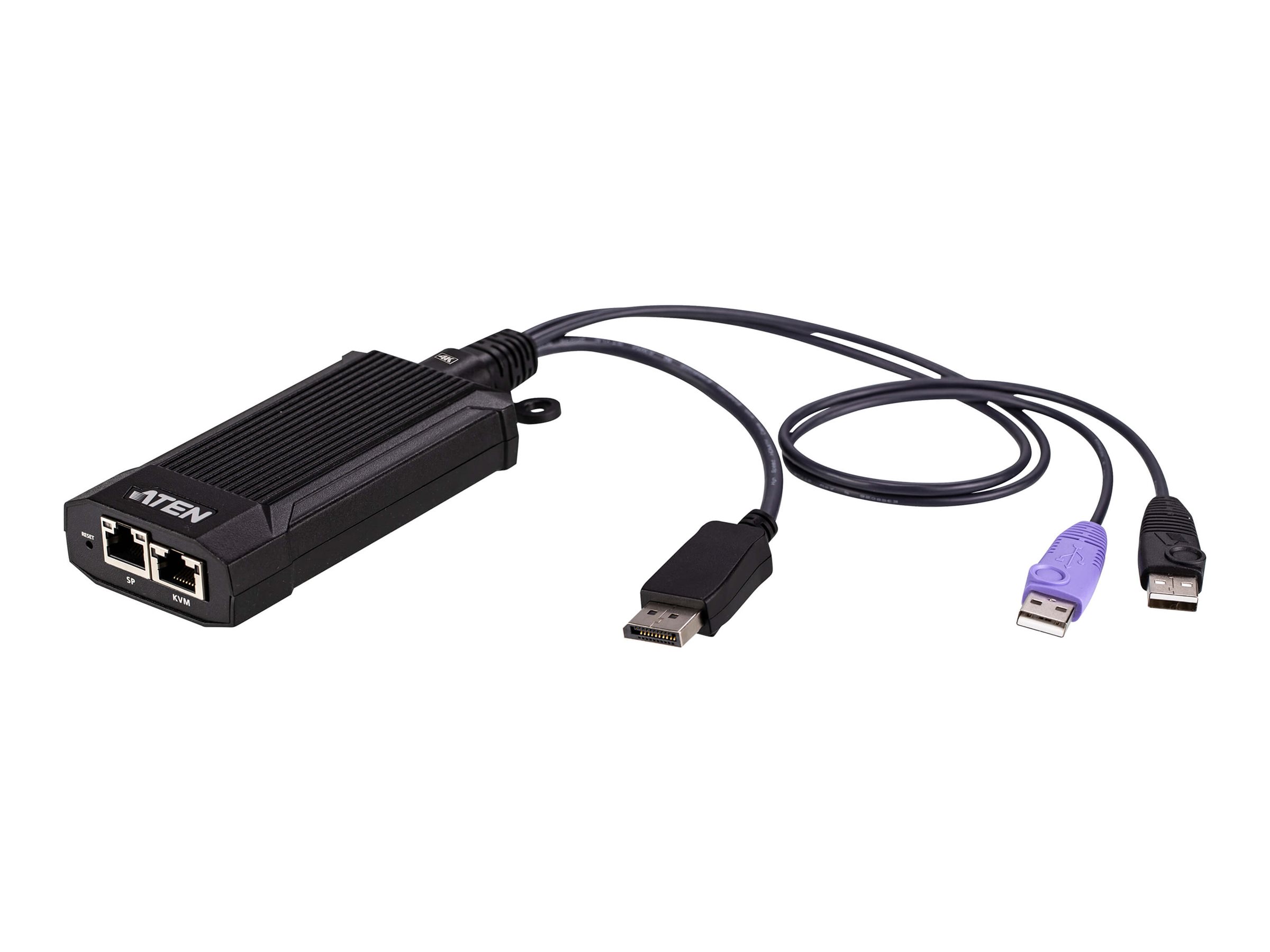

ATEN KG9950T - KVM / audio / USB extender
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN KG9950T - KVM / audio / USB extender
- USB, DisplayPort, 1GbE
- over CAT 5e/6
- up to 100 m
- 0U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | KG9950T |
| SHI Part #: | 49680682 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN KG9950T - KVM / audio / USB extender - USB, DisplayPort, 1GbE - over CAT 5e/6 - up to 100 m - 0U |
| Manufacturer | ATEN |
| MSRP | $1,416.18 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.2 cm |
| Dimensions & Weight / Height | 2.58 cm |
| Dimensions & Weight / Weight | 280 g |
| Dimensions & Weight / Width | 5.8 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Type | KVM / audio / USB extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 12.2 cm |
| Height | 2.58 cm |
| Weight | 280 g |
| Width | 5.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | KVM / audio / USB extender |
| Form Factor | External - 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, WEEE, UKCA, RCM, KCC, ICES-003 Class A |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, DisplayPort, 10Mb LAN, 100Mb LAN, 1GbE |
| Features | 4K resolution support, aluminum housing, die-cast aluminum housing, 24-bit Deep Color support, Smart Card reader support, Common Access Card (CAC) reader support, firmware upgradable, reset button, HDMI digital audio support, built-in heatsink, SR hanger, passive cooling |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Transfer Distance | 100 m |
| Status Indicators | Link, network, power |
| Power | |
| Power Consumption Operational | 3.83 Watt |
| Voltage Required | DC 5 V |
