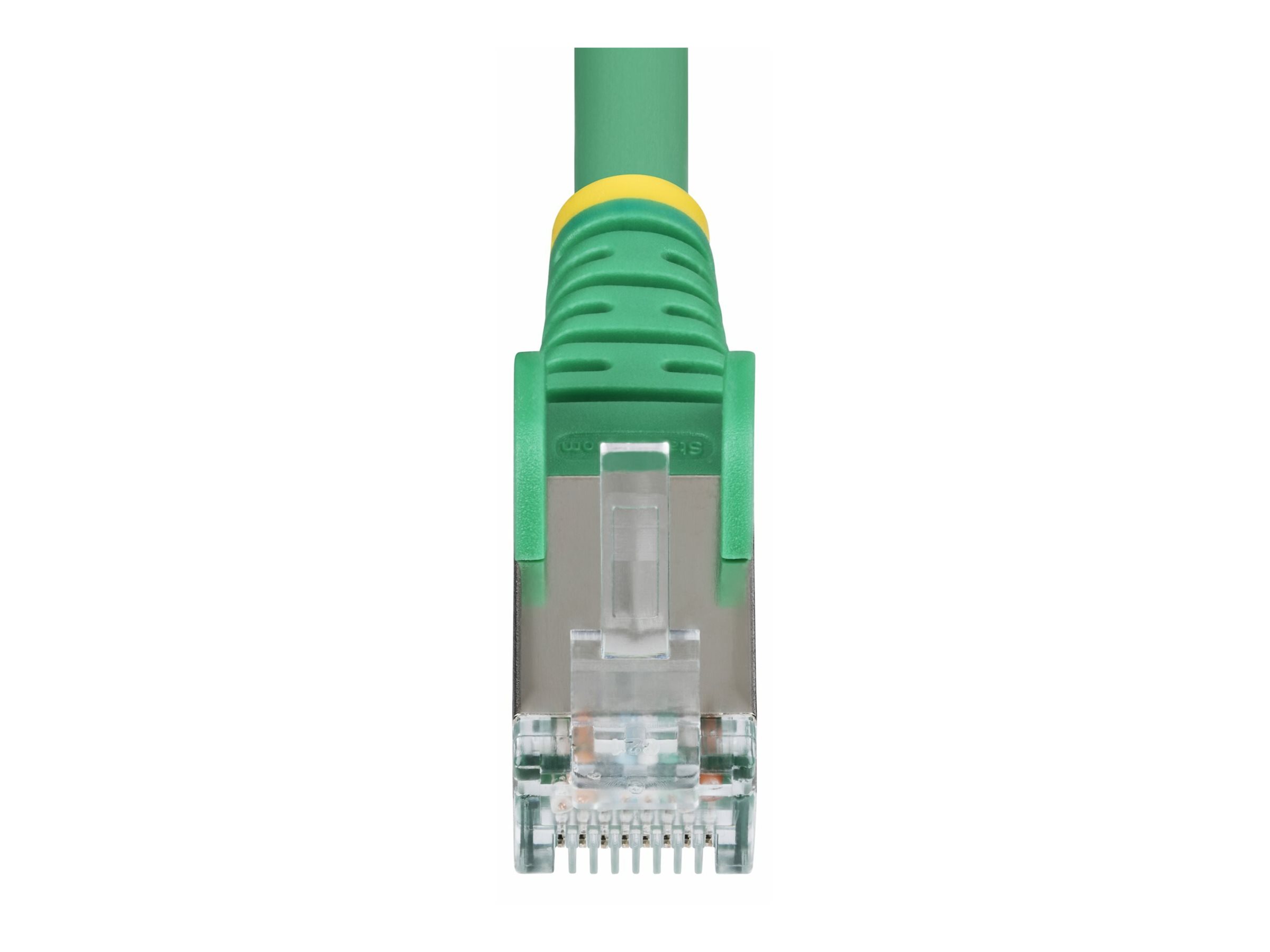

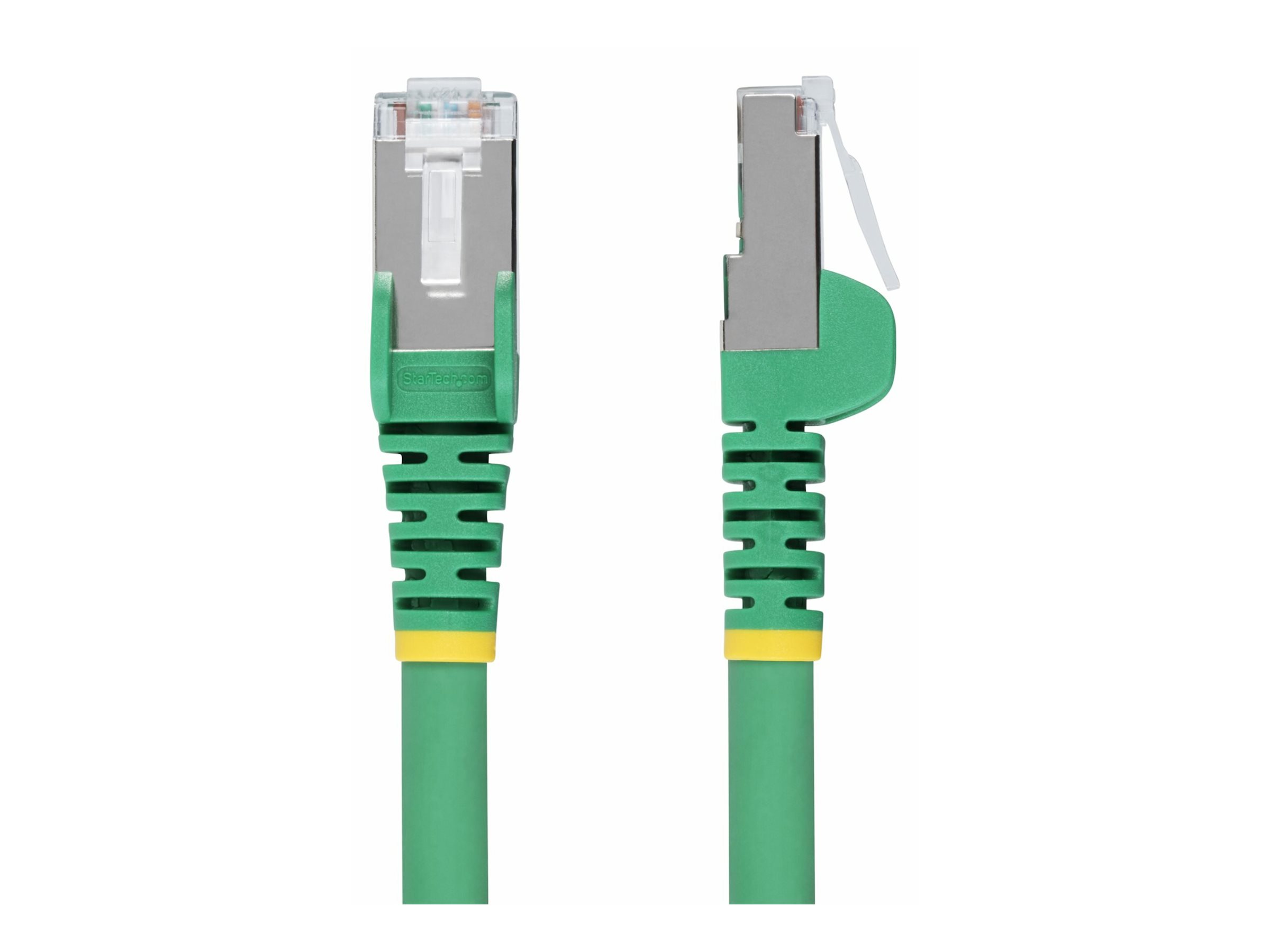

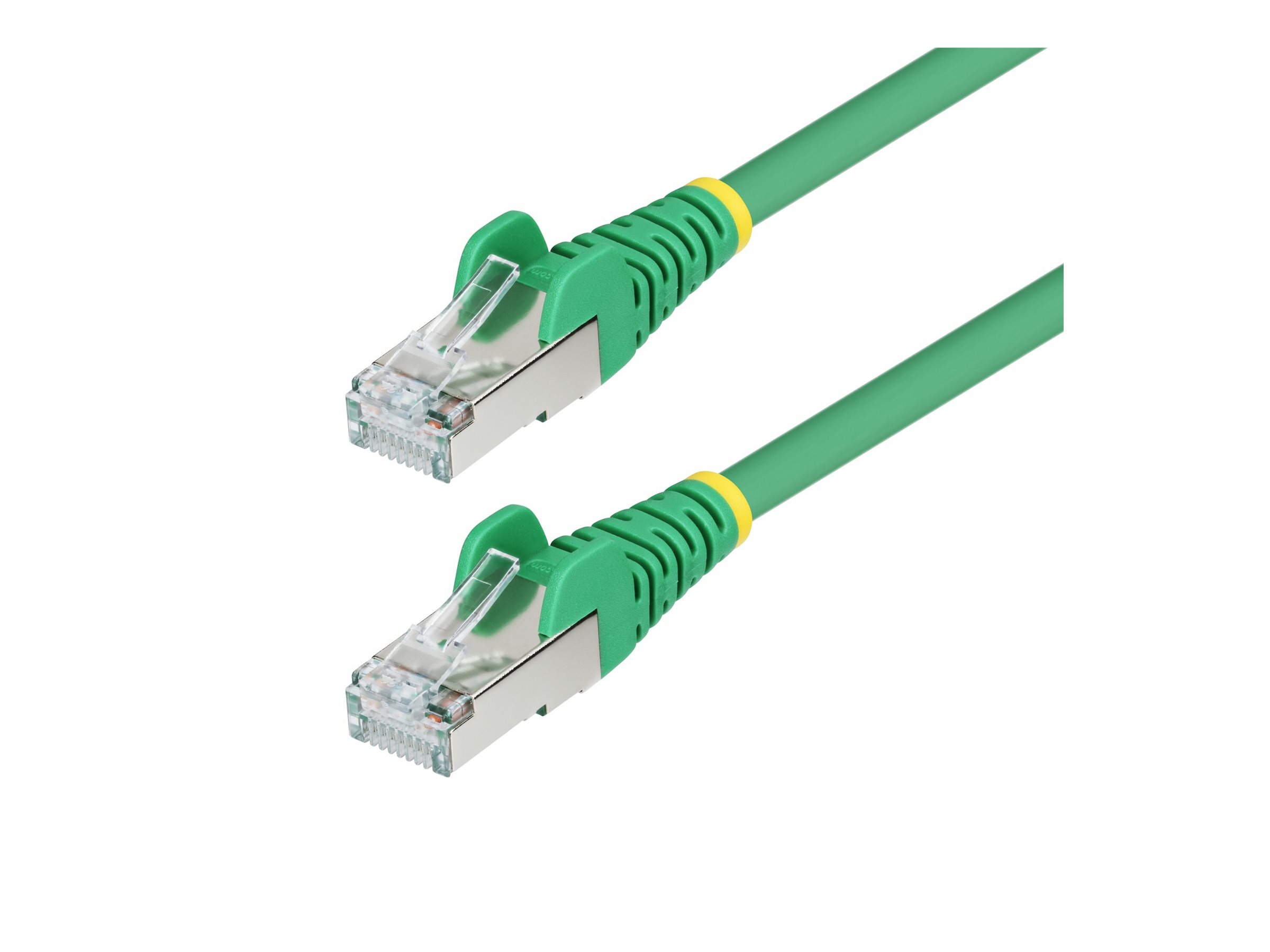

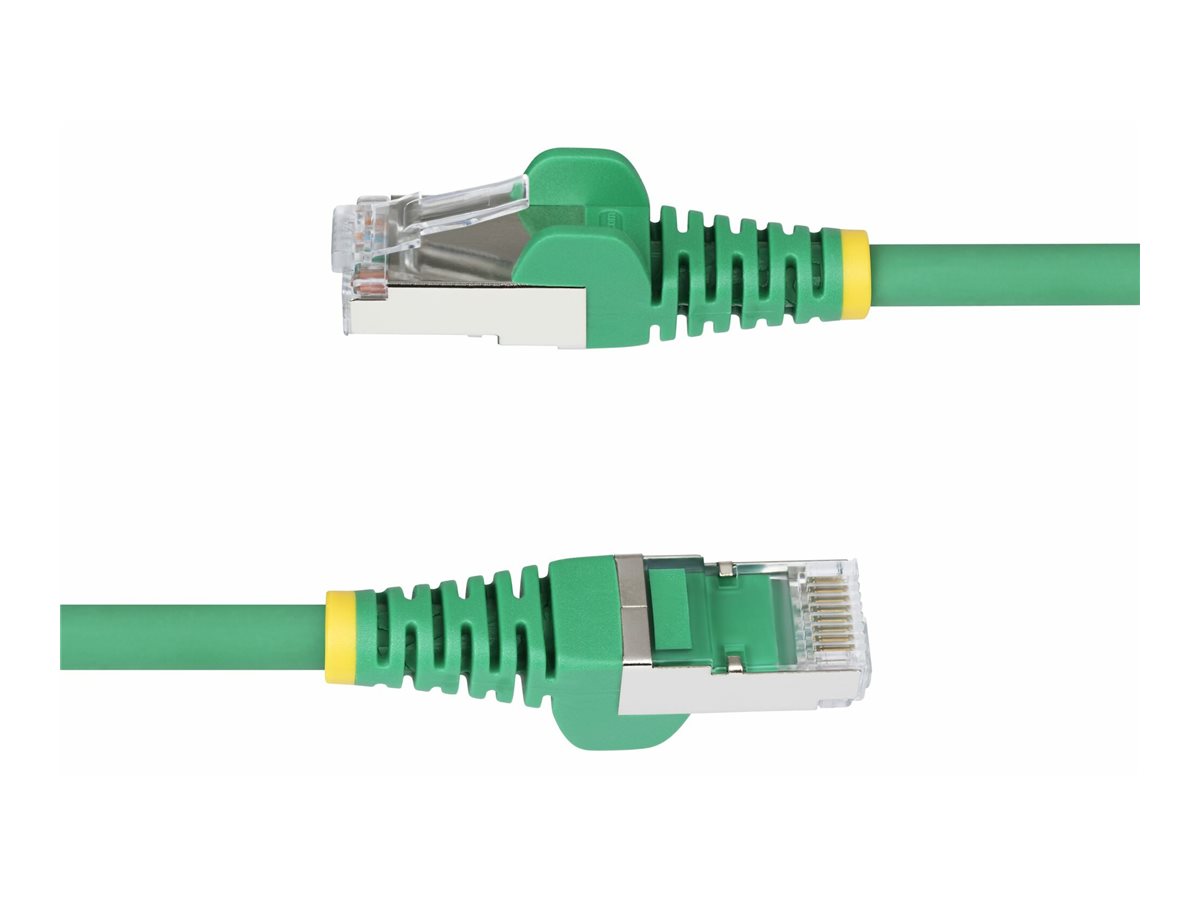

Startech 1ft Green CAT6a Ethernet Cable, Snagless, S/FTP, 10G, LSZH
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Startech 1ft Green CAT6a Ethernet Cable, Snagless, S/FTP, 10G, LSZH
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 30 cm
- 5.7 mm
- S/FTP
- CAT 5/5e/6/6a
- IEEE 802.3bt
- halogen-free, passive, snagless, stranded
- green
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | NLGN-1F-CAT6A-PATCH |
| SHI Part #: | 49626402 |
| Category: | Network cable |
| UNSPSC: | 26121609 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network cable |
| Description | Startech 1ft Green CAT6a Ethernet Cable, Snagless, S/FTP, 10G, LSZH - Patch cable - RJ-45 (M) to RJ-45 (M) - 30 cm - 5.7 mm - S/FTP - CAT 5/5e/6/6a - IEEE 802.3bt - halogen-free, passive, snagless, stranded - green |
| Manufacturer | StarTech.com |
| MSRP | $14.34 |
| UNSPSC | 26121609 |
| Main Specifications | |
| Header / Brand |
|
| Left Connector Type | RJ-45 |
| Length | 30 cm |
| Miscellaneous / Product Color | Green |
| Network Cable Type | Patch cable |
| Packaged Quantity | 1 |
| Right Connector Type | RJ-45 |
| Service & Support / Type | Limited lifetime warranty |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 19.5 cm |
| Shipping Height | 0.8 cm |
| Shipping Weight | 28.8 g |
| Shipping Width | 22 cm |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| General | |
| American Wire Gauge (AWG) | 27 |
| Cable Length | 30 cm |
| Color | Green |
| Diameter | 5.7 mm |
| Features | Halogen-free, passive cable, snagless, stranded, flame retardant, strain relief, minimized Near-End Crosstalk (NEXT), EMI/RFI protection, reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, 100W PoE++ support |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Network Cable Type | Patch cable - CAT 5/5e/6/6a - IEEE 802.3bt |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Shielding Material | Aluminum mylar foil with braid |
| Technology | S/FTP |
| Weight | 20.1 g |
| Wires per Cable | 8 wires |
| Wiring Scheme | T568B |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, ETL, WEEE, ANSI/TIA-568.2-D, IEEE 802.3bt Type 4, PoE++, TIA/EIA T568B - up to 500 MHz |
