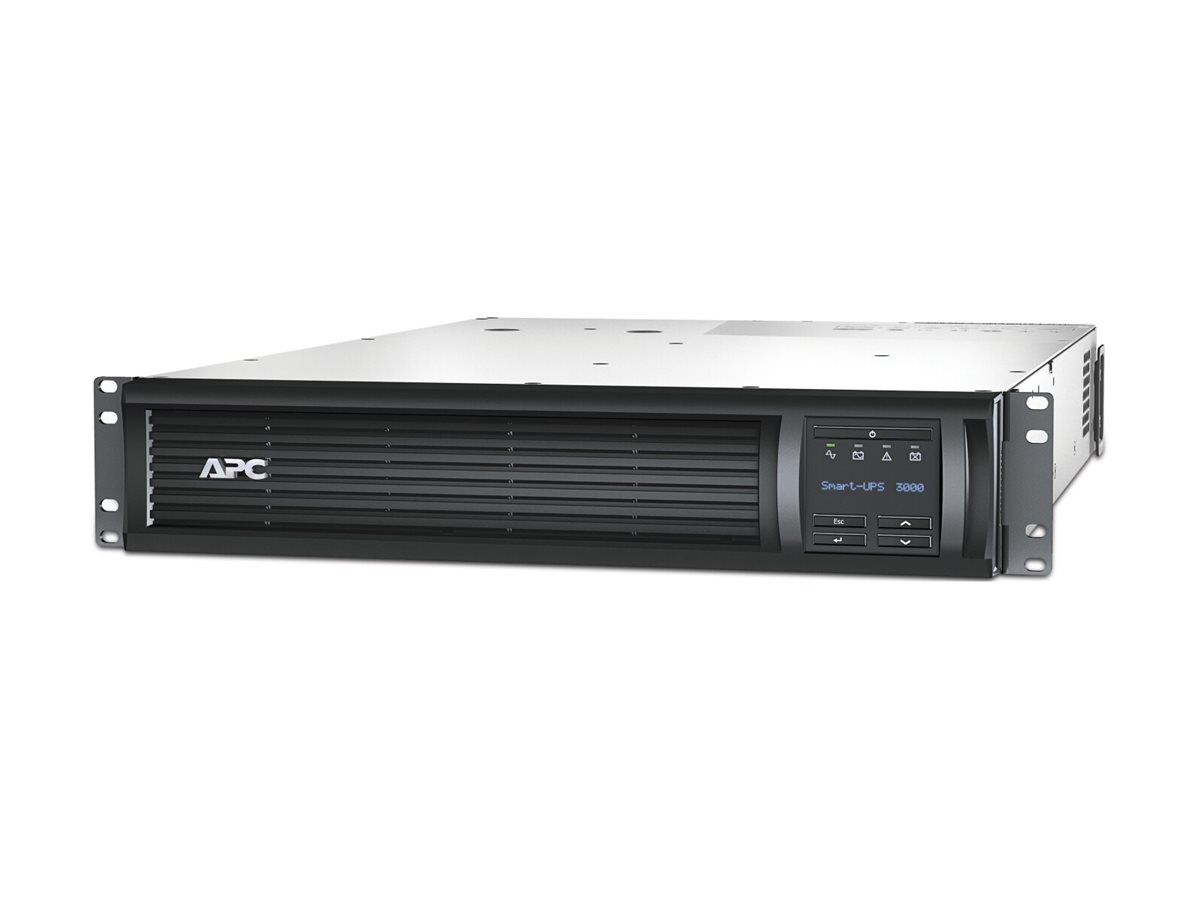

APC Smart-UPS - UPS (rack-mountable)

$3,372.00
APC Smart-UPS - UPS (rack-mountable)
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • line interactive, 6 NEMA 5-15R+2 NEMA 5-20R outlets, network card, AVR, LCD
  • AC 120 V
  • 2700 Watt
  • 2880 VA
  • 1-phase
APC Smart-UPS - UPS (rack-mountable)
  • line interactive, 6 NEMA 5-15R+2 NEMA 5-20R outlets, network card, AVR, LCD
  • AC 120 V
  • 2700 Watt
  • 2880 VA
  • 1-phase
  • Ethernet 10/100/1000, serial, USB
  • output connectors: 6
  • 2U
  • black
  • APC Take-Back
  • TAA Compliant
  Additional Details
Price: $3,372.00
Mfr Part #: SMT3000RM2UNCUS
SHI Part #: 49016017
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: APC by Schneider Electric
Product Type: Hardware
General Information
CategoryRechargeable batteries
DescriptionAPC Smart-UPS - UPS (rack-mountable) - line interactive, 6 NEMA 5-15R+2 NEMA 5-20R outlets, network card, AVR, LCD - AC 120 V - 2700 Watt - 2880 VA - 1-phase - Ethernet 10/100/1000, serial, USB - output connectors: 6 - 2U - black - APC Take-Back - TAA Compliant
ManufacturerAPC by Schneider Electric
MSRP$4,610.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth68.3 cm
Dimensions & Weight / Height8.64 cm
Dimensions & Weight / Weight44.28 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100/1000
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty6
Power Device / Power Capacity (VA)2880 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage Required
  • AC 110/120 V
  • AC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Quantity1
Recharge Time3 hours
Run Time (Up To)
  • 3.38 min at full load
  • 11.65 min at half load
TechnologyLead acid
Transfer Time8 ms
Dimensions & Weight
Depth68.3 cm
Height8.64 cm
Weight44.28 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth60 cm
Shipping Height25.4 cm
Shipping Weight51.68 kg
Shipping Width98 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 0 (free) x SmartSlot
Interfaces
  • 1 x serial - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x EPO (emergency power off)
  • 2 x USB - 4 pin USB Type A
  • 2 x universal I/O port - RJ-45
  • 1 x console
  • 1 x management (Gigabit Ethernet) - RJ-45
General
ColorBlack
Device TypeUPS - rack-mountable
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - replace or repair - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables IncludedPower cable 2.4 m
Compliant StandardsRoHS, REACH SvHC, CSA
Equipment Protection Value150000 US Dollars
FeaturesAutomatic Voltage Regulation (AVR), LCD display
Pricing TypeAPC Take-Back
TAA CompliantYes
Networking
Remote Management InterfaceEthernet 10/100/1000, serial, USB
Power Device
Efficiency97.5% at 100% Load, 97.8% at 75% Load, 98% at 50% Load, 97.6% at 25% Load
Frequency Provided50/60 Hz ± 3Hz
Frequency Required50/60 Hz ± 3Hz
Input Connectors1 x power NEMA L5-30P
Input VoltageAC 120 V
Input Voltage Range (Adjustable)AC 75 - 154 V
Input Wiring1-phase
Output VoltageAC 120 V 50/60 Hz
Output WaveformSinewave
Power Capacity2700 Watt / 2880 VA
Power Output Connectors Details6 x power NEMA 5-15R
Surge Energy Rating459 Joules
Surge SuppressionYes
Total Harmonic Distortion (THD)5 %
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedSmartConnect
Sustainability Information
ENERGY STARYes
