Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

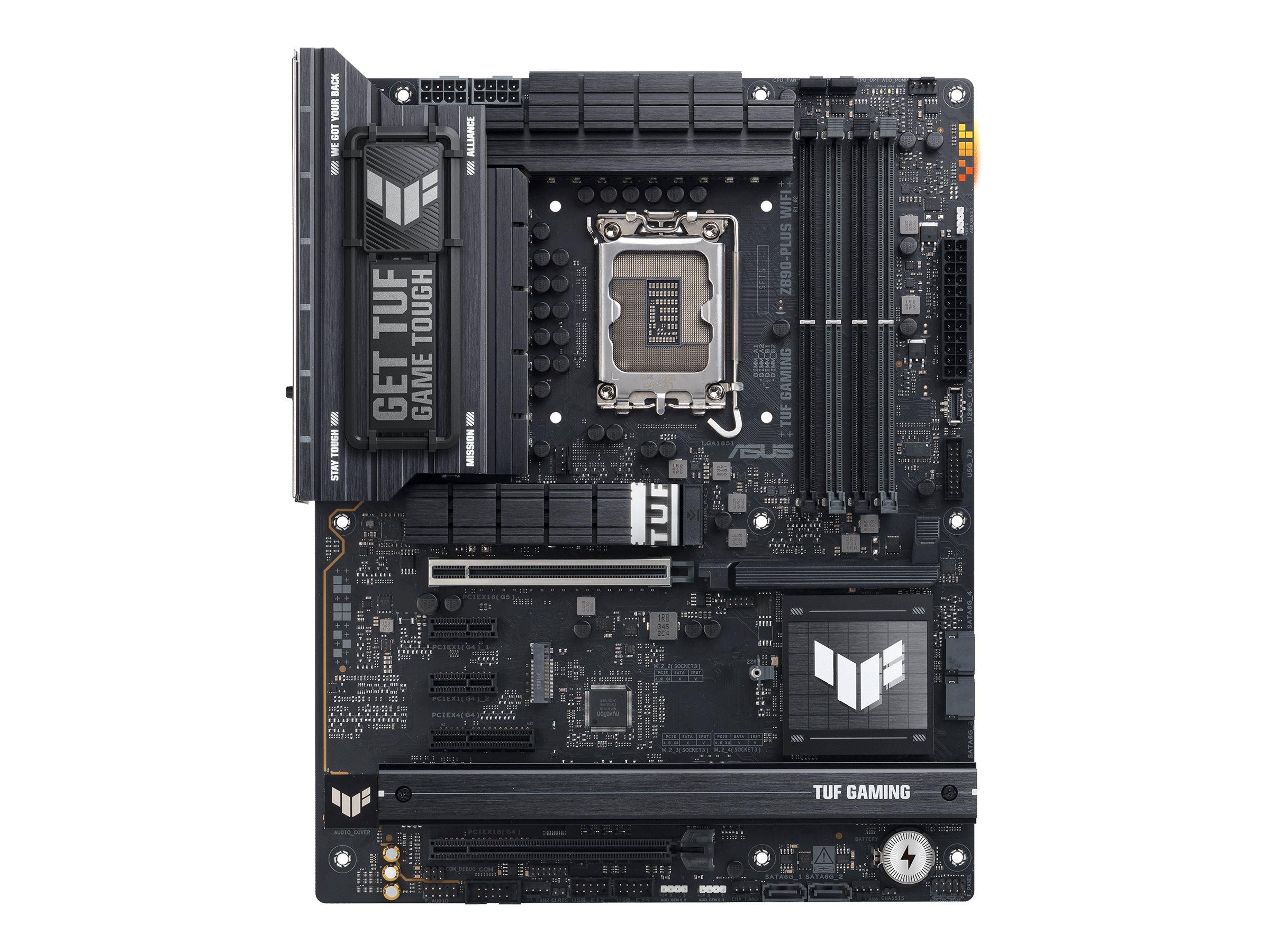

ASUS TUF GAMING Z890-PLUS WIFI

$446.00
ASUS TUF GAMING Z890-PLUS WIFI
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1851 Socket
  • Z890 Chipset
  • USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1
ASUS TUF GAMING Z890-PLUS WIFI
  • Motherboard
  • ATX
  • LGA1851 Socket
  • Z890 Chipset
  • USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1
  • 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $446.00
Mfr Part #: TUF GAMING Z890-PLUS WIFI
SHI Part #: 48966408
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS TUF GAMING Z890-PLUS WIFI - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$0.00
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z890
Mainboard / Processor SocketLGA1851 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC1220P
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x PCIe 4.0 x4
  • 2 x PCIe 4.0 x1
  • 1 x M.2 socket (2280 M.2 Key M slot)
  • 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (2280/22110 M.2 Key M slot)
Interfaces
  • 1 x HDMI
  • 1 x DisplayPort
  • 2 x antenna
  • 1 x USB-C 3.2 Gen2x2/DisplayPort
  • 3 x USB 3.2 Gen 2
  • 1 x Thunderbolt 4
  • 3 x USB 3.2 Gen 1
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x SPDIF out
Internal Interfaces
  • 4 x USB 2.0 - header
  • 1 x USB-C 3.2 Gen 2x2 - header
  • 2 x USB 3.2 Gen 1 - header
  • 1 x serial - header
  • 1 x Thunderbolt 4 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesIntel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, audio jack detect technology, jack retasking, LANGuard, CrashFree BIOS 3, Preboot eXecution Environment (PXE), BIOS FlashBack button, ASUS TUF Protection, ASUS DIGI+ VRM, ESD Guards, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, CPU Socket lever protector, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, 16+1+2+1 Phase Power Design, 80A Power Stage, Dr.MOS MOSFET, 8 Layer PCB, ProCool Power Connector, AI Cooling II, AI Networking II, NPU Boost, ASUS Enhanced Memory Profile (AEMP) III
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z890
Compatible Processors(supports Intel Core Ultra processors (Series 2))
Max Processors Qty1
Processor SocketLGA1851 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsDisplayPort 2.1
Depth24.4 cm
Included AccessoriesASUS Wi-Fi Q-antenna, M.2 Q-Slide, 2 x M.2 rubber package, M.2 screw package, TUF GAMING sticker, TUF GAMING removable nameplate
Package DetailsBox
Software IncludedArmoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Adobe Creative Cloud (free trial), Norton 360 for Gamers (60 days trial), WinRAR (40 days trial)
Width30.5 cm
Supported RAM
Bus Clock4533 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size192 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
